Pattern Data Integration and Visualization
Import measured or third-party simulated radiation pattern data of an
antenna or array from TXT, CSV, FFD, or MSI Planet antenna file
(.msi or .pln). Use this data to
excite cavity and reflector backing structures through the measuredAntenna object or integrate it into RF systems using
the Antenna (RF Blockset) block. Visualize 3-D radiation patterns, near- and
far-fields, and create interactive polar plots with this data. Antenna
Toolbox™ functions allow you to read and write radiation pattern data from
MSI planet antenna files in ASCII text format. Additionally, you can
reconstruct a 3-D radiation pattern from 2-D pattern slice data.
Objects
measuredAntenna | Use measured pattern data as exciter for backing structures (Since R2023a) |
polarpattern | Interactive plot of radiation patterns in polar format |
PatternPlotOptions | Create option list to customize 3-D radiation pattern for pattern overlay option |
Functions
fieldsCustom | Plot electric or magnetic field of antenna |
msiread | Read antenna or array analysis data from MSI planet file |
msiwrite | Write antenna or array analysis data to MSI planet file |
patternCustom | Plot radiation pattern using spherical coordinate system (phi and theta angles) |
patternFromAI | Reconstruct 3-D radiation pattern of antenna or array from two orthogonal pattern slices using AI (Since R2024a) |
patternFromSlices | Reconstruct approximate 3-D radiation pattern from two orthogonal slices |
smithplot | Plot measurement data on Smith chart |
Topics
- Interact with Polar Plot
Use the interactivity features of a polar plot.
Featured Examples

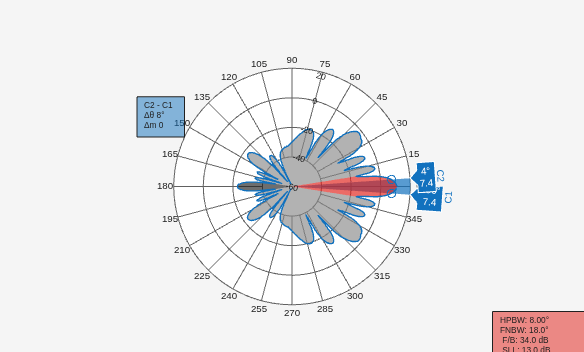

Read, Visualize and Write MSI Planet Antenna Files
Read an MSI Planet antenna file (.msi or .pln). You can read an MSI file using the msiread function and visualize the data using the polarpattern function. You can also write the data back into the MSI Planet format using the msiwrite function.

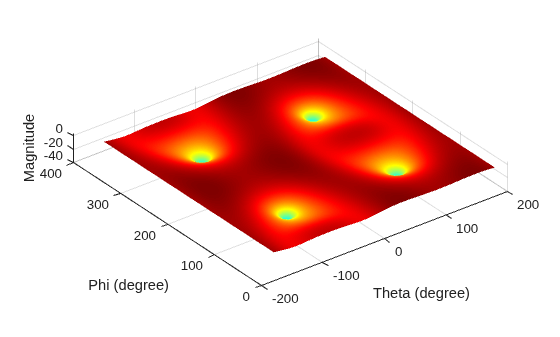

Import Measured Field Data and Visualize Radiation Pattern
Visualize a radiation pattern and vector fields from the imported pattern data. Use the patternCustom function to plot the field data in 3D. This function also allows you to view the sliced data. Alternatively, use the polarpattern object to visualize the field data in 2D polar format. The polarpattern function allows you to interact with the data and perform antenna specific measurements. You can also plot the vector fields at a point in space using the fieldsCustom function.

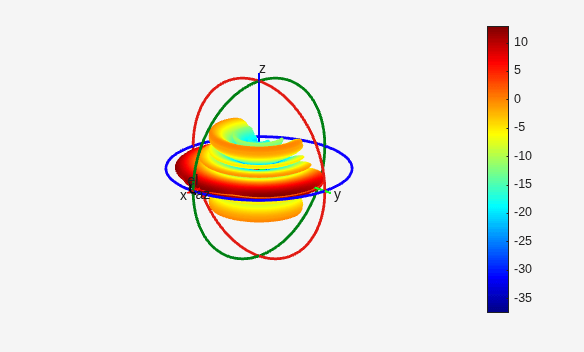

Reconstruction of 3-D Radiation Pattern from 2-D Orthogonal Slices
Reconstruct a 3-D radiation pattern using patternFromSlices function. A 3-D radiation pattern is a very important tool for antenna analysis, characterization, design, planning, and applications. This example shows reconstruction of 3-D radiation pattern from two orthogonal slices for an omni-directional dipole, a directional helix, and imported pattern data of an antenna.

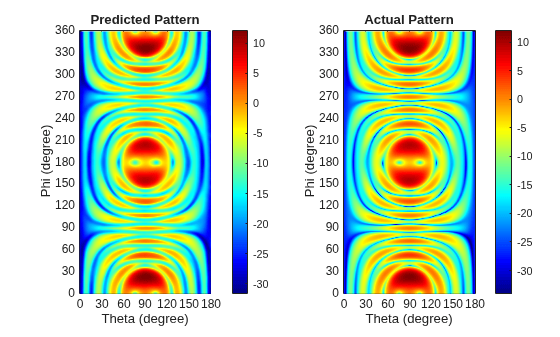

Reconstruct 3-D Antenna Pattern from 2-D Slices Using Deep Learning
Use deep learning to reconstruct a 3-D antenna radiation pattern from two orthogonal 2-D slices.
