patternCustom

Plot radiation pattern using spherical coordinate system (phi and theta angles)

Description

example

patternCustom(magE,theta,phi) plots the 3-D radiation pattern of an antenna magnitude, magE over the specified phi and theta angle vectors.

example

patternCustom(magE,theta,phi,Name,Value) uses additional options specified by one or more Name,Value pair arguments.

hplot = patternCustom(___) returns handles of the lines or surface in the figure window. This syntax accepts any combination of arguments from the previous syntaxes

Examples

collapse all

Consider a helix antenna data file in .csv format. This file contains the magnitude of the antenna directivity in phi and theta angles. Read the file .

helixdata = csvread('antennadata_test.csv',1,0);

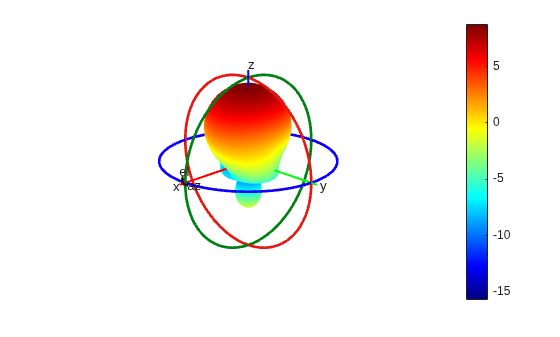

Use patternCustom to extract the magnitude of directivity, and the phi, and theta angle values. Plot the 3-D polar radiation pattern.

patternCustom(helixdata(:,3),helixdata(:,2),helixdata(:,1));

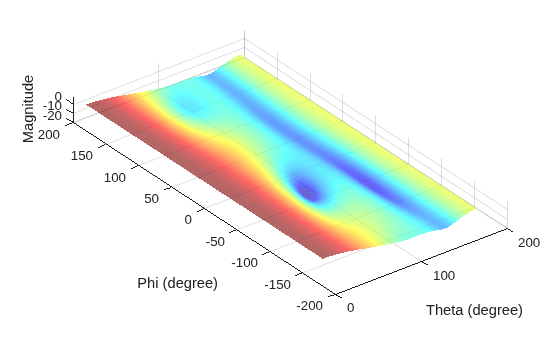

Use the same data to plot the 3-D rectangular radiation pattern.

figure
patternCustom(helixdata(:,3),helixdata(:,2),helixdata(:,1),...
 'CoordinateSystem','rectangular');

Figure contains an axes. The axes contains an object of type surface.

Calculate the magnitude, azimuth, and elevation angles of a helix's directivity at 2 GHz.

h = helix;
[D,az,el] = pattern(h,2e9);

Here, az = the angle from the positive x-axis to the directivity vector's orthogonal projection onto the xy plane, moving in the direction towards the y-axis.

el = the angle from the directivity vector's orthogonal projection onto the xy plane to the vector, moving in the direction towards the z-axis.

Extract theta and phi angles of the directivity magnitude.

phi = az';
theta = (90-el);
MagE = D';

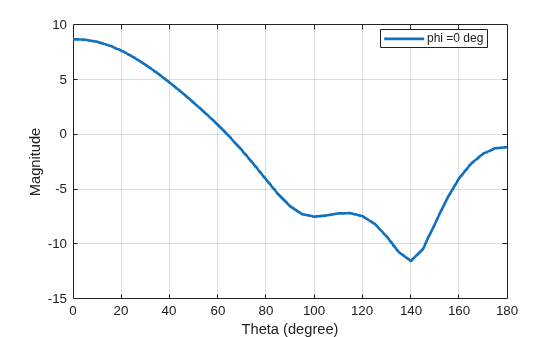

Plot 2-D phi slice of the antenna in rectangular coordinates.

figure;
patternCustom(MagE,theta,phi,'CoordinateSystem','rectangular',...
    'Slice','phi','SliceValue',0);

Figure contains an axes. The axes contains an object of type line. This object represents phi =0 deg.

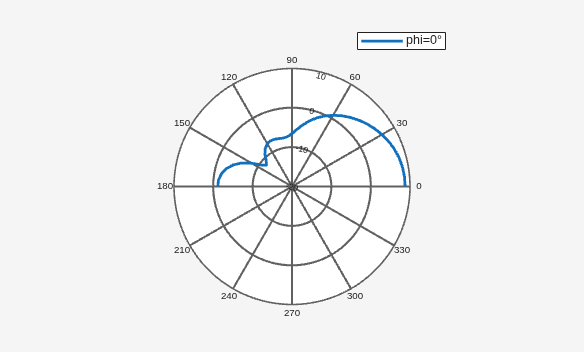

Plot 2-D phi slice of the antenna in polar coordinates.

figure;
patternCustom(MagE, theta, phi,'CoordinateSystem','polar',...
    'Slice','phi','SliceValue',0);

Input Arguments

collapse all

Magnitude of plotted quantity, specified as one of the following:

  • A N-by-1 real vector . N is the same size as the phi and theta angle vectors.

  • A M-by-R matrix. The matrix should be the same size as phi x theta.

where theta and phi angles are in the spherical coordinate system specified as a vector.

Data quantities plotted include directivity, E-fields, H-fields, or power of an antenna or array object.

Data Types: double

Theta angles in spherical coordinates, specified as a vector in degrees. If azimuth and elevation values are given, theta angle values are 90 degrees minus elevation.

For more information, Antenna Toolbox Coordinate System.

Data Types: double

Phi angles in spherical coordinates, specified as a vector in degrees. If azimuth and elevation values are given, phi angle values are same as azimuth values.

For more information, Antenna Toolbox Coordinate System.

Data Types: double

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'CoordinateSystem','rectangular'

Coordinate system of radiation pattern, specified as the comma-separated pair consisting of 'CoordinateSystem' and one of these values: 'polar', 'rectangular'.

Example: 'CoordinateSystem','polar'

Data Types: char

Plane to visualize 2-D data, specified as a comma-separated pair consisting of 'Slice' and 'theta' or 'phi'.

Example: 'Slice','phi'

Data Types: char

Angle values for slice, specified as a comma-separated pair consisting of 'SliceValue' and a scalar or a vector.

Output Arguments

collapse all

Lines or surfaces in figure window, returned as object handle.

Introduced in R2016a
