comm.DiscreteTimeVCO

Generate variable frequency sinusoid

Description

The DiscreteTimeVCO (voltage-controlled oscillator) object generates a signal whose frequency shift from the quiescent frequency property is proportional to the input signal. The input signal is interpreted as a voltage.

To generate a variable frequency sinusoid:

Define and set up your discrete time voltage-controlled oscillator object. See Construction .
Call step to generate a variable frequency sinusoid according to the properties of comm.DiscreteTimeVCO. The behavior of step is specific to each object in the toolbox.

Note

Starting in R2016b, instead of using the step method to perform the operation defined by the System object™, you can call the object with arguments, as if it were a function. For example, y = step(obj,x) and y = obj(x) perform equivalent operations.

Construction

H = comm.DiscreteTimeVCO creates a discrete-time voltage-controlled oscillator (VCO) System object, H. This object generates a sinusoidal signal with the frequency shifted from the specified quiescent frequency to a value proportional to the input signal.

H = comm.DiscreteTimeVCO(Name,Value) creates a discrete-time VCO object, H, with each specified property set to the specified value. You can specify additional name-value pair arguments in any order as (Name1,Value1,...,NameN,ValueN).

Properties

`OutputAmplitude`	Amplitude of output signal Specify the amplitude of the output signal as a double- or single-precision, scalar value. The default is `1`. This property is tunable.
`QuiescentFrequency`	Frequency of output signal when input is zero Specify the quiescent frequency of the output signal in Hertz, as a double- or single-precision, real, scalar value. The default is `10`. This property is tunable.
`Sensitivity`	Sensitivity of frequency shift of output signal Specify the sensitivity of the output signal frequency shift to the input as a double- or single-precision, real, scalar value. The default is `1`. This value scales the input voltage and, consequently, the shift from the quiescent frequency value. The property measures Sensitivity in Hertz per volt. This property is tunable.
`InitialPhase`	Initial phase of output signal Specify the initial phase of the output signal, in radians, as a double or single precision, real, scalar value. The default is `0`.
`SampleRate`	Sample rate of input Specify the sample rate of the input, in Hertz, as a double- or single-precision, positive, scalar value. The default is `100`.

Methods

step	Generate variable frequency sinusoid

Common to All System Objects
`release`	Allow System object property value changes
`reset`	Reset internal states of System object

Examples

collapse all

Generate FSK Signal Using Discrete Time VCO

Open Live Script

Create a signal source System object™.

reader = dsp.SignalSource;

Generate random data and apply rectangular pulse shaping.

reader.Signal = randi([0 7],10,1);
reader.Signal = rectpulse(reader.Signal,100);

Create a signal logger and discrete time VCO System objects.

logger = dsp.SignalSink;
discreteVCO = comm.DiscreteTimeVCO( ...
    'OutputAmplitude',8, ...
    'QuiescentFrequency',1);

Generate an FSK signal.

while(~isDone(reader))
    sig = reader();
    y = discreteVCO(sig);
    logger(y);
end
oscsig = logger.Buffer;

Plot the generated FSK signal.

t = (0:length(oscsig)-1)'/discreteVCO.SampleRate;
plot(t,reader.Signal,'--r', 'LineWidth',3)
hold on
plot(t,oscsig,'-b');
hold off
xlabel('Time (s)')
ylabel('Amplitude (V)')
legend('Input Signal','FSK Signal','location','se')

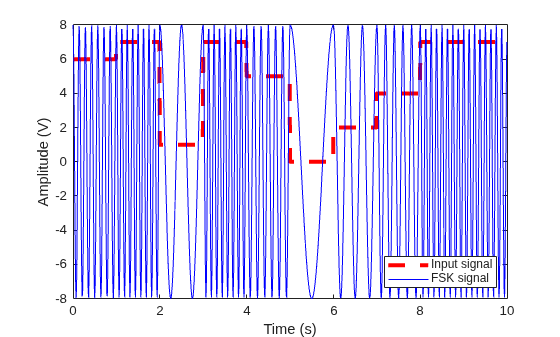

Figure contains an axes object. The axes object with xlabel Time (s), ylabel Amplitude (V) contains 2 objects of type line. These objects represent Input Signal, FSK Signal.

Algorithms

This object implements the algorithm, inputs, and outputs as described on the Discrete-Time VCO block reference page. However, this object and the corresponding block may not generate the exact same outputs for single-precision inputs or property values due to the following differences in casting strategies and arithmetic precision issues:

The block always casts the result of intermediate mathematical operations to the input data type. The object does not cast intermediate results and MATLAB decides the data type. The object casts the final output to the input data type.
You can specify the SampleRate object property in single-precision or double-precision. The block does not allow this.
In arithmetic operations with more than two operands with mixed data types, the result may differ depending on the order of operation. Thus, the following calculation may also contribute to the difference in the output of the block and the object:
input * sensitivity * sampleTime
The block performs this calculation from left to right. However, since sensitivity * sampleTime is a one-time calculation, the object calculates this in the following manner:
input * (sensitivity * sampleTime)
