openloopeditor

Open-loop editor for SISO control systems

Since R2025a

Syntax

openloopeditor(Plant=plant)

ole = openloopeditor(parent)

ole = openloopeditor(___,Name=Value)

Description

ole = openloopeditor(Plant=plant) creates an open-loop editor for tuning a compensator for plant plant and returns a corresponding OpenLoopEditor object. In this case, the editor opens in a new figure using a Bode editor view.

• If you do not specify the plant when you create the editor, you must define the plant before tuning by setting the Plant property of ole.

• To obtain the tuned compensator, use the Compensator property of ole.

For more information on designing a compensator using a standalone open-loop editor, see Design Compensator Using Open-Loop Editor.

ole = openloopeditor(parent) creates a default open-loop editor in the specified parent graphics container, such as a UIGridLayout, and sets the Parent property. Use this syntax when you want to create an editor in a specified open figure or when creating apps in App Designer.

For an app-creation example, see Create Open-Loop Control Design App.

ole = openloopeditor(___,Name=Value) configures the open-loop editor using one or more name-value arguments. For example, openloopeditor(Plant=sys,ViewType="rlocus") specifies the plant as dynamic system model sys and configures the editor view as a root locus editor.

Examples

Tune Compensator Using Open-Loop Editor

Create a standalone open-loop editor to tune a compensator for a specified plant.

Specify a SISO plant for tuning. For this example, use a random third-order state-space system.

G = rss(3);

Create an open-loop editor for this plant.

ole = openloopeditor(Plant=G);

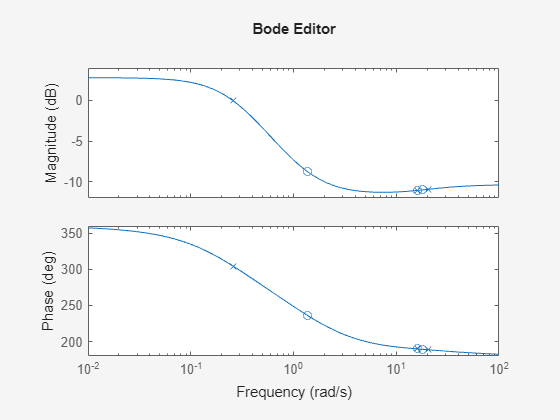

A default Bode editor opens in a new figure. To change the appearance of the Bode editor, for example to add grid lines or change axis limits, you can modify the returned ole object.

Interactively tune the controller using the open-loop editor. For an example, see Design Compensator Using Open-Loop Editor.

After tuning, obtain the final compensator from the Compensator property of ole.

C = ole.Compensator;

During tuning, you can plot the closed-loop step response of the combined compensator and plant.

CL = feedback(ole.Plant*ole.Compensator,1);
stepplot(CL)

Root-Locus Editor

Create a standalone open-loop editor to tune a compensator for a specified plant using a root locus editor view.

Specify a SISO plant for tuning. For this example, use a random third-order state-space system.

G = rss(3);

Create a root locus editor for this plant.

ole = openloopeditor(Plant=G,ViewType="rlocus");

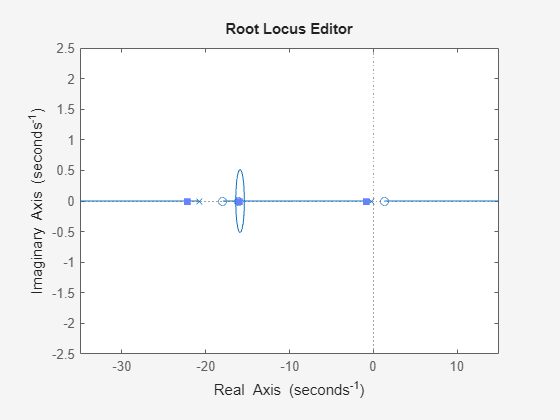

A root locus editor opens in a new figure.

Interactively tune the controller using the open-loop editor. For an example, see Design Compensator Using Open-Loop Editor.

After tuning, obtain the final compensator from the Compensator property of ole.

C = ole.Compensator;

Open-Loop Editor with Linked Step Plot

You can create linear analysis plots that automatically update when you modify a compensator using an open-loop editor. This example creates a Bode editor and a step plot in separate figures and updates the step plot when the compensator changes.

Create SISO plant.

plant = rss(3);

Create open-loop editor.

ole = openloopeditor(Plant=plant);

Create step plot in a separate figure and plot the initial closed-loop response with a unit-gain compensator.

sp = stepplot(feedback(plant,1));

Define a callback function that updates the step plot when the compensator value changes. Here, src is the event source (open-loop editor) and data is an event data structure that contains the updated compensator..

function updateStepPlot(src,data,sp)
    sp.Responses(1).SourceData.Model = ...
        feedback(src.Plant*data.Compensator,1);
end

Set the callback function in the open-loop editor to the updateStepPlot function and pass the step-plot object as an additional input argument.

ole.CompensatorChangedFcn = @(src,data) updateStepPlot(src,data,sp);

When you modify the compensator using the open-loop editor, the step plot updates to show the new closed-loop response.

Figure with Open-Loop Editor and Step Plot

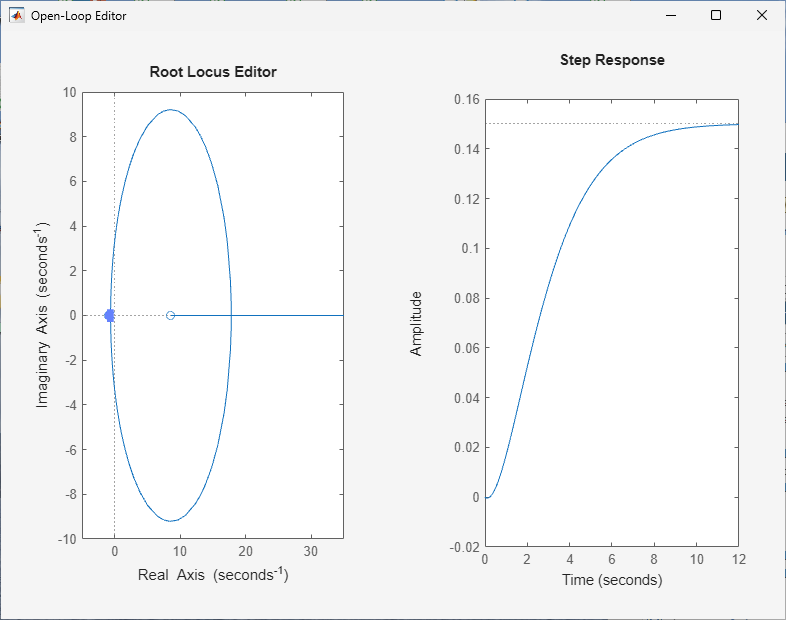

This example creates a root locus editor and a step plot in a single figure and updates the step plot when the compensator changes.

Create SISO plant.

plant = rss(3);

Create a figure that contains a grid layout with one row and two columns. Increase the height and width of the figure by 40%.

f = uifigure(Name="Open-Loop Editor");
f.Position(3) = f.Position(3)*1.4;
f.Position(4) = f.Position(4)*1.4;
gl = uigridlayout(f,[1 2]);

Create an open-loop editor and add it to the grid layout.

ole = openloopeditor(gl,Plant=plant,ViewType="rlocus");

Create a step plot of the initial closed-loop response and add it to the grid layout.

sp = stepplot(gl,feedback(plant,1));

Define a callback function that updates the step plot when the compensator value changes. Here, src is the event source (open-loop editor) and data is an event data structure.

function updateStepPlot(src,data,sp)
    sp.Responses(1).SourceData.Model = ...
        feedback(src.Plant*data.Compensator,1);
end

Set the callback function in the open-loop editor using a handle to the updateStepPlot function.

ole.CompensatorChangedFcn = @(src,data) updateStepPlot(src,data,sp);

When you modify the compensator using the open-loop editor, the step plot updates to show the new closed-loop response.

Input Arguments

parent — Parent graphics container

Figure object | UIFigure object | UIGridLayout object | UIPanel object | UITab object

Parent graphics container, specified as one of these objects:

• Figure

• UIFigure

• UIGridLayout

• UIPanel

• UITab

plant — Fixed plant

ss(NaN) (default) | SISO dynamic system model | array of dynamic system models

Fixed plant for which the compensator is being designed, specified as a SISO dynamic system model or an array of such systems.

This argument sets the Plant property of the editor.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: openloopeditor(ViewType="rlocus") configures the editor view as a root locus editor

Note

The properties listed here are only a subset. For a complete list, see OpenLoopEditor Properties.

Plant — Fixed plant

ss(NaN) (default) | SISO dynamic system model | array of dynamic system models

Fixed plant for which the compensator is being designed, specified as a SISO dynamic system model or an array of such systems.

This argument sets the Plant property of the editor.

Compensator — Compensator

zpk(1) object (default) | SISO dynamic system model

Compensator, specified as a SISO dynamic system model and stored as a zpk object. You can modify the compensator gain, poles, and zeros either interactively using the open-loop editor or programmatically using the Compensator property.

This argument sets the Compensator property of the editor.

ViewType — Editor view type

"bode" (default) | "nichols""rlocus"

Editor view type, specified as one of these values:

• "bode" — Bode editor view

• "nichols" — Nichols editor view

• "rlocus" — Root locus editor view

This argument sets the ViewType property of the editor.

ViewOptions — Editor view configuration options

bodeoptions object (default) | nicholsoptions object | pzoptions object

Editor view configuration options, specified as one of these objects:

• bodeoptions object when ViewType is "bode"

• nicholsoptions object when ViewType is "nichols"

• pzoptions object when ViewType is "rlocus"

This argument sets a subset of the parameters in the View property of the editor.

Output Arguments

ole — Open-loop editor component

OpenLoopEditor object

Open-loop editor component, returned as an OpenLoopEditor object. You can modify the appearance and behavior of the editor using dot notation.

Version History

Introduced in R2025a
