importONNXFunction
Description
imports an Open Neural Network Exchange ONNX™ network from the file params
= importONNXFunction(modelfile
,NetworkFunctionName
)modelfile
and returns an ONNXParameters
object (params
) that contains the network parameters. The function also
creates a model function with the name specified by NetworkFunctionName
that contains the network architecture. For more information about the network function, see
Imported ONNX Model Function.
Use the ONNXParameters
object and the
NetworkFunctionName
model function to perform common deep learning
tasks, such as image and sequence data classification, transfer learning, object detection,
and image segmentation. importONNXFunction
is useful when you cannot
import the network using the importNetworkFromONNX
function (for example,
importONNXFunction
can import YOLOv3) or if you want to define your own
custom training loop (for more details, see Train Network Using Custom Training Loop).
This function requires the Deep Learning Toolbox™ Converter for ONNX Model Format support package. If this support package is not installed, then the function provides a download link.
Examples
Import ONNX Network as Function
Import an ONNX network as a function. You can use the imported model function for deep learning tasks, such as prediction and transfer learning.
Download and install the Deep Learning Toolbox Converter for ONNX Model Format support package. You can enter importONNXFunction
at the command line to check if the support package is installed. If it is not installed, then the function provides a link to the required support package in the Add-On Explorer. To install the support package, click the link, and then click Install.
Specify the file to import as shufflenet
with operator set 9 from the ONNX Model Zoo. shufflenet
is a convolutional neural network that is trained on images from the ImageNet database.
modelfile = "shufflenet-9.onnx";
Import the network as a function to generate a model function that you can readily use for deep learning tasks.
params = importONNXFunction(modelfile,"shufflenetFcn")
Function containing the imported ONNX network architecture was saved to the file shufflenetFcn.m. To learn how to use this function, type: help shufflenetFcn.
params = ONNXParameters with properties: Learnables: [1x1 struct] Nonlearnables: [1x1 struct] State: [1x1 struct] NumDimensions: [1x1 struct] NetworkFunctionName: 'shufflenetFcn'
importONNXFunction
returns the ONNXParameters
object params
, which contains the network parameters, and the model function shufflnetFcn
, which contains the network architecture. importONNXFunction
saves shufflenetFcn
in the current folder. You can open the model function to view or edit the network architecture by using open shufflenetFcn
.
Deep Learning Toolbox Converter for ONNX Model Format also provides the importNetworkFromONNX
function, which you can use to import a pretrained ONNX network.
Predict Using Imported ONNX Function
Import an ONNX network as a function, and use the pretrained network to predict the class label of an input image.
Specify the file to import as shufflenet
with operator set 9 from the ONNX Model Zoo. shufflenet
is a convolutional neural network that is trained on more than a million images from the ImageNet database. As a result, the network has learned rich feature representations for a wide range of images. The network can classify images into 1000 object categories, such as keyboard, mouse, pencil, and many animals.
modelfile = 'shufflenet-9.onnx';
Import the pretrained ONNX network as a function by using importONNXFunction
, which returns the ONNXParameters
object params
. This object contains the network parameters. The function also creates a new model function in the current folder that contains the network architecture. Specify the name of the model function as shufflenetFcn
.
params = importONNXFunction(modelfile,'shufflenetFcn');
A function containing the imported ONNX network has been saved to the file shufflenetFcn.m. To learn how to use this function, type: help shufflenetFcn.
Read the image you want to classify and display the size of the image. The image is 792-by-1056 pixels and has three color channels (RGB).
I = imread('peacock.jpg');
size(I)
ans = 1×3
792 1056 3

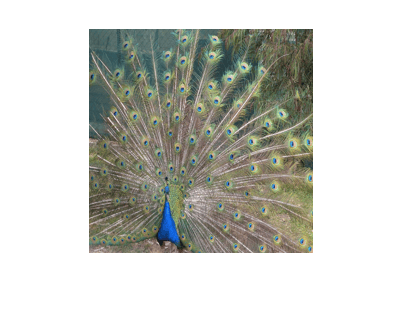

Resize the image to the input size of the network. Show the image.
I = imresize(I,[224 224]); imshow(I)

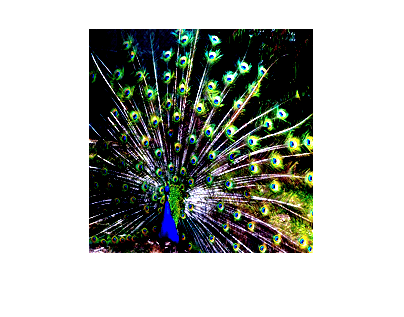

The inputs to shufflenet
require further preprocessing (for more details, see ShuffleNet in ONNX Model Zoo). Rescale the image. Normalize the image by subtracting the training images mean and dividing by the training images standard deviation.
I = rescale(I,0,1); meanIm = [0.485 0.456 0.406]; stdIm = [0.229 0.224 0.225]; I = (I - reshape(meanIm,[1 1 3]))./reshape(stdIm,[1 1 3]); imshow(I)
Import the class names from squeezenet
, which is also trained with images from the ImageNet database.
net = squeezenet; ClassNames = net.Layers(end).ClassNames;
Calculate the class probabilities by specifying the image to classify I
and the ONNXParameters
object params
as input arguments to the model function shufflenetFcn
.
scores = shufflenetFcn(I,params);
Find the class index with the highest probability. Display the predicted class for the input image and the corresponding classification score.
indMax = find(scores==max(scores)); ClassNames(indMax)
ans = 1×1 cell array
{'peacock'}
scoreMax = scores(indMax)
scoreMax = 0.7517
Train Imported ONNX Function Using Custom Training Loop
Import the SqueezeNet convolution neural network as a function and fine-tune the pretrained network with transfer learning to perform classification on a new collection of images.
This example uses several helper functions. To view the code for these functions, see Helper Functions.
Unzip and load the new images as an image datastore. imageDatastore
automatically labels the images based on folder names and stores the data as an ImageDatastore
object. An image datastore enables you to store large image data, including data that does not fit in memory, and efficiently read batches of images during training of a convolutional neural network. Specify the mini-batch size.
unzip("MerchData.zip"); miniBatchSize = 8; imds = imageDatastore("MerchData", ... IncludeSubfolders=true, ... LabelSource="foldernames", ... ReadSize=miniBatchSize);
This data set is small, containing 75 training images. Display some sample images.
numImages = numel(imds.Labels); idx = randperm(numImages,16); figure for i = 1:16 subplot(4,4,i) I = readimage(imds,idx(i)); imshow(I) end
Extract the training set and one-hot encode the categorical classification labels.
XTrain = readall(imds); XTrain = single(cat(4,XTrain{:})); YTrain_categ = categorical(imds.Labels); YTrain = onehotencode(YTrain_categ,2)';
Determine the number of classes in the data.
classes = categories(YTrain_categ); numClasses = numel(classes)
numClasses = 5
SqueezeNet is a convolutional neural network that is trained on more than a million images from the ImageNet database. As a result, the network has learned rich feature representations for a wide range of images. The network can classify images into 1000 object categories, such as keyboard, mouse, pencil, and many animals.
Import the pretrained SqueezeNet network as a function.
squeezenetONNX() params = importONNXFunction("squeezenet.onnx","squeezenetFcn")
Function containing the imported ONNX network architecture was saved to the file squeezenetFcn.m. To learn how to use this function, type: help squeezenetFcn.
params = ONNXParameters with properties: Learnables: [1×1 struct] Nonlearnables: [1×1 struct] State: [1×1 struct] NumDimensions: [1×1 struct] NetworkFunctionName: 'squeezenetFcn'
params
is an ONNXParameters
object that contains the network parameters. squeezenetFcn
is a model function that contains the network architecture. importONNXFunction
saves squeezenetFcn
in the current folder.
Calculate the classification accuracy of the pretrained network on the new training set.
accuracyBeforeTraining = getNetworkAccuracy(XTrain,YTrain,params);
fprintf("%.2f accuracy before transfer learning\n",accuracyBeforeTraining);
0.01 accuracy before transfer learning
The accuracy is very low.
Display the learnable parameters of the network by typing params.Learnables
. These parameters, such as the weights (W
) and bias (B
) of convolution and fully connected layers, are updated by the network during training. Nonlearnable parameters remain constant during training.
The last two learnable parameters of the pretrained network are configured for 1000 classes.
conv10_W: [1×1×512×1000 dlarray]
conv10_B: [1000×1 dlarray]
The parameters conv10_W
and conv10_B
must be fine-tuned for the new classification problem. Transfer the parameters to classify five classes by initializing the parameters.
params.Learnables.conv10_W = rand(1,1,512,5); params.Learnables.conv10_B = rand(5,1);
Freeze all the parameters of the network to convert them to nonlearnable parameters. Because you do not need to compute the gradients of the frozen layers, freezing the weights of many initial layers can significantly speed up network training.
params = freezeParameters(params,"all");
Unfreeze the last two parameters of the network to convert them to learnable parameters.
params = unfreezeParameters(params,"conv10_W"); params = unfreezeParameters(params,"conv10_B");
The network is ready for training. Specify the training options.
velocity = []; numEpochs = 5; miniBatchSize = 16; initialLearnRate = 0.01; momentum = 0.9; decay = 0.01;
Calculate the total number of iterations for the training progress monitor.
numObservations = size(YTrain,2); numIterationsPerEpoch = floor(numObservations./miniBatchSize); numIterations = numEpochs*numIterationsPerEpoch;
Initialize the TrainingProgressMonitor
object. Because the timer starts when you create the monitor object, make sure that you create the object immediately after the training loop.
monitor = trainingProgressMonitor(Metrics="Loss",Info="Epoch",XLabel="Iteration");
Train the network.
epoch = 0; iteration = 0; executionEnvironment = "cpu"; % Change to "gpu" to train on a GPU. % Loop over epochs. while epoch < numEpochs && ~monitor.Stop epoch = epoch + 1; % Shuffle data. idx = randperm(numObservations); XTrain = XTrain(:,:,:,idx); YTrain = YTrain(:,idx); % Loop over mini-batches. i = 0; while i < numIterationsPerEpoch && ~monitor.Stop i = i + 1; iteration = iteration + 1; % Read mini-batch of data. idx = (i-1)*miniBatchSize+1:i*miniBatchSize; X = XTrain(:,:,:,idx); Y = YTrain(:,idx); % If training on a GPU, then convert data to gpuArray. if (executionEnvironment == "auto" && canUseGPU) || executionEnvironment == "gpu" X = gpuArray(X); end % Evaluate the model gradients and loss using dlfeval and the % modelGradients function. [gradients,loss,state] = dlfeval(@modelGradients,X,Y,params); params.State = state; % Determine the learning rate for the time-based decay learning rate schedule. learnRate = initialLearnRate/(1 + decay*iteration); % Update the network parameters using the SGDM optimizer. [params.Learnables,velocity] = sgdmupdate(params.Learnables,gradients,velocity,learnRate); % Update the training progress monitor. recordMetrics(monitor,iteration,Loss=loss); updateInfo(monitor,Epoch=epoch,LearnRate=learnRate); monitor.Progress = 100 * iteration/numIterations; end end
Calculate the classification accuracy of the network after fine-tuning.
accuracyAfterTraining = getNetworkAccuracy(XTrain,YTrain,params);
fprintf("%.2f accuracy after transfer learning\n",accuracyAfterTraining);
1.00 accuracy after transfer learning
Helper Functions
This section provides the code of the helper functions used in this example.
The getNetworkAccuracy
function evaluates the network performance by calculating the classification accuracy.
function accuracy = getNetworkAccuracy(X,Y,onnxParams) N = size(X,4); Ypred = squeezenetFcn(X,onnxParams,Training=false); [~,YIdx] = max(Y,[],1); [~,YpredIdx] = max(Ypred,[],1); numIncorrect = sum(abs(YIdx-YpredIdx) > 0); accuracy = 1 - numIncorrect/N; end
The modelGradients
function calculates the loss and gradients.
function [grad, loss, state] = modelGradients(X,Y,onnxParams) [y,state] = squeezenetFcn(X,onnxParams,Training=true); loss = crossentropy(y,Y,DataFormat="CB"); grad = dlgradient(loss,onnxParams.Learnables); end
The squeezenetONNX
function generates an ONNX model of the SqueezeNet network.
function squeezenetONNX() exportONNXNetwork(squeezenet,"squeezenet.onnx"); end
Sequence Classification Using Imported ONNX Function
Import an ONNX long short-term memory (LSTM) network as a function, and use the pretrained network to classify sequence data. An LSTM network enables you to input sequence data into a network, and make predictions based on the individual time steps of the sequence data.
This example uses the helper function preparePermutationVector
. To view the code for this function, see Helper Function.
lstmNet
has a similar architecture to the LSTM network created in Sequence Classification Using Deep Learning. lstmNet
is trained to recognize the speaker given time series data representing two Japanese vowels spoken in succession. The training data contains time series data for nine speakers. Each sequence has 12 features and varies in length.
Specify lstmNet
as the model file.
modelfile = 'lstmNet.onnx';
Import the pretrained ONNX network as a function by using importONNXFunction
, which returns the ONNXParameters
object params
containing the network parameters. The function also creates a new model function in the current folder that contains the network architecture. Specify the name of the model function as lstmnetFcn
.
params = importONNXFunction(modelfile,'lstmnetFcn');
Function containing the imported ONNX network architecture was saved to the file lstmnetFcn.m. To learn how to use this function, type: help lstmnetFcn.
Load the Japanese Vowels test data. XTest
is a cell array containing 370 sequences of dimension 12 and varying length. TTest
is a categorical vector of labels "1","2",..."9", which correspond to the nine speakers.
load JapaneseVowelsTestData;
lstmNet
was trained using mini-batches with sequences of similar length. To organize the test data in the same way, sort the test data by sequence length.
numObservationsTest = numel(XTest); for i=1:numObservationsTest sequence = XTest{i}; sequenceLengthsTest(i) = size(sequence,2); end [sequenceLengthsTest,idx] = sort(sequenceLengthsTest); XTest = XTest(idx); TTest = TTest(idx);
Use preparePermutationVector
to compute the permutation vector inputPerm
, which permutes the dimension ordering of the input sequence data to the dimension ordering of the imported LSTM network input. You can type help lstmnetFcn
to view the dimension ordering of the network input SEQUENCEINPUT
.
inputPerm = preparePermutationVector(["FeaturesLength","SequenceLength","BatchSize"],... ["SequenceLength","BatchSize","FeaturesLength"]);
Calculate the class probabilities by specifying the sequence data to classify XTest
and the ONNXParameters
object params
as input arguments to the model function lstmnetFcn
. Customize the input dimension ordering by assigning the numeric vector inputPerm
to the name-value argument 'InputDataPermutation'
. Return scores
in the dimension ordering of the network output by assigning 'none'
to the name-value argument 'OutputDataPermutation'
.
for i = 1:length(XTest) scores = lstmnetFcn(XTest{i},params,'InputDataPermutation',inputPerm,'OutputDataPermutation','none'); YPred(i) = find(scores==max(scores)); end YPred = categorical(YPred');
Calculate the classification accuracy of the predictions.
acc = sum(YPred == TTest)./numel(TTest)
acc = 0.9514
Helper Function
This section provides the code of the helper function preparePermutationVector
used in this example.
The preparePermutationVector
function returns a permutation vector perm
, which permutes the dimension ordering in fromDimOrder
to the dimension ordering in toDimOrder
. You can specify the input arguments fromDimOrder
and toDimOrder
as character vectors, string scalars, string arrays, cell arrays of character vectors, or numeric vectors. Both arguments must have the same type and the same unique elements. For example, if fromDimOrder
is the character vector 'hwcn'
, toDimOrder
can be the character vector 'nchw'
(where h
, w
, and c
correspond to the height, width, and number of channels of the image, respectively, and n
is the number of observations).
function perm = preparePermutationVector(fromDimOrder, toDimOrder) % Check if both fromDimOrder and toDimOrder are vectors. if ~isvector(fromDimOrder) || ~isvector(toDimOrder) error(message('nnet_cnn_onnx:onnx:FPVtypes')); end % Convert fromDimOrder and toDimOrder to the appropriate type. if isstring(fromDimOrder) && isscalar(fromDimOrder) fromDimOrder = char(fromDimOrder); end if isstring(toDimOrder) && isscalar(toDimOrder) toDimOrder = char(toDimOrder); end % Check if fromDimOrder and toDimOrder have unique elements. [fromSorted, ifrom] = unique(fromDimOrder); [toSorted, ~, iToInv] = unique(toDimOrder); if numel(fromSorted) ~= numel(fromDimOrder) error(message('nnet_cnn_onnx:onnx:FPVfromunique')); end if numel(toSorted) ~= numel(toDimOrder) error(message('nnet_cnn_onnx:onnx:FPVtounique')); end % Check if fromDimOrder and toDimOrder have the same number of elements. if ~isequal(fromSorted, toSorted) error(message('nnet_cnn_onnx:onnx:FPVsame')); end % Compute the permutation vector. perm = ifrom(iToInv); perm = perm(:)'; end
Input Arguments
modelfile
— Name of ONNX model file
character vector | string scalar
Name of the ONNX model file containing the network, specified as a character vector or string scalar. The file must be in the current folder or a folder on the MATLAB® path, or you must include a full or relative path to the file.
Example: 'shufflenet.onnx'
NetworkFunctionName
— Name of model function
character vector | string scalar
Name of the model function, specified as a character vector or string scalar. The
function NetworkFunctionName
contains the architecture of the
imported ONNX network. The file is saved in an M-file in the current folder, or you must
include a full or relative path to the file. The NetworkFunctionName
file is required for using the network. For more information, see Imported ONNX Model Function.
Example: 'shufflenetFcn'
Output Arguments
params
— Network parameters
ONNXParameters
object
Network parameters, returned as an ONNXParameters
object. params
contains the network parameters of the imported
ONNX model. Use dot notation to reference properties of
params
. For example, params.Learnables
displays the network learnable parameters, such as the weights of the convolution
layers.
Limitations
importONNXFunction
supports these ONNX:ONNX intermediate representation version 9
ONNX operator sets 6–18
More About
Imported ONNX Model Function
importONNXFunction
creates a model function that
contains the network architecture of the imported ONNX model. Specify the name NetworkFunctionName
as an input
argument to importONNXFunction
.
Use the following syntaxes to interface with the imported ONNX model function (NetworkFunctionName
):
[Y,state] = NetworkFunctionName(X,
returns the output dataparams
)Y
and the updated networkstate
for the input dataX
.[Y,state] = NetworkFunctionName(X,
uses additional options specified by one or more name-value pair arguments.params
,Name,Value)[Y1,Y2,...,Yn,state] = NetworkFunctionName(X1,X2,...,Xn,
returns multiple output data (params
)Y1,Y2,...,Yn
) and the updated networkstate
for the multiple input data (X1,X2,...,Xn
).[Y1,Y2,...,Yn,state] = NetworkFunctionName(X1,X2,...,Xn,
uses additional options specified by one or more name-value pair arguments for multiple inputs and outputs.params
,Name,Value)
Argument | Description |
---|---|
X | Input data, specified as an array or dlarray . |
params | Network parameters, specified as an ONNXParameters object. |
Argument name | Description |
---|---|
'Training' | Training option, specified as
|
'InputDataPermutation' | Permutation applied to the dimension ordering of input
Assign a value to the name-value pair argument
|
'OutputDataPermutation' | Permutation applied to the dimension ordering of output
Assign a value to the name-value pair argument
|
Argument | Description |
---|---|
Y | Output data, returned as an array or
|
state | Updated network state, specified as a structure. The
network |
The interpretation of input argument X
and output argument
Y
can differ between models. For more information about the model
input and output arguments, refer to help
for the imported model
function NetworkFunctionName
, or refer to the ONNX documentation [1].
Automatic Permutation for Imported Model Function
By default, NetworkFunctionName
automatically
permutes input and output data to facilitate image classification tasks. Automatic
permutation might be unsuitable for other tasks, such as object detection and time series
classification.
To automatically permute the input, NetworkFunctionName
assumes the
following based on the input dimensions specified by the imported ONNX network.
Number of ONNX Model Input Dimensions | Interpretation of Input Data | ONNX Standard Dimension Ordering | Deep Learning Toolbox Standard Dimension Ordering | Automatic Permutation of Input |
---|---|---|---|---|
4 | 2-D image |
|
| [ 4 3 1 2 ] |
If the size of the input dimensions is a number other than 4,
NetworkFunctionName
specifies the input argument
'InputDataPermutation'
as 'none'
.
To automatically permute the output, NetworkFunctionName
assumes
the following based on the output dimensions specified by the imported ONNX network.
Number of ONNX Model Output Dimensions | Interpretation of Output Data | ONNX Standard Dimension Ordering | Deep Learning Toolbox Standard Dimension Ordering | Automatic Permutation of Output |
---|---|---|---|---|
2 | 2-D image classification scores |
|
| [ 2 1 ] |
4 | 2-D image pixel classification scores |
|
| [3 4 2 1] |
If the size of the output dimensions is a number other than 2 or 4,
NetworkFunctionName
specifies the input argument
'OutputDataPermutation'
as 'none'
.
ONNX Operators Supported for Conversion into Built-In MATLAB or Custom Layers
importONNXFunction
supports the following ONNX operators for conversion into built-in MATLAB layers or custom layers, with
some limitations. For a list of equivalent built-in or custom layers obtained using
importNetworkFromONNX
, see ONNX Operators Supported for Conversion into Built-In MATLAB Layers
ONNX Operator | importNetworkFromONNX Support |
---|---|
Abs | No |
| Yes |
And | No |
ArgMax | No |
| Yes |
| Yes |
Bernoulli | No |
Cast | No |
Ceil | No |
| No |
Compress | No |
| Yes |
| Yes |
ConstantOfShape | No |
| Yes |
| Yes |
| No |
| No |
DepthToSpace | Yes |
| Yes |
| Yes |
| Yes |
Equal | No |
| No |
Exp | No |
Expand | No |
| Yes |
Floor | No |
Gather | No |
GatherElements | No |
GatherND | No |
| Yes |
| Yes |
| Yes |
| No |
GridSample | No |
GRU | Yes |
HardSigmoid | No |
Hardmax | No |
| Yes |
If | No |
InstanceNormalization | Yes |
LayerNormalization | Yes |
| Yes |
Less | No |
LessOrEqual | No |
Log | No |
Loop | No |
| Yes |
| Yes |
| Yes |
| No |
| Yes |
Min | No |
Mod | No |
| Yes |
Neg | No |
NonMaxSuppression | No |
NonZero | No |
Not | No |
OneHot | No |
Or | No |
Pad | No |
Pow | No |
| Yes |
RandomUniform | No |
Range | No |
Reciprocal | No |
ReduceL1 | No |
ReduceLogSum | No |
ReduceLogSumExp | No |
ReduceMax | No |
ReduceMean | No |
ReduceMin | No |
ReduceProd | No |
ReduceSum | No |
ReduceSumSquare | No |
| Yes |
| Yes |
Resize | Yes |
RoiAlign | No |
Round | No |
Scan | No |
Scatter | No |
ScatterElements | No |
ScatterND | No |
SequenceAt | No |
Shape | No |
| Yes |
Sign | No |
Sin | No |
Slice | No |
| Yes |
SpaceToDepth | Yes |
Split | No |
SplitToSequence | No |
Sqrt | No |
Squeeze | No |
| Yes |
| Yes |
| Yes |
Tile | No |
TopK | No |
Transpose | No |
Unsqueeze | No |
Upsample | Yes |
Where | No |
Tips
Alternative Functionality
importONNXFunction
is useful when you cannot import a pretrained ONNX network by using importNetworkFromONNX
.
References
[1] GitHub. “Open Neural Network Exchange.” Accessed July 3, 2023. https://github.com/onnx/.
[2] "ONNX | Home.” Accessed July 3, 2023. https://onnx.ai/.
Version History
Introduced in R2020bR2024b: Import networks that include multiple new operators
You can now import an ONNX network that includes the following operators:
Bernoulli
GatherND
GridSample
Mod
ReduceL1
ReduceLogSum
ReduceLogSumExp
ReduceSumSquare
R2024b: Updated support for ONNX intermediate representation and operator sets
importONNXFunction now supports ONNX intermediate representation version 9 and ONNX operator sets 6 to 18.
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
