Detect vehicles using Faster R-CNN



detector = vehicleDetectorFasterRCNN returns a trained Faster R-CNN (regions with convolution neural networks) object detector for detecting vehicles. Faster R-CNN is a deep learning object detection framework that uses a convolutional neural network (CNN) for detection.

The detector is trained using unoccluded images of the front, rear, left, and right sides of vehicles. The CNN used with the vehicle detector uses a modified version of the MobileNet-v2 network architecture.

Use of this function requires Deep Learning Toolbox™.


The detector is trained using uint8 images. Before using this detector, rescale the input images to the range [0, 255] by using im2uint8 (Image Processing Toolbox) or rescale.


collapse all

Detect cars in a single image and annotate the image with the detection scores. To detect cars, use a Faster R-CNN object detector that was trained using images of vehicles.

Load the pretrained detector.

fasterRCNN = vehicleDetectorFasterRCNN('full-view');

Use the detector on a loaded image. Store the locations of the bounding boxes and their detection scores.

I = imread('highway.png');
[bboxes,scores] = detect(fasterRCNN,I);

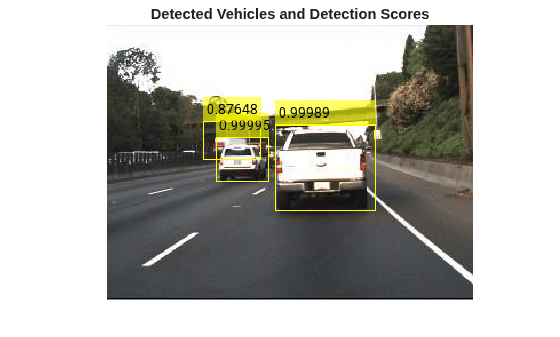

Annotate the image with the detections and their scores.

I = insertObjectAnnotation(I,'rectangle',bboxes,scores);
title('Detected Vehicles and Detection Scores')

Output Arguments

collapse all

Trained Faster R-CNN-based object detector, returned as an fasterRCNNObjectDetector (Computer Vision Toolbox) object.

Compatibility Considerations

expand all

Behavior change in future release

See Also

| | (Computer Vision Toolbox) | (Computer Vision Toolbox)

Introduced in R2017a
