# Sine Wave

Generate continuous or discrete sine wave

• Library:
• DSP System Toolbox / Sources

DSP System Toolbox HDL Support / Sources ## Description

The Sine Wave block generates a multichannel real or complex sinusoidal signal, with independent amplitude, frequency, and phase in each output channel. The block supports floating point and signed fixed-point data types.

The block generates a real sinusoidal signal when you set the Output complexity parameter to `Real`. The real sinusoidal output is defined by an expression of the type

`$y=A\mathrm{sin}\left(2\pi ft+\varphi \right)$`

where you specify A in the Amplitude parameter, f in hertz in the Frequency parameter, and ϕ in radians in the Phase offset parameter.

The block generates a complex exponential signal when you set the Output complexity parameter to `Complex`. This complex exponential signal is defined by an expression of the type

`$y=A{e}^{j\left(2\pi ft+\varphi \right)}=A\left\{\mathrm{cos}\left(2\pi ft+\varphi \right)+j\mathrm{sin}\left(2\pi ft+\varphi \right)\right\}$`

### Generating Multichannel Outputs

For both real and complex sinusoids, the Amplitude, Frequency, and Phase offset parameter values (A, f, and ϕ) can be scalars or length-N vectors, where N is the desired number of channels in the output. When you specify at least one of these parameters as a length-N vector, scalar values specified for the other parameters are applied to every channel.

For example, to generate the three-channel output containing the following real sinusoids, set the block parameters as shown:

• Output complexity = `Real`

• Amplitude = `[1 2 3]`

• Frequency = `[1000 500 250]`

• Phase offset = `[0 0 pi/2]`

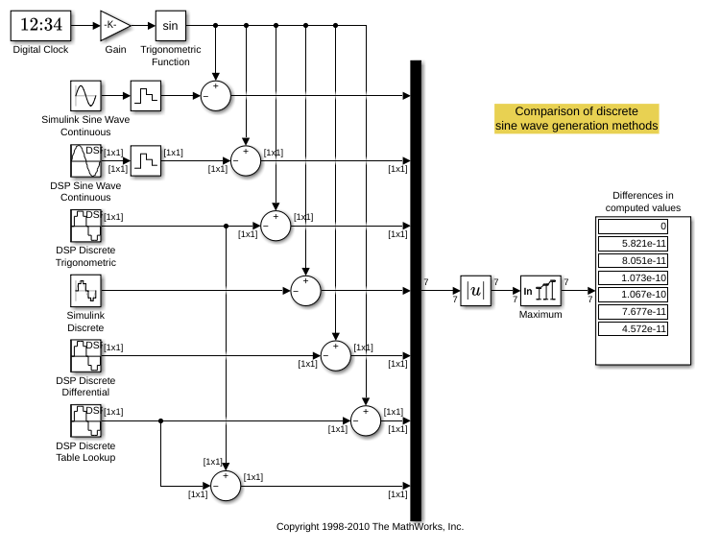

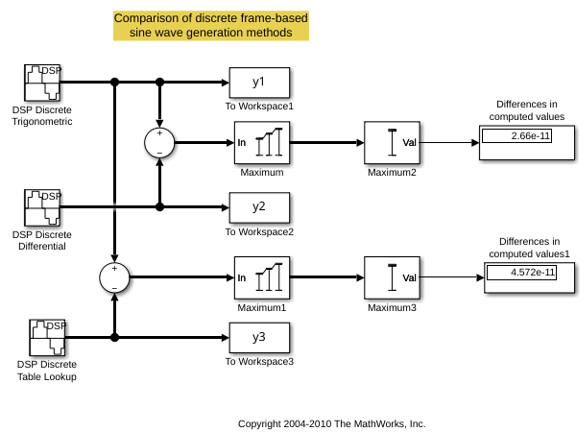

## Ports

### Output

expand all

Output a sinusoidal signal as a scalar or vector. For more information about output complexity, see Description. For information about multichannel support, see Generating Multichannel Outputs.

### Tip

To output fixed-point data types, you must set Sample mode to `Discrete` and Computation method to ```Table lookup```.

Data Types: `single` | `double` | `fixed point`
Complex Number Support: Yes

## Parameters

expand all

### Main

A length-N vector containing the amplitudes of the sine waves in each of N output channels, or a scalar to be applied to all N channels. The vector length must be the same as that specified for the Frequency and Phase offset parameters.

### Tip

This parameter is tunable (Simulink) only when the Computation method is ```Trigonometric fcn``` or `Differential`.

Tunable: Yes

A length-N vector containing frequencies, in hertz, of the sine waves in each of N output channels, or a scalar to be applied to all N channels. The vector length must be the same as that specified for the Amplitude and Phase offset parameters. You can specify positive, zero, or negative frequencies.

### Tip

This parameter is tunable (Simulink) when you set either:

• Sample mode to `Continuous`.

• Sample mode to `Discrete` and Computation method to `Trigonometric fcn`.

Tunable: Yes

A length-N vector containing the phase offsets, in radians, of the sine waves in each of N output channels, or a scalar to be applied to all N channels. The vector length must be the same as that specified for the Amplitude and Frequency parameters.

### Tip

This parameter is tunable (Simulink) when you set either:

• Sample mode to `Continuous`.

• Sample mode to `Discrete` and Computation method to `Trigonometric fcn`.

Tunable: Yes

Specify the sampling mode as `Continuous` or `Discrete`:

• `Continuous`

In continuous mode, the sinusoid in the ith channel, yi, is computed as a continuous function,

`$\begin{array}{ll}{y}_{i}={A}_{i}\mathrm{sin}\left(2\pi {f}_{i}t+{\varphi }_{i}\right)\hfill & \text{(real)}\hfill \\ \begin{array}{l}\\ \text{or}\\ \end{array}\hfill & \hfill \\ {y}_{i}={A}_{i}{e}^{j\left(2\pi {f}_{i}t+{\varphi }_{i}\right)}\hfill & \text{(complex)}\hfill \end{array}$`

and the block's output is continuous. In this mode, the block operates the same as the Simulink® Sine Wave block with Sample time set to `0`. This mode offers high accuracy, but requires trigonometric function evaluations at each simulation step, which is computationally expensive. Also, because this method tracks absolute simulation time, a discontinuity will eventually occur when the time value reaches its maximum limit.

Note also that many DSP System Toolbox™ blocks do not accept continuous-time inputs.

• `Discrete`

In discrete mode, the block can generate discrete-time output by directly evaluating the trigonometric function, by table lookup, or by a differential method. For more information on these computation methods, see Algorithms.

The type of waveform to generate: `Real` specifies a real sine wave, `Complex` specifies a complex exponential.

The method by which discrete-time sinusoids are generated: ```Trigonometric fcn```, `Table lookup`, or `Differential`. For more information on each of the available options, see Algorithms.

#### Dependencies

This parameter is only visible when you set the Sample mode to `Discrete`.

### Note

To generate fixed-point sinusoids, you must set the Computation method to `Table lookup`.

Optimizes the table of sine values for `Speed` or `Memory`. When optimized for speed, the table contains k elements, and when optimized for memory, the table contains k/4 elements, where k is the number of input samples in one full period of the sine wave.

#### Dependencies

This parameter is only visible when you set the Computation method parameter to `Table lookup`.

The period with which the sine wave is sampled, Ts, as a finite scalar, greater than zero. The output frame period of the block is MTs, where you specify M in the Samples per frame parameter.

#### Dependencies

To enable this parameter, set Sample mode to `Discrete`.

The number of consecutive samples from each sinusoid to buffer into the output frame, M, specified as a positive scalar integer. This parameter is not tunable.

The block output is an M-by-N matrix with frame period MTs, where you specify Ts in the Sample time parameter.

#### Dependencies

To enable this parameter, set Sample mode to `Discrete`.

This parameter determines the behavior of the Sine Wave block when an enabled subsystem is reenabled. The block can either reset itself to its starting state (`Restart at time zero`), or resume generating the sinusoid based on the current simulation time (`Catch up to simulation time`).

#### Dependencies

This parameter only applies when the Sine Wave block is located inside an enabled subsystem and the States when enabling parameter of the Enable block is set to `reset`.

### Data Types

Select how you would like to specify the data type properties of the Output data type. You can choose:

• `Inherit` — Lets you specify a rule for inheriting a data type, for example, ```Inherit: Inherit via back propagation```

• `Built in`— Lets you specify a built in data type, for example, `double`

• `Fixed point` — Lets you specify the fixed-point attributes of the data type.

• `Expression` — Lets you specify an expression that evaluates to a valid data type, for example, `fixdt(1,16)`

## Block Characteristics

 Data Types `double` | `fixed point` | `integer` | `single` Direct Feedthrough `no` Multidimensional Signals `no` Variable-Size Signals `no` Zero-Crossing Detection `no`

## Algorithms

expand all

When you select `Discrete` from the Sample mode parameter, the secondary Computation method parameter provides three options for generating the discrete sinusoid: `Trigonometric fcn`, ```Table lookup```, and `Differential`.
