dsphdl.IFFT
Compute inverse fast Fourier transform (IFFT)
Description
The dsphdl.IFFT
System object™ provides two architectures to optimize either throughput or area. Use the
streaming Radix 2^2 architecture for high-throughput applications. This architecture supports
scalar or vector input data. You can achieve gigasamples-per-second (GSPS) throughput using
vector input. Use the burst Radix 2 architecture for a minimum resource implementation,
especially with large FFT sizes. Your system must be able to tolerate bursty data and higher
latency. This architecture supports only scalar input data. The object accepts real or complex
data, provides hardware-friendly control signals, and has optional output frame control
signals.
To calculate the inverse fast Fourier transform:
Create the
dsphdl.IFFT
object and set its properties.Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
Creation
Description
returns an HDL IFFT
System object, IFFT_N
= dsphdl.IFFTIFFT_N
, that performs a fast Fourier transform.
sets
properties using one or more name-value arguments.IFFT_N
= dsphdl.IFFT(Name=Value)
Example: ifft128 = dsphdl.IFFT(FFTLength=128)
Properties
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
Architecture
— Hardware implementation
'Streaming Radix 2^2'
(default) | 'Burst Radix 2'
Hardware implementation, specified as either:
'Streaming Radix 2^2'
— Low-latency architecture. Supports gigasamples-per-second (GSPS) throughput when you use vector input.'Burst Radix 2'
— Minimum resource architecture. Vector input is not supported when you select this architecture. When you use this architecture, your input data must comply with theready
backpressure signal.
ComplexMultiplication
— HDL implementation of complex multipliers
'Use 4 multipliers and 2 adders'
(default) | 'Use 3 multipliers and 5 adders'
HDL implementation of complex multipliers, specified as either 'Use 4
multipliers and 2 adders'
or 'Use 3 multipliers and 5
adders'
. Depending on your synthesis tool and target device, one option may
be faster or smaller.
BitReversedOutput
— Order of the output data
true
(default) | false
Order of the output data, specified as either:
true
— The output channel elements are bit reversed relative to the input order.false
— The output channel elements are in linear order.
The IFFT algorithm calculates output in the reverse order to the input. When you request output in the same order as the input, the algorithm performs an extra reversal operation. For more information on ordering of the output, see Linear and Bit-Reversed Output Order.
BitReversedInput
— Expected order of the input data
false
(default) | true
Expected order of the input data, specified as either:
true
— The input channel elements are in bit-reversed order.false
— The input channel elements are in linear order.
The IFFT algorithm calculates output in the reverse order to the input. When you request output in the same order as the input, the algorithm performs an extra reversal operation. For more information on ordering of the output, see Linear and Bit-Reversed Output Order.
Normalize
— Output scaling
true
(default) | false
Output scaling, specified as either:
true
— The object implements an overall 1/N scale factor by dividing the output of each butterfly multiplication by 2. This adjustment keeps the output of the IFFT in the same amplitude range as its input.false
— The object avoids overflow by increasing the word length by one bit after each butterfly multiplication. The bit growth is the same for both architectures.
FFTLength
— Number of data points used for one FFT calculation
1024 (default) | integer power of 2 between 22 and
216
Number of data points used for one FFT calculation, specified as an integer power of 2 between 22 and 216. The object accepts FFT lengths outside this range, but they are not supported for HDL code generation.
ResetInputPort
— Enable reset argument
false
(default) | true
Enable reset
input argument to the object. When
reset
is 1
(true), the object stops the current
calculation and clears internal states. When the reset
is
0
(false) and the input valid
is
1
(true), the object captures data for processing.
StartOutputPort
— Enable start output argument
false
(default) | true
Enable startOut
output argument of the object. When enabled, the
object returns an additional output signal that is true
on the first
cycle of each valid output frame.
EndOutputPort
— Enable end output argument
false
(default) | true
Enable endOut
output argument of the object. When enabled, the
object returns an additional output signal that is true
on the first
cycle of each valid output frame.
RoundingMethod
— Rounding mode used for fixed-point operations
'Floor'
(default) | 'Ceiling'
| 'Convergent'
| 'Nearest'
| 'Round'
| 'Zero'
Rounding mode used for fixed-point operations. When the input is any integer or fixed-point data type, the IFFT algorithm uses fixed-point arithmetic for internal calculations. This option does not apply when the input is single or double type. Rounding applies to twiddle factor multiplication and scaling operations.
Usage
Syntax
Description
[
returns the inverse fast Fourier transform (IFFT) when using the burst Radix 2
architecture. The Y
,validOut
,ready
]
= IFFT_N(X
,validIn
)ready
signal indicates when the object has memory
available to accept new input samples. You must apply input data
and
valid
signals only when ready
is
1
(true). The object ignores the input data
and
valid
signals when ready
is
0
(false).
To use this syntax, set the Architecture
property to 'Burst Radix 2'
. For example:
IFFT_N = dsphdl.IFFT(___,Architecture='Burst Radix 2'); ... [y,validOut,ready] = IFFT_N(x,validIn)
[
also returns frame control signals Y
,startOut
,endOut
,validOut
]
= IFFT_N(X
,validIn
)startOut
and
endOut
. startOut
is true
on
the first sample of a frame of output data. endOut
is
true
for the last sample of a frame of output data.
To use this syntax, set the StartOutputPort
and EndOutputPort
properties to true
. For example:
IFFT_N = dsphdl.IFFT(___,StartOutputPort=true,EndOutputPort=true);
...
[y,startOut,endOut,validOut] = IFFT_N(x,validIn)
[
returns the IFFT, Y
,validOut
]
= IFFT_N(X
,validIn
,resetIn
)Y
, when validIn
is
true
and resetIn
is false
.
When resetIn
is true
, the object stops the current
calculation and clears all internal state.
To use this syntax, set the ResetInputPort
property to true
. For example:
IFFT_N = dsphdl.IFFT(___,ResetInputPort=true);
...
[y,validOut] = IFFT_N(x,validIn,resetIn)
Input Arguments
X
— Input data
scalar or column vector of real or complex values
Input data, specified as a scalar or column vector of real or complex values, in
fixed-point or integer format. Vector input is supported with 'Streaming
Radix 2^2'
architecture only. The vector size must be a power of 2 between
1 and 64 that is not greater than the FFT length.
The software supports double
and
single
data types for simulation, but not for HDL code generation.
Data Types: fi
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| single
| double
Complex Number Support: Yes
validIn
— Indicates valid input data
scalar
Control signal that indicates if the input data is valid. When
validIn
is 1
(true
), the
object captures the values from the dataIn
argument. When
validIn
is 0
(false
), the
object ignores the values from the dataIn
argument.
Data Types: logical
resetIn
— Clears internal states
logical scalar
Control signal that clears internal states. When reset
is
1
(true
), the object stops the current
calculation and clears internal states. When the reset
is
0
(false
) and the input
valid
is 1
(true
), the
block captures data for processing.
For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.
Dependencies
To enable this argument, set ResetInputPort
to true
.
Data Types: logical
Output Arguments
Y
— Output data
scalar or column vector of real or complex values
Output data, returned as a scalar or column vector of real or complex values. The output format matches the format of the input data.
ready
— Indicates object is ready for new input data
logical scalar
Control signal that indicates that the object is ready for new input data sample
on the next cycle. When ready
is 1
(true
), you can specify the data
and valid
inputs for the next time step. When
ready
is 0
(false
), the object ignores any input data in the next time step.
This output is returned when you select 'Burst Radix 2'
architecture.
Data Types: logical
startOut
— First sample of output frame
logical scalar
First sample of output frame, returned as a logical scalar. To enable this
argument, set the StartOutputPort
property to true
.
Data Types: logical
endOut
— Last sample of output frame
logical scalar
Last sample of output frame, returned as a logical scalar. To enable this
argument, set the EndOutputPort property to true
.
Data Types: logical
validOut
— Indicates valid output data
scalar
Control signal that indicates if the output data is valid. When
validOut
is 1
(true
), the
object returns valid data from the dataOut
argument. When
validOut
is 0
(false
),
values from the dataOut
argument are not valid.
Data Types: logical
Object Functions
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Specific to dsphdl.IFFT
getLatency | Latency of FFT calculation |
Examples
Create IFFT for HDL Code Generation
Create the specifications and input signal. This example uses a 128-point FFT.
N = 128;
Fs = 40;
t = (0:N-1)'/Fs;
x = sin(2*pi*15*t) + 0.75*cos(2*pi*10*t);
y = x + .25*randn(size(x));
y_fixed = sfi(y,32,16);
noOp = zeros(1,'like',y_fixed);
Compute the FFT of the signal to use as the input to the IFFT object.
hdlfft = dsphdl.FFT(FFTLength=N,BitReversedOutput=false); Yf = zeros(1,4*N); validOut = false(1,4*N); for loop = 1:1:N [Yf(loop),validOut(loop)] = hdlfft(complex(y_fixed(loop)),true); end for loop = N+1:1:4*N [Yf(loop),validOut(loop)] = hdlfft(complex(noOp),false); end Yf = Yf(validOut == 1);

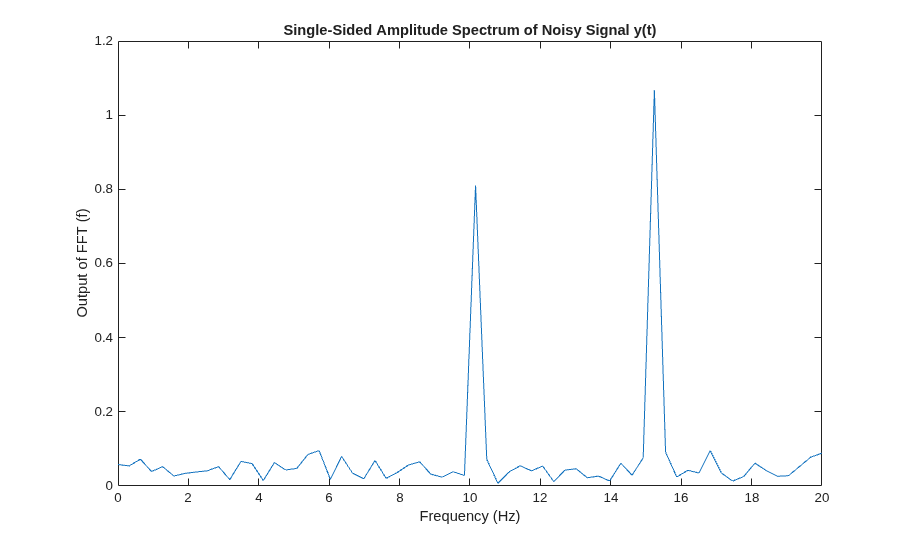

Plot the single-sided amplitude spectrum.
plot(Fs/2*linspace(0,1,N/2),2*abs(Yf(1:N/2)/N)) title('Single-Sided Amplitude Spectrum of Noisy Signal y(t)') xlabel('Frequency (Hz)') ylabel('Output of FFT (f)')
Select frequencies that hold the majority of the energy in the signal. The cumsum
function does not accept fixed-point arguments, so convert the data back to double
.
[Ysort,i] = sort(abs(double(transpose(Yf(1:N)))),1,'descend'); Ysort_d = double(Ysort); CumEnergy = sqrt(cumsum(Ysort_d.^2))/norm(Ysort_d); j = find(CumEnergy > 0.9, 1); disp(['Number of FFT coefficients that represent 90% of the ', ... 'total energy in the sequence: ', num2str(j)]) Yin = zeros(N,1); Yin(i(1:j)) = Yf(i(1:j));
Number of FFT coefficients that represent 90% of the total energy in the sequence: 4
Write a function that creates and calls the IFFT System object™. You can generate HDL from this function.
function [yOut,validOut] = HDLIFFT128(yIn,validIn) %HDLIFFT128 % Processes one sample of data using the dsphdl.IFFT System object(TM) % yIn is a fixed-point scalar or column vector. % validIn is a logical scalar. % You can generate HDL code from this function. persistent ifft128; if isempty(ifft128) ifft128 = dsphdl.IFFT(FFTLength=128); end [yOut,validOut] = ifft128(yIn,validIn); end % Copyright 2012-2023 The MathWorks, Inc.
Compute the IFFT by calling the function for each data sample.
Xt = zeros(1,3*N); validOut = false(1,3*N); for loop = 1:1:N [Xt(loop),validOut(loop)] = HDLIFFT128(complex(Yin(loop)),true); end for loop = N+1:1:3*N [Xt(loop),validOut(loop)] = HDLIFFT128(complex(0),false); end
Discard invalid output samples. Then inspect the output and compare it with the input signal. The original input is in green.
Xt = Xt(validOut==1);
Xt = bitrevorder(Xt);
norm(x-transpose(Xt(1:N)))
figure
stem(real(Xt))
figure
stem(real(x),'--g')
ans = 0.7863
Create a Vector-Input IFFT for HDL Code Generation
Create the specifications and input signal. This example uses a 128-point FFT and computes the transform over 16 samples at a time.
N = 128; V = 16; Fs = 40; t = (0:N-1)'/Fs; x = sin(2*pi*15*t) + 0.75*cos(2*pi*10*t); y = x + .25*randn(size(x)); y_fixed = sfi(y,32,24); y_vect = reshape(y_fixed,V,N/V);
Compute the FFT of the signal, to use as the input to the IFFT object.
hdlfft = dsphdl.FFT('FFTLength',N); loopCount = getLatency(hdlfft,N,V)+N/V; Yf = zeros(V,loopCount); validOut = false(V,loopCount); for loop = 1:1:loopCount if ( mod(loop,N/V) == 0 ) i = N/V; else i = mod(loop,N/V); end [Yf(:,loop),validOut(loop)] = hdlfft(complex(y_vect(:,i)),(loop<=N/V)); end

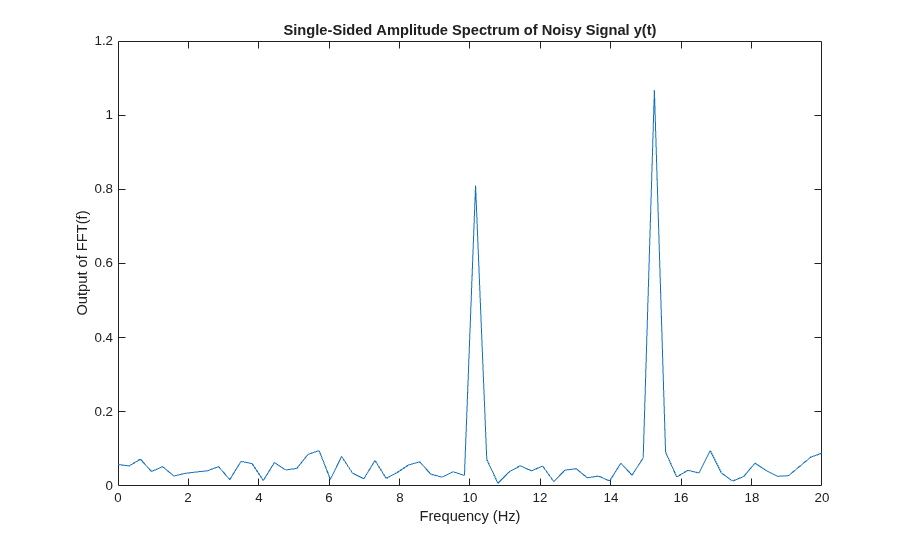

Plot the single-sided amplitude spectrum.
C = Yf(:,validOut==1); Yf_flat = C(:); Yr = bitrevorder(Yf_flat); plot(Fs/2*linspace(0,1,N/2),2*abs(Yr(1:N/2)/N)) title('Single-Sided Amplitude Spectrum of Noisy Signal y(t)') xlabel('Frequency (Hz)') ylabel('Output of FFT(f)')
Select frequencies that hold the majority of the energy in the signal. The cumsum
function doesn't accept fixed-point arguments, so convert the data back to double
.
[Ysort,i] = sort(abs(double(Yr(1:N))),1,'descend'); CumEnergy = sqrt(cumsum(Ysort.^2))/norm(Ysort); j = find(CumEnergy > 0.9, 1); disp(['Number of FFT coefficients that represent 90% of the ', ... 'total energy in the sequence: ', num2str(j)]) Yin = zeros(N,1); Yin(i(1:j)) = Yr(i(1:j)); YinVect = reshape(Yin,V,N/V);
Number of FFT coefficients that represent 90% of the total energy in the sequence: 4
Write a function that creates and calls the IFFT System object™. You can generate HDL from this function.
function [yOut,validOut] = HDLIFFT128V16(yIn,validIn) %HDLFFT128V16 % Processes 16-sample vectors of FFT data % yIn is a fixed-point column vector. % validIn is a logical scalar value. % You can generate HDL code from this function. persistent ifft128v16; if isempty(ifft128v16) ifft128v16 = dsphdl.IFFT(FFTLength=128) end [yOut,validOut] = ifft128v16(yIn,validIn); end % Copyright 2012-2023 The MathWorks, Inc.

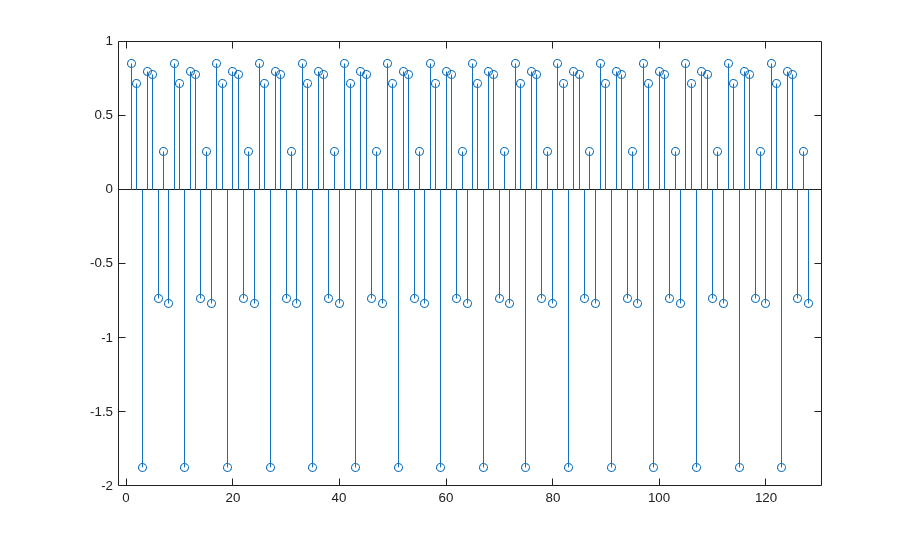

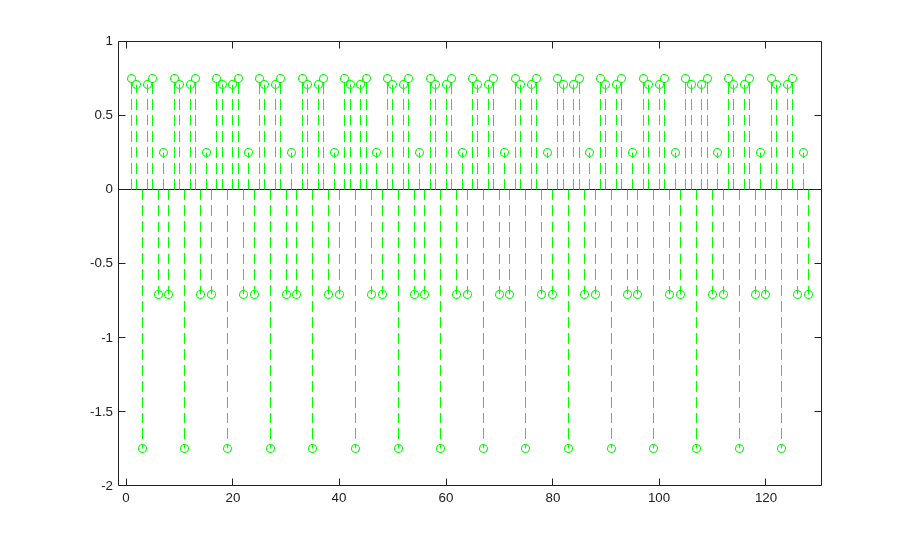

Compute the IFFT by calling the function for each data sample.
Xt = zeros(V,loopCount); validOut = false(V,loopCount); for loop = 1:1:loopCount if ( mod(loop,N/V) == 0 ) i = N/V; else i = mod(loop,N/V); end [Xt(:,loop),validOut(loop)] = HDLIFFT128V16(complex(YinVect(:,i)),(loop<=N/V)); end
ifft128v16 = dsphdl.IFFT with properties: Architecture: 'Streaming Radix 2^2' FFTLength: 128 ComplexMultiplication: 'Use 4 multipliers and 2 adders' BitReversedOutput: true BitReversedInput: false Normalize: true Use get to show all properties
Discard invalid output samples. Then inspect the output and compare it with the input signal. The original input is in green.
C = Xt(:,validOut==1);
Xt = C(:);
Xt = bitrevorder(Xt);
norm(x-Xt(1:N))
figure
stem(real(Xt))
figure
stem(real(x),'--g')
ans = 0.7863
Explore Latency of HDL IFFT Object
The latency of the object varies with the FFT length and the vector size. Use the getLatency
function to find the latency of a particular configuration. The latency is the number of cycles between the first valid input and the first valid output, assuming that the input is contiguous.
Create a new dsphdl.IFFT
object and request the latency.
hdlifft = dsphdl.IFFT(FFTLength=512); L512 = getLatency(hdlifft)
L512 = 599
Request hypothetical latency information about a similar object with a different FFT length. The properties of the original object do not change. When you do not specify a vector length, the function assumes scalar input data.
L256 = getLatency(hdlifft,256)
L256 = 329
N = hdlifft.FFTLength
N = 512
Request hypothetical latency information of a similar object that accepts eight-sample vector input.
L256v8 = getLatency(hdlifft,256,8)
L256v8 = 93
Enable scaling at each stage of the IFFT. The latency does not change.
hdlifft.Normalize = true; L512n = getLatency(hdlifft)
L512n = 599
Request the same output order as the input order. This setting increases the latency because the object must collect the output before reordering.
hdlifft.BitReversedOutput = false; L512r = getLatency(hdlifft)
L512r = 1078
Algorithms
Streaming Radix 2^2
The streaming Radix 2^2 architecture implements a low-latency architecture. It saves resources compared to a streaming Radix 2 implementation by factoring and grouping the FFT equation. The architecture has log4(N) stages. Each stage contains two single-path delay feedback (SDF) butterflies with memory controllers. When you use vector input, each stage operates on fewer input samples, so some stages reduce to a simple butterfly, without SDF.
The first SDF stage is a regular butterfly. The second stage multiplies the outputs of the first stage by –j. To avoid a hardware multiplier, the block swaps the real and imaginary parts of the inputs, and again swaps the imaginary parts of the resulting outputs. Each stage rounds the result of the twiddle factor multiplication to the input word length. The twiddle factors have two integer bits, and the rest of the bits are used for fractional bits. The twiddle factors have the same bit width as the input data, WL. The twiddle factors have two integer bits, and WL-2 fractional bits.
If you enable scaling, the algorithm divides the result of each butterfly stage by 2. Scaling at each stage avoids overflow, keeps the word length the same as the input, and results in an overall scale factor of 1/N. If scaling is disabled, the algorithm avoids overflow by increasing the word length by 1 bit at each stage. The diagram shows the butterflies and internal word lengths of each stage, not including the memory.
Burst Radix 2
The burst Radix 2 architecture implements the FFT by using a single complex butterfly multiplier. The algorithm cannot start until it has stored the entire input frame, and it cannot accept the next frame until computations are complete. The output ready port indicates when the algorithm is ready for new data. The diagram shows the burst architecture, with pipeline registers.
When you use this architecture, your input data must comply with the ready backpressure signal.
Control Signals
The algorithm processes input data only when the input valid port is 1. Output data is valid only when the output valid port is 1.
When the optional input reset port is 1, the algorithm stops the current calculation and clears all internal states. The algorithm begins new calculations when reset port is 0 and the input valid port starts a new frame.
This diagram shows the input and output valid port values for contiguous scalar input data, streaming Radix 2^2 architecture, an FFT length of 1024, and a vector size of 16.
The diagram also shows the optional start and end port values that indicate frame boundaries. If you enable the start port, the start port value pulses for one cycle with the first valid output of the frame. If you enable the end port, the start port value pulses for one cycle with the last valid output of the frame.
If you apply continuous input frames, the output will also be continuous after the initial latency.
The input valid port can be noncontiguous. Data accompanied by an input valid port is processed as it arrives, and the resulting data is stored until a frame is filled. Then the algorithm returns contiguous output samples in a frame of N (FFT length) cycles. This diagram shows noncontiguous input and contiguous output for an FFT length of 512 and a vector size of 16.
When you use the burst architecture, you cannot provide the next frame of input data until
memory space is available. The ready signal indicates when the
algorithm can accept new input data. You must apply input data and
valid signals only when ready is
1
(true). The algorithm ignores any input data
and valid signals when ready is
0
(false).
Latency
The latency varies with the FFT length and the vector size. Use the getLatency
function to find the latency of a particular configuration. The latency is the number of
cycles between the first valid input and the first valid output, assuming that the input is
contiguous.
When using the burst architecture with a contiguous input, if your design waits for
ready to output 0
before de-asserting the input
valid, then one extra cycle of data arrives at the input. This data
sample is the first sample of the next frame. The algorithm can save one sample while
processing the current frame. Due to this one sample advance, the observed latency of the
later frames (from input valid to output valid) is
one cycle shorter than the reported latency. The latency is measured from the first cycle,
when input valid is 1 to the first cycle when output
valid is 1. The number of cycles between when
ready port is 0 and the output valid port is 1
is always latency – FFTLength.
Performance
This resource and performance data is the synthesis result from the generated HDL targeted to a Xilinx® Virtex®-6 (XC6VLX75T-1FF484) FPGA. The examples in the tables have this configuration:
1024 FFT length (default)
Complex multiplication using 4 multipliers, 2 adders
Output scaling enabled
Natural order input, Bit-reversed output
16-bit complex input data
Clock enables minimized (HDL Coder™ parameter)
Performance of the synthesized HDL code varies with your target and synthesis options. For instance, reordering for a natural-order output uses more RAM than the default bit-reversed output, and real input uses less RAM than complex input.
For a scalar input Radix 2^2 configuration, the design achieves 326 MHz clock frequency. The latency is 1116 cycles. The design uses these resources.
Resource | Number Used |
---|---|
LUT | 4597 |
FFS | 5353 |
Xilinx LogiCORE® DSP48 | 12 |
Block RAM (16K) | 6 |
When you vectorize the same Radix 2^2 implementation to process two 16-bit input samples in parallel, the design achieves 316 MHz clock frequency. The latency is 600 cycles. The design uses these resources.
Resource | Number Used |
---|---|
LUT | 7653 |
FFS | 9322 |
Xilinx LogiCORE DSP48 | 24 |
Block RAM (16K) | 8 |
The block supports scalar input data only when implementing burst Radix 2 architecture. The burst design achieves 309 MHz clock frequency. The latency is 5811 cycles. The design uses these resources.
Resource | Number Used |
---|---|
LUT | 971 |
FFS | 1254 |
Xilinx LogiCORE DSP48 | 3 |
Block RAM (16K) | 6 |
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
This System object supports C/C++ code generation for accelerating MATLAB® simulations, and for DPI component generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
The software supports double
and
single
data types for simulation, but not for HDL code generation.
To generate HDL code from predefined System objects, see HDL Code Generation from Viterbi Decoder System Object (HDL Coder).
Version History
Introduced in R2014bR2022a: Moved to DSP HDL Toolbox from DSP System Toolbox
Before R2022a, this System object was named dsp.HDLIFFT
and was part of the DSP System Toolbox™ product.
R2022a: FFT length of 4
You can now set the FFT length to 4 (22). In previous releases the FFT length had to be a power of 2 from 8 (23) to 216.
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
