estimate

Fit vector autoregression (VAR) model to data

Syntax

``EstMdl = estimate(Mdl,Y)``
``[EstMdl,EstSE,logL,E] = estimate(Mdl,Y)``
``EstMdl = estimate(Mdl,Tbl1)``
``[EstMdl,EstSE,logL,Tbl2] = estimate(Mdl,Tbl1)``
``[___] = estimate(___,Name=Value)``

Description

````EstMdl = estimate(Mdl,Y)` returns the fully specified, estimated VAR(p) model `EstMdl`. This model stores the estimated parameter values resulting from fitting the VAR(p) model `Mdl` to all variables (columns) of the matrix of observed multivariate response series `Y` using maximum likelihood.```

example

````[EstMdl,EstSE,logL,E] = estimate(Mdl,Y)` returns the estimated, asymptotic standard errors of the estimated parameters `EstSE`, optimized loglikelihood objective function value `logL`, and the multivariate residuals `E`.```

example

````EstMdl = estimate(Mdl,Tbl1)` fits the VAR(p) model `Mdl` to variables in the input table or timetable `Tbl1`, which contains time series data, and returns the fully specified, estimated VAR(p) model `EstMdl`. `estimate` selects the variables in `Mdl.SeriesNames` or all variables in `Tbl1`. To select different variables in `Tbl1` to fit the model to, use the `ResponseVariables` name-value argument. (since R2022b)```

example

````[EstMdl,EstSE,logL,Tbl2] = estimate(Mdl,Tbl1)` returns the estimated, asymptotic standard errors of the estimated parameters `EstSE`, the optimized loglikelihood objective function value `logL`, and the table or timetable `Tbl2` of all variables in `Tbl1` and residuals corresponding to the response variables to which the model is fit (`ResponseVariables`). (since R2022b)```

example

````[___] = estimate(___,Name=Value)` specifies options using one or more name-value arguments in addition to any of the input argument combinations in previous syntaxes. `estimate` returns the output argument combination for the corresponding input arguments. For example, `estimate(Mdl,Y,Y0=PS,X=Exo)` fits the VAR(p) model `Mdl` to the matrix of response data `Y`, and specifies the matrix of presample response data `PS` and the matrix of exogenous predictor data `Exo`.Supply all input data using the same data type. Specifically: If you specify the numeric matrix `Y`, optional data sets must be numeric arrays and you must use the appropriate name-value argument. For example, to specify a presample, set the `Y0` name-value argument to a numeric matrix of presample data.If you specify the table or timetable `Tbl1`, optional data sets must be tables or timetables, respectively, and you must use the appropriate name-value argument. For example, to specify a presample, set the `Presample` name-value argument to a table or timetable of presample data. ```

example

Examples

collapse all

Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate series. Supply the response series as a numeric matrix.

Load the `Data_USEconModel` data set.

`load Data_USEconModel`

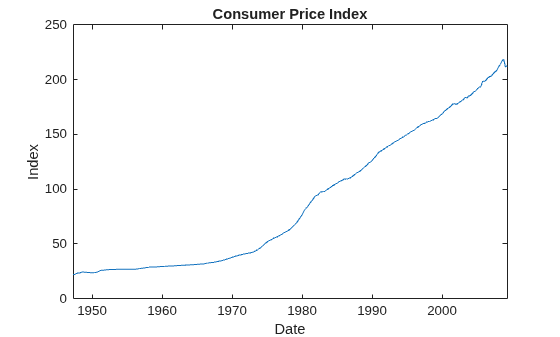

Plot the two series on separate plots.

```figure; plot(DataTimeTable.Time,DataTimeTable.CPIAUCSL); title('Consumer Price Index') ylabel('Index') xlabel('Date')```

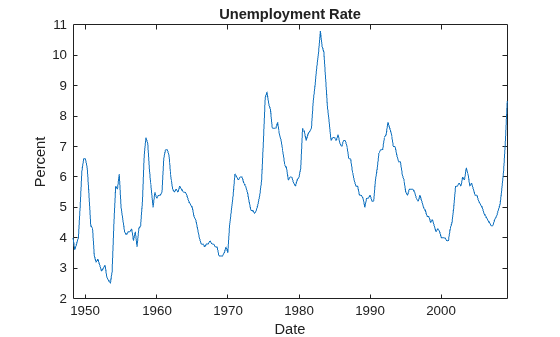

```figure; plot(DataTimeTable.Time,DataTimeTable.UNRATE); title('Unemployment Rate'); ylabel('Percent'); xlabel('Date');```

Stabilize the CPI by converting it to a series of growth rates. Synchronize the two series by removing the first observation from the unemployment rate series.

```rcpi = price2ret(DataTimeTable.CPIAUCSL); unrate = DataTimeTable.UNRATE(2:end);```

Create a default VAR(4) model by using the shorthand syntax.

`Mdl = varm(2,4)`
```Mdl = varm with properties: Description: "2-Dimensional VAR(4) Model" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [2×1 vector of NaNs] AR: {2×2 matrices of NaNs} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix of NaNs] ```

`Mdl` is a `varm` model object. All properties containing `NaN` values correspond to parameters to be estimated given data.

Estimate the model using the entire data set.

`EstMdl = estimate(Mdl,[rcpi unrate])`
```EstMdl = varm with properties: Description: "AR-Stationary 2-Dimensional VAR(4) Model" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [0.00171639 0.316255]' AR: {2×2 matrices} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix] ```

`EstMdl` is an estimated `varm` model object. It is fully specified because all parameters have known values. The description indicates that the autoregressive polynomial is stationary.

Display summary statistics from the estimation.

`summarize(EstMdl)`
``` AR-Stationary 2-Dimensional VAR(4) Model Effective Sample Size: 241 Number of Estimated Parameters: 18 LogLikelihood: 811.361 AIC: -1586.72 BIC: -1524 Value StandardError TStatistic PValue ___________ _____________ __________ __________ Constant(1) 0.0017164 0.0015988 1.0735 0.28303 Constant(2) 0.31626 0.091961 3.439 0.0005838 AR{1}(1,1) 0.30899 0.063356 4.877 1.0772e-06 AR{1}(2,1) -4.4834 3.6441 -1.2303 0.21857 AR{1}(1,2) -0.0031796 0.0011306 -2.8122 0.004921 AR{1}(2,2) 1.3433 0.065032 20.656 8.546e-95 AR{2}(1,1) 0.22433 0.069631 3.2217 0.0012741 AR{2}(2,1) 7.1896 4.005 1.7951 0.072631 AR{2}(1,2) 0.0012375 0.0018631 0.6642 0.50656 AR{2}(2,2) -0.26817 0.10716 -2.5025 0.012331 AR{3}(1,1) 0.35333 0.068287 5.1742 2.2887e-07 AR{3}(2,1) 1.487 3.9277 0.37858 0.705 AR{3}(1,2) 0.0028594 0.0018621 1.5355 0.12465 AR{3}(2,2) -0.22709 0.1071 -2.1202 0.033986 AR{4}(1,1) -0.047563 0.069026 -0.68906 0.49079 AR{4}(2,1) 8.6379 3.9702 2.1757 0.029579 AR{4}(1,2) -0.00096323 0.0011142 -0.86448 0.38733 AR{4}(2,2) 0.076725 0.064088 1.1972 0.23123 Innovations Covariance Matrix: 0.0000 -0.0002 -0.0002 0.1167 Innovations Correlation Matrix: 1.0000 -0.0925 -0.0925 1.0000 ```

Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate data. The estimation sample starts at Q1 of 1980.

Load the `Data_USEconModel` data set.

`load Data_USEconModel`

Stabilize the CPI by converting it to a series of growth rates. Synchronize the two series by removing the first observation from the unemployment rate series.

```rcpi = price2ret(DataTimeTable.CPIAUCSL); unrate = DataTimeTable.UNRATE(2:end);```

Identify the index corresponding to the start of the estimation sample.

`estIdx = DataTimeTable.Time(2:end) > '1979-12-31';`

Create a default VAR(4) model by using the shorthand syntax.

`Mdl = varm(2,4);`

Estimate the model using the estimation sample. Specify all observations before the estimation sample as presample data. Display a full estimation summary.

```Y0 = [rcpi(~estIdx) unrate(~estIdx)]; EstMdl = estimate(Mdl,[rcpi(estIdx) unrate(estIdx)],'Y0',Y0,'Display',"full");```
``` AR-Stationary 2-Dimensional VAR(4) Model Effective Sample Size: 117 Number of Estimated Parameters: 18 LogLikelihood: 419.837 AIC: -803.674 BIC: -753.955 Value StandardError TStatistic PValue __________ _____________ __________ __________ Constant(1) 0.003564 0.0024697 1.4431 0.14898 Constant(2) 0.29922 0.11882 2.5182 0.011795 AR{1}(1,1) 0.022379 0.092458 0.24204 0.80875 AR{1}(2,1) -2.6318 4.4484 -0.59163 0.5541 AR{1}(1,2) -0.0082357 0.0020373 -4.0425 5.2884e-05 AR{1}(2,2) 1.2567 0.09802 12.82 1.2601e-37 AR{2}(1,1) 0.20954 0.10182 2.0581 0.039584 AR{2}(2,1) 10.106 4.8987 2.063 0.039117 AR{2}(1,2) 0.0058667 0.003194 1.8368 0.066236 AR{2}(2,2) -0.14226 0.15367 -0.92571 0.35459 AR{3}(1,1) 0.56095 0.098691 5.6839 1.3167e-08 AR{3}(2,1) 0.44406 4.7483 0.093518 0.92549 AR{3}(1,2) 0.0049062 0.003227 1.5204 0.12841 AR{3}(2,2) -0.040037 0.15526 -0.25787 0.7965 AR{4}(1,1) 0.046125 0.11163 0.41321 0.67945 AR{4}(2,1) 6.758 5.3707 1.2583 0.20827 AR{4}(1,2) -0.0030032 0.002018 -1.4882 0.1367 AR{4}(2,2) -0.14412 0.097094 -1.4843 0.13773 Innovations Covariance Matrix: 0.0000 -0.0003 -0.0003 0.0790 Innovations Correlation Matrix: 1.0000 -0.1686 -0.1686 1.0000 ```

Because the VAR model degree p is 4, `estimate` uses only the last four observations in `Y0` as a presample.

Since R2022b

Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate series. Supply a timetable of data and specify the series for the fit.

Load the `Data_USEconModel` data set. Compute the CPI growth rate. Because the growth rate calculation consumes the earliest observation, include the rate variable in the timetable by prepending the series with `NaN`.

```load Data_USEconModel DataTimeTable.RCPI = [NaN; price2ret(DataTimeTable.CPIAUCSL)]; numobs = height(DataTimeTable)```
```numobs = 249 ```

Prepare Timetable for Estimation

When you plan to supply a timetable directly to estimate, you must ensure it has all the following characteristics:

• All selected response variables are numeric and do not contain any missing values.

• The timestamps in the `Time` variable are regular, and they are ascending or descending.

Remove all missing values from the table, relative to the CPI rate (`RCPI`) and unemployment rate (`UNRATE`) series.

```varnames = ["RCPI" "UNRATE"]; DTT = rmmissing(DataTimeTable,DataVariables=varnames); numobs = height(DTT)```
```numobs = 245 ```

`rmmissing` removes the four initial missing observations from the `DataTimeTable` to create a sub-table `DTT`. The variables `RCPI` and `UNRATE` of `DTT` do not have any missing observations.

Determine whether the sampling timestamps have a regular frequency and are sorted.

`areTimestampsRegular = isregular(DTT,"quarters")`
```areTimestampsRegular = logical 0 ```
`areTimestampsSorted = issorted(DTT.Time)`
```areTimestampsSorted = logical 1 ```

`areTimestampsRegular = 0` indicates that the timestamps of `DTT` are irregular. `areTimestampsSorted = 1` indicates that the timestamps are sorted. Macroeconomic series in this example are timestamped at the end of the month. This quality induces an irregularly measured series.

Remedy the time irregularity by shifting all dates to the first day of the quarter.

```dt = DTT.Time; dt = dateshift(dt,"start","quarter"); DTT.Time = dt; areTimestampsRegular = isregular(DTT,"quarters")```
```areTimestampsRegular = logical 1 ```

`DTT` is regular with respect to time.

Create Model Template for Estimation

Create a default VAR(4) model by using the shorthand syntax. Specify the response variable names.

```Mdl = varm(2,4); Mdl.SeriesNames = varnames```
```Mdl = varm with properties: Description: "2-Dimensional VAR(4) Model" SeriesNames: "RCPI" "UNRATE" NumSeries: 2 P: 4 Constant: [2×1 vector of NaNs] AR: {2×2 matrices of NaNs} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix of NaNs] ```

Fit Model to Data

Estimate the model. Pass the entire timetable `DTT`. By default, `estimate` selects the response variables in `Mdl.SeriesNames` to fit to the model. Alternatively, you can use the `ResponseVariables` name-value argument.

Return the timetable of residuals and data fit to the model. Summarize the estimated model.

```[EstMdl,~,~,Tbl2] = estimate(Mdl,DTT); summarize(EstMdl)```
``` AR-Stationary 2-Dimensional VAR(4) Model Effective Sample Size: 241 Number of Estimated Parameters: 18 LogLikelihood: 811.361 AIC: -1586.72 BIC: -1524 Value StandardError TStatistic PValue ___________ _____________ __________ __________ Constant(1) 0.0017164 0.0015988 1.0735 0.28303 Constant(2) 0.31626 0.091961 3.439 0.0005838 AR{1}(1,1) 0.30899 0.063356 4.877 1.0772e-06 AR{1}(2,1) -4.4834 3.6441 -1.2303 0.21857 AR{1}(1,2) -0.0031796 0.0011306 -2.8122 0.004921 AR{1}(2,2) 1.3433 0.065032 20.656 8.546e-95 AR{2}(1,1) 0.22433 0.069631 3.2217 0.0012741 AR{2}(2,1) 7.1896 4.005 1.7951 0.072631 AR{2}(1,2) 0.0012375 0.0018631 0.6642 0.50656 AR{2}(2,2) -0.26817 0.10716 -2.5025 0.012331 AR{3}(1,1) 0.35333 0.068287 5.1742 2.2887e-07 AR{3}(2,1) 1.487 3.9277 0.37858 0.705 AR{3}(1,2) 0.0028594 0.0018621 1.5355 0.12465 AR{3}(2,2) -0.22709 0.1071 -2.1202 0.033986 AR{4}(1,1) -0.047563 0.069026 -0.68906 0.49079 AR{4}(2,1) 8.6379 3.9702 2.1757 0.029579 AR{4}(1,2) -0.00096323 0.0011142 -0.86448 0.38733 AR{4}(2,2) 0.076725 0.064088 1.1972 0.23123 Innovations Covariance Matrix: 0.0000 -0.0002 -0.0002 0.1167 Innovations Correlation Matrix: 1.0000 -0.0925 -0.0925 1.0000 ```

`EstMdl` is an estimated `varm` model object. It is fully specified because all parameters have known values.

Display the head of the table `Tbl2`.

`head(Tbl2)`
``` Time COE CPIAUCSL FEDFUNDS GCE GDP GDPDEF GPDI GS10 HOANBS M1SL M2SL PCEC TB3MS UNRATE RCPI RCPI_Residuals UNRATE_Residuals _____ _____ ________ ________ ____ _____ ______ ____ ____ ______ ____ ____ _____ _____ ______ __________ ______________ ________________ Q1-49 144.1 23.91 NaN 45.6 270 16.531 40.9 NaN 53.961 NaN NaN 177 1.17 5 -0.0058382 -0.013422 0.64674 Q2-49 141.9 23.92 NaN 47.3 266.2 16.35 34 NaN 53.058 NaN NaN 178.6 1.17 6.2 0.00041815 0.0051673 0.6439 Q3-49 141 23.75 NaN 47.2 267.7 16.256 37.3 NaN 52.501 NaN NaN 178 1.07 6.6 -0.0071324 0.0030175 -0.099092 Q4-49 140.5 23.61 NaN 46.6 265.2 16.272 35.2 NaN 52.291 NaN NaN 180.4 1.1 6.6 -0.0059122 -0.001196 -0.0066535 Q1-50 144.6 23.64 NaN 45.6 275.2 16.222 44.4 NaN 52.696 NaN NaN 183.1 1.12 6.3 0.0012698 0.0024607 -0.013354 Q2-50 150.6 23.88 NaN 46.1 284.6 16.286 49.9 NaN 53.997 NaN NaN 187 1.15 5.4 0.010101 0.010823 -0.53098 Q3-50 159 24.34 NaN 45.9 302 16.63 56.1 NaN 55.7 NaN NaN 200.7 1.3 4.4 0.01908 0.012566 -0.38177 Q4-50 166.9 24.98 NaN 49.5 313.4 16.95 65.9 NaN 56.213 NaN NaN 198.1 1.34 4.3 0.025954 0.010998 0.50761 ```

Because the VAR model has degree of 4, estimation requires four presample observations. Consequently, `estimate` uses the first four rows (all quarters of 1948) of `DTT` as a presample, fits the model to the remaining observations, and returns only those observations used in estimation in `Tbl2`.

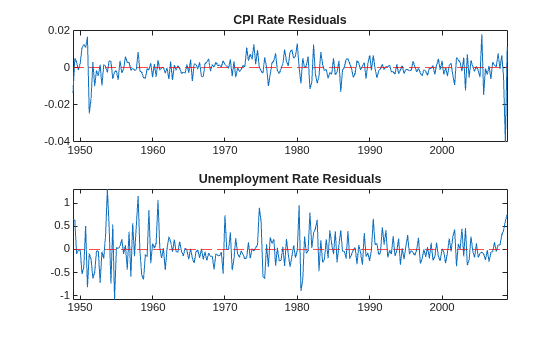

Plot the residuals.

```figure tiledlayout(2,1) nexttile plot(Tbl2.Time,Tbl2.RCPI_Residuals) hold on yline(0,"r--"); hold off title("CPI Rate Residuals") nexttile plot(Tbl2.Time,Tbl2.UNRATE_Residuals) hold on yline(0,"r--"); hold off title("Unemployment Rate Residuals")```

Estimate a VAR(4) model of the consumer price index (CPI), unemployment rate, and real gross domestic product (GDP). Include a linear regression component containing the current quarter and the last four quarters of government consumption expenditures and investment (GCE).

Load the `Data_USEconModel` data set. Compute the real GDP.

```load Data_USEconModel DataTimeTable.RGDP = DataTimeTable.GDP./DataTimeTable.GDPDEF*100;```

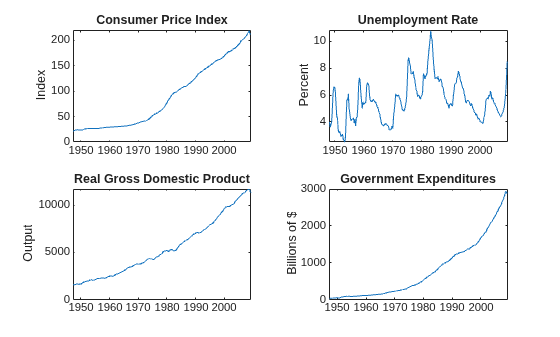

Plot all variables on separate plots.

```figure tiledlayout(2,2) nexttile plot(DataTimeTable.Time,DataTimeTable.CPIAUCSL); ylabel('Index') title('Consumer Price Index') nexttile plot(DataTimeTable.Time,DataTimeTable.UNRATE); ylabel('Percent') title('Unemployment Rate') nexttile plot(DataTimeTable.Time,DataTimeTable.RGDP); ylabel('Output') title('Real Gross Domestic Product') nexttile plot(DataTimeTable.Time,DataTimeTable.GCE); ylabel('Billions of \$') title('Government Expenditures')```

Stabilize the CPI, GDP, and GCE series by converting each to a series of growth rates. Synchronize the unemployment rate series with the others by removing its first observation.

```inputVariables = {'CPIAUCSL' 'RGDP' 'GCE'}; Data = varfun(@price2ret,DataTimeTable,'InputVariables',inputVariables); Data.Properties.VariableNames = inputVariables; Data.UNRATE = DataTimeTable.UNRATE(2:end);```

Expand the GCE rate series to a matrix that includes its current value and up through four lagged values. Remove the `GCE` variable from `Data`.

```rgcelag4 = lagmatrix(Data.GCE,0:4); Data.GCE = [];```

Create a default VAR(4) model by using the shorthand syntax. You do not have to specify the regression component when creating the model.

`Mdl = varm(3,4);`

Estimate the model using the entire sample. Specify the GCE rate matrix as data for the regression component. Extract standard errors and the loglikelihood value.

`[EstMdl,EstSE,logL] = estimate(Mdl,Data.Variables,'X',rgcelag4);`

Display the regression coefficient matrix.

`EstMdl.Beta`
```ans = 3×5 0.0777 -0.0892 -0.0685 -0.0181 0.0330 0.1450 -0.0304 0.0579 -0.0559 0.0185 -2.8138 -0.1636 0.3905 1.1799 -2.3328 ```

`EstMdl.Beta` is a 3-by-5 matrix. Rows correspond to response series, and columns correspond to predictors.

Display the matrix of standard errors corresponding to the coefficient estimates.

`EstSE.Beta`
```ans = 3×5 0.0250 0.0272 0.0275 0.0274 0.0243 0.0368 0.0401 0.0405 0.0403 0.0358 1.4552 1.5841 1.6028 1.5918 1.4145 ```

`EstSE.Beta` is commensurate with `EstMdl.Beta`.

Display the loglikelihood value.

`logL`
```logL = 1.7056e+03 ```

Input Arguments

collapse all

VAR model containing unknown parameter values, specified as a `varm` model object returned by `varm`.

`NaN`-valued elements in properties indicate unknown, estimable parameters. Specified elements indicate equality constraints on parameters in model estimation. The innovations covariance matrix `Mdl.Covariance` cannot contain a mix of `NaN` values and real numbers; you must fully specify the covariance or it must be completely unknown (`NaN(Mdl.NumSeries)`).

Observed multivariate response series to which `estimate` fits the model, specified as a `numobs`-by-`numseries` numeric matrix.

`numobs` is the sample size. `numseries` is the number of response variables (`Mdl.NumSeries`).

Rows correspond to observations, and the last row contains the latest observation.

Columns correspond to individual response variables.

`Y` represents the continuation of the presample response series in `Y0`.

Data Types: `double`

Since R2022b

Time series data, to which `estimate` fits the model, specified as a table or timetable with `numvars` variables and `numobs` rows.

Each variable is a numeric vector representing a single path of `numobs` observations. You can optionally specify `numseries` response variables to fit to the model by using the `ResponseVariables` name-value argument, and you can specify `numpreds` predictor variables for the exogenous regression component by using the `PredictorVariables` name-value argument.

Each row is an observation, and measurements in each row occur simultaneously.

If `Tbl1` is a timetable, it must represent a sample with a regular datetime time step (see `isregular`), and the datetime vector `Tbl1.Time` must be ascending or descending.

If `Tbl1` is a table, the last row contains the latest observation.

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `estimate(Mdl,Y,Y0=Presample,X=Exo)` fits the VAR(p) model `Mdl` to the matrix of response data `Y`, and specifies the matrix of presample response data `Presample` and the matrix of exogenous predictor data `Exo`.

Since R2022b

Variables to select from `Tbl1` to treat as response variables yt, specified as one of the following data types:

• String vector or cell vector of character vectors containing `numseries` variable names in `Tbl1.Properties.VariableNames`

• A length `numseries` vector of unique indices (integers) of variables to select from `Tbl1.Properties.VariableNames`

• A length `numvars` logical vector, where ```ResponseVariables(j) = true``` selects variable `j` from `Tbl1.Properties.VariableNames`, and `sum(ResponseVariables)` is `numseries`

The selected variables must be numeric vectors and cannot contain missing values (`NaN`).

If the number of variables in `Tbl1` matches `Mdl.NumSeries`, the default specifies all variables in `Tbl1`. If the number of variables in `Tbl1` exceeds `Mdl.NumSeries`, the default matches variables in `Tbl1` to names in `Mdl.SeriesNames`.

Example: `ResponseVariables=["GDP" "CPI"]`

Example: `ResponseVariables=[true false true false]` or `ResponseVariable=[1 3]` selects the first and third table variables as the response variables.

Data Types: `double` | `logical` | `char` | `cell` | `string`

Presample response observations to initialize the model for estimation, specified as a `numpreobs`-by-`numseries` numeric matrix. `numpreobs` is the number of presample observations. Use `Y0` only when you supply a matrix of response data `Y`.

Rows correspond to presample observations, and the last row contains the latest observation. `Y0` must have at least `Mdl.P` rows. If you supply more rows than necessary, `estimate` uses the latest `Mdl.P` observations only.

Columns must correspond to the `numseries` response variables in `Y`.

By default, `estimate` uses `Y(1:Mdl.P,:)` as presample observations, and then fits the model to ```Y((Mdl.P + 1):end,:)```. This action reduces the effective sample size.

Data Types: `double`

Since R2022b

Presample data to initialize the model for estimation, specified as a table or timetable, the same type as `Tbl1`, with `numprevars` variables and `numpreobs` rows. Use `Presample` only when you supply a table or timetable of data `Tbl1`.

Each variable is a single path of `numpreobs` observations representing the presample of the corresponding variable in `Tbl1`.

Each row is a presample observation, and measurements in each row occur simultaneously. `numpreobs` must be at least `Mdl.P`. If you supply more rows than necessary, `estimate` uses the latest `Mdl.P` observations only.

If `Presample` is a timetable, all the following conditions must be true:

• `Presample` must represent a sample with a regular datetime time step (see `isregular`).

• The inputs `Tbl1` and `Presample` must be consistent in time such that `Presample` immediately precedes `Tbl1` with respect to the sampling frequency and order.

• The datetime vector of sample timestamps `Presample.Time` must be ascending or descending.

If `Presample` is a table, the last row contains the latest presample observation.

By default, `estimate` uses the first or earliest `Mdl.P` observations in `Tbl1` as a presample, and then it fits the model to the remaining `numobs – Mdl.P` observations. This action reduces the effective sample size.

Since R2022b

Variables to select from `Presample` to use for presample data, specified as one of the following data types:

• String vector or cell vector of character vectors containing `numseries` variable names in `Presample.Properties.VariableNames`

• A length `numseries` vector of unique indices (integers) of variables to select from `Presample.Properties.VariableNames`

• A length `numprevars` logical vector, where ```PresampleResponseVariables(j) = true ``` selects variable `j` from `Presample.Properties.VariableNames`, and `sum(PresampleResponseVariables)` is `numseries`

The selected variables must be numeric vectors and cannot contain missing values (`NaN`).

`PresampleResponseNames` does not need to contain the same names as in `Tbl1`; `estimate` uses the data in selected variable `PresampleResponseVariables(j)` as a presample for `ResponseVariables(j)`.

The default specifies the same response variables as those selected from `Tbl1`, see `ResponseVariables`.

Example: `PresampleResponseVariables=["GDP" "CPI"]`

Example: `PresampleResponseVariables=[true false true false]` or `PresampleResponseVariable=[1 3]` selects the first and third table variables for presample data.

Data Types: `double` | `logical` | `char` | `cell` | `string`

Predictor data for the regression component in the model, specified as a numeric matrix containing `numpreds` columns. Use `X` only when you supply a matrix of response data `Y`.

`numpreds` is the number of predictor variables.

Rows correspond to observations, and the last row contains the latest observation. `estimate` does not use the regression component in the presample period. `X` must have at least as many observations as are used after the presample period:

• If you specify `Y0`, `X` must have at least `numobs` rows (see `Y`).

• Otherwise, `X` must have at least `numobs``Mdl.P` observations to account for the presample removal.

In either case, if you supply more rows than necessary, `estimate` uses the latest observations only.

Columns correspond to individual predictor variables. All predictor variables are present in the regression component of each response equation.

By default, `estimate` excludes the regression component, regardless of its presence in `Mdl`.

Data Types: `double`

Since R2022b

Variables to select from `Tbl1` to treat as exogenous predictor variables xt, specified as one of the following data types:

• String vector or cell vector of character vectors containing `numpreds` variable names in `Tbl1.Properties.VariableNames`

• A length `numpreds` vector of unique indices (integers) of variables to select from `Tbl1.Properties.VariableNames`

• A length `numvars` logical vector, where `PredictorVariables(j) = true ` selects variable `j` from `Tbl1.Properties.VariableNames`, and `sum(PredictorVariables)` is `numpreds`

The selected variables must be numeric vectors and cannot contain missing values (`NaN`).

By default, `estimate` excludes the regression component, regardless of its presence in `Mdl`.

Example: `PredictorVariables=["M1SL" "TB3MS" "UNRATE"]`

Example: `PredictorVariables=[true false true false]` or `PredictorVariable=[1 3]` selects the first and third table variables to supply the predictor data.

Data Types: `double` | `logical` | `char` | `cell` | `string`

Estimation information display type, specified as a value in this table.

ValueDescription
`"off"``estimate` does not display estimation information at the command line.
`"table"``estimate` displays a table of estimation information. Rows correspond to parameters, and columns correspond to estimates, standard errors, t statistics, and p values.
`"full"`In addition to a table of summary statistics, `estimate` displays the estimated innovations covariance and correlation matrices, loglikelihood value, Akaike Information Criterion (AIC), Bayesian Information Criterion (BIC), and other estimation information.

Example: `Display="full"`

Data Types: `string` | `char`

Maximum number of solver iterations allowed, specified as a positive numeric scalar.

`estimate` dispatches `MaxIterations` to `mvregress`.

Example: `MaxIterations=2000`

Data Types: `double`

Note

• `NaN` values in `Y`, `Y0`, and `X` indicate missing values. `estimate` removes missing values from the data by list-wise deletion.

• For the presample, `estimate` removes any row containing at least one `NaN`.

• For the estimation sample, `estimate` removes any row of the concatenated data matrix `[Y X]` containing at least one `NaN`.

This type of data reduction reduces the effective sample size.

• `estimate` issues an error when any table or timetable input contains missing values.

Output Arguments

collapse all

Estimated VAR(p) model, returned as a `varm` model object. `EstMdl` is a fully specified `varm` model.

`estimate` uses `mvregress` to implement multivariate normal, maximum likelihood estimation. For more details, see Estimation of Multivariate Regression Models.

Estimated, asymptotic standard errors of the estimated parameters, returned as a structure array containing the fields in this table.

FieldDescription
`Constant`Standard errors of model constants corresponding to the estimates in `EstMdl.Constant`, a `numseries`-by-1 numeric vector
`AR`Standard errors of the autoregressive coefficients corresponding to estimates in `EstMdl.AR`, a cell vector with elements corresponding to `EstMdl.AR`
`Beta`Standard errors of regression coefficients corresponding to the estimates in `EstMdl.Beta`, a `numseries`-by-`numpreds` numeric matrix
`Trend`Standard errors of linear time trends corresponding to the estimates in `EstMdl.Trend`, a `numseries`-by-1 numeric vector

If `estimate` applies equality constraints during estimation by fixing any parameters to a value, then corresponding standard errors of those parameters are `0`.

`estimate` extracts all standard errors from the inverse of the expected Fisher information matrix returned by `mvregress` (see Standard Errors).

Optimized loglikelihood objective function value, returned as a numeric scalar.

Multivariate residuals from the fitted model `EstMdl`, returned as a numeric matrix containing `numseries` columns. `estimate` returns `E` only when you supply a matrix of response data `Y`.

• If you specify `Y0`, then `E` has `numobs` rows (see `Y`).

• Otherwise, `E` has `numobs``Mdl.P` rows to account for the presample removal.

Since R2022b

Multivariate residuals and estimation data, returned as a table or timetable, the same data type as `Tbl1`. `estimate` returns `Tbl2` only when you supply the input `Tbl1`.

`Tbl2` contains the residuals `E` from the model fit to the selected variables in `Tbl1`, and it contains all variables in `Tbl1`. `estimate` names the residuals corresponding to variable `ResponseJ` in `Tbl1` `ResponseJ_Residuals`. For example, if one of the selected response variables for estimation in `Tbl1` is `GDP`, `Tbl2` contains a variable for the residuals in the response equation of `GDP` with the name `GDP_Residuals`.

If you specify presample response data, `Tbl2` and `Tbl1` have the same number of rows, and their rows correspond. Otherwise, because `estimate` removes initial observations from `Tbl1` for the required presample by default, `Tbl2` has `numobs – Mdl.P` rows to account for that removal.

If `Tbl1` is a timetable, `Tbl1` and `Tbl2` have the same row order, either ascending or descending.

References

[1] Hamilton, James D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.

[2] Johansen, S. Likelihood-Based Inference in Cointegrated Vector Autoregressive Models. Oxford: Oxford University Press, 1995.

[3] Juselius, K. The Cointegrated VAR Model. Oxford: Oxford University Press, 2006.

[4] Lütkepohl, H. New Introduction to Multiple Time Series Analysis. Berlin: Springer, 2005.

Version History

Introduced in R2017a

expand all
