fixed.interp1

1-D data interpolation (table lookup)

Since R2024a

Syntax

``vq = fixed.interp1(x,v,xq)``
``vq = fixed.interp1(v,xq)``
``vq = fixed.interp1(___,method)``
``vq = fixed.interp1(___,method,extrapval)``

Description

example

````vq = fixed.interp1(x,v,xq)` returns interpolated values of a 1-D function at specific query points using linear interpolation. Vector `x` contains the coordinates of the sample points and `v` contains the corresponding function values at each sample point. The variable `xq` contains the coordinates of the query points.If you have multiple sets of data that are sampled at the same point coordinates, then you can pass `v` as an array. Each column of array `v` contains a different set of 1-D sample values.```
````vq = fixed.interp1(v,xq)` returns interpolated values and assumes a default set of sample point coordinates. The default points are the sequence of numbers from `1` to `n`, where `n` depends on the shape of `v`: When v is a vector, the default points are `1:length(v)`.When v is an array, the default points are `1:size(v,1)`. Use this syntax when you are not concerned about the absolute distances between points.```
````vq = fixed.interp1(___,method)` specifies an alternative interpolation method: `"linear"`, `"nearest"`, `"previous"`, or `"next"`. The default method is `"linear"`.```
````vq = fixed.interp1(___,method,extrapval)` specifies `extrapval`, a scalar value that is assigned to all queries that lie outside the domain of the sample points.```

Examples

collapse all

This example shows how to implement a one-dimensional fixed-point lookup table using `fixed.interp1`.

Run the example multiple times to see the approximation over different query points.

Create Lookup Table for Function

Define a function `f(x)` to replace with a lookup table approximation.

```clearvars f = @(x) exp(x);```

Define breakpoints `x` for the lookup table. Use the following values, which were computed to estimate `exp(x)` by the Lookup Table Optimizer and targeted 16-bit fixed-point types and on-curve table values.

```x = [-11, -6.80029296875, -5.49609375, -4.708984375, -4.1484375, -3.70849609375, ... -3.3466796875, -3.04150390625, -2.7763671875, -2.54150390625, -2.33251953125, ... -2.142578125, -1.96875, -1.8095703125, -1.66259765625, -1.525390625, -1.3974609375, ... -1.27685546875, -1.16357421875, -1.05712890625, -0.95556640625, -0.85791015625, ... -0.76611328125, -0.677734375, -0.5927734375, -0.51171875, -0.43359375, -0.35791015625, ... -0.28515625, -0.21533203125, -0.1484375, -0.08349609375, -0.0205078125, 0];```

Generate on-curve table values `v` corresponding to the breakpoints.

`v = f(x);`

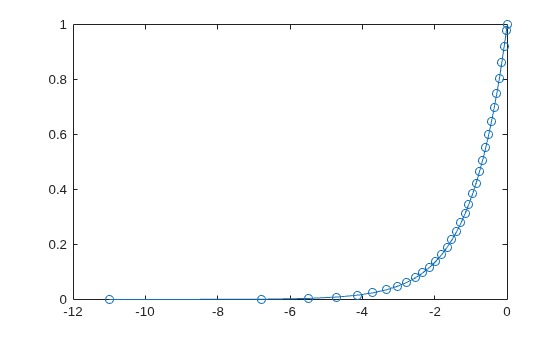

Plot the table values and notice that the breakpoints `x` are not linearly spaced.

`plot(x,v,'o-')`

Query Lookup Table

Choose a random query point `xq` in the range of `x`.

`xq = fixed.example.realUniformRandomArray(x(1),x(end),1);`

Cast the inputs to 16-bit fixed-point.

```x = fi(x); v = fi(v); xq = fi(xq);```

The `fixed.interp1` function computes `vq`, the lookup table approximation of `f(xq)`. That is, ${v}_{q}\approx f\left({x}_{q}\right)$.

`vq = fixed.interp1(x,v,xq)`
```vq = 0.1307 DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 16 FractionLength: 14 ```

Compare Lookup Approximation to Actual Function Value

Compare vq to the actual function evaluation `f(xq)`.

`vq_expected = f(double(xq))`
```vq_expected = 0.1303 ```
`err = double(vq) - vq_expected`
```err = 4.5947e-04 ```

Plot `f(x)`.

```clf; plot(x,v) xlabel('x') ylabel('v') hold on```

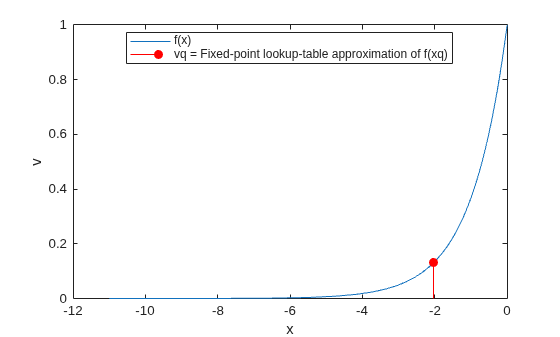

Plot `vq`, the lookup table approximation of `f(xq)`, using a red stem plot.

```stem(xq,vq,'Filled','red') legend('f(x)','vq = Fixed-point lookup-table approximation of f(xq)','location','best')```

Input Arguments

collapse all

Sample points, specified as a row or column vector of real numbers. The values in `x` must be strictly monotonically increasing. The length of `x` must conform to one of the following requirements:

• If `v` is a vector, then `length(x)` must equal `length(v)`.

• If `v` is an array, then `length(x)` must equal `size(v,1)`.

The inputs `x`, `v`, and `xq` must be the same data type: `fi`, `half`, `single`, or `double`. When using `fi` data, you can use the shortened function name `interp1`.

Example: `fi(1:10,0,8,0)`

Example: `half(1:10)`

Data Types: `fi` | `single` | `double`

Sample values, specified as a vector, matrix, or array of real or complex numbers. If `v` is a matrix or an array, then each column contains a separate set of 1-D values.

If `v` contains complex numbers, then `fixed.interp1` interpolates the real and imaginary parts separately.

The inputs `x`, `v`, and `xq` must be the same data type: `fi`, `half`, `single`, or `double`. When using `fi` data, you can use the shortened function name `interp1`.

Example: `fi(rand(10,1),0,12,8)`

Example: `half(rand(10,1))`

Data Types: `fi` | `single` | `double`
Complex Number Support: Yes

Query points, specified as a scalar, vector, matrix, or array of real numbers.

The inputs `x`, `v`, and `xq` must be the same data type: `fi`, `half`, `single`, or `double`. When using `fi` data, you can use the shortened function name `interp1`.

Example: `fi(5,0,12,8)`

Example: `half(5)`

Example: `half(1:0.05:10)`

Example: `half((1:0.05:10)')`

Example: `half([0 1 2 7.5 10])`

Data Types: `fi` | `single` | `double`

Interpolation method, specified as one of the options in this table.

Method

Description

Continuity

Comments

`"linear"`

Linear interpolation. The interpolated value at a query point is based on linear interpolation of the values at neighboring grid points in each respective dimension. This method is the default interpolation method.

C0

• Requires at least 2 points

• Requires more memory and computation time than nearest neighbor

`"nearest"`

Nearest neighbor interpolation. The interpolated value at a query point is the value at the nearest sample grid point.

Discontinuous

• Requires at least 2 points

• Modest memory requirements

• Fastest computation time

`"next"`

Next neighbor interpolation. The interpolated value at a query point is the value at the next sample grid point.

Discontinuous

• Requires at least 2 points

• Same memory requirements and computation time as `"nearest"`

`"previous"`

Previous neighbor interpolation. The interpolated value at a query point is the value at the previous sample grid point.

Discontinuous

• Requires at least 2 points

• Same memory requirements and computation time as `"nearest"`

Function value outside the domain of `x`, specified as a real or complex scalar. `fixed.interp1` returns this constant value for all points outside the domain of `x`. If the scalar value is nonzero and outside the range of the sample values `v`, then this value is set to the minimum or maximum value of `v`, whichever is closer.

The data type of `extrapval` must be the same as `x`, `v`, and `xq`.

The default behavior with `fi` input data is to return `0` for query points outside the domain. The default behavior with `half`, `single`, or `double` input data is to return `NaN` for query points outside the domain.

Example: `fi(5,0,12,8)`

Example: `half(5)`

Data Types: `fi` | `single` | `double`

Note

The default behavior of the `interp1` function is to return `NaN` when a query point is outside the domain. The `fixed.interp1` function with `fi` input data is not consistent with this behavior because `fi` casts `NaN` to `0`.

Output Arguments

collapse all

Interpolated values, returned as a scalar, vector, matrix, or array. The size of `vq` depends on the shape of `v` and `xq`. The data type of `vq` is the same as that of the sample values `v`.

Shape of vShape of xqSize of VqExample
VectorVector`size(xq)`If `size(v) = [1 100]`
and `size(xq) = [1 500]`,
then `size(vq) = [1 500]`.
VectorMatrix
or N-D Array
`size(xq)`If `size(v) = [1 100]`
and `size(xq) = [50 30]`,
then `size(vq) = [50 30]`.
Matrix
or N-D Array
Vector`[length(xq) size(v,2),...,size(v,n)]`If `size(v) = [100 3]`
and `size(xq) = [1 500]`,
then `size(vq) = [500 3]`.
Matrix
or N-D Array
Matrix
or N-D Array
```[size(xq,1),...,size(xq,n),... size(v,2),...,size(v,m)]```If `size(v) = [4 5 6]`
and `size(xq) = [2 3 7]`,
then `size(vq) = [2 3 7 5 6]`.

Version History

Introduced in R2024a
