Optimize Data Types Using Multiple Simulation Scenarios

This example shows how to create multiple simulation scenarios, and use the scenarios to optimize the fixed-point data types of a system.

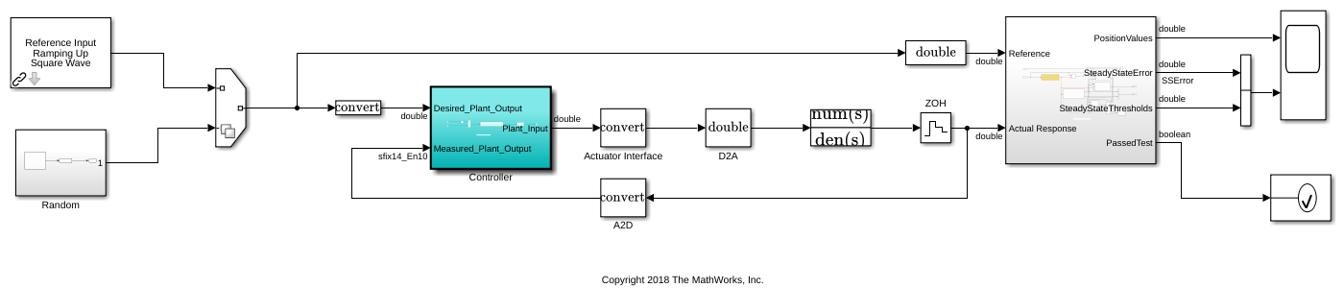

Open the model. In this example, you optimize the data types of the Controller subsystem. The model is set up to use either a ramp input, or a random input.

model = 'ex_controllerHarness';

Create the Simulation Scenarios

Create a Simulink.SimulationInput object that contains the different scenarios. Use both the ramp input as well as four different seeds for the random input.

si = Simulink.SimulationInput.empty(5, 0);

% scan through 4 different seeds for the random input
seeds = randi(1e6, [1 4]);

for sIndex = 1:length(seeds)
    si(sIndex) = Simulink.SimulationInput(model);
    si(sIndex) = si(sIndex).setVariable('SOURCE', 2); % SOURCE == 2 corresponds to the random input
    si(sIndex) = si(sIndex).setBlockParameter([model '/Random/uniformRandom'], 'Seed', num2str(seeds(sIndex))); % scan through the seeds
    si(sIndex) = si(sIndex).setUserString(sprintf('random_%i', seeds(sIndex)));

% setting SOURCE == 1 corresponds to the ramp input
si(5) = Simulink.SimulationInput(model);
si(5) = si(5).setVariable('SOURCE', 1);
si(5) = si(5).setUserString('Ramp');

Specify Fixed-Point Optimization Options

To specify options for the optimization, such as the number of iterations and method for range collection, use the fxpOptimizationOptions object. This example uses derived range analysis to collect ranges for the system.

options = fxpOptimizationOptions('MaxIterations', 3e2, 'Patience', 50);
options.AdvancedOptions.PerformNeighborhoodSearch = false;

% use derived range analysis for range collection
options.AdvancedOptions.UseDerivedRangeAnalysis = true
options =

  fxpOptimizationOptions with properties:

           MaxIterations: 300
                 MaxTime: 600
                Patience: 50
               Verbosity: High
    AllowableWordLengths: [1x127 double]
             UseParallel: 0

   Advanced Options
         AdvancedOptions: [1x1 struct]

Specify the simulation input objects as simulation scenarios in the advanced options.

options.AdvancedOptions.SimulationScenarios = si;

Run Optimization and Explore the Results

During the optimization, the software derives ranges for all simulation scenarios specified in the advanced options. The software verifies solutions against each simulation input scenario.

result = fxpopt(model, [model '/Controller'], options)
	+ Preprocessing
	+ Modeling the optimization problem
		- Constructing decision variables
	+ Running the optimization solver
		- Evaluating new solution: cost 1936, meets the tolerances.
		- Updated best found solution, cost: 1936
	+ Optimization has finished.
	+ Fixed-point implementation that met the tolerances found.
		- Total cost: 1936
		- Maximum absolute difference: 0.000000
		- Use the explore method of the result to explore the implementation.

result =

  OptimizationResult with properties:

                  Model: 'ex_controllerHarness'
      SystemUnderDesign: 'ex_controllerHarness/Controller'
           FinalOutcome: 'Fixed-point implementation that met the tolerances found.'
    OptimizationOptions: [1x1 fxpOptimizationOptions]
              Solutions: [1x1 DataTypeOptimization.OptimizationSolution]

You can explore each solution as it compares to each simulation scenario you defined. Explore the best found solution and view it with the ramp simulation input. The ramp input is simulation scenario five.

solutionIndex = 1; % get the best found solution
scenarioIndex = 5; % get the 5th scenario (ramp)
solution = explore(result, solutionIndex, scenarioIndex);
