polyToBlockedImage

Create labeled blockedImage object from set of ROIs

Since R2021b

Syntax

Bout = polyToBlockedImage(ROIpositions,ROILabelIDs,imageSize)

Bout = polyToBlockedImage(___,Name=Value)

Description

Bout = polyToBlockedImage(ROIpositions,ROILabelIDs,imageSize) creates a numeric, labeled 2-D blocked image Bout of the specified size imageSize from the regions of interest (ROIs) defined in ROIpositions and label IDs defined in ROILabelIDs.

Bout = polyToBlockedImage(___,Name=Value) specifies object properties of Bout using name-value arguments in addition to the input arguments from the previous syntax.

Example: polyToBlockedImage(ROIpositions,ROILabelIDs,BlockSize=[512,512]) creates a blocked image with a block size of 512-by-512 pixels.

Examples

Create Labeled Blocked Image from ROIs

Create a blocked image.

bim = blockedImage("baby.jpg");

Initialize the ROI position cell array.

numPolygon = 3;
roiPositions = cell(numPolygon,1);

Specify the coordinates of three ROIs in the roiPositions cell array. The first ROI is a triangle, requiring x,y coordinates for three vertices. The other two ROIs are quadrilaterals, requiring x,y coordinates for four vertices.

roiPositions{1} = [500 500; 250 1300; 1000 500];
roiPositions{2} = [1500 1100; 1500 1400; 2000 1400; 2000 700];
roiPositions{3} = [80 2600; 480 2700; 470 3000; 100 3000];

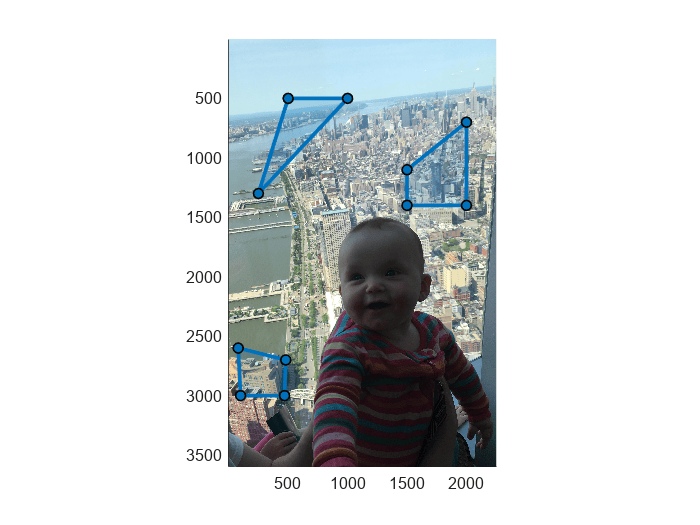

Display the blocked image, and draw the three ROIs on the figure.

bigimageshow(bim);
for id = 1:numPolygon
    drawpolygon(Position=roiPositions{id});
end

Create an array for label IDs the same size as the roiPositions cell array.

roilabelID = zeros(numPolygon,1,"uint8");

Specify label ID values that correspond to the order in which you listed the ROIs in roiPositions. The first ROI is a triangle, so label it 1. The other two ROIs are quadrilaterals, so label them 2.

roilabelID(1) = 1;
roilabelID(2) = 2;
roilabelID(3) = 2;

Specify the size of the new labeled blocked image to match the size of the initial blocked image.

imageSize = bim.Size(1:2);

Create a labeled blockedImage object from the ROIs.

L = polyToBlockedImage(roiPositions,roilabelID,imageSize);

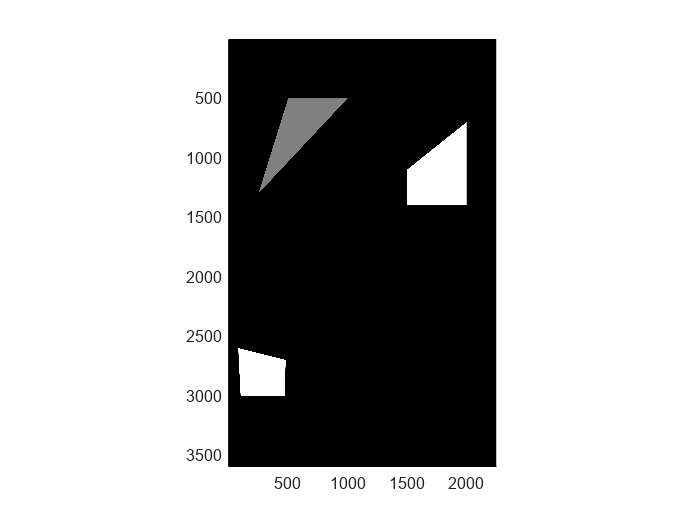

Display the labeled blocked image. Use color scaling and color axis limits to visualize the differences between the labels for triangular and quadrilateral ROIs.

bigimageshow(L,CDataMapping="scaled")
clim([0 2])

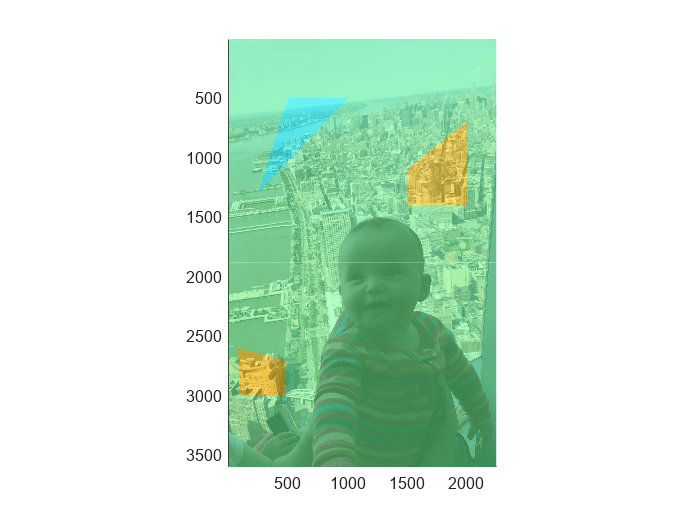

Display the labeled blocked image overlaid on the original blocked image.

hbim = bigimageshow(bim);
showlabels(hbim,L)

Create Labeled Blocked Image Specifying World Coordinates

Create a blocked image.

bim = blockedImage("tumor_091R.tif");

Initialize the ROI position cell array.

numPolygon = 3;
roiPositions = cell(numPolygon,1);

Specify the center and radius parameters for three circular ROIs.

center = [2774 1607; 2071 3100; 2208 2262];
radius = [390; 470; 161];

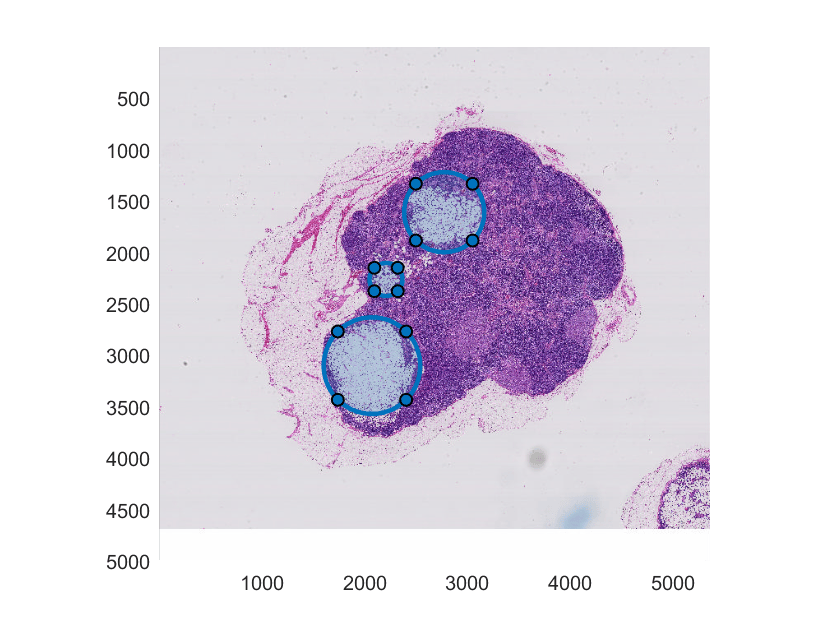

Display the blocked image, and use drawcircle to draw the three circular ROIs on the figure. Add the x,y coordinates of the vertices for each ROI to the roiPositions cell array.

hbim = bigimageshow(bim);
for id = 1:numPolygon
    hROI = drawcircle(Radius=radius(id),Center=center(id,:));
    roiPositions{id} = hROI.Vertices;
end

Create an array for label IDs the same size as the roiPositions cell array.

roilabelID = zeros(numPolygon,1,"uint8");

Specify label ID values that correspond to the order in which you listed the ROIs in roiPositions. You can assign each ROI a different label, or group multiple ROIs under the same label.

roilabelID(1) = 1;
roilabelID(2) = 2;
roilabelID(3) = 2;

Specify an image size for the new labeled blocked image equal to that of the second resolution level of the initial blocked image, bim.

maskLevel = 2;
imageSize = bim.Size(maskLevel,1:2);

Create a labeled blockedImage object from the ROIs. Use the WorldStart and WorldEnd name-value arguments to maintain the same world coordinates as the initial blocked image at the specified resolution level.

L = polyToBlockedImage(roiPositions,roilabelID, ...
imageSize,WorldStart=bim.WorldStart(maskLevel, 1:2), ...
WorldEnd=bim.WorldEnd(maskLevel, 1:2));

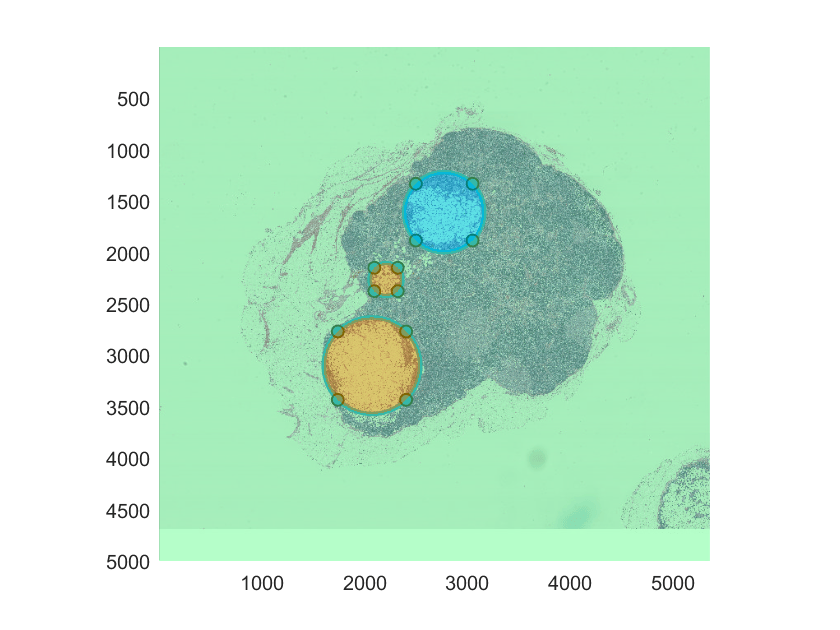

Display the labeled blocked image overlaid on the original blocked image.

showlabels(hbim,L)

Input Arguments

ROIpositions — Coordinate vectors

P-element cell array of numeric vectors

Coordinate vectors, specified as a P-element cell array of numeric vectors, where P is the total number of ROIs. Each cell array element is an s-by-2 coordinate vector of the form [x1 y1; … ; xs ys], where s is the total number of vertices for that ROI. Each x,y pair defines a vertex of the ROI. If the ROI shape is not already closed, the polyToBlockedImage function closes the shape automatically. You can specify any number of ROIs.

Data Types: cell

ROILabelIDs — Labels for each ROI

P-element numeric vector | P-element logical vector

Labels for each ROI, specified as a P-element numeric vector or P-element logical vector, where P is the total number of ROIs.

polyToBlockedImage assigns the value 0 to all background pixels in the output image.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

imageSize — Size of output labeled blocked image

numeric vector of positive integers

Size of the output labeled blocked image, specified as a numeric vector of positive integers. If you specify more than two dimensions, the polyToBlockedImage function uses only the first two dimensions.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: polyToBlockedImage(ROIpositions,ROILabelIDs,imageSize,BlockSize=[512,512]) creates a labeled blocked image with a block size of 512-by-512 pixels.

Adapter — Read and write interface for blocked image object

InMemory object | MATBlocks object | PNGBlocks object | TIFF object | ...

Read and write interface for the blocked image object, specified as one of these adapter objects.

Adapter	Description
BINBlocks	Store each block as a binary file in a folder
GenericImage	Store blocks in a single image
GenericImageBlocks	Store each block as an image file in a folder
H5	Store blocks in a single HDF5 image
H5Blocks	Store each block as an HDF5 file in a folder
InMemory	Store blocks in a variable in main memory
JPEG2000	Read blocks of a single JPEG2000 file (since R2023a)
JPEGBlocks	Store each block as a JPEG file in a folder
MATBlocks	Store each block as a MAT file in a folder
PNGBlocks	Store each block as a PNG file in a folder
TIFF	Store 2-D blocks in a single TIFF file
TIFF3D	Read 3-D blocks in a single TIFF file (since R2024b)

You can also create your own adapter using the images.blocked.Adapter class.

If OutputLocation is specified, then the function automatically selects an adapter based on the output location. If OutputLocation is not specified, then the default adapter is an InMemory object.

BlockSize — Block size

[512,512] (default) | numeric vector of positive integers

Block size, specified as a numeric vector of positive integers. If you specify more than two dimensions, the polyToBlockedImage function uses only the first two dimensions.

Data Types: double

DisplayWaitbar — Wait bar display toggle

true or 1 (default) | false or 0

Wait bar display toggle, specified as a numeric or logical 1 (true) or 0 (false). When set to true, the polyToBlockedImage function displays a wait bar for long-running operations. If you cancel the wait bar, the polyToBlockedImage function returns a partial output, if available.

Data Types: logical

OutputLocation — Location to store output labeled blocked image

[] (default) | character vector | string scalar

Location to store the output labeled blocked image, specified as a character vector or string scalar. By default, the output blocked image is stored in memory.

Destination Type	Image Format
Folder name (without a file extension)	The polyToBlockedImage function creates the folder and stores blocks of data as files within the folder. For numeric image data, polyToBlockedImage stores each block as a binary file using the BINBlocks adapter. For categorical and structure image data, polyToBlockedImage stores each block as a MAT file in the folder using the MATBlocks adapter.
File name with TIF or TIFF file extension	The polyToBlockedImage function stores data as a single TIFF image using the TIFF adapter. The initialValue must be numeric or logical with data type uint8, int8, uint16, int16, uint32, int32, single, double or logical.
File name with H5 file extension	The polyToBlockedImage function stores data as a single HDF5 image using the H5 adapter. The initialValue must be numeric with data type uint8, int8, uint16, int16, uint32, int32, single, or double.
[]	The blockedImage object stores data as a variable in memory using the InMemory adapter.

To specify a custom adapter for other output formats, use the Adapter property.

WorldStart — World coordinates of starting edge of image

numeric vector

World coordinates of the starting edge of the image, specified as a numeric vector. By default, the value is [0.5,0.5].

Data Types: double

WorldEnd — World coordinates of ending edge of image

numeric vector

World coordinates of the ending edge of the image, specified as a numeric vector. By default, the value is imageSize + 0.5, resulting in pixels that are one unit wide.

Data Types: double

Output Arguments

Bout — Numeric labeled 2-D blocked image

blockedImage object

Numeric labeled 2-D blocked image, returned as a blockedImage object.

Tips

• To create a labeled blocked image, Bout, to overlay on an existing blocked image, match imageSize to the size of the existing blocked image at the desired resolution level. If the resolution level of Bout matches the finest resolution level of the existing blocked image, you can use the default values for WorldStart and WorldEnd. To display the overlay at a coarse resolution level, specify WorldStart and WorldEnd to match the world extents of the existing blocked image at the desired resolution level.

• Creating the labeled blocked image at a coarser resolution level decreases the memory required to store the new blocked image, but decreases the smoothness of the ROI edges.

• If a pixel is inside multiple overlapping ROIs, the function assigns the pixel the label corresponding to the overlapping ROI with the lowest index in ROIpositions.

Version History

Introduced in R2021b
