crop

Crop surface mesh

Since R2022b

collapse all in page

Syntax

crop(mesh,bbox)

Description

example

crop(mesh,bbox)crops the surface mesh mesh to the region specified by the 3-D bounding box bbox.

Examples

collapse all

Crop Surface Mesh Using a Bounding Box

Open Live Script

Read a surface mesh from a PLY file into the workspace.

fileName = fullfile(toolboxdir("lidar"),"lidardata", ...
           "surfaceMesh","sphere.ply");
sphereMesh = readSurfaceMesh(fileName);

Display the surface mesh.

removeDefects(sphereMesh,"unreferenced-vertices")
surfaceMeshShow(sphereMesh,Title="Original Mesh")

Define a bounding box to crop the sphere mesh to its lower half.

bbox3d = [-1 1 -1 1 -1 0];
crop(sphereMesh,bbox3d)

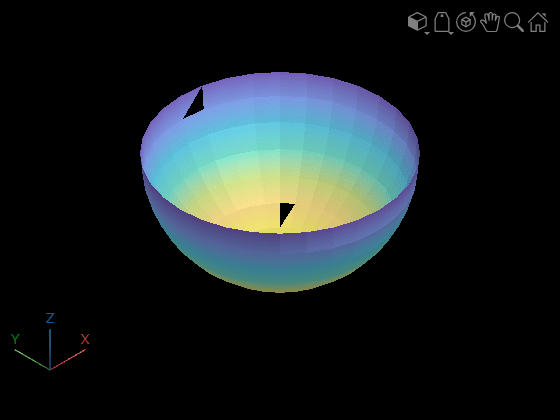

Display the cropped mesh.

removeDefects(sphereMesh,"unreferenced-vertices")
surfaceMeshShow(sphereMesh, Title="Cropped mesh")

Input Arguments

collapse all

`mesh` — Surface mesh
`surfaceMesh` object

Surface mesh, specified as a surfaceMesh object.

`bbox` — 3-D bounding box dimensions
six-element vector

3-D bounding box dimensions, specified as a six-element vector. The vector is of the form [minX maxX minY maxY minZ maxZ], specifying the minimum and maximum limits of the box along the x-,y-, z-directions.

Version History

Introduced in R2022b
