Cross-fix positions from bearings and ranges
[newlat,newlon] = crossfix(lat,lon,az)
[newlat,newlon] = crossfix(lat,lon,az_range,case)
[newlat,newlon] = crossfix(lat,lon,az_range,case,drlat,drlon)
[newlat,newlon] = crossfix(lat,lon,az,units)
[newlat,newlon]
= crossfix(lat,lon,az_range,case,units)
[newlat,newlon] = crossfix(lat,lon,az_range,drlat,drlon,units)
[newlat,newlon] = crossfix(lat,lon,az_range,case,drlat,drlon,units)
mat = crossfix(...)

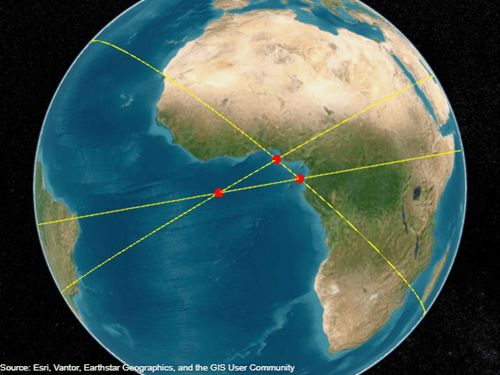

[newlat,newlon] = crossfix(lat,lon,az)
returns
the intersection points of all pairs of great circles passing through
the points given by the column vectors lat
and lon
that
have azimuths az
at those points. The outputs are
two-column matrices newlat
and newlon
in
which each row represents the two intersections of a possible pairing
of the input great circles. If there are n input
objects, there will be n choose 2 pairings.
[newlat,newlon] = crossfix(lat,lon,az_range,case)
allows
the input az_range
to specify either azimuths or
ranges. Where the vector case
equals 1, the corresponding
element of az_range
is an azimuth; where case
is
0, az_range
is a range. The default value of case
is
a vector of ones (azimuths).
[newlat,newlon] = crossfix(lat,lon,az_range,case,drlat,drlon)
resolves
the ambiguities when there is more than one intersection between two
objects. The scalar-valued drlat
and drlon
provide
the location of an estimated (dead reckoned) position. The outputs newlat
and newlon
are
column vectors in this case, returning only the intersection closest
to the estimated point. When this option is employed, if any pair
of objects fails to intersect, no output is returned and the warning No
Fix
is displayed.
[newlat,newlon] = crossfix(lat,lon,az,units)
,
[newlat,newlon]
= crossfix(lat,lon,az_range,case,units)
,
[newlat,newlon] = crossfix(lat,lon,az_range,drlat,drlon,units)
, and
[newlat,newlon] = crossfix(lat,lon,az_range,case,drlat,drlon,units)
allow the specification of the angle units to be used for all angles and ranges, where
units
is any valid angle units value. The default value of
units
is 'degrees'
.
mat = crossfix(...)
returns
the output in a two- or four-column matrix mat
.
This function calculates the points of intersection between
a set of objects taken in pairs. Given great circle azimuths and/or
ranges from input points, the locations of the possible intersections
are returned. This is different from the navigational function navfix
in
that crossfix
uses great circle measurement, while navfix
uses
rhumb line azimuths and nautical mile distances.
