Solve a BVP over an initial interval, and then iteratively extend the interval using each solution as the initial guess for the next interval.

Consider the equation

${{\mathit{y}}^{\prime}}^{\prime}=\mathit{y}$.

As a first-order system, the equation becomes a system of two equations

${{\mathit{y}}_{1}}^{\prime}={\mathit{y}}_{2}$,

${{\mathit{y}}_{2}}^{\prime}={\mathit{y}}_{1}$.

The equation is initially defined on the interval $\left[0,3\right]$ and is subject to the boundary conditions

$\mathit{y}\left(0\right)=0$,

$\mathit{y}\left(3\right)=1$.

The function that encodes the equation as a first-order system is

function dydx = bvpfun(x,y)
dydx = [y(2)
y(1)];
end

Similarly, the function that encodes the boundary conditions is

function res = bcfun(ya,yb)
res = [ya(1)
yb(1)-1];
end

You either can include the required functions as local functions at the end of a file (as done here), or you can save them as separate, named files in a directory on the MATLAB path.

**Initial Guess**

Use an exponential function as the initial guess for the solution. Since the equation has two solution components, write an initial guess function of the form `y = guess(x)`

that returns a vector.

function y = guess(x)
y = [exp(x)
exp(x)];
end

A mesh of five points is sufficient to capture the behavior of the guess function.

**Solve Equation**

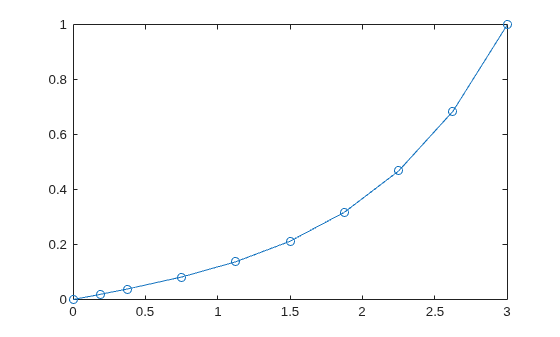

Solve the equation in the initial interval $\left[0,3\right]$ and plot the results for ${\mathit{y}}_{1}$.

**Extend Interval**

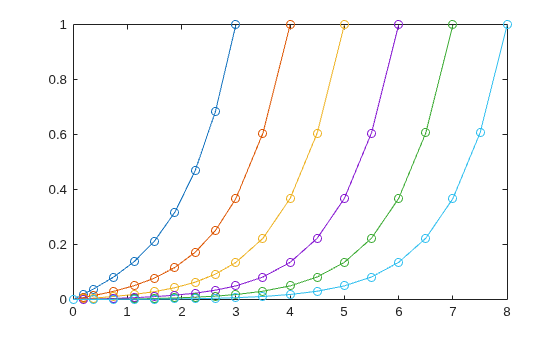

Now, use `bvpinit`

to extend the interval of integration in a loop, solving and plotting each new problem. In each iteration, form the initial guess using the previous solution `sol`

extrapolated to the new interval `[0 k]`

. In each new problem, `bvp4c`

enforces the boundary conditions at the new boundaries `[0 k]`

.

This example shows a simplified version of *continuation*, a useful technique to solve BVPs by breaking the problem down into smaller intervals or simpler problems. For more examples of this technique, see:

**Local Functions**

Listed here are the local helper functions that the BVP solver `bvp4c`

calls to calculate the solution. Alternatively, you can save these functions as their own files in a directory on the MATLAB path.
