cmap2gray

Convert RGB colormap to grayscale colormap

Since R2020b

    Description

    example

    newmap = cmap2gray(map) converts the RGB colormap map into the equivalent grayscale colormap newmap.

    Examples

    collapse all

    Load an indexed image with its colormap into the workspace. The load command returns a structure containing the image data and the colormap. View the image.

    indImage = load('clown.mat');
    figure
    imshow(indImage.X,indImage.map)

    Convert the RGB colormap that came with the image into a grayscale colormap.

    newmap = cmap2gray(indImage.map);

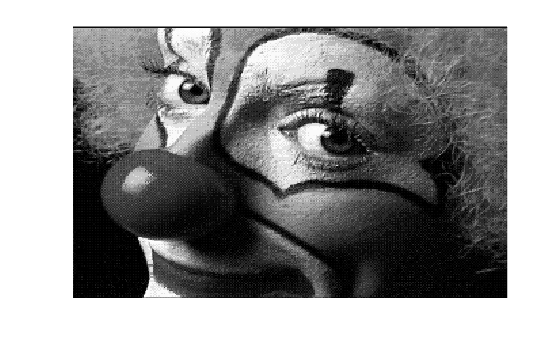

    Display the image with the grayscale colormap.

    figure;
    imshow(indImage.X,newmap)

    Input Arguments

    collapse all

    RGB colormap, specified as a c-by-3 numeric matrix with values in the range [0, 1]. Each row of map is a three-element RGB triplet that specifies the red, green, and blue components of a single color of the colormap.

    If you have Parallel Computing Toolbox™ installed, map can also be a gpuArray object.

    Data Types: double

    Output Arguments

    collapse all

    Grayscale colormap, returned as a c-by-3 numeric matrix with values in the range [0, 1]. The three columns of newmap are identical, so that each row specifies a single intensity value.

    If you have Parallel Computing Toolbox installed, then newmap can also be a gpuArray object.

    Data Types: double

    Algorithms

    The cmap2gray function converts RGB values to grayscale values by forming a weighted sum of the R, G, and B components:

    0.298936021293775 * R + 0.587043074451121 * G + 114020904255103 * B


    The coefficients used to calculate grayscale values in the cmap2gray function are identical to those used to calculate luminance (E'y) in Rec.ITU-R BT.601-7 after rounding to three decimal places. Rec.ITU-R BT.601-7 calculates E'y using this formula:

    0.299 * R + 0.587 * G + 0.114 * B


    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2020b
