# fillmissing2

Fill missing entries in 2-D data

Since R2023a

## Syntax

``F = fillmissing2(A,method)``
``F = fillmissing2(A,movmethod,window)``
``F = fillmissing2(___,Name,Value)``
``````[F,TF] = fillmissing2(___)``````

## Description

example

````F = fillmissing2(A,method)` fills missing (`NaN`) entries of a numeric array using the specified method. For example, `fillmissing2(A,"cubic")` fills missing entries using cubic interpolation of nonmissing entries of `A`.```

example

````F = fillmissing2(A,movmethod,window)` fills missing entries using a 2-D moving window mean or median. For example, `fillmissing2(A,"movmedian",3)` fills missing entries using a 3-by-3 moving window median.```

example

````F = fillmissing2(___,Name,Value)` specifies options using one or more name-value arguments in addition to any of the input argument combinations in previous syntaxes. For example, `fillmissing2(A,"linear",SamplePoints={1:5 10:2:18})` specifies the locations of the sample points for the data in `A`.```

example

``````[F,TF] = fillmissing2(___)``` also returns a logical matrix `TF` that indicates the positions of the filled entries in `F` that were previously missing.```

## Examples

collapse all

Create a 5-by-5 matrix with several `NaN` values.

```A = magic(5); A(1,2) = NaN; A(3:4,3:4) = NaN```
```A = 5×5 17 NaN 1 8 15 23 5 7 14 16 4 6 NaN NaN 22 10 12 NaN NaN 3 11 18 25 2 9 ```

Fill missing entries of `A` with nearest nonmissing entries.

`F = fillmissing2(A,"nearest")`
```F = 5×5 17 1 1 8 15 23 5 7 14 16 4 6 7 22 22 10 12 25 3 3 11 18 25 2 9 ```

Create a 51-by-51 grid, and define a function on the grid.

```n = 51; [x,y] = meshgrid(linspace(-2,2,n)); f = x.^2-y.^2;```

Randomly replace 5% of the values of the function with `NaN` values to simulate missing data.

```NaNPercent = 0.05; randEntries = randperm(n^2,round(NaNPercent*n^2)); f(randEntries) = NaN;```

Fill missing entries in the data using linear interpolation. Then reshape the data for plotting.

```F = fillmissing2(f,"linear"); x = reshape(x,n^2,1); y = reshape(y,n^2,1); f = reshape(f,n^2,1); F = reshape(F,n^2,1);```

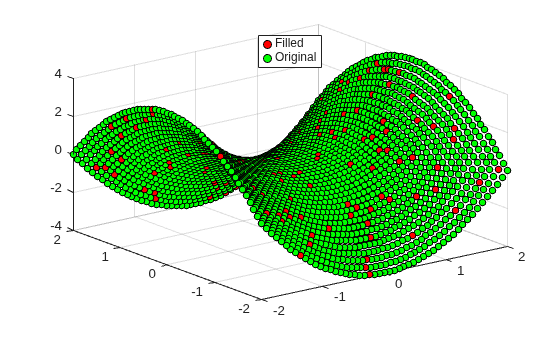

Plot the original data together with the filled data.

```filledData = scatter3(x,y,F,24,"red","filled",... MarkerEdgeColor="black"); hold on originalData = scatter3(x,y,f,24,"green","filled",... MarkerEdgeColor="black"); legend([filledData,originalData],... {"Filled","Original"},Location="north")``` Create an 8-by-8 matrix. Randomly replace 5% of the matrix elements with `NaN` values to simulate missing data.

```n = 8; A = magic(n); NaNPercent = 0.05; randEntries = randperm(n^2,round(NaNPercent*n^2)); A(randEntries) = NaN```
```A = 8×8 64 2 3 61 60 6 7 57 9 55 54 12 13 51 50 NaN 17 47 46 20 21 43 42 24 40 26 27 37 36 30 31 33 32 34 35 29 28 38 NaN 25 41 23 22 44 45 19 18 48 49 15 14 52 53 11 10 56 NaN 58 59 5 4 62 63 1 ```

Fill missing entries of `A` using a 2-by-3 moving window median centered at the current position.

`F = fillmissing2(A,"movmean",{2 3})`
```F = 8×8 64.0000 2.0000 3.0000 61.0000 60.0000 6.0000 7.0000 57.0000 9.0000 55.0000 54.0000 12.0000 13.0000 51.0000 50.0000 38.0000 17.0000 47.0000 46.0000 20.0000 21.0000 43.0000 42.0000 24.0000 40.0000 26.0000 27.0000 37.0000 36.0000 30.0000 31.0000 33.0000 32.0000 34.0000 35.0000 29.0000 28.0000 38.0000 31.4000 25.0000 41.0000 23.0000 22.0000 44.0000 45.0000 19.0000 18.0000 48.0000 49.0000 15.0000 14.0000 52.0000 53.0000 11.0000 10.0000 56.0000 40.6667 58.0000 59.0000 5.0000 4.0000 62.0000 63.0000 1.0000 ```

Create a 5-by-5 matrix of the first 25 square roots.

`A = reshape((1:25).^(1/2),[5 5])';`

Replace one matrix element with a `NaN` value to simulate a missing entry. Replace another matrix element with an outlying value.

```A(4,4) = NaN; A(2,2) = 100```
```A = 5×5 1.0000 1.4142 1.7321 2.0000 2.2361 2.4495 100.0000 2.8284 3.0000 3.1623 3.3166 3.4641 3.6056 3.7417 3.8730 4.0000 4.1231 4.2426 NaN 4.4721 4.5826 4.6904 4.7958 4.8990 5.0000 ```

Define missing entries to be those entries with either a value of `NaN` or an absolute value greater than 10.

`M = isnan(A) | abs(A)>10;`

Fill `NaN` values and outliers using the `MissingLocations` name-value argument. Use the optional `TF` output argument to confirm that both the `NaN` entry and the outlying entry are filled.

`[F,TF] = fillmissing2(A,"cubic",MissingLocations=M)`
```F = 5×5 1.0000 1.4142 1.7321 2.0000 2.2361 2.4495 2.6432 2.8284 3.0000 3.1623 3.3166 3.4641 3.6056 3.7417 3.8730 4.0000 4.1231 4.2426 4.3575 4.4721 4.5826 4.6904 4.7958 4.8990 5.0000 ```
```TF = 5x5 logical array 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 ```

Create a 5-by-5 matrix with several `NaN` values.

```A = magic(5); A(1,2) = NaN; A(3:4,3:4) = NaN```
```A = 5×5 17 NaN 1 8 15 23 5 7 14 16 4 6 NaN NaN 22 10 12 NaN NaN 3 11 18 25 2 9 ```

Specify nonuniformly spaced sample points for filling missing entries using linear interpolation.

```xs = [1 1.99 2 2.01 3]; ys = [1 3 8 9.5 10]; FNonuni = fillmissing2(A,"linear",SamplePoints={xs ys})```
```FNonuni = 5×5 17.0000 12.4286 1.0000 8.0000 15.0000 23.0000 5.0000 7.0000 14.0000 16.0000 4.0000 6.0000 7.1782 13.8812 22.0000 10.0000 12.0000 7.3564 13.7624 3.0000 11.0000 18.0000 25.0000 2.0000 9.0000 ```

Also fill missing entries using linear interpolation with uniformly spaced sample points. Compare the results in `FNonuni` and `FUni`.

`FUni = fillmissing2(A,"linear")`
```FUni = 5×5 17.0000 9.0000 1.0000 8.0000 15.0000 23.0000 5.0000 7.0000 14.0000 16.0000 4.0000 6.0000 11.3333 16.6667 22.0000 10.0000 12.0000 9.0000 6.0000 3.0000 11.0000 18.0000 25.0000 2.0000 9.0000 ```

## Input Arguments

collapse all

Input data, specified as a numeric matrix.

Data Types: `double` | `single`
Complex Number Support: Yes

Fill method, specified as one of the values in this table.

MethodDescription
`"nearest"`Nearest nonmissing entry
`"linear"`Linear interpolation of nonmissing entries
`"natural"`Natural neighbor interpolation of nonmissing entries
`"cubic"`Cubic interpolation of nonmissing entries
`"v4"`Biharmonic spline interpolation of nonmissing entries

Moving method to fill missing data, specified as one of the values in this table.

MethodDescription
`"movmean"`Moving mean over a window described by `window`
`"movmedian"`Moving median over a window described by `window`

Window description for moving methods, specified as a positive integer or `duration` scalar, a two-element cell array of positive integer or `duration` values, or a two-element cell array of two-element vectors of nonnegative integer or `duration` values. The window is defined relative to the sample points.

If `window` is a positive integer scalar, then the window is a `window`-by-`window` block of neighboring entries. If `window` is odd, then the window is centered about the current entry; if `window` is even, then the window is centered about the 2-by-2 submatrix of `A` whose bottom-right entry is the current entry.

If `window` is a two-element cell array of positive integers `{m n}`, then the window is an `m`-by-`n` block centered about the current entry.

If `window` is a two-element cell array of two-element vectors of nonnegative integers `{[bRow fRow] [bCol fCol]}`, then the window contains the row and column of the current entry, the preceding `bRow` and succeeding `fRow` rows, and the preceding `bCol` and succeeding `fCol` columns.

If `window` has type `duration`, then you must specify the `SamplePoints` name-value argument as a two-element cell array of either `datetime` or `duration` values.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `fillmissing2(A,"v4",SamplePoints={1:5,10:2:18})`

Sample points, specified as a two-element cell array `{xs ys}` of vectors of sample point values. The sample points in the `xs` vector represent the x-axis locations of the data, and the sample points in the `ys` vector represent the y-axis locations of the data. Both `xs` and `ys` must be sorted and must not contain duplicate elements. Sample points do not need to be uniformly sampled. If `A` is an `m`-by-`n` matrix, then `1:m` is the default value for `xs` and `1:n` is the default value for `ys`.

Moving windows are defined relative to the sample points. For example, if `xs` and `ys` are vectors of times corresponding to the input data, then ```fillmissing2(rand(10,10),"movmedian",duration([0 0 5]),SamplePoints={xs ys})``` uses a window that represents the interval of 2.5 seconds before and after the time of the current element. When the sample point vectors have data type `datetime` or `duration`, the moving window description must have type `duration`.

Example: `fillmissing2(A,"natural",SamplePoints={1:5,10:2:18})`

Known missing indicator, specified as a logical matrix of the same size as `A`. The indicator elements can be `1` (`true`) to indicate a missing value in the corresponding location of `A` or `0` (`false`) otherwise.

## Output Arguments

collapse all

Filled data, returned as a numeric matrix. `F` is the same size as `A`.

Filled data indicator, returned as a logical matrix. `TF` is a logical matrix where `1` (`true`) corresponds to filled entries in `F` that were previously missing and `0` (`false`) corresponds to unchanged entries.

`TF` is the same size as `F`.

## Version History

Introduced in R2023a
