reordernodes
Reorder graph nodes
Description
Examples
Reorder Graph Nodes

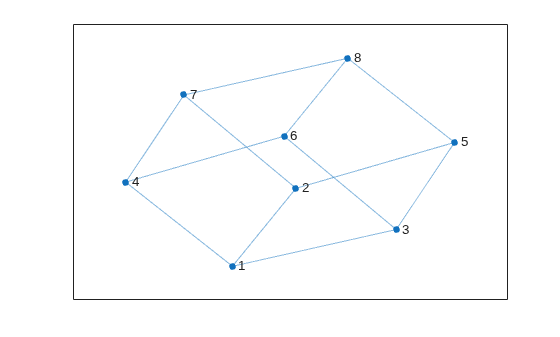

Create and plot a graph.
s = [1 1 1 2 5 3 6 4 7 8 8 8]; t = [2 3 4 5 3 6 4 7 2 6 7 5]; G = graph(s,t); plot(G)
Reorder the graph nodes using a permutation vector.

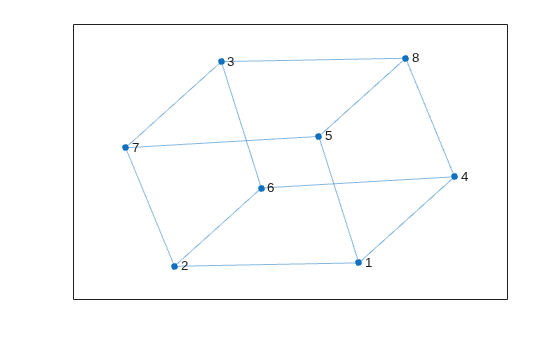

order = [7 2 3 4 8 1 5 6]; G = reordernodes(G,order); plot(G)
Reorder Graph Nodes by Degree

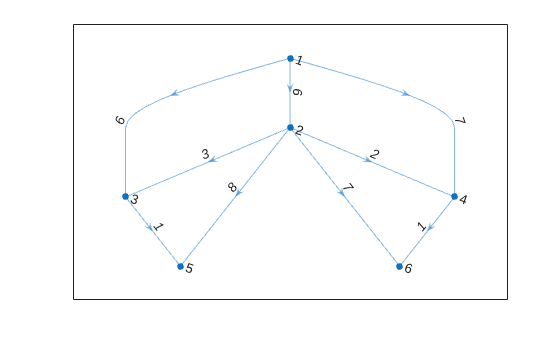

Create and plot a weighted graph.
s = [1 1 1 2 2 2 2 3 4];
t = [3 4 2 3 4 5 6 5 6];
weights = [6 7 6 3 2 8 7 1 1];
G = digraph(s,t,weights);
plot(G,'EdgeLabel',G.Edges.Weight)
Reorder the graph nodes based on the out-degree, such that node 1 has the largest out-degree.
[~,order] = sort(outdegree(G),'descend')
order = 6×1
2
1
3
4
5
6
[H,idx] = reordernodes(G,order);

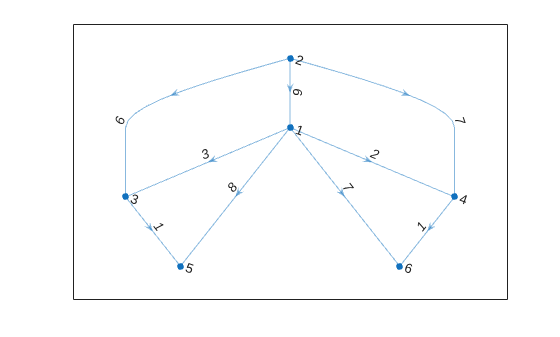

plot(H,'EdgeLabel',H.Edges.Weight)
idx
describes the permutation of the rows in G.Edges
. Confirm this correspondence using the Weight
variable.
isequal(H.Edges.Weight, G.Edges.Weight(idx))
ans = logical
1
Input Arguments
order
— Node order
node indices | node names
Node order, specified as node indices or node names.
order
specifies a symmetric permutation of the
adjacency matrix of G
. If A =
adjacency(G)
, then A(order,order)
produces
adjacency(H)
.
order
can be one of:
Numeric vector of node indices, such as
[1 3 2]
.A cell array of character vectors or string array of node names, such as
{'A' 'C' 'B'}
or["A" "C" "B"]
.
Example: H = reordernodes(G,[3 1 2])
Output Arguments
H
— Output graph
graph
object | digraph
object
Output graph, returned as a graph
or
digraph
object. H
contains the
same Nodes
and Edges
properties as
G
, but with the rows of H.Nodes
and H.Edges
permuted:
H.Nodes
is the same asG.Nodes(order,:)
.H.Edges
is similar toG.Edges(idx,:)
, except that the nodes are renumbered.
idx
— Permutation vector of edge indices
vector
Permutation vector of edge indices, returned as a vector. The values in
idx
describe the permutation of the rows in
G.Edges
.
Extended Capabilities
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
Version History
Introduced in R2015b
