afterAll
Run function after all functions finish running in the background
Description
returns a B
= afterAll(A
,fcn
,n
)Future
object B
and runs the
function fcn
automatically after all elements in the
Future
array A
finish.
MATLAB® runs the function fcn
using the concatenated
outputs from each element in A
. The outputs
Y1,...,Ym
from each Future
object are
concatenated vertically, in linear index order. For example, if
A
is a two-element Future
vector with
outputs y1
and y2
from the first and second
Future
objects respectively, MATLAB runs fcn([y1; y2])
after all elements in
A
finish.
If the Future
array A
has
M
elements, MATLAB runs the function only once. When the scheduled function
fcn
finishes, the Future
object
B
finishes.
You create a Future
object when:
You run a function in the background using
backgroundPool
.You run a function on a parallel pool when you have Parallel Computing Toolbox™.
For more information about using
afterAll
on a parallel pool, see Use afterEach and afterAll to Run Callback Functions (Parallel Computing Toolbox).
If any of the elements in A
encounters an error,
afterAll
finishes with an error.
Examples
Run Callback Function After All Functions Finish
This example shows how to automatically invoke functions on all of the combined outputs of your parfeval
computations.
Preallocate an array of Future
objects, then use parfeval
to compute random vectors and retrieve one output. Specify backgroundPool
as the first argument to run the function in the background. Repeat 10 times to schedule 10 parfeval
computations.
f(1:10) = parallel.FevalFuture; for idx = 1:10 f(idx) = parfeval(backgroundPool,@rand,1,1000,1); end wait(f)
After all the Future
objects finish, display the maximum element among all of those vectors.
The input argument to max
is the concatenated output of all the Future
objects. Specify the third argument to the afterAll
function as 0
to return no outputs from the callback.
afterAll(f,@(r) fprintf("Maximum element is %1.4f\n",max(r)),0);
Handle Errors After All Functions Run in the Background
This example shows how to use afterAll
to handle errors from functions that run in the background.
When you call afterAll
on Future
objects that result in errors, by default, afterAll
also errors. If you want to handle any errors in the preceding futures, for example, when you have a user interface that you want to update, you can use the PassFuture
argument. When you set PassFuture
to true
, MATLAB passes the array of Future
objects to the callback function. You can interact with the individual elements of the Future
array, process the outputs, and handle any possible errors.
Send computations to the background using parfeval
. Some of these computations deliberately result in errors.
N = 10; F(1:N) = parallel.FevalFuture; for idx = 1:2:N F(idx) = parfeval(backgroundPool,@rand,1,1); end for idx = 2:2:N F(idx) = parfeval(backgroundPool,@rand,1,0.1); end
If any of the elements in the preceding futures encounters an error, afterAll
finishes with an error. In the code below, afterAll
errors. Use the Error
property of the afterAll
future a
to view the error.
a = afterAll(F,@mean,1); wait(a) a.Error
ans = MException with properties: identifier: 'MATLAB:parallel:future:PrecedingExecutionErrors' message: 'The preceding futures with IDs: 90,91,92,93,94 resulted in an error.' cause: {5×1 cell} stack: [0×1 struct] Correction: []

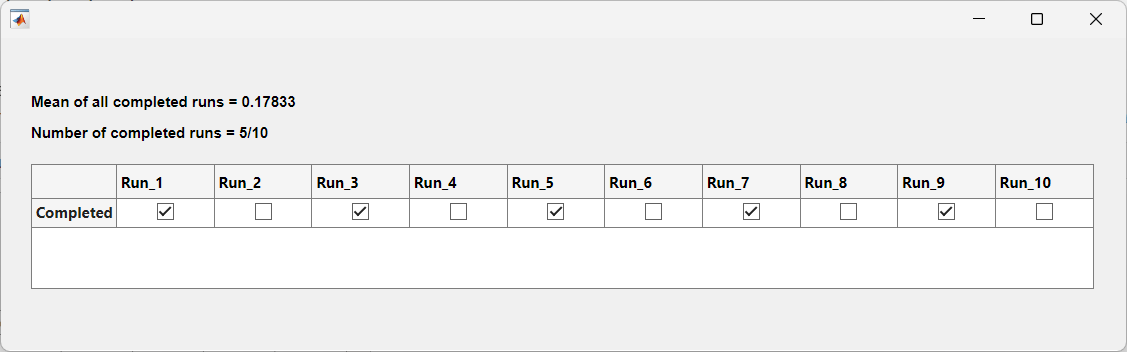

To handle the elements in the preceding futures that have errors, write a callback function that takes in the future array as an input argument. The displayRunSummary
helper function determine which futures completed successfully using the Error
property and fetches their outputs. It then calculates the mean of the completed runs and displays this information in a user interface, including a table showing the completion status of each computation.
a2 = afterAll(F,@displayRunSummary,0,PassFuture=true);
function displayRunSummary(F) N = numel(F); output = zeros(N,1); for idx = 1:N f = F(idx); field = strcat("Run_",num2str(idx)); results.(field) = isempty(f.Error); if isempty(f.Error) output(idx) = fetchOutputs(f); end end meanAll = mean(output,"omitmissing"); fig = uifigure('Position',[100 100 900 250]); runText = strcat("Number of completed runs = ", ... num2str(nnz(output)),"/",num2str(numel(output))); uilabel(fig,Text=runText,FontWeight="bold",Position=[25 125 700 100]); meanText = strcat("Mean of all completed runs = ",num2str(meanAll)); uilabel(fig,Text=meanText,FontWeight="bold",Position=[25 150 700 100]); t = struct2table(results); t.Properties.RowNames = "Completed"; uitable(fig,Position=[25 50 850 100],Data=t); end
Update Wait Bar While Functions Run in the Background
This example shows how to use afterEach
to update a wait bar with the progress of functions running in the background.
Create a wait bar, w
.
w = waitbar(0,'Please wait ...');
Set the number of iterations for your for
-loop, N
. Store the current number of completed iterations, 0
, and the total number of iterations, N
, in the UserData
property of the wait bar.
N = 20;
w.UserData = [0 N];
Run a for
-loop with N
iterations. In each iteration, use parfeval
and backgroundPool
to run pause
in the background for a random number of seconds. Store each Future
object in an array.
for i = 1:N delay = rand; f(i) = parfeval(backgroundPool,@pause,0,delay); end
Use the helper function updateWaitbar
to update the waitbar after each Future
finishes.
afterEach(f,@(~)updateWaitbar(w),0);
Use delete
to close the wait bar after all the Future
objects finish.
afterAll(f,@(~)delete(w),0);
Define Helper Function
Define the helper function updateWaitbar
. The function increments the first element of the UserData
property, then uses the vector to calculate the progress.
function updateWaitbar(w) % Update a waitbar using the UserData property. % Check if the waitbar is a reference to a deleted object if isvalid(w) % Increment the number of completed iterations w.UserData(1) = w.UserData(1) + 1; % Calculate the progress progress = w.UserData(1) / w.UserData(2); % Update the waitbar waitbar(progress,w); end end
Input Arguments
A
— Input Future
parallel.Future
scalar | parallel.Future
array
Input Future
object, specified as a parallel.Future
scalar or array.
MATLAB runs the function fcn
after all elements
in A
finish.
By default,
PassFuture
isfalse
, and MATLAB runs the callback function using the concatenated outputsY1,...,Ym
from eachFuture
element inA
. The outputsY1,...,Ym
from eachFuture
object are concatenated vertically, in linear index order. For example, ifA
is a two-elementFuture
vector with outputsy1
andy2
from the first and secondFuture
objects respectively, MATLAB runsfcn([y1; y2])
after all elements inA
finish.If any of the elements in
A
encounters an error,afterAll
finishes with an error.If you specify
PassFuture
astrue
, MATLAB runs the callback function asfcn(A)
.If any of the elements in
A
encounters an error,afterAll
does not finish with an error.
If the Future
array has M
elements,
MATLAB runs the function M
times. When the
scheduled function fcn
finishes, the
Future
object B
finishes.
Example: A =
parfeval(backgroundPool,@magic,1,3);
fcn
— Callback function to run
function handle
Callback function to run, specified as a function handle.
Example: fcn = @magic
n
— Number of output arguments
nonnegative integer scalar
Number of output arguments, specified as a nonnegative integer scalar.
If you specify
PassFuture
astrue
,n
is the number of output arguments expected from runningfcn(A)
using theFuture
arrayA
.Otherwise,
n
is the number of output arguments expected from runningfcn(Y1,...,Ym)
using the vertically concatenated outputsY1,...,Ym
from each elementAj
in theFuture
arrayA
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
PassFuture
— Pass Future
array A
to callback function
false
or 0
(default) | true
or 1
Pass the Future
array A
to callback
function, specified as true
or false
.
By default
PassFuture
is false and MATLAB runs the functionfcn
using the concatenated outputs from each element inA
. The outputsY1,...,Ym
from eachFuture
object are concatenated vertically, in linear index order. For example, ifA
is a two-elementFuture
vector with outputsy1
andy2
from the first and secondFuture
objects respectively, MATLAB runsfcn([y1; y2])
after all elements inA
finish.If any of the elements in
A
encounters an error,afterAll
finishes with an error.If you specify
PassFuture
astrue
, MATLAB runsfcn(A)
after allFuture
elements inA
finishes, instead of concatenating the outputs of theFuture
elements inA
.If any of the elements in
A
encounters an error,afterAll
does not finish with an error.
Data Types: logical
Output Arguments
B
— Output Future
parallel.Future
object
Output Future
object, returned as a
parallel.Future
object.
Use
fetchOutputs
to retrieve results fromB
.Use
afterEach
orafterAll
to run a function whenB
completes.
When you set PassFuture
, you change the
Error
property of B
if
afterAll
does not result in an error:
By default,
PassFuture
isfalse
, and if any of the elements inA
encounters an error,afterAll
finishes with an error. TheError
property ofB
is anMException
object.To find the cause of the error, use the
cause
property ofB.Error
.If
PassFuture
istrue
, and any of the elements inA
encounters an error,afterAll
does not finish with an error. TheError
property ofB
is an emptyMException
object.
If afterAll
results in an error, the
Error
property of B
is an
MException
object.
Version History
Introduced in R2018a
