addboundary
Add polyshape
boundary
Syntax
Description
polyout = addboundary(
adds M boundaries, where the vectors of
x-coordinates for each boundary are listed together in a cell
array. The corresponding vectors of y-coordinates also are listed
together in a cell array. Each xi must
have the same length as the corresponding
yi, but the number of vertices can
vary among the boundaries.polyin
,{x1,x2,...,xM}
,{y1,y2,...,yM}
)
polyout = addboundary(___,
specifies additional parameters for adding boundaries to a
Name,Value
)polyshape
for any of the previous syntaxes.
Examples
Add Polygon Boundary
Create a rectangle, and then create a second polygon made up of the rectangle plus a triangle.
polyin = polyshape([0 0 1 1],[0 0.5 0.5 0])
polyin = polyshape with properties: Vertices: [4x2 double] NumRegions: 1 NumHoles: 0

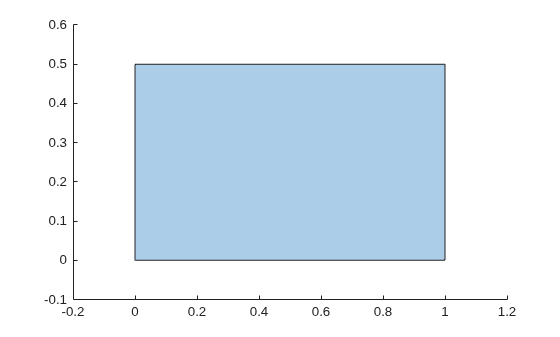

plot(polyin)
polyout = addboundary(polyin,[2 3 2.5],[2 2 3])
polyout = polyshape with properties: Vertices: [8x2 double] NumRegions: 2 NumHoles: 0

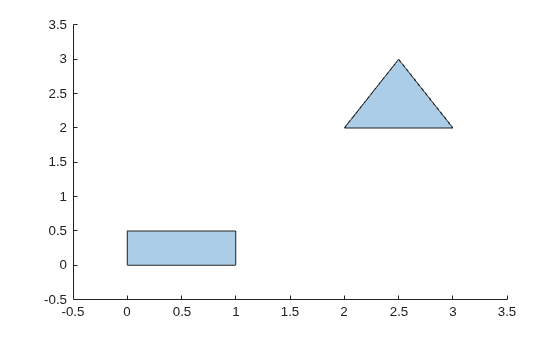

plot(polyout)
Input Arguments
polyin
— Input polyshape
scalar
Input polyshape
, specified as a scalar.
Data Types: polyshape
x
— x-coordinates
vector
x-coordinates of boundary vertices, specified as a
vector. You can represent the coordinates of multiple boundaries
simultaneously by placing a NaN
between each boundary.

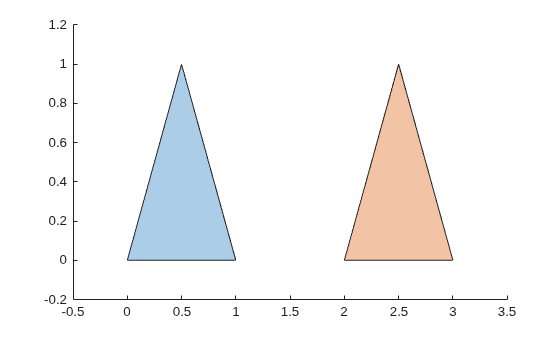

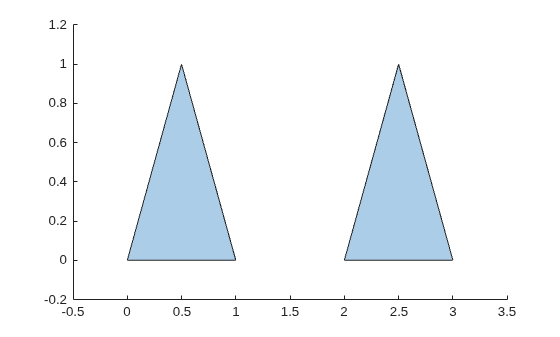

For example, polyout = addboundary(polyin,[0 0 1 NaN 1 5 5],[1 0 0
NaN 5 5 1])
returns a polyshape
object made
up of polyin
plus two additional triangles.
Numeric input vertices that are not of type double
are
automatically converted to type double
.
Data Types: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
y
— y-coordinates
vector
y-coordinates of boundary vertices, specified as a
vector. You can represent the coordinates of multiple boundaries
simultaneously by placing a NaN
between each boundary.
For example, polyout = addboundary(polyin,[0 0 1 NaN 1 5 5],[1 0 0
NaN 5 5 1])
returns a polyshape
object made
up of polyin
plus two additional triangles.
Numeric input vertices that are not of type double
are
automatically converted to type double
.
Data Types: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
P
— Boundary vertices
2-column matrix
Boundary vertices, specified as a 2-column matrix. The first column of
P
contains the x-coordinates of
the vertices, and the second column contains the
y-coordinates. P
must have at least 3
rows.
You can represent the coordinates of multiple boundaries simultaneously by
placing a NaN
between each boundary. For example,
polyout = addboundary(polyin,[1 0; 0 0; 0 1; NaN NaN; 1 5; 5 5;
5 1])
returns a polyshape
object made up of
polyin
, plus two additional triangles.
Numeric input vertices that are not of type double
are
automatically converted to type double
.
Data Types: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
{x1,x2,...,xM}
— x-coordinates
cell array of vectors
x-coordinates for M boundaries, specified as a cell array of vectors. The length of each xi can vary, but must match the length of the corresponding yi vector.
Numeric input vertices that are not of type double
are
automatically converted to type double
.
Data Types: cell
{y1,y2,...,yM}
— y-coordinates
cell array of vectors
y-coordinates of M boundaries, specified as a cell array of vectors. The length of each yi can vary, but must match the length of the corresponding xi vector.
Numeric input vertices that are not of type double
are
automatically converted to type double
.
Data Types: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Name-Value Arguments
Example: polyout =
addboundary(polyin,x,y,'SolidBoundaryOrientation','ccw')
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
SolidBoundaryOrientation
— Boundary orientation
'auto'
(default) | 'cw'
| 'ccw'
Boundary orientation, specified as the comma-separated pair consisting
of 'SolidBoundaryOrientation'
and one of these values:
'auto'
— Automatically choose vertex orientation as clockwise or counterclockwise for solid boundaries.'cw'
— Treat clockwise vertex orientation as a solid boundary.'ccw'
— Treat counterclockwise vertex orientation as a solid boundary.
The vertex orientation is not important for most applications and is primarily an algorithmic tool for determining boundary nesting. This parameter is typically specified for consistency and efficiency purposes when polygon data is produced by other software using a particular convention.

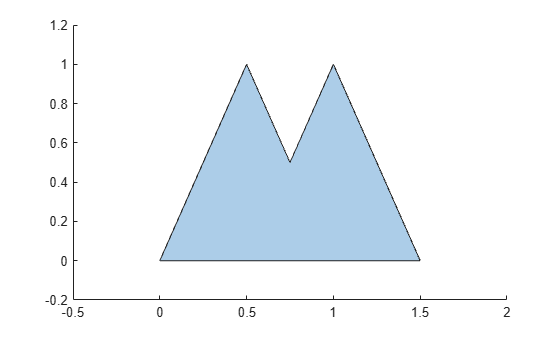

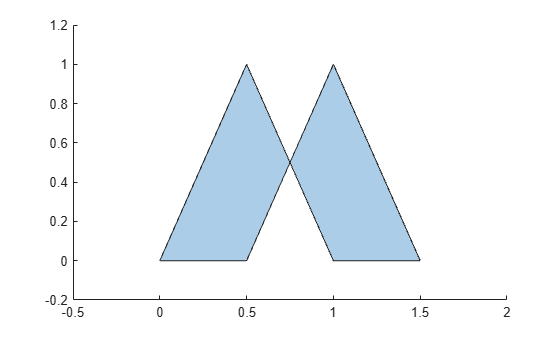

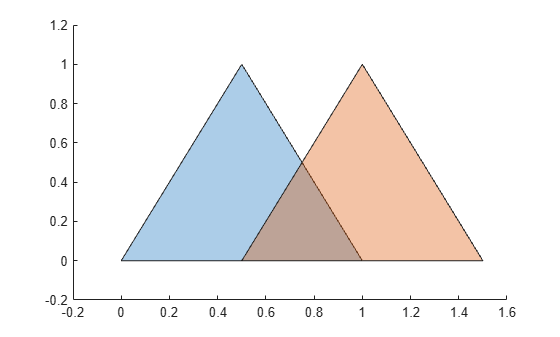

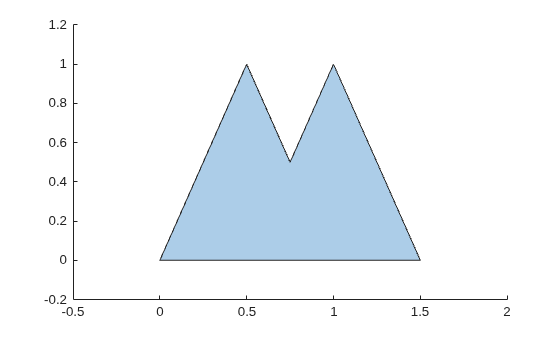

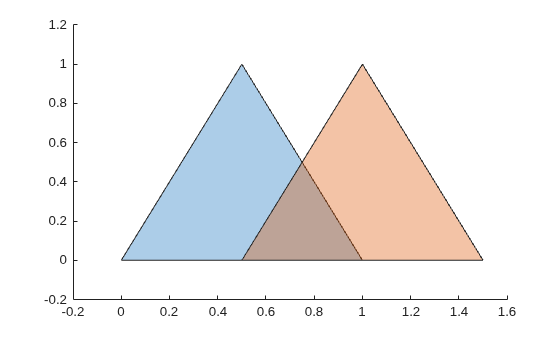

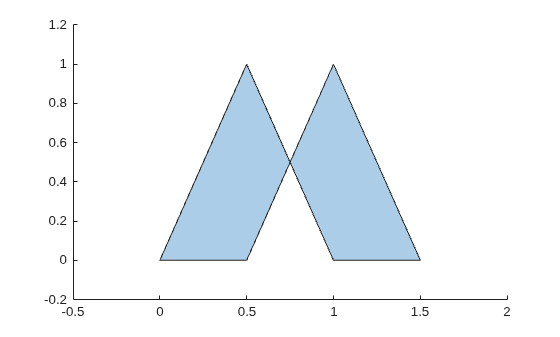

Simplify
— Vertex alteration
true
(default) | false
Vertex alteration, specified as the comma-separated pair consisting of
'Simplify'
and one of these values:
true
— Alter polygon vertices to produce a well-defined polygon when the input vertices produce intersections or improper nesting.false
— Do not alter input vertices regardless of intersections or improper nesting. Computing with ill-defined polygons can lead to inaccurate or unexpected results.
Data Types: logical
KeepCollinearPoints
— Collinear vertices
false
| true
Collinear vertices, specified as the comma-separated pair consisting
of 'KeepCollinearPoints'
and one of the following:
false
— Remove collinear points so that the outputpolyshape
contains the fewest vertices necessary to define the boundaries.true
— Keep all collinear points as vertices.
When 'KeepCollinearPoints'
is not specified, its
value is automatically set to the value used when creating the input
polyshape
.
Data Types: logical
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Dynamic memory allocation must be enabled for code generation.
Name-value pair must be compile time constant.
Version History
Introduced in R2017b
