rmholes

Remove holes in polyshape

Syntax

polyout = rmholes(polyin)

Description

polyout = rmholes(polyin) returns a polyshape object made up of the solid boundaries of the polygon polyin, with all the hole boundaries removed.

Examples

Fill Polygon Hole

Create a polygon with a hole.

t = 0.05:0.5:2*pi;
x1 = cos(t);
y1 = sin(t);
x2 = 0.5*cos(t);
y2 = 0.5*sin(t);
polyin = polyshape({x1,x2},{y1,y2})

polyin =
  polyshape with properties:

      Vertices: [27x2 double]
    NumRegions: 1
      NumHoles: 1

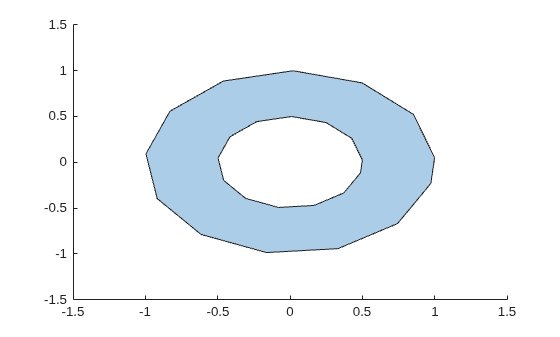

plot(polyin)

Create a new polygon with the hole removed.

polyout = rmholes(polyin)

polyout =
  polyshape with properties:

      Vertices: [13x2 double]
    NumRegions: 1
      NumHoles: 0

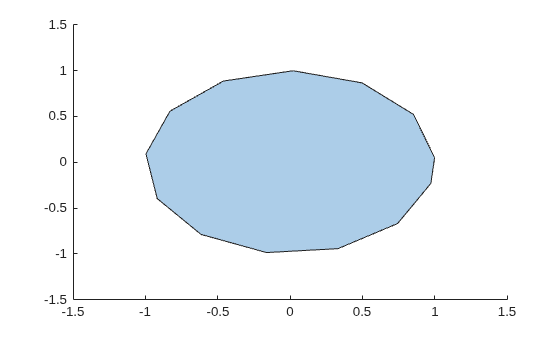

plot(polyout)

Input Arguments

polyin — Input polyshape

scalar | vector | matrix | multidimensional array

Input polyshape, specified as a scalar, vector, matrix, or multidimensional array.

Data Types: polyshape

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Dynamic memory allocation must be enabled for code generation.

Version History

Introduced in R2017b
