holes

Convert polyshape hole boundaries to array of polyshape objects

collapse all in page

Syntax

polyout = holes(polyin)

Description

example

polyout = holes(polyin) returns the hole boundaries of a polyshape object as an array of polyshape objects. The number of elements in polyout is equal to the number of hole boundaries in polyin.

Examples

collapse all

Open Live Script

Create a polygon containing two solid regions and two holes. Convert the hole boundaries to an array of polyshape objects.

P = [0 0; 0 2; 2 2; 2 0; NaN NaN; 0.5 0.5; 0.5 1.5; 1.5 1.5; 1.5 0.5; ...
    NaN NaN; 3 0.5; 3.5 1.5; 4 0.5; NaN NaN; 3.25 0.6; 3.75 0.6; 3.5 1];
polyin = polyshape(P);
plot(polyin)
xlim([-0.5 4.5])
ylim([-0.5 2.5])

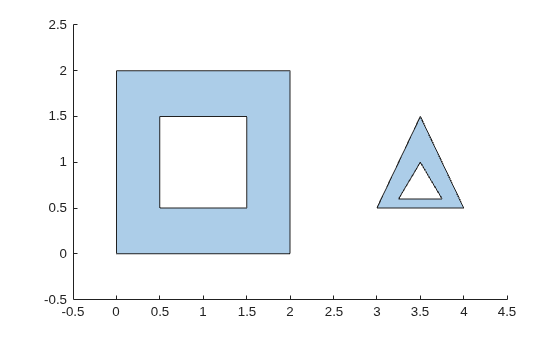

Figure contains an axes object. The axes object contains an object of type polygon.

polyout = holes(polyin)
polyout =
  2x1 polyshape array with properties:

    Vertices
    NumRegions
    NumHoles


plot(polyout)
xlim([-0.5 4.5])
ylim([-0.5 2.5])

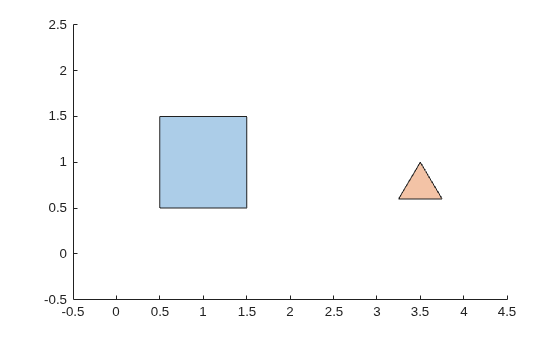

Figure contains an axes object. The axes object contains 2 objects of type polygon.

Input Arguments

collapse all

Input polyshape, specified as a scalar.

Data Types: polyshape

Version History

Introduced in R2017b
