cellFaces

Find faces belonging to specified cells

Since R2021a

    Description

    example

    FaceID = cellFaces(g,RegionID) finds faces belonging to the cells with ID numbers listed in RegionID.

    example

    FaceID = cellFaces(g,RegionID,FilterType) returns internal, external, or all faces belonging to the cells with ID numbers listed in RegionID.

    Examples

    collapse all

    Find faces belonging to two cuboids in a geometry consisting of four stacked cuboids.

    Create a geometry that consists of four stacked cuboids.

    gm = multicuboid(5,10,[1 2 3 4],"ZOffset",[0 1 3 6])
    gm =
      DiscreteGeometry with properties:

           NumCells: 4
           NumFaces: 21
           NumEdges: 36
        NumVertices: 20
           Vertices: [20x3 double]

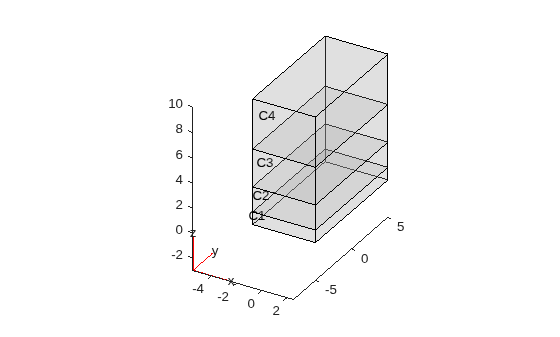

    Plot the geometry with the cell labels.

    pdegplot(gm,"CellLabels","on","FaceAlpha",0.2)

    Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

    Find faces belonging to cells 1 and 3.

    faceIDs = cellFaces(gm,[1 3])
    faceIDs = 1×12

         1     2     3     4     5     6     7    12    13    14    15    16



    Plot the geometry with the face labels.

    pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2)

    Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

    Find faces belonging to the outer cuboid in a geometry consisting of two nested cuboids.

    Create a geometry that consists of two nested cuboids of the same height.

    gm = multicuboid([2 5],[4 10],3)
    gm =
      DiscreteGeometry with properties:

           NumCells: 2
           NumFaces: 12
           NumEdges: 24
        NumVertices: 16
           Vertices: [16x3 double]

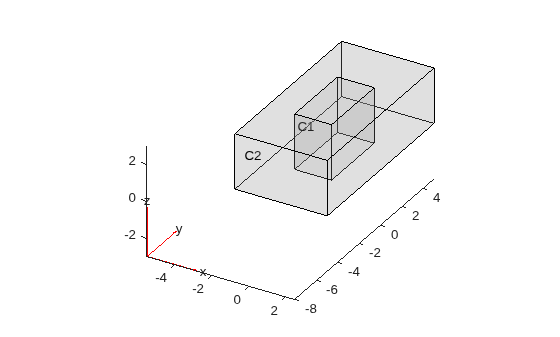

    Plot the geometry with the cell labels.

    pdegplot(gm,"CellLabels","on","FaceAlpha",0.2)

    Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

    Find all faces belonging to the outer cell.

    faceIDs = cellFaces(gm,2)
    faceIDs = 1×10

         3     4     5     6     7     8     9    10    11    12



    Find only the internal faces belonging to the outer cell. Internal faces are faces shared between multiple cells.

    faceIDs_int = cellFaces(gm,2,"internal")
    faceIDs_int = 1×4

         3     4     5     6



    Find only the external faces belonging to the outer cell.

    faceIDs_ext = cellFaces(gm,2,"external")
    faceIDs_ext = 1×6

         7     8     9    10    11    12

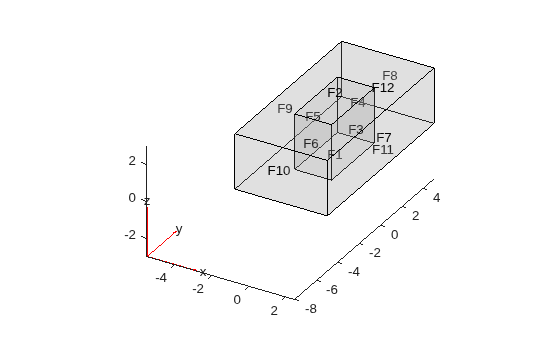

    Plot the geometry with the face labels.

    pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2)

    Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

    Input Arguments

    collapse all

    3-D geometry, specified as an fegeometry object or a DiscreteGeometry object.

    Cell ID, specified as a positive number or a vector of positive numbers. Each number represents a cell ID.

    Type of faces to return, specified as "internal", "external", or "all". Depending on this argument, cellFaces returns these types of faces:

    • "internal" — Internal faces, that is, faces shared between multiple cells.

    • "external" — External faces, that is, faces not shared between multiple cells.

    • "all" — All faces belonging to the specified cells.

    Output Arguments

    collapse all

    IDs of faces belonging to the specified cells, returned as a positive number or a vector of positive numbers.

    Version History

    Introduced in R2021a
