C Caller

Integrate C code in Simulink

Since R2018b

•

Libraries:
Simulink / User-Defined Functions

Description

The C Caller block integrates your external C code into Simulink^®. This block imports and lists the functions in your external C code, and allows you to select your resolved C functions to integrate in your Simulink models. The C Caller block standalone supports code generation. For more complex models, code generation depends on the capabilities of your Simulink model.

To use the C Caller block, define your source code and any supporting files using Simulation Target under Configuration Parameters. Then, bring a C Caller block to the Simulink canvas, using Library Browser > Simulink > User Defined Functions. To change the defined source code file and its dependencies, go to Simulation Target tab in Configuration Parameters by clicking the from the block dialog. After changing your source code or any of its dependencies, refresh the list of functions by clicking the on the block dialog. To browse the function definitions in your source code, use the icon to access your source files.

Examples

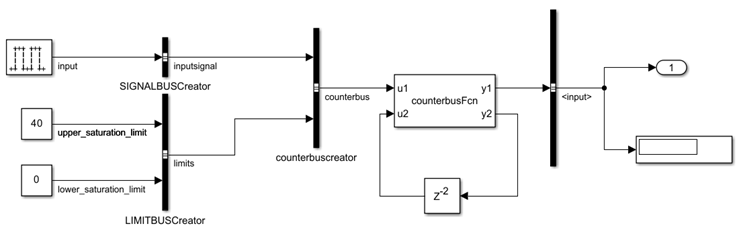

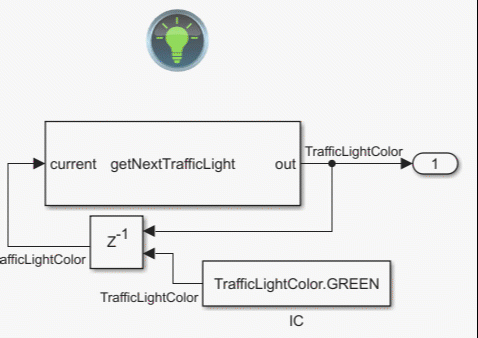

Call C Functions Using C Caller Block

Use the C Caller block to call your handwritten C functions.

Open Model

Ports

Input

Port_1 — Input port

scalar | vector | matrix

The number of input ports and their names are inferred through the selected function in your external C code. To provide data to a C Caller block, connect an input signal to the input ports.

The input label has the same name as your input port unless changed by editing the Label column under Port Specification from the Block Dialog. If you rename the label to an input port, the C Caller block changes the name of the port.

For input variables, you can change the input scope to parameters or constants using the Scope column.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus

Output

Port_1 — Output port

scalar | vector | matrix

The number of output ports and their names are inferred through the selected function in your external C code. To send data from your C Caller block, connect a block to the output port of your C Caller block.

The output port label has the same name as your output port unless you change it by editing the Label column under Port Specification from the Block Dialog. If you rename the label to an input port, the C Caller block changes the name of the port.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated | bus

Parameters

Function name — Name of function

character vector | string scalar

Name of the function parsed for the C Caller block, specified as a character vector or string scalar. For a list of available functions, see Available Functions.

Tunable: Yes

Programmatic Use

Block Parameter: FunctionName

Type: character vector or string scalar

myFunctionName = get_param(gcb,"FunctionName")

myFunctionName =

    'mean_filter'

Port specification — Port properties

table

Port properties, specified as a table. The table indicates the attributes of each input and output element of the block. If the scope is an input, you can modify this variable to a parameter or a constant. These properties include

Name — Demonstrates the variable name inferred from your source code.

A bold argument name indicates that the port or parameter is a global argument.

Scope — Indicates the role of the variables from your source code. If the variable is an input argument in the C Caller block source code, you can change the scope type to a constant or a parameter. If the variable is an output argument in the source code, you cannot change the scope type.

Label — Labels the input or output variable for the Simulink model. You can change the labels using this table. If the scope is a parameter, enter the parameter name in this field. If the scope is a constant, enter the constant value.

Type — Indicates the data type coming from the ports.

Size — Indicates the size of the input and output data.

Name, scope, type, and size are inferred from your source code.

Programmatic Use

Block Parameter: FunctionPortSpecification

Type: FunctionPortSpecification object

Available Functions — List of available functions

cell array

List of all available functions that can be mapped to a C Caller block, specified as a cell array.

The C Caller block in your model imports all functions in your external source code, and shows the function names next to the Function name on the block dialog. To select and use a function in your block, confirm that the function name appears in the Available Functions table. If you are missing one of the functions, reload the source code by clicking on the block dialog. To change the names of functions, modify your source code and click the Refresh button to reload.

Programmatic Use

Block Parameter: AvailableFunctions

Type: cell array

allAvailableFunctions = get_param(gcb, "AvailableFunctions")

allAvailableFunctions =

  1×1 cell array

    {'add'}

Sample time — Sample period

-1 (default) | scalar | vector

Sample period, specified in seconds. See Types of Sample Time and Specify Sample Time.

Programmatic Use

Block Parameter: SampleTime

Type: string scalar or character vector

Default: "-1"

Block Characteristics

Data Types	Booleana | busa | doublea | enumerateda | fixed pointa | integera | singlea
Direct Feedthrough	no
Multidimensional Signals	yesa
Variable-Size Signals	no
Zero-Crossing Detection	no
a Actual data type or capability support depends on block implementation.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Actual data type or capability support depends on block implementation.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced in R2018b
