S-Function Builder

Integrate C or C++ code to create S-functions

•

Libraries:
Simulink / User-Defined Functions

Description

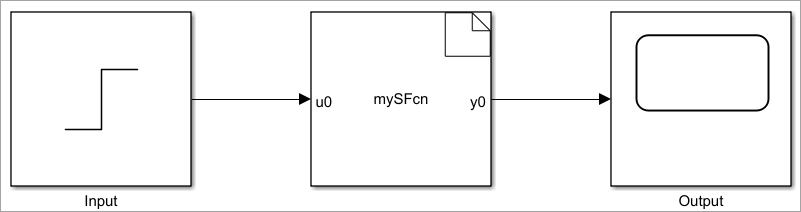

The S-function Builder block integrates new or existing C or C++ code and creates a C MEX S-function (system-function) from specifications you provide. A C MEX S-function is a computer language description of a Simulink^® block written in C or C++. S-functions use a special calling syntax called the S-function API that enables you to interact with the Simulink engine. This interaction is very similar to the interaction that takes place between the engine and built-in Simulink blocks. To learn more about C MEX S-functions, see What Is an S-Function?. To learn more about building C MEX S-Functions using the S-function Builder block, see Build S-Functions Automatically Using S-Function Builder. For an example with a step-by-step procedure, see Use a Bus with S-Function Builder to Create an S-Function.

Instances of the S-Function Builder block also serve as wrappers for generated S-functions in Simulink models. When simulating a model that contains instances of an S-Function Builder block, Simulink invokes the generated C MEX S-function to call your C or C++ code in the instances of mdlStart, mdlOutputs, mdlDerivatives, mdlUpdate and mdlTerminate methods. To learn how Simulink engine interacts with S-functions, see Simulink Engine Interaction with C S-Functions.

Note

The S-Function Builder block does not support masking. However, you can mask a Subsystem block that contains an S-Function Builder block. For more information, see Dynamic Masked Subsystem.

Examples

Inverted Pendulum with Animation

Use Simulink® to model and animate an inverted pendulum system. An inverted pendulum has its center of mass above its pivot point. To stably maintain this position, the system implements control logic to move the pivot point below the center-of mass as the pendulum starts to fall. The inverted pendulum is a classic dynamics problem used to test control strategies.

• Open Model

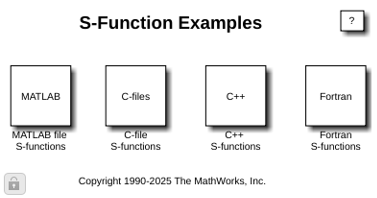

Custom Code and Hand Coded Blocks Using the S-Function API

This library launches examples of different types of Simulink® S-functions. Simulink S-functions allow you to extend Simulink with new hand coded blocks, interface to custom external code, and create live interfaces to other programs. Use this example to access models containing S-functions in C, C++, M, and Fortran®.

• Open Script

Ports

Input

Port_1 — S-function input

scalar | vector | matrix

The S-Function Builder block can accept real and complex, 1-D, or 2-D signals and nonvirtual buses. For each of these cases, the signals must have a data type that Simulink supports.

For more information, see Data Types Supported by Simulink in the Simulink documentation.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | bus

Output

Out — S-function output

scalar | vector | matrix

The S-Function Builder can produce real and complex, 1-D, or 2-D signals and nonvirtual buses. For each of these cases, the signals must have a data type that Simulink supports.

For more information, see Data Types Supported by Simulink in the Simulink documentation.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | bus

Parameters

Use the S-Function Builder editor to create user-defined parameters. For more information on creating user-defined parameters from the editor, see Specify Ports and Parameters for the S-Function.

Note

You do not need to set these listed Simulink block parameters for this block using the block dialog. The Simulink block parameters are set using the information from the S-Function Builder editor.

S-function name — Name of the S-function

system (default) | S-function name

Use this parameter to specify the name of your S-function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	FunctionName
Values:	'system' (default) | S-function name in quotes

S-function parameters — Additional S-function parameters

MATLAB^® expressions | comma-separated variables

Specify the additional S-function parameters.

The function parameters can be specified as MATLAB expressions or as variables separated by commas. For example:

A, B, C, D, [eye(2,2);zeros(2,2)]

Although individual parameters can be enclosed in brackets, the list of parameters must not be enclosed in brackets.

Programmatic Use

Parameter:	Parameters
Values:	'' (default) | S-function parameters in quotes

S-function modules — Additional files for code generation

'' (default) | filenames

This parameter applies only if this block represents a C MEX S-function and you intend to use the Simulink Coder™ software to generate code from the model containing the block. If you use it, when you are ready to generate code, you must force the coder to rebuild the top model as explained in Control Regeneration of Top Model Code (Simulink Coder).

For more information on using this parameter, see Specify Additional Source Files for an S-Function (Simulink Coder).

Programmatic Use

Parameter:	SFunctionModules
Values:	'' (default) | filenames in quotes

Block Characteristics

Data Types	Boolean | double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	no
Zero-Crossing Detection	no

Tips

After you build the S-function with the S-Function Builder block, the get_param function returns information for these parameters:

• Parameters — Additional S-function parameters

• SFunctionModules — Additional files for code generation if the block represents a C MEX S-function

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

S-functions that call into MATLAB are not supported for code generation.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
