Examine models, subsystems, and libraries referenced directly or indirectly by the model using the Dependency Analyzer. Use the dependency graph to identify all required files and products. To package, share, or put your design under source control, create a project from your model. For more details, see Create a Project from a Model.
1. Open the
2. To open the model dependency graph, on the Modeling tab, on the far right of the Design section, click the arrow. Under System Design, click Dependency Analyzer.
The Dependency Analyzer opens the dependency graph using the Model Hierarchy view by default. To switch to the model instances view, in the Views section, click Model Instances. For more details, see Model Dependency Views.
3. To view the dependencies laid out horizontally, in the Layout section, click Horizontal.
4. In the dependency graph, double-click a box to open the corresponding model in the Simulink® editor.

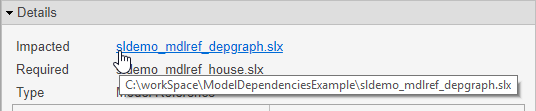

5. To see more information about how two files are related, select their dependency arrow. In the Properties pane, in the Details section, you can see the full paths of the files you are examining, the dependency type, and where the dependency is introduced.

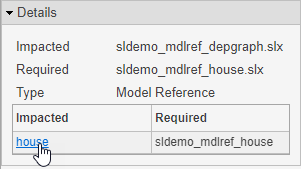

To open the file and highlight where the dependency is introduced, in the Details section, click the link under Impacted.
For example, to open the
sldemo_mdlref_depgraph model and highlight where the dependency to the
sldemo_mdlref_house block is introduced, select the dependency arrow between
sldemo_mdlref_house. In the Properties pane on the right, under Impacted, click
You can explore model dependencies using the model hierarchy or the model instances views.
The Model Hierarchy view shows the model, subsystem, library and data dictionary files referenced by a top model.
A referenced file appears only once in the view even if it is referenced more than once in the model.
Blue boxes represent model files, red boxes represent libraries, and yellow boxes
represent subsystem references. Arrows represent dependencies. For example, the arrows
in this example indicate that the
aero_guidance model references
An arrow from a library that points to itself indicates that the library
references itself. Blocks in the library reference other blocks in that same library.
The example view shows that the libraries
simulink_need_slupdate reference themselves.

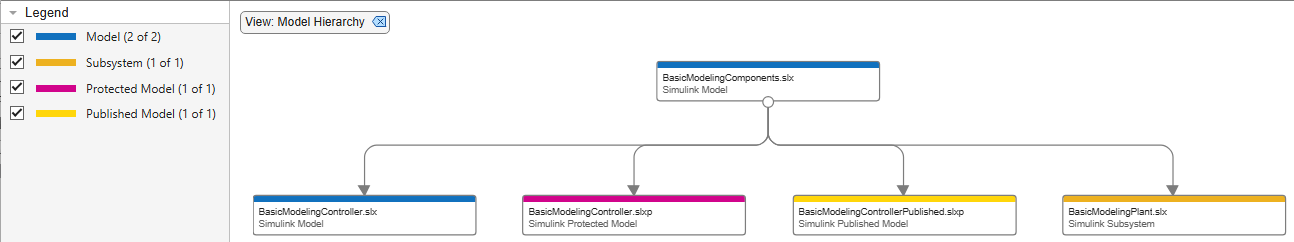

Dark red boxes represent protected models (
.slxp files). You
cannot open or edit protected referenced models. See Reference Protected Models from Third Parties.
The Model Instances view shows every reference to a model in a model reference hierarchy with the top model at the root of the hierarchy. Boxes represent the top model and its references. See Model References.
If a model hierarchy references the same model more than once, the referenced
model appears multiple times in the instance view, once for each reference. This
example graph shows that the model reference hierarchy for
sldemo_mdlref_depgraph contains two references to the model
Yellow boxes represent accelerated-mode instances, red boxes represent normal-mode instances, purple boxes represent processor-in-the-loop mode instances, and green boxes represent software-in-the-loop mode instances. See Choose Simulation Modes for Model Hierarchies.
The previous example graph shows that one of the references to
sldemo_mdlref_F2C operates in normal mode and the other operates
in accelerated mode.
The Dependency Analyzer detects when a simulation mode is overridden and appends
(Overridden) to the simulation mode. If a referenced model is
configured to run in normal mode and it runs in accelerator mode, its simulation mode
is overridden. This occurs when another model that runs in accelerator mode directly
or indirectly references it.
To find required products and toolboxes for a file in your design, select a box in the dependency graph. The Dependency Analyzer shows the list of required products by your selection in the Products section in the Properties pane.
To find required toolboxes for the whole design, click the graph background to clear all selection. Examine the list of products in the Products section in the Properties pane.
To highlight files that use a certain product in the graph, for example
Simulink®, in the Products section, in the
Properties pane, point to product and click the magnifying glass icon .
To go through these files, use the arrows in the search box (e.g., Files
To undo the highlighting, close the search box.
To export all the files displayed in the dependency graph, click the graph background to clear the selection on all files. In the Dependency Analyzer toolstrip, in the Export section, click Export. Select from the available options:
Export to Workspace — Save the selected file paths to a variable in the workspace.
Export to File — Save the dependency graph as a
