Variant Terminology

Simulink^® variant terminology helps you to understand various parameters and terms.

Variant Terminology	Description
Variant Subsystem	Contains one or more choices where each choice is a Subsystem or Model block.
Variant Source	Provides variation on the source of a signal.
Variant Sink	Provides variation on the sink (destination) of a signal.
Variant Model	Variant Subsystem block containing Model block as variant choices. See Variant Subsystem.
Active choice	Variant choice associated with a variant control that evaluates to `true`.
Variant control mode	`expression`, `label` or `sim codegen switching` for modeling variant blocks and variant parameters.
Variant control variable	MATLAB^® variable, `Simulink.VariantExpression` object, or a `Simulink.Parameter` object. See Types of Variant Control Variables (Operands) in Variant Blocks.
Variant object	Container of variant control expression. See `Simulink.VariantExpression`.
Variant Manager	Central tool that allows you to manage various variation points that are modeled using variant blocks in a system model.
Variant Reducer	Reduces variant models to simplified, standalone model depending on the selected variant configurations.
Variant Configuration, Variant Configuration data object	A variant configuration consists of a named set of variant control variables, their values, and configurations to be used by referenced models. It can be used to activate a variation of a Simulink model. A variant configuration data object (instance of the `Simulink.VariantConfigurationData` class) associated with a model stores: Collection of all variant configurations for the model. Set of constraints that must be satisfied by the model for all variant configurations. Default configuration for the model. You can create new variant configurations and group them into a variant configuration data object from Variant Manager or programmatically using the `Simulink.VariantConfigurationData` class. To associate the variant configuration data object to a model, use the Export variant configuration data object functionality in Variant Manager, or use the `VariantConfigurationObject` parameter. Example: variantConfig = Simulink.VariantConfigurationData; set_param(model, 'VariantConfigurationObject',... 'variantConfig');

Command Line Parameters

Variant Subsystem Parameters

This section lists the command line parameters you can use to control a Variant Subsystem block during simulation or code generation.

You can add variant choices to the Variant Subsystem block using the add_block command:

add_block('simulink/Ports & Subsystems/BlockName', ...
	[ModelName '/VariantSubsystemChoicePath'], ...
	VariantControl='VariantControlName');

Here, BlockName is the block to add as a variant choice to the Variant Subsystem block at path VariantSubsystemChoicePath in the model ModelName. VariantControlName is the name of the variant control for the newly added variant choice.

For example, to add the Subsystem block named Discrete as a variant choice to the Controller subsystem in the slexVariantSubsystemsAdaptiveInterface model, use this command. Specify the variant control as V == 3.

add_block('simulink/Ports & Subsystems/Subsystem', ...
    'slexVariantSubsystemsAdaptiveInterface/Controller/Discrete', ...
    VariantControl='V == 3');

Note

If you do not specify a variant control, a variant block with an empty variant control is created. You are then required to specify the variant control parameter in the subsequent line of code.

Parameter name	Description
`Variant`	Used to check if the subsystem is a Variant Subsystem block. Returns `on` if the subsystem is a Variant Subsystem block, else it returns `off`. Example: `get_param(gcb, 'Variant')` This is a read-only parameter.
`VariantChoices`	Gets the list of variant choices in a Variant Subsystem block. Example: `get_param(gcb, 'VariantChoices');` Returns a 1-by-N struct array with fields: `Name:` Name of the variant control `BlockName:` Block path name This is a read-only parameter.
`VariantControl`	Subsystem block and Model block parameter, which applies to a choice block of a Variant Subsystem block and returns the variant control for the choice block. `get_param` behavior: Returns variant controls for choice block of a Variant Subsystem block. Example: `get_param(gcb, 'VariantControl')` `set_param` behavior: Sets variant control for current block. Example: `set_param(gcb, 'VariantControl', 'A==1')`
`VariantControlMode`	Specifies the mode for modeling Variant blocks, which can be either `expression` or `label` or `sim codegen switching`. `get_param` behavior: Returns the mode set for modeling Variant blocks. Example: `get_param(gcb, 'VariantControlMode')` `set_param` behavior: Sets the mode for modeling Variant blocks. Example: `set_param(gcb, 'VariantControlMode', 'Label')` See Variant control mode.
`LabelModeActiveChoice`	Returns the variant control label of the selected choice for the Variant Subsystem block when `VariantControlMode` is specified as `label`. If `VariantControlMode` is specified as `expression`, this parameter returns empty `('')`. `get_param` behavior: Returns the variant control label of the selected choice for the Variant Subsystem when `VariantControlMode` is set to `label`. If `VariantControlMode` is set to `expression`, this parameter returns empty `('')`. `set_param` behavior: When `VariantControlMode` is specified as `expression`, `set_param` makes the label selected as the active choice. When `VariantControlMode` is `label`, `set_param` switches between specified labels. See Label mode active choice.
`TreatAsGroupedWhenPropagatingVariantConditions`	Returns `on` if the Subsystem is treated as a group when propagating variant conditions else returns `off`. `get_param` behavior: Indicates if the subsystem is treated as a group when propagating Variant conditions or not by returning `on` or `off`. Example: `get_param(gcb, 'TreatAsGroupedWhenPropagatingVariantConditions')` `set_param` behavior: Enables or disables treating subsystem as a group when propagating variant conditions. Example: `set_param(gcb, 'TreatAsGroupedWhenPropagatingVariantConditions', 'on')` See Propagate Variant Conditions to Define Variant Regions in Virtual and Nonvirtual Subsystems.
`GeneratePreprocessorConditionals`	Indicates if all the choices are to be analyzed and preprocessor conditionals to be generated by returning `on` or `off`. `get_param` behavior: Indicates if all the choices are to be analyzed and preprocessor conditionals be generated by returning `on` or `off`. Example: `get_param(gcb, 'GeneratePreprocessorConditionals')` `set_param` behavior: Enables or disables analyzing all the choices and generating preprocessor conditionals. Example: `set_param(gcb, 'GeneratePreprocessorConditionals', 'on')` Note Use the Variant activation time parameter instead.
`CompiledActiveChoiceControl`	Returns the variant control corresponding to the active choice of the Variant Subsystem block and returns empty `(' ')` when no choice is active. When the block is commented or is inside a commented subsystem, this parameter returns empty`(' ')`. Example: `get_param(gcb, 'CompiledActiveChoiceControl')`. This is a read-only parameter.
`CompiledActiveChoiceBlock`	Returns the full block path name of the active Variant Subsystem block choice. If Allow zero active variant controls is `off` and no choice is active, it returns the first variant choice as the active choice, since having no active choice is not allowed. If Allow zero active variant controls is `on` and no choice is active, it returns empty `(' ')`. When the block is commented or is inside a commented Subsystem, the value is returned as empty`(' ')`. Example: `get_param(gcb, 'CompiledActiveChoiceBlock')`. This is a read-only parameter.
`CompiledVariantInfo`	Block parameter that indicates the variant activeness of a block after model compilation. Returns a structure with three fields, with values set to `on` or `off`: `IsActive`: Value is `on` if the block is active in simulation. `IsInCodegen`: Value is `on` if the block is part of generated code. `IsInStartup`: Value is `on` if the block is active or can become active in simulation (the propagated value of Variant activation time on the block is `startup`) after model compilation. For an example, see Identify Variant Activeness of a Block After Model Compilation. This is a read-only parameter.
`CompiledVariantActivationTime`	Returns the variant activation time of the block after model compilation. Before the model is compiled, this parameter returns update diagram activation time. Example: `get_param(gcb,'CompiledVariantActivationTime')` This is a read-only parameter.
`PropagateVariantConditions`	Indicates if conditions on ports inside the Variant Subsystem block are to be propagated outside the block. `get_param` behavior: Indicates if conditions on ports inside the Variant Subsystem block are to be propagated outside the block. `set_param` behavior: Enables or disables propagating conditions outside Variant Subsystem block. Example: `set_param(gcb, 'PropagateVariantConditions','on')` See Propagate conditions outside of variant subsystem.
`AllowZeroVariantControls`	Indicates if the Variant Subsystem block is allowed to have no active choices. `get_param` behavior: Indicates if the Variant Subsystem block is allowed to have no active choices. `set_param` behavior: Enables or disables having active choices in Variant Subsystem block. Example: `set_param(gcb, 'AllowZeroVariantControls','on')` See Allow zero active variant controls.
`VariantActivationTime`	Determines if Simulink sets the active choice of a Variant Subsystem block during update diagram or code compile. `get_param` behavior: Returns the `Variant Activation Time` of a Variant Subsystem block. This parameter can be set to `update diagram`, `update diagram analyze all choices`, or `code compile`. Example: `get_param(gcb, 'VariantActivationTime')` `set_param` behavior: When you set the Variant control mode to `expression`, this parameter can be set to `update diagram`, `update diagram analyze all choices`, or `code compile`. When you set the Variant control mode to `sim codegen switching`, this parameter can be set to either `update diagram` or `update diagram analyze all choices`. The `code compile` option becomes unavailable. Example: `set_param(gcb,'VariantActivationTime', 'update diagram')` Note The `get_param` and `set_param` behavior of `VariantActivationTime` parameter with the `code compile` option is equivalent to that of the parameter `GeneratePreprocessorConditionals`. See Variant activation time.
`VariantControlVariable`	Specifies the variant control variable of a Variant Assembly Subsystem block that is in `expression` mode. `get_param` behavior: Returns the variant control variable of a Variant Assembly Subsystem block. Example: `get_param(gcb, 'VariantControlVariable')` `set_param` behavior: Sets the variant control variable of a Variant Assembly Subsystem block. Example: `set_param(gcb,'VariantControlVariable', 'variantCtrlVar')` See Variant control variable.
`VariantChoicesEnumeration`	Specifies the variant choices of a Variant Assembly Subsystem block that is in `expression` mode. `get_param` behavior: Returns the enumeration class name that contains the variant choice names as its members. Example: `get_param(gcb, 'VariantChoicesEnumeration')` `set_param` behavior: Sets the variant choices using the enumeration class. Example: `set_param(gcb,'VariantChoicesEnumeration', 'controllerEnum')` See Variant choices enumeration.
`VariantChoicesSpecifier`	Specifies the variant choices of a Variant Assembly Subsystem block that is in `label` mode. `get_param` behavior: Returns the specifier that evaluates to the variant choice names. Example: `get_param(gcb, 'VariantChoicesSpecifier')` `set_param` behavior: Sets the variant choices using the specifier. Example: `set_param(gcb,'VariantChoicesSpecifier',"{'ControllersList/', 'ControllersList//*'}")` See Variant choices specifier.
`AllowFlexibleInterface`	Indicates if the Variant Subsystem block has a flexible interface. `get_param` behavior: Indicates if the Variant Subsystem has a flexible interface. `set_param` behavior: Enables or disables the flexible interface of the Variant Subsystem block. See Allow flexible interface.

Variant Source and Variant Sink Parameters

This section lists the command line parameters you can use to control Variant Source and Variant Sink blocks during simulation or code generation.

You can add these blocks using the add_block command:

add_block('simulink/Signal Routing/BlockName', ...
	[ModelName '/VariantBlockPath']

Here, BlockName is the variant block to be added to VariantBlockPath in model ModelName.

For example, to add the Variant Source block named Discrete in the slexVariantSourceAndSink model, use this command. Specify the variant control as V == 3.

add_block('simulink/Signal Routing/Subsystem', ...
    'slexVariantSourceAndSink/Discrete', ...
    VariantControl='V == 3');

Parameter name	Description
`VariantControls`	Returns a `1-by-N` cell array of variant control expressions corresponding to each of the `N` ports of the Variant Source or Variant Sink blocks. `get_param` behavior: Returns a cell array of variant control expressions corresponding to each ports of the Variant Source or Variant Sink blocks. Example: `get_param(gcb, 'VariantControls')` `set_param` behavior: Sets the cell array of Variant control expressions corresponding to each of ports of Variant Source or Variant Sink blocks. Example: `set_param(gcb, 'VariantControls', ('{A==1}, '4'))`
`VariantControlMode`	Specifies the mode for modeling variant blocks, which can be either `Expression` or `Label`. `get_param` behavior: Returns the mode set for modeling Variant blocks. Example: `get_param(gcb, 'VariantControlMode')` `set_param` behavior: Sets the mode for modeling Variant blocks. Example: `set_param(gcb, 'VariantControlMode', 'Label')` See Variant control mode.
`LabelModeActiveChoice`	Returns the variant control label of the selected choice for Variant Source or Variant Sink block when `VariantControlMode` is specified as `Label`. If `VariantControlMode` is specified as `Expression`, this parameter returns empty`('')`. `get_param` behavior: Returns the variant control label of the selected choice for the Variant Subsystem when `VariantControlMode` is set to `Label`. If `VariantControlMode` is set to `Expression`, this parameter returns empty `('')`. `set_param` behavior: When `VariantControlMode` is specified as `Expression`, `set_param` makes the label selected as the active choice. When `VariantControlMode` is `Label`, `set_param` switches between specified labels. See Label mode active choice.
`GeneratePreprocessorConditionals`	Indicates if all the choices are to be analyzed and preprocessor conditionals to be generated by returning `on` or `off`. `get_param` behavior: Indicates if all the choices are to be analyzed and preprocessor conditionals to be generated by returning `on` or `off`. Example: `get_param(gcb, 'GeneratePreprocessorConditionals')` `set_param` behavior: Enables or disables analyzing all the choices and generating preprocessor conditionals. Example: `set_param(gcb, 'GeneratePreprocessorConditionals', 'on')` Note Use the Variant activation time parameter instead.
`ShowConditionOnBlock`	Indicates if the `VariantControlExpression` is to be displayed on the block by returning `on` or `off`. `get_param` behavior: Indicates if the `VariantControlExpression` is to be displayed on the block or not. `set_param` behavior: Enables or disables the displaying of `VariantControlExpression` on the block. Example: `set_param(gcb, 'ShowConditionOnBlock','on')` See Show variant condition on block.
`AllowZeroVariantControls`	Indicates if the block is allowed to have no active ports by returning `on` or `off`. `get_param` behavior: Indicates if the Variant Source or Variant Sink block is allowed to have no active choices. `set_param` behavior: Enables or disables having active choices in Variant Source or Variant Sink block. Example: `set_param(gcb, 'AllowZeroVariantControls','on')` See Allow zero active variant controls.
`CompiledActiveVariantControl`	Returns the variant control corresponding to the active port from the last compilation instance. If no port is active, returns empty `(' ')`. If the block is commented or inside a commented Subsystem or inside an inactive choice of a Variant Subsystem block, the value is not computed and returns empty `(' ')`. Example: `get_param(gcb, 'CompiledActiveVariantControl')` This is a read-only parameter.
`CompiledActiveVariantPort`	Returns the "index" of the active port from the last compilation instance or returns `-1` when no port is active. If the block is commented or inside a commented Subsystem or inside an inactive choice of a Variant Subsystem block (with generate preprocessor conditionals Off), the value is not computed, and returns empty `(' ')`. Example: `get_param(gcb, 'CompiledActiveVariantPort')` This is a read-only parameter.
`CompiledVariantActivationTime`	Returns the variant activation time of the block after model compilation. Before the model is compiled, this parameter returns update diagram activation time. Example: `get_param(gcb,'CompiledVariantActivationTime')` This is a read-only parameter.
`OutputFunctionCall`	Indicates if the Variant Source or Variant Sink blocks are allowed to output function-call signals. `get_param` behavior: Indicates if the variant block is allowed to output function-call signals. Example: `get_param(gcb, 'OutputFunctionCall')` `set_param` behavior: Enables or disables the ability of the variant block to output function-call signals. Example: `set_param(gcb, 'OutputFunctionCall','on')` See Output function call.

Examples

Identify Variant Activeness of a Block After Model Compilation

This example shows the behavior of the CompiledVariantInfo command line parameter. Consider a model with two Variant Subsystem blocks, StartupVSS and UDVSS, with the Variant activation time parameter set to startup and update diagram, respectively. The result of CompiledVariantInfo parameter after model compilation is shown for each variant choice.

The active choice in both StartupVSS and UDVSS has IsInStartup set to on because the blocks are active in simulation.
The inactive choice in StartupVSS gets the propagated startup variant activation time from its parent, so IsInStartup is on.
The inactive choice in UDVSS has the update diagram variant activation time, so IsInStartup is off.

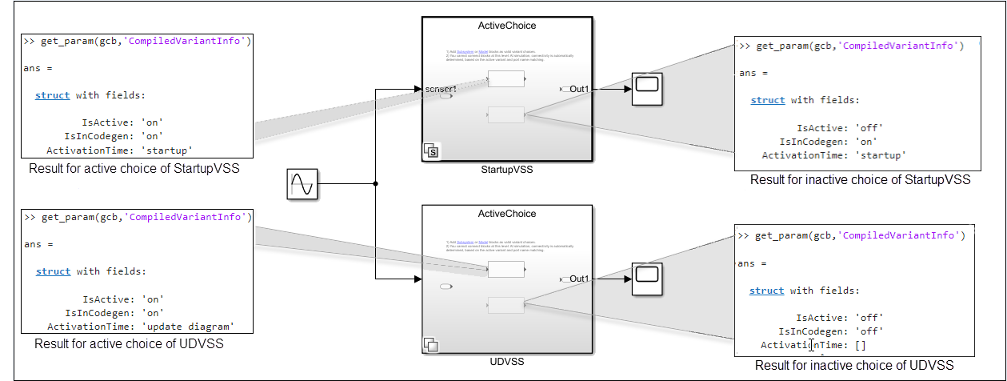

CompiledVariantInfo parameter result for each variant choice
