3D Scenes for Simulation in Unreal Engine Environment
These products provide prebuilt scenes in which you can simulate and visualize the performance of dynamic systems in a 3D environment.
Vehicle Dynamics Blockset™
Aerospace Blockset™
Automated Driving Toolbox™
UAV Toolbox
Robotics System Toolbox™
Simulink® 3D Animation™
The scenes are rendered using the Unreal Engine® from Epic Games®. You can also download and install any prebuilt scene for 3D simulations. To visualize the 3D environment in the installed scene, you must have the required product licenses.
Install Scenes
To install and simulate in a scene using Simulink:
Add a Simulation 3D Scene Configuration block to your Simulink model.
Set the Scene source parameter to
Default Scenes
.View the currently available scenes in the Scene name parameter. To install a new scene, click Install.
In the Add-on Installer dialog box, select the scenes.
To download and install the scenes, click Next and follow the prompts. MATLAB® restarts after the scenes are installed.
Select the scene from the Scene name parameter.
To simulate in a scene using MATLAB:
Download and install the scenes using the Install option in the Simulation 3D Scene Configuration block.
Create a
sim3d.World
object.Set the
Scene
argument to the scene name.
The table lists the scenes that you can install and the product licenses required for simulation.
Scene Name | Products Required for Simulation | |
---|---|---|

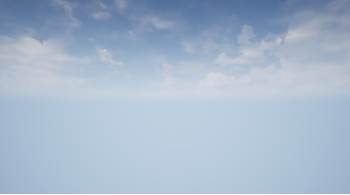

Empty scene |
| |

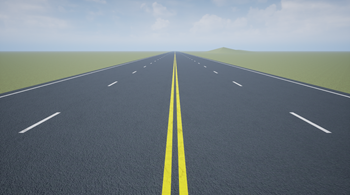

Straight road |
| |
Curved road |
| |

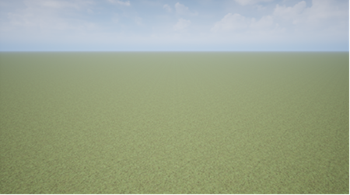

Empty Grass |
| |

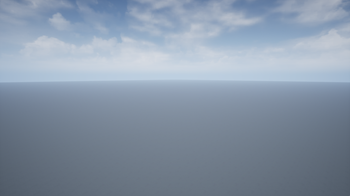

Open surface |
| |

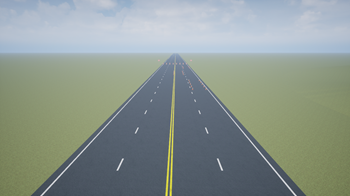

Double lane change |
| |
Parking lot |
| |

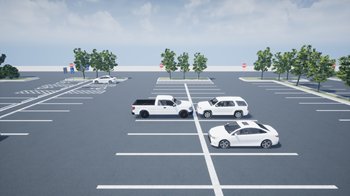

Large parking lot |
| |

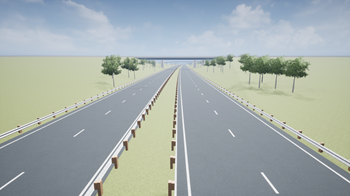

US highway |
| |

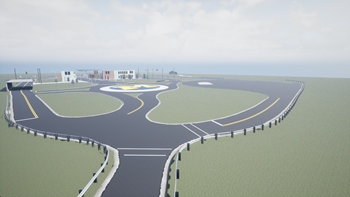

Virtual Mcity |
| |

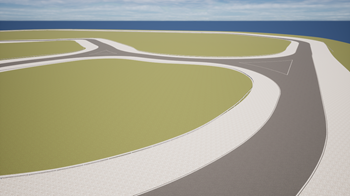

ZalaZONE High-Speed Handling Course |
| |
ZalaZONE Hill Tracks |
| |
ZalaZONE Smart City |
| |

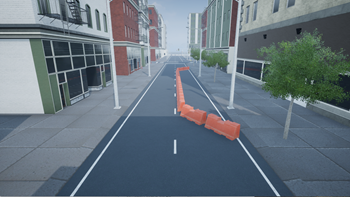

US city block |
| |

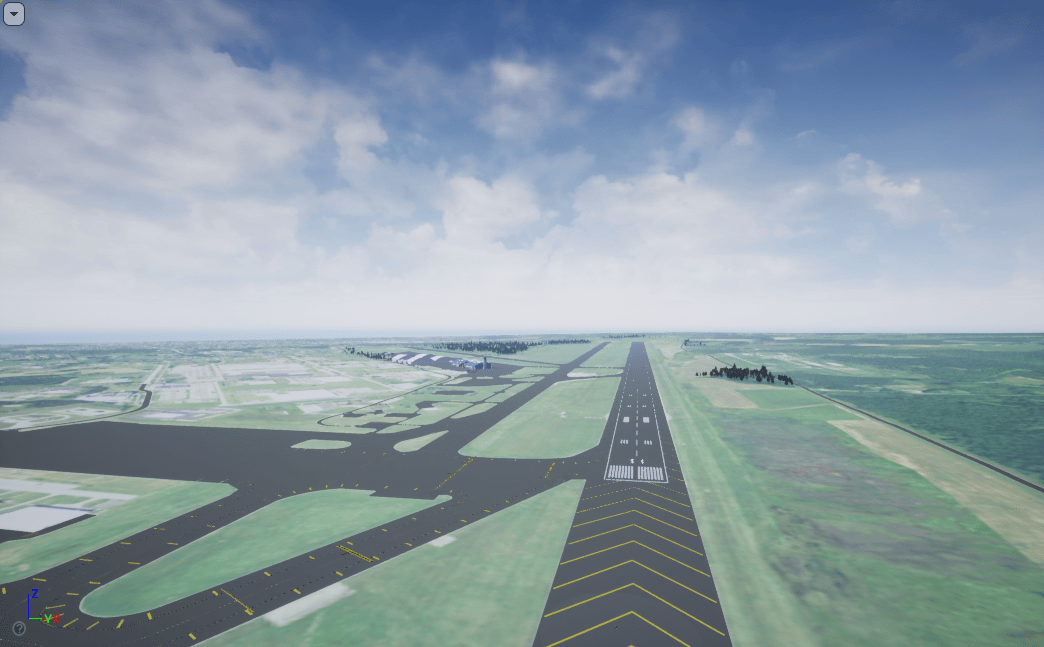

Airport |
| |

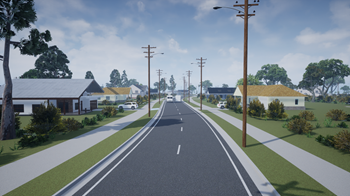

Suburban scene |
| |

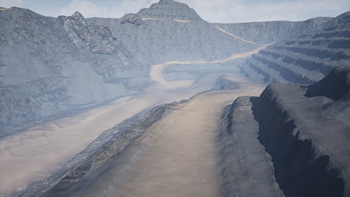

Offroad pit mining |
| |
Construction site scene |
|
Default Scenes
The table lists the scenes available when you install the product.

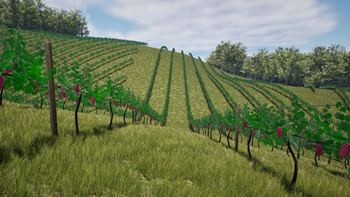

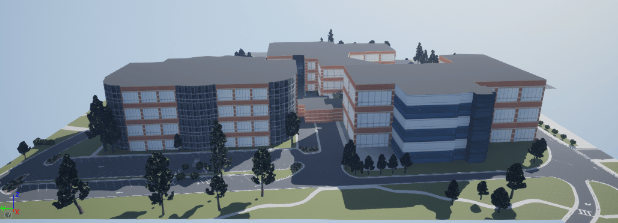

Default Scenes | Product |
---|---|
| Simulink 3D Animation |
| Vehicle Dynamics Blockset |
| Automated Driving Toolbox |
| UAV Toolbox |
| Aerospace Blockset |
| Robotics System Toolbox |
See Also
sim3d.World
| Simulation 3D Scene Configuration
