Instrument

Create real-time instrument object

Description

An slrealtime.Instrument object streams signal data from a real-time simulation running on a target computer to a development computer.

Creation

instrument_object = slrealtime.Instrument('appName') creates an empty instrument object for an existing real-time application appName.

Example: Create Instrument Object for Real-Time Application

instrument_object = slrealtime.Instrument() creates an empty instrument object without an assigned real-time application.

Example: Create Instrument Object without Real-Time Application

Properties

expand all

The AxesTimeSpan property controls the time axis (x-axis) for all axes in an App Designer UI. When set to Inf, the signal value from the real-time application running on the target computer is displayed in the axes. If you change to a value, for example 10, the time axis for all axes is set to that value, for example 10 seconds.

The AxesTimeSpanOverrun property controls the response for axes in an App Designer UI when the data overruns the AxesTimeSpan property value. When the AxesTimeSpan property value is Inf, the AxesTimeSpanOverrun property has no effect. When the AxesTimeSpan property value is set in seconds, the time axis for all axes is set to a finite width (time range). When a signal value from the real-time application exceeds the largest time value on the x-axis, the axes can either scroll or wrap.

You can set the value of the Application property to an existing real-time application when you create the Instrument object or you can set the value later. After value is written to this property, it become read-only. You can not change the Application property value directly after creating the object. The property value can only be changed after object creation by using the validate function.

Object Functions

addInstrumentedSignalsFind instrumented signals and add these to real-time instrument object
addSignalAdd signal for streaming to be available in callback
clearScalarAndLineDataClear data from children of real-time instrument object
connectCallbackAdd callback that responds to new data
connectLineConnect signal for streaming to axes
connectScalarAdd signal for streaming to scalar display
deleteDelete real-time instrument object
generateScriptGenerate script that creates scalar and axes controls from signals, scalars, and lines in real-time instrument object
getCallbackDataForSignalGet callback data for a signal in real-time instrument object
removeCallbackRemoved callback from real-time instrument object
removeSignalRemove signal from real-time instrument object
validateValidate signals in instrument object

Examples

collapse all

Create instrument object hInst for an existing real-time application appName.

appName = 'slrt_ex_tank.mldatx';
hInst = slrealtime.Instrument(appName);

Create instrument object hInst without assigning a real-time application. This approach is useful when building a GUI and the real-time application MLDATX file is not available.

hInst = slrealtime.Instrument();

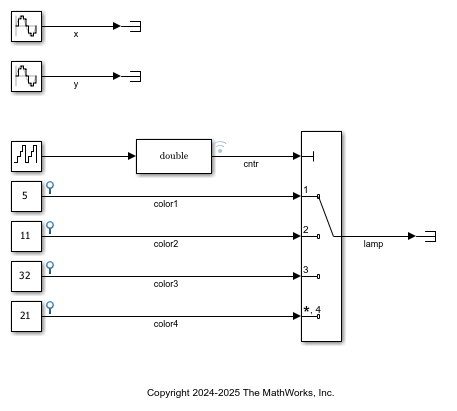

This example shows how to create an Instrument object, apply Instrument object methods, and remove the object.

inst = slrealtime.Instrument();

inst.connectScalar(app.Numeric1, 'ScalarDouble1');
inst.connectScalar(app.Gauge1,   'ScalarDouble1');
inst.connectScalar(app.Numeric2, "ScalarDouble2");
inst.connectScalar(app.Gauge2,   "ScalarDouble2");

inst.connectScalar(app.Text1, "myString", 'Callback', @(t,d)string(d));
inst.connectScalar(app.Text2, "myString", 'Callback', @(t,d)string(d), 'Decimation', 2);

inst.connectScalar(app.Lamp0, "TrafficLight", 'PropertyName', 'Visible', 'Callback', @(t,d)string(slprivate('onoff',d==hSampleEnum.Green)));
inst.connectScalar(app.Lamp1, "TrafficLight", 'PropertyName', 'Visible', 'Callback', @(t,d)string(slprivate('onoff',d==hSampleEnum.Yellow)));
inst.connectScalar(app.Lamp2, "TrafficLight", 'PropertyName', 'Visible', 'Callback', @(t,d)string(slprivate('onoff',d==hSampleEnum.Red)));

ls2 = slrealtime.instrument.LineStyle();
ls2.Marker = '*';
ls2.MarkerSize = 4;
ls2.Color = 'black';
inst.connectLine(app.Axes1, "SineWave", 'ArrayIndex', 5, 'LineStyle', ls2, 'Callback', @(t,d)(d+app.Offset.Value));
inst.connectLine(app.Axes1, "SineWave");

inst.connectCallback(@(o,e)customPlot(o,e,app)); % plot sine waves added together with amplitudes 1, 3 and 5

tg=slrealtime;
tg.addInstrument(inst);

inst.AxesTimeSpan = 10;

inst.AxesTimeSpanOverrun = 'wrap';

inst.AxesTimeSpan = Inf;

tg.removeInstrument(inst);
Introduced in R2020b
