# ecdf

Compute empirical cumulative distribution function (ecdf) for baseline and target data specified for data drift detection

Since R2022a

## Description

example

E = ecdf(DDiagnostics) returns the table E, which stores the ecdf values for all the variables specified for drift detection in the call to the detectdrift function.

ecdf returns NaN values for categorical variables.

example

E = ecdf(DDiagnostics,Variables=variables) returns the table E for the variables specified by variables.

## Examples

collapse all

Generate baseline and target data with two variables, where the distribution parameters of the second variable change for the target data.

rng('default') % For reproducibility
baseline = [normrnd(0,1,100,1),wblrnd(1.1,1,100,1)];
target = [normrnd(0,1,100,1),wblrnd(1.2,2,100,1)];

Perform permutation testing for any drift between the baseline and target data.

DDiagnostics = detectdrift(baseline,target)
DDiagnostics =
DriftDiagnostics

VariableNames: ["x1"    "x2"]
CategoricalVariables: []
DriftStatus: ["Stable"    "Drift"]
PValues: [0.2850 0.0030]
ConfidenceIntervals: [2×2 double]
MultipleTestDriftStatus: "Drift"
DriftThreshold: 0.0500
WarningThreshold: 0.1000

Properties, Methods

Compute the ecdf values for all variables.

E = ecdf(DDiagnostics)
E=2×3 table
x             F_Baseline         F_Target
______________    ______________    ______________

x1    {201×1 double}    {201×1 double}    {201×1 double}
x2    {201×1 double}    {201×1 double}    {201×1 double}

E is a table with two rows and three columns. The two rows correspond to the two variables, x1 and x2. For each variable, ecdf computes the ecdf values over a common domain for the baseline and target data. The function stores the common domain for each variable in the column x, the ecdf values for the baseline data in the column F_Baseline, and the ecdf values for the target data in the column F_Target.

Access the ecdf values for variable 2 in the baseline data.

E.F_Baseline{2}
ans = 201×1

0
0.0100
0.0100
0.0200
0.0300
0.0400
0.0500
0.0600
0.0700
0.0800
⋮

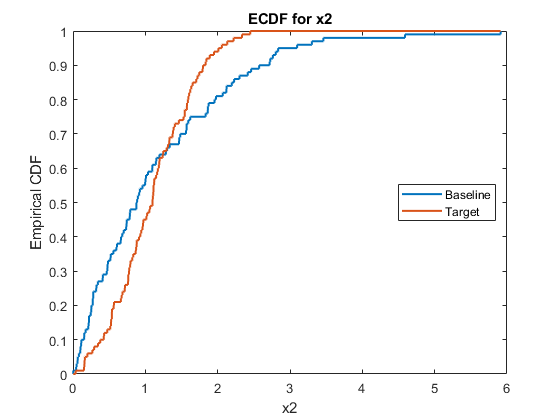

Plot the ecdf values of the baseline and target data for variable x2.

stairs(E.x{2},E.F_Baseline{2},LineWidth=1.5)
hold on
stairs(E.x{2},E.F_Target{2},LineWidth=1.5)
title('ECDF for x2')
xlabel('x2')
ylabel('Empirical CDF')
legend('Baseline','Target',Location='east')
hold off

The plot of the ecdf values also shows the drift in the distribution of the target data.

For details on the data set, enter Description at the command line.

Assign the first 1000 observations as baseline data and the next 1000 as target data.

baseline = feat(1:1000,:);
target = feat(1001:2000,:);

Test for drift on all variables.

DDiagnostics = detectdrift(baseline,target);

Compute the ecdf values for only the first five variables.

E = ecdf(DDiagnostics,Variables=[1:5])
E=5×3 table
x             F_Baseline          F_Target
_______________    _______________    _______________

x1    {2001×1 double}    {2001×1 double}    {2001×1 double}
x2    {2001×1 double}    {2001×1 double}    {2001×1 double}
x3    {2001×1 double}    {2001×1 double}    {2001×1 double}
x4    {2001×1 double}    {2001×1 double}    {2001×1 double}
x5    {2001×1 double}    {2001×1 double}    {2001×1 double}

Access the ecdf values for the third variable in the baseline data.

E.F_Baseline{3}
ans = 2001×1

0
0
0
0
0
0
0.0010
0.0020
0.0030
0.0040
⋮

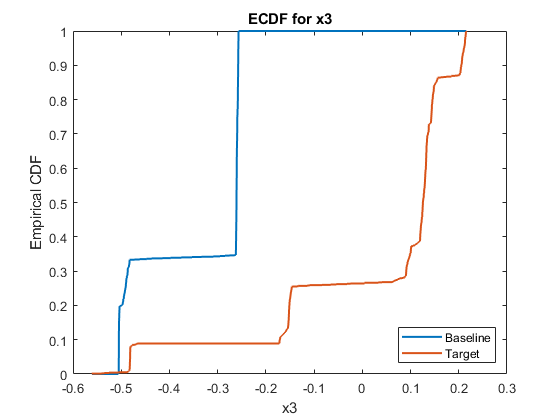

Plot the ecdf values of the baseline and target data for variable x3.

stairs(E.x{3},E.F_Baseline{3},LineWidth=1.5)
hold on
stairs(E.x{3},E.F_Target{3},LineWidth=1.5)
title('ECDF for x3')
xlabel('x3')
ylabel('Empirical CDF')
legend('Baseline','Target',Location = 'southeast')
hold off

The ecdf plot shows the drift in the target data for variable x3.

## Input Arguments

collapse all

Diagnostics of the permutation testing for drift detection, specified as a DriftDiagnostics object returned by detectdrift.

List of variables for which to compute the ecdf values, specified as a string array, cell array of character vectors, or list of integer indices.

Example: Variables=["x1","x3"]

Example: Variables=(1,3)

Data Types: single | double | char | string

## Output Arguments

collapse all

ecdf values for all variables specified for drift detection in the call to detectdrift, returned as a table with the following columns.

Column NameDescription
xCommon domain over which to evaluate the empirical cdf
F_Baselineecdf values for the baseline data
F_Targetecdf values for the target data

For each variable in E, the columns store x and the ecdf values in cell arrays. To access the values, you can index into the table; for example, to obtain the ecdf values for the second variable in the baseline data, use E.F_Baseline{2,1}.

## Version History

Introduced in R2022a
