gencfeatures

Perform automated feature engineering for classification

    Description

    The gencfeatures function enables you to automate the feature engineering process in the context of a machine learning workflow. Before passing tabular training data to a classifier, you can create new features from the predictors in the data by using gencfeatures. Use the returned data to train the classifier.

    gencfeatures allows you to generate features from variables with data types—such as datetime, duration, and various int types—that are not supported by most classifier training functions. The resulting features have data types that are supported by these training functions.

    To better understand the generated features, use the describe function of the returned FeatureTransformer object. To apply the same training set feature transformations to a test set, use the transform function of the FeatureTransformer object.

    example

    [Transformer,NewTbl] = gencfeatures(Tbl,ResponseVarName,q) uses automated feature engineering to create q features from the predictors in Tbl. The software assumes that the ResponseVarName variable in Tbl is the response and does not create new features from this variable. gencfeatures returns a FeatureTransformer object (Transformer) and a new table (NewTbl) that contains the transformed features.

    By default, gencfeatures assumes that generated features are used to train an interpretable linear model with a binary response variable. If you have a multiclass response variable and you want to generate features to improve the accuracy of a bagged ensemble, specify TargetLearner="bag".

    example

    [Transformer,NewTbl] = gencfeatures(Tbl,Y,q) assumes that the vector Y is the response variable and creates new features from the variables in Tbl.

    [Transformer,NewTbl] = gencfeatures(Tbl,formula,q) uses the explanatory model formula to determine the response variable in Tbl and the subset of Tbl predictors from which to create new features.

    example

    [Transformer,NewTbl] = gencfeatures(___,Name=Value) specifies options using one or more name-value arguments in addition to any of the input argument combinations in previous syntaxes. For example, you can change the expected learner type, the method for selecting new features, and the standardization method for transformed data.

    Examples

    collapse all

    Use automated feature engineering to generate new features. Train a linear classifier using the generated features. Interpret the relationship between the generated features and the trained model.

    Load the patients data set. Create a table from a subset of the variables. Display the first few rows of the table.

    load patients
    Tbl = table(Age,Diastolic,Gender,Height,SelfAssessedHealthStatus, ...
        Systolic,Weight,Smoker);
    head(Tbl)
    ans=8×8 table
        Age    Diastolic      Gender      Height    SelfAssessedHealthStatus    Systolic    Weight    Smoker
        ___    _________    __________    ______    ________________________    ________    ______    ______

        38        93        {'Male'  }      71           {'Excellent'}            124        176      true
        43        77        {'Male'  }      69           {'Fair'     }            109        163      false
        38        83        {'Female'}      64           {'Good'     }            125        131      false
        40        75        {'Female'}      67           {'Fair'     }            117        133      false
        49        80        {'Female'}      64           {'Good'     }            122        119      false
        46        70        {'Female'}      68           {'Good'     }            121        142      false
        33        88        {'Female'}      64           {'Good'     }            130        142      true
        40        82        {'Male'  }      68           {'Good'     }            115        180      false



    Generate 10 new features from the variables in Tbl. Specify the Smoker variable as the response. By default, gencfeatures assumes that the new features will be used to train a binary linear classifier.

    rng("default") % For reproducibility
    [T,NewTbl] = gencfeatures(Tbl,"Smoker",10)
    T =
      FeatureTransformer with properties:

                         Type: 'classification'
                TargetLearner: 'linear'
        NumEngineeredFeatures: 10
          NumOriginalFeatures: 0
             TotalNumFeatures: 10


    NewTbl=100×11 table
        zsc(Systolic.^2)    eb8(Diastolic)    q8(Systolic)    eb8(Systolic)    q8(Diastolic)    zsc(kmd9)    zsc(sin(Age))    zsc(sin(Weight))    zsc(Height-Systolic)    zsc(kmc1)    Smoker
        ________________    ______________    ____________    _____________    _____________    _________    _____________    ________________    ____________________    _________    ______

             0.15379              8                6                4                8           -1.7207        0.50027            0.19202               0.40418            0.76177    true
             -1.9421              2                1                1                2          -0.22056        -1.1319            -0.4009                2.3431             1.1617    false
             0.30311              4                6                5                5           0.57695        0.50027             -1.037              -0.78898            -1.4456    false
            -0.85785              2                2                2                2           0.83391         1.1495             1.3039               0.85162          -0.010294    false
            -0.14125              3                5                4                4             1.779        -1.3083           -0.42387              -0.34154            0.99368    false
            -0.28697              1                4                3                1           0.67326         1.3761           -0.72529               0.40418             1.3755    false
              1.0677              6                8                6                6          -0.42521         1.5181           -0.72529               -1.5347            -1.4456    true
             -1.1361              4                2                2                5          -0.79995         1.1495            -1.0225                1.2991             1.1617    false
             -1.1361              3                2                2                3          -0.80136        0.46343             1.0806                1.2991             -1.208    false
            -0.71693              5                3                3                6           0.37961       -0.51304            0.16741               0.55333            -1.4456    false
             -1.2734              2                1                1                2            1.2572         1.3025             1.0978                1.4482          -0.010294    false
             -1.1361              1                2                2                1             1.001        -1.2545            -1.2194                1.0008          -0.010294    false
             0.60534              1                6                5                1          -0.98493       -0.11998             -1.211             -0.043252             -1.208    false
              1.0677              8                8                6                8          -0.27307         1.4659             1.2168              -0.34154            0.24706    true
             -1.2734              3                1                1                4           0.93395        -1.3633           -0.17603                1.0008          -0.010294    false
              1.0677              7                8                6                8          -0.91396          -1.04            -1.2109              -0.49069            0.24706    true
          ⋮



    T is a FeatureTransformer object that can be used to transform new data, and newTbl contains the new features generated from the Tbl data.

    To better understand the generated features, use the describe object function of the FeatureTransformer object. For example, inspect the first two generated features.

    describe(T,1:2)
                               Type        IsOriginal    InputVariables                            Transformations
                            ___________    __________    ______________    _______________________________________________________________

        zsc(Systolic.^2)    Numeric          false         Systolic        power(  ,2)
                                                                           Standardization with z-score (mean = 15119.54, std = 1667.5858)
        eb8(Diastolic)      Categorical      false         Diastolic       Equal-width binning (number of bins = 8)


    The first feature in newTbl is a numeric variable, created by first squaring the values of the Systolic variable and then converting the results to z-scores. The second feature in newTbl is a categorical variable, created by binning the values of the Diastolic variable into 8 bins of equal width.

    Use the generated features to fit a linear classifier without any regularization.

    Mdl = fitclinear(NewTbl,"Smoker",Lambda=0);

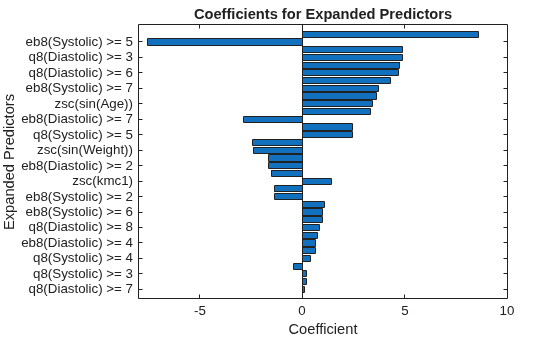

    Plot the coefficients of the predictors used to train Mdl. Note that fitclinear expands categorical predictors before fitting a model.

    p = length(Mdl.Beta);
    [sortedCoefs,expandedIndex] = sort(Mdl.Beta,ComparisonMethod="abs");
    sortedExpandedPreds = Mdl.ExpandedPredictorNames(expandedIndex);
    bar(sortedCoefs,Horizontal="on")
    yticks(1:2:p)
    yticklabels(sortedExpandedPreds(1:2:end))
    xlabel("Coefficient")
    ylabel("Expanded Predictors")
    title("Coefficients for Expanded Predictors")

    Figure contains an axes object. The axes object with title Coefficients for Expanded Predictors contains an object of type bar.

    Identify the predictors whose coefficients have larger absolute values.

    bigCoefs = abs(sortedCoefs) >= 4;
    flip(sortedExpandedPreds(bigCoefs))
    ans = 1x7 cell
      Columns 1 through 3

        {'zsc(Systolic.^2)'}    {'eb8(Systolic) ...'}    {'eb8(Diastolic)...'}

      Columns 4 through 6

        {'q8(Diastolic) ...'}    {'q8(Systolic) >= 6'}    {'q8(Diastolic) ...'}

      Column 7

        {'zsc(Height-Sys...'}

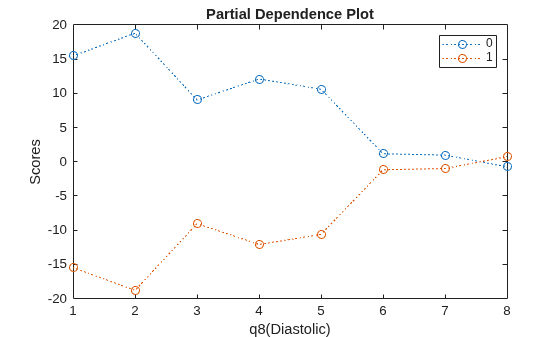

    You can use partial dependence plots to analyze the categorical features whose levels have large coefficients in terms of absolute value. For example, inspect the partial dependence plot for the q8(Diastolic) variable, whose levels q8(Diastolic) >= 3 and q8(Diastolic) >= 6 have coefficients with large absolute values. These two levels correspond to noticeable changes in the predicted scores.

    plotPartialDependence(Mdl,"q8(Diastolic)",Mdl.ClassNames,NewTbl);

    Figure contains an axes object. The axes object with title Partial Dependence Plot contains 2 objects of type line. These objects represent 0, 1.

    Generate new features to improve the model accuracy for an interpretable linear model. Compare the test set accuracy of a linear model trained on the original data to the test set accuracy of a linear model trained on the transformed features.

    Load the ionosphere data set. Convert the matrix of predictors X to a table.

    load ionosphere
    tbl = array2table(X);

    Partition the data into training and test sets. Use approximately 70% of the observations as training data, and 30% of the observations as test data. Partition the data using cvpartition.

    rng("default") % For reproducibility of the partition
    cvp = cvpartition(Y,Holdout=0.3);

    trainIdx = training(cvp);
    trainTbl = tbl(training(cvp),:);
    trainY = Y(trainIdx);

    testIdx = test(cvp);
    testTbl = tbl(testIdx,:);
    testY = Y(testIdx);

    Use the training data to generate 45 new features. Inspect the returned FeatureTransformer object.

    [T,newTrainTbl] = gencfeatures(trainTbl,trainY,45);
    T
    T =
      FeatureTransformer with properties:

                         Type: 'classification'
                TargetLearner: 'linear'
        NumEngineeredFeatures: 45
          NumOriginalFeatures: 0
             TotalNumFeatures: 45



    All the generated features are engineered features rather than original features in trainTbl.

    Apply the transformations stored in the object T to the test data.

    newTestTbl = transform(T,testTbl);

    Compare the test set performances of a linear classifier trained on the original features and a linear classifier trained on the new features.

    Fit a linear model without transforming the data. Check the test set performance of the model using a confusion matrix.

    originalMdl = fitclinear(trainTbl,trainY);
    originalPredictedLabels = predict(originalMdl,testTbl);
    cm = confusionchart(testY,originalPredictedLabels);

    Figure contains an object of type ConfusionMatrixChart.

    confusionMatrix = cm.NormalizedValues;
    originalTestAccuracy = sum(diag(confusionMatrix))/sum(confusionMatrix,"all")
    originalTestAccuracy = 0.8952


    Fit a linear model with the transformed data. Check the test set performance of the model using a confusion matrix.

    newMdl = fitclinear(newTrainTbl,trainY);
    newPredictedLabels = predict(newMdl,newTestTbl);
    newcm = confusionchart(testY,newPredictedLabels);

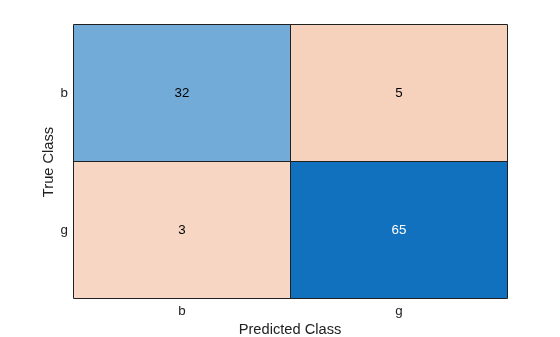

    Figure contains an object of type ConfusionMatrixChart.

    newConfusionMatrix = newcm.NormalizedValues;
    newTestAccuracy = sum(diag(newConfusionMatrix))/sum(newConfusionMatrix,"all")
    newTestAccuracy = 0.9048


    The linear classifier trained on the transformed data seems to outperform the linear classifier trained on the original data.

    Use gencfeatures to engineer new features before training a bagged ensemble classifier. Before making predictions on new data, apply the same feature transformations to the new data set. Compare the test set performance of the ensemble that uses the engineered features to the test set performance of the ensemble that uses the original features.

    Read the sample file CreditRating_Historical.dat into a table. The predictor data consists of financial ratios and industry sector information for a list of corporate customers. The response variable consists of credit ratings assigned by a rating agency. Preview the first few rows of the data set.

    creditrating = readtable("CreditRating_Historical.dat");
    head(creditrating)
    ans=8×8 table
         ID      WC_TA     RE_TA     EBIT_TA    MVE_BVTD    S_TA     Industry    Rating
        _____    ______    ______    _______    ________    _____    ________    _______

        62394     0.013     0.104     0.036      0.447      0.142        3       {'BB' }
        48608     0.232     0.335     0.062      1.969      0.281        8       {'A'  }
        42444     0.311     0.367     0.074      1.935      0.366        1       {'A'  }
        48631     0.194     0.263     0.062      1.017      0.228        4       {'BBB'}
        43768     0.121     0.413     0.057      3.647      0.466       12       {'AAA'}
        39255    -0.117    -0.799      0.01      0.179      0.082        4       {'CCC'}
        62236     0.087     0.158     0.049      0.816      0.324        2       {'BBB'}
        39354     0.005     0.181     0.034      2.597      0.388        7       {'AA' }



    Because each value in the ID variable is a unique customer ID, that is, length(unique(creditrating.ID)) is equal to the number of observations in creditrating, the ID variable is a poor predictor. Remove the ID variable from the table, and convert the Industry variable to a categorical variable.

    creditrating = removevars(creditrating,"ID");
    creditrating.Industry = categorical(creditrating.Industry);

    Convert the Rating response variable to an ordinal categorical variable.

    creditrating.Rating = categorical(creditrating.Rating, ...
        ["AAA","AA","A","BBB","BB","B","CCC"],Ordinal=true);

    Partition the data into training and test sets. Use approximately 75% of the observations as training data, and 25% of the observations as test data. Partition the data using cvpartition.

    rng("default") % For reproducibility of the partition
    c = cvpartition(creditrating.Rating,Holdout=0.25);
    trainingIndices = training(c); % Indices for the training set
    testIndices = test(c); % Indices for the test set
    creditTrain = creditrating(trainingIndices,:);
    creditTest = creditrating(testIndices,:);

    Use the training data to generate 40 new features to fit a bagged ensemble. By default, the 40 features include original features that can be used as predictors by a bagged ensemble.

    [T,newCreditTrain] = gencfeatures(creditTrain,"Rating",40, ...
        TargetLearner="bag");
    T
    T =
      FeatureTransformer with properties:

                         Type: 'classification'
                TargetLearner: 'bag'
        NumEngineeredFeatures: 34
          NumOriginalFeatures: 6
             TotalNumFeatures: 40



    Create newCreditTest by applying the transformations stored in the object T to the test data.

    newCreditTest = transform(T,creditTest);

    Compare the test set performances of a bagged ensemble trained on the original features and a bagged ensemble trained on the new features.

    Train a bagged ensemble using the original training set creditTrain. Compute the accuracy of the model on the original test set creditTest. Visualize the results using a confusion matrix.

    originalMdl = fitcensemble(creditTrain,"Rating",Method="Bag");
    originalTestAccuracy = 1 - loss(originalMdl,creditTest, ...
        "Rating",LossFun="classiferror")
    originalTestAccuracy = 0.7522

    predictedTestLabels = predict(originalMdl,creditTest);
    confusionchart(creditTest.Rating,predictedTestLabels);

    Figure contains an object of type ConfusionMatrixChart.

    Train a bagged ensemble using the transformed training set newCreditTrain. Compute the accuracy of the model on the transformed test set newCreditTest. Visualize the results using a confusion matrix.

    newMdl = fitcensemble(newCreditTrain,"Rating",Method="Bag");
    newTestAccuracy = 1 - loss(newMdl,newCreditTest, ...
        "Rating",LossFun="classiferror")
    newTestAccuracy = 0.7512

    newPredictedTestLabels = predict(newMdl,newCreditTest);
    confusionchart(newCreditTest.Rating,newPredictedTestLabels)

    Figure contains an object of type ConfusionMatrixChart.

    The bagged ensemble trained on the transformed data seems to outperform the bagged ensemble trained on the original data.

    Engineer and inspect new features before training a binary support vector machine (SVM) classifier with a Gaussian kernel. Then, assess the test set performance of the classifier.

    Load the ionosphere data set, which contains radar signal data. The response variable Y indicates the quality of radar returns: g indicates good quality, and b indicates bad quality. Combine the predictor and response data into one table variable.

    load ionosphere
    Tbl = array2table(X);
    Tbl.Y = Y;
    head(Tbl)
    ans=8×35 table
        X1    X2      X3          X4          X5          X6          X7          X8         X9         X10         X11        X12         X13        X14         X15         X16         X17         X18         X19         X20         X21         X22         X23         X24         X25         X26         X27         X28         X29         X30         X31         X32         X33         X34         Y
        __    __    _______    ________    ________    ________    ________    ________    _______    ________    _______    ________    _______    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    ________    _____

        1     0     0.99539    -0.05889     0.85243     0.02306     0.83398    -0.37708          1      0.0376    0.85243    -0.17755    0.59755    -0.44945     0.60536    -0.38223     0.84356    -0.38542     0.58212    -0.32192     0.56971    -0.29674     0.36946    -0.47357     0.56811    -0.51171     0.41078    -0.46168     0.21266     -0.3409     0.42267    -0.54487     0.18641      -0.453    {'g'}
        1     0           1    -0.18829     0.93035    -0.36156    -0.10868    -0.93597          1    -0.04549    0.50874    -0.67743    0.34432    -0.69707    -0.51685    -0.97515     0.05499    -0.62237     0.33109          -1    -0.13151      -0.453    -0.18056    -0.35734    -0.20332    -0.26569    -0.20468    -0.18401     -0.1904    -0.11593    -0.16626    -0.06288    -0.13738    -0.02447    {'b'}
        1     0           1    -0.03365           1     0.00485           1    -0.12062    0.88965     0.01198    0.73082     0.05346    0.85443     0.00827     0.54591     0.00299     0.83775    -0.13644     0.75535     -0.0854     0.70887    -0.27502     0.43385    -0.12062     0.57528     -0.4022     0.58984    -0.22145       0.431    -0.17365     0.60436     -0.2418     0.56045    -0.38238    {'g'}
        1     0           1    -0.45161           1           1     0.71216          -1          0           0          0           0          0           0          -1     0.14516     0.54094     -0.3933          -1    -0.54467    -0.69975           1           0           0           1     0.90695     0.51613           1           1    -0.20099     0.25682           1    -0.32382           1    {'b'}
        1     0           1    -0.02401      0.9414     0.06531     0.92106    -0.23255    0.77152    -0.16399    0.52798    -0.20275    0.56409    -0.00712     0.34395    -0.27457      0.5294     -0.2178     0.45107    -0.17813     0.05982    -0.35575     0.02309    -0.52879     0.03286    -0.65158      0.1329    -0.53206     0.02431    -0.62197    -0.05707    -0.59573    -0.04608    -0.65697    {'g'}
        1     0     0.02337    -0.00592    -0.09924    -0.11949    -0.00763    -0.11824    0.14706     0.06637    0.03786    -0.06302          0           0    -0.04572     -0.1554    -0.00343    -0.10196    -0.11575    -0.05414     0.01838     0.03669     0.01519     0.00888     0.03513    -0.01535     -0.0324     0.09223    -0.07859     0.00732           0           0    -0.00039     0.12011    {'b'}
        1     0     0.97588    -0.10602     0.94601      -0.208     0.92806     -0.2835    0.85996    -0.27342    0.79766    -0.47929    0.78225    -0.50764     0.74628    -0.61436     0.57945    -0.68086     0.37852    -0.73641     0.36324    -0.76562     0.31898    -0.79753     0.22792    -0.81634     0.13659     -0.8251     0.04606    -0.82395    -0.04262    -0.81318    -0.13832    -0.80975    {'g'}
        0     0           0           0           0           0           1          -1          0           0         -1          -1          0           0           0           0           1           1          -1          -1           0           0           0           0           1           1           1           1           0           0           1           1           0           0    {'b'}



    Partition the data into training and test sets. Use approximately 75% of the observations as training data, and 25% of the observations as test data. Partition the data using cvpartition.

    rng("default") % For reproducibility of the partition
    c = cvpartition(Tbl.Y,Holdout=0.25);
    trainTbl = Tbl(training(c),:);
    testTbl = Tbl(test(c),:);

    Use the training data to generate 50 features to fit a binary SVM classifier with a Gaussian kernel. By default, the 50 features include original features that can be used as predictors by an SVM classifier. Additionally, gencfeatures uses neighborhood component analysis (NCA) to reduce the set of engineered features to the most important predictors. You can use the NCA feature selection method only when the target learner is "gaussian-svm" and all the predictor features are numeric.

    [Transformer,newTrainTbl] = gencfeatures(trainTbl,"Y",50, ...
        TargetLearner="gaussian-svm")
    Transformer =
      FeatureTransformer with properties:

                         Type: 'classification'
                TargetLearner: 'gaussian-svm'
        NumEngineeredFeatures: 17
          NumOriginalFeatures: 33
             TotalNumFeatures: 50


    newTrainTbl=264×51 table
        zsc(X1)    zsc(X3)      zsc(X4)     zsc(X5)    zsc(X6)     zsc(X7)     zsc(X8)     zsc(X9)     zsc(X10)    zsc(X11)     zsc(X12)     zsc(X13)     zsc(X14)      zsc(X15)    zsc(X16)    zsc(X17)    zsc(X18)    zsc(X19)    zsc(X20)     zsc(X21)    zsc(X22)     zsc(X23)     zsc(X24)    zsc(X25)    zsc(X26)    zsc(X27)     zsc(X28)    zsc(X29)    zsc(X30)    zsc(X31)     zsc(X32)     zsc(X33)    zsc(X34)     zsc(X1.*X29)    zsc(X8.*X14)    zsc(X10.*X33)    zsc(X13.*X17)    zsc(X3+X8)    zsc(X5+X6)    zsc(X5+X8)    zsc(X6+X12)    zsc(X7+X8)    zsc(X8+X21)    zsc(X10+X31)    zsc(X3-X27)    zsc(X18-X22)    zsc(X24-X32)    zsc(kmc2)    zsc(tanh(X5))    zsc(tanh(X7))      Y
        _______    ________    _________    _______    ________    ________    ________    ________    ________    _________    _________    ________    ___________    ________    ________    ________    ________    ________    _________    ________    _________    _________    ________    ________    ________    _________    ________    ________    ________    ________    __________    ________    _________    ____________    ____________    _____________    _____________    __________    __________    __________    ___________    __________    ___________    ____________    ___________    ____________    ____________    _________    _____________    _____________    _____

        0.35062     0.71387     -0.24103    0.48341    -0.19017     0.58078     -1.0063     0.97782    -0.26974       0.6391     -0.67348     0.31834        -1.1367     0.38853    -0.98325     0.75294    -0.77965      0.3598     -0.57266     0.38845     -0.60939    -0.012451    -0.80961     0.28949    -0.84597      -0.2517    -0.72759    -0.28242    -0.63852    0.080034       -1.0708    -0.31129       -1.046      -0.26816         0.32751        -0.038585          0.2021        -0.19559        0.2362       -0.35849      -0.56279      -0.34165       -0.42505       -0.12416         0.72183       -0.12462         0.18881        1.0418        0.52296             0.62       {'g'}
        0.35062     0.72301     -0.18451    0.77158    -0.22962     0.91433    -0.49033     0.75792    -0.32357      0.42329     -0.20389     0.73252        -0.1965     0.29679    -0.13823     0.74354    -0.27428     0.64142     -0.10244      0.6146     -0.56742      0.09598    -0.12919     0.30176    -0.62944     0.094562    -0.28922    0.096446    -0.30619        0.41      -0.47923      0.4091      -0.8911       0.14996        -0.14738        -0.039539         0.68049         0.16872       0.42742        0.21486      -0.27702       0.34208        0.21888        0.10563         0.46493        0.28732         0.26203        0.5226        0.69699          0.82404       {'g'}
        0.35062     0.72301      -1.1204    0.77158      1.9267     0.33603     -2.2596     -1.0149    -0.34873     -0.87362     -0.31257    -0.64512       -0.21349     -2.0888     0.17363     0.26338    -0.79564     -2.2123      -1.0155     -1.6745       1.8964     -0.63461     0.10334      1.0283      1.9591    -0.047978      1.9396      1.0838    -0.36052    -0.22117        1.9446      -1.294       2.1421        1.2396        -0.14461        -0.061281         -0.9368         -1.0584        1.8984         -1.033       0.98761       -1.5469        -3.5052        -0.4237         0.57348        -2.4894         -1.3837       -1.5842        0.69699          0.43769       {'b'}
        0.35062     -1.2136     -0.12242     -1.375    -0.49905     -1.1101    -0.48554    -0.72188     -0.2093     -0.80643     -0.44067    -0.64512       -0.21349    -0.61619    -0.48568    -0.61727    -0.20429    -0.77473    -0.040295    -0.50751     0.034923     -0.60903     0.12046    -0.62226     0.13548      -1.1087     0.28317     -0.7878    0.053398    -0.68758    -0.0072697    -0.67106      0.21145       -0.8259        -0.14461        -0.061365         -0.9368         -1.1908       -1.3813        -1.3417      -0.60042       -1.2848       -0.90111        -0.7041       -0.056942       -0.21519        0.097188       -1.5842        -1.4653           -1.163       {'b'}
        0.35062     0.67519     -0.34656    0.66615    -0.69083      0.7698    -0.81803     0.69875    -0.92315      0.54191      -1.2868     0.61614        -1.2563     0.60599     -1.4924     0.32568     -1.3793     0.02881      -1.3967    0.052918      -1.5154    -0.097458     -1.4342    -0.29246     -1.4483     -0.78193     -1.3907     -0.5715     -1.5984    -0.76498       -1.5945    -0.93671      -1.8288      -0.58719          0.2563         0.061186        0.087338       -0.092231      0.032979      -0.092894       -1.2783     -0.037943       -0.60879        -1.2671          1.0969        0.18976         0.10713        1.0418        0.63763          0.74162       {'g'}
        -2.8413     -1.2599     -0.10917    -1.1812    -0.24013     0.91433     -2.2596     -1.0149    -0.34873      -2.6482      -2.3453    -0.64512       -0.21349    -0.54564    -0.14479       1.006      2.0324     -2.2123      -1.9207    -0.53738    -0.035976     -0.63461     0.10334      1.0283      2.1431      0.88773      1.9396    -0.65143    0.038853      1.1285        1.9446    -0.67031    -0.052094       -0.6754        -0.14461        -0.061281         -0.9368         -2.4539       -1.0579        -2.4521       -1.6983       -1.0811        -2.3662        0.67049         -1.6117         1.8487         -1.3837       -1.5842        -1.2168          0.82404       {'b'}
        0.35062     0.65074     -0.27034    0.77158     -0.5507     0.91433    -0.67645     0.97782     -1.1087      0.76913      -1.1982     0.87871        -1.0489     0.84926     -1.1622      0.9786    -0.71297     0.78777      -1.2452     0.68706      -1.2068      0.53806     -1.1348     0.77353     -1.1281     0.067353     -1.1572    -0.21008     -1.2312     0.13174       -1.4278    0.078797       -1.663      -0.18832        0.096844         -0.51689          1.1624       -0.011238       0.20838       0.083582       -1.1329       0.19237        0.14089       -0.67019         0.43198         0.4953         0.20971        1.0418        0.69699          0.82404       {'g'}
        0.35062     -1.2969     -0.29857    -1.1812    -0.24013     -1.0948    -0.24765    -0.78637    -0.91197       -1.684      -1.0885    -0.64512       -0.21349      -1.065     0.70198     -1.2124      0.3075     0.44948        0.507    -0.53738    -0.035976     -0.63461     0.10334    -0.93558     0.13961     -0.64684    0.073011    -0.65143    0.038853     -0.3862       0.46286    -0.82839      0.78311       -0.6754        -0.14461        0.0099774         -0.9368         -1.0844       -1.0579         -1.033      -0.86794       -1.0811       -0.73858       -0.95221        -0.47054        0.30835        -0.26939       -1.5842        -1.2168          -1.1433       {'b'}
        0.35062     0.72301     0.039848    0.77158    -0.63857     0.91433    -0.79731     0.97782     -1.2544      0.90098      -1.1531     0.90648        -1.2791     0.85418     -1.4394     0.83179     -1.3466     0.54942      -1.3441     0.61066      -1.5108      0.42766     -1.4494     0.27335     -1.5965      -0.1331     -1.4636    0.047912     -1.6238    -0.12466       -1.7462    -0.22743      -2.0084      0.096399         0.25018         -0.38227          1.0033       -0.044199       0.14844     -0.0016619       -1.1575      0.095151      -0.033402       -0.98013          0.6383         0.2146         0.20964        1.0418        0.69699          0.82404       {'g'}
        0.35062     0.72301       -1.323    0.77158     -2.4069     0.91433     -2.2596     0.97782     0.41213      0.90098      -1.1484     0.96723         1.8407     0.99753     -2.3384       1.006    -0.59315      1.0392      -1.7935      1.0877       1.8964       1.0494      2.0312      1.0283    -0.64265      0.88773     -1.0301      1.0838     -1.9482      1.1285       -1.9591      1.2557      -2.2463        1.2396         -2.9303           1.1115          1.3226         -1.0584       -1.0579         -1.033       -2.2504       -1.0811       -0.73858         1.2037        -0.13907        -2.3086          3.0198        1.0418        0.69699          0.82404       {'b'}
        0.35062     0.72301     0.056082    0.77158    -0.16603     0.91433    -0.35958     0.97782    -0.16462      0.90098     0.086893     0.96723        0.20409     0.99753     0.13566       1.006     0.21703      1.0392      0.60585      1.0877      0.82892       1.0494     0.90821      1.0283     0.56194      0.88773     0.78535      1.0075      1.0054      1.1285       0.62693      1.2557      0.97284        1.1554        -0.17611          0.22251          1.3226         0.25941       0.47081        0.30709     -0.045495       0.44726        0.79852        0.79953        -0.13907       -0.58373         0.22005        0.5226        0.69699          0.82404       {'g'}
        0.35062    -0.24996      -2.2139    0.77158     0.33858     -1.1655     -2.2596     0.97782     -2.4496    -0.098384      -2.3453    -0.64512       -0.21349     -2.0888    -0.89643     -1.2213    0.076204      1.0392      -1.9207    -0.53738    -0.035976     -0.63461     0.10334    -0.96039      1.9896     -0.27735     0.59845    -0.65143    0.038853      1.1285       0.44533    -0.67031    -0.052094       -0.6754        -0.14461        -0.061281         -0.9368         -1.7432       0.81505         -1.033       -1.3396       -2.7564        -2.3662       -0.80182        0.025568         0.1018        -0.25621       -1.5842        0.69699          -1.2342       {'b'}
        0.35062     0.71598     0.035661    0.77158    -0.26691     0.87035     -0.1974     0.90034    -0.30016       0.8881     -0.15385     0.79508    -0.00095871     0.90821    -0.02921     0.82498     0.22838     0.81324      0.23893     0.78923      0.19262      0.77433     0.38176     0.70892     0.43102      0.49084     0.36373     0.72129     0.34444     0.71304       0.30366     0.69599      0.21153       0.83955        -0.13741       -0.0081697         0.85553         0.36695       0.40198        0.42148      -0.26706       0.54229        0.63077         0.3677         0.15794       0.023257        0.062312        0.5226        0.69699           0.7999       {'g'}
        0.35062    0.069941    -0.052561    0.11987    -0.13112    0.054366      0.1298    -0.84005     0.36726       0.2554    -0.065971     0.35614       0.079956     0.66786    0.095978      0.3326     0.37109    -0.35253       0.8869     0.33835      0.37612      0.23129     0.53951      0.1531     0.63492     -0.15329     0.56409     0.10222     0.54169    0.050904       0.49615      1.2557      0.67277       0.15634        -0.06995           1.0423        -0.11778         0.13925     0.0012868        0.17866      -0.12485        0.1482        0.44389        0.29865         0.16868      -0.021424        0.037667        0.5226        0.24699           0.1917       {'g'}
        -2.8413     0.72301      -2.3483    -1.1812    -0.24013     -1.0948    -0.24765     0.97782      1.7521      0.90098      -2.3453      -1.804         1.8407    -0.54564    -0.14479     -2.2295      2.0324      1.0392       2.0554     -2.1625       1.8964       1.0494      1.1877      -2.393      2.1431      0.88773      1.9396      1.0838     -1.9482      1.1285        1.9446      1.2557       2.1421       -0.6754        -0.14461           3.1769         0.68716         0.33704       -1.0579         -1.033       -1.6983       -1.0811        -2.3662         2.1428        -0.13907       0.036127        -0.55803       0.92994        -1.2168          -1.1433       {'b'}
        -2.8413     0.72301         2.13    -1.1812    -0.24013     -1.0948    -0.24765     -3.0077     -2.4496     -0.87362     -0.31257    -0.64512       -0.21349     -2.0888     -2.3384     -2.2295     -2.0271     -2.2123       2.0554     -2.1625       1.8964     -0.63461     0.10334    -0.68235     0.16583      0.88773     -1.7099     -2.3866      2.0259     -2.5037        1.9446     -2.5963       2.1421       -0.6754        -0.14461           3.1769         -0.9368         0.33704       -1.0579         -1.033      -0.35532       -1.0811        -2.3662        -3.7464        -0.13907        -3.5891         -1.3837       -1.5842        -1.2168          -1.1433       {'b'}
          ⋮



    By default, gencfeatures standardizes the original features before including them in newTrainTbl. Because it has a constant value of 0, the original X2 variable in trainTbl is not included in newTrainTbl.

    unique(trainTbl.X2)
    ans = 0


    Inspect the first three engineered features. Note that the engineered features are stored after the 33 original features in the Transformer object. Visualize the engineered features by using a matrix of scatter plots and histograms.

    featIndex = 34:36;
    describe(Transformer,featIndex)
                          Type      IsOriginal    InputVariables                           Transformations
                         _______    __________    ______________    _____________________________________________________________

        zsc(X1.*X29)     Numeric      false          X1, X29        X1 .* X29
                                                                    Standardization with z-score (mean = 0.35269, std = 0.5222)
        zsc(X8.*X14)     Numeric      false          X8, X14        X8 .* X14
                                                                    Standardization with z-score (mean = 0.051911, std = 0.35898)
        zsc(X10.*X33)    Numeric      false          X10, X33       X10 .* X33
                                                                    Standardization with z-score (mean = 0.018924, std = 0.30881)

    colors = lines(2);
    gplotmatrix(newTrainTbl{:,featIndex},[],newTrainTbl.Y,colors, ...
        [],[],[],"grpbars", ...
        newTrainTbl.Properties.VariableNames(featIndex))

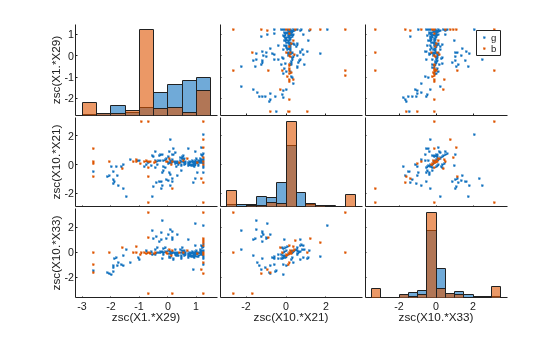

    Figure contains 9 axes objects. Axes object 1 contains 2 objects of type line. Axes object 2 contains 2 objects of type line. Axes object 3 contains 2 objects of type line. Axes object 4 contains 2 objects of type line. Axes object 5 contains 2 objects of type line. Axes object 6 contains 2 objects of type line. Axes object 7 contains 2 objects of type line. Axes object 8 contains 2 objects of type line. Axes object 9 contains 2 objects of type line. These objects represent g, b.

    The plots can help you better understand the engineered features. For example:

    • The top-left plot is a histogram of the zsc(X1.*X29) feature. This feature consists of the standardized element-wise product of the original X1 and X29 features. The histogram shows that the distribution of values corresponding to good radar returns (blue) is different from the distribution of values corresponding to bad radar returns (red). For example, many of the values in zsc(X1.*X29) that correspond to bad radar returns are between –1 and –0.5.

    • The plot in the second row, first column is a scatter plot that compares the zsc(X1.*X29) values (along the x-axis) to the zsc(X8.*X14) values (along the y-axis). The scatter plot shows that most of the zsc(X8.*X14) values corresponding to good radar returns (blue) are greater than –1, while many of the zsc(X8.*X14) values corresponding to bad radar returns (red) are less than 1. Note that this plot contains the same information as the plot in the first row, second column, but with the axes flipped.

    Create newTestTbl by applying the transformations stored in the object Transformer to the test data.

    newTestTbl = transform(Transformer,testTbl);

    Train an SVM classifier with a Gaussian kernel using the transformed training set newTrainTbl. Let the fitcsvm function find an appropriate scale value for the kernel function. Compute the accuracy of the model on the transformed test set newTestTbl. Visualize the results using a confusion matrix.

    Mdl = fitcsvm(newTrainTbl,"Y",KernelFunction="gaussian", ...
        KernelScale="auto");
    testAccuracy = 1 - loss(Mdl,newTestTbl,"Y", ...
        LossFun="classiferror")
    testAccuracy = 0.9425

    predictedTestLabels = predict(Mdl,newTestTbl);
    confusionchart(newTestTbl.Y,predictedTestLabels)

    Figure contains an object of type ConfusionMatrixChart.

    The SVM model correctly classifies most of the observations. That is, for most observations, the class predicted by the SVM model matches the true class label.

    Generate features to train a linear classifier. Compute the cross-validation classification error of the model by using the crossval function.

    Load the ionosphere data set, and create a table containing the predictor data.

    load ionosphere
    Tbl = array2table(X);

    Create a random partition for stratified 5-fold cross-validation.

    rng("default") % For reproducibility of the partition
    cvp = cvpartition(Y,KFold=5);

    Compute the cross-validation classification loss for a linear model trained on the original features in Tbl.

    CVMdl = fitclinear(Tbl,Y,CVPartition=cvp);
    cvloss = kfoldLoss(CVMdl)
    cvloss = 0.1339


    Create the custom function myloss (shown at the end of this example). This function generates 20 features from the training data, and then applies the same training set transformations to the test data. The function then fits a linear classifier to the training data and computes the test set loss.

    Note: If you use the live script file for this example, the myloss function is already included at the end of the file. Otherwise, you need to create this function at the end of your .m file or add it as a file on the MATLAB® path.

    Compute the cross-validation classification loss for a linear model trained on features generated from the predictors in Tbl.

    newcvloss = mean(crossval(@myloss,Tbl,Y,Partition=cvp))
    newcvloss = 0.0657

    function testloss = myloss(TrainTbl,trainY,TestTbl,testY)
    [Transformer,NewTrainTbl] = gencfeatures(TrainTbl,trainY,20);
    NewTestTbl = transform(Transformer,TestTbl);
    Mdl = fitclinear(NewTrainTbl,trainY);
    testloss = loss(Mdl,NewTestTbl,testY, ...
        LossFun="classiferror");
    end

    Input Arguments

    collapse all

    Original features, specified as a table. Each row of Tbl corresponds to one observation, and each column corresponds to one predictor variable. Optionally, Tbl can contain one additional column for the response variable. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed, but datetime, duration, and various int predictor variables are allowed.

    • If Tbl contains the response variable, and you want to create new features from any of the remaining variables in Tbl, then specify the response variable by using ResponseVarName.

    • If Tbl contains the response variable, and you want to create new features from only a subset of the remaining variables in Tbl, then specify a formula by using formula.

    • If Tbl does not contain the response variable, then specify a response variable by using Y. The length of the response variable and the number of rows in Tbl must be equal.

    Data Types: table

    Response variable name, specified as the name of a variable in Tbl.

    You must specify ResponseVarName as a character vector or string scalar. For example, if the response variable Y is stored as Tbl.Y, then specify it as 'Y'. Otherwise, the software treats all columns of Tbl as predictors, and might create new features from Y.

    Data Types: char | string

    Number of features, specified as a positive integer scalar. For example, you can set q to approximately 1.5*size(Tbl,2), which is about 1.5 times the number of original features.

    Data Types: single | double

    Response variable with observations in rows, specified as a numeric vector, logical vector, string array, cell array of character vectors, or categorical vector. Y and Tbl must have the same number of rows.

    Data Types: single | double | logical | string | cell | categorical

    Explanatory model of the response variable and a subset of the predictor variables, specified as a character vector or string scalar in the form "Y~X1+X2+X3". In this form, Y represents the response variable, and X1, X2, and X3 represent the predictor variables.

    To create new features from only a subset of the predictor variables in Tbl, use a formula. If you specify a formula, then the software does not create new features from any variables in Tbl that do not appear in formula.

    The variable names in the formula must be both variable names in Tbl (Tbl.Properties.VariableNames) and valid MATLAB® identifiers. You can verify the variable names in Tbl by using the isvarname function. If the variable names are not valid, then you can convert them by using the matlab.lang.makeValidName function.

    Data Types: char | string

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: gencfeatures(Tbl,"Response",10,TargetLearner="bag",FeatureSelection="oob") specifies that the expected learner type is a bagged ensemble classifier and the method for selecting features is an out-of-bag, predictor importance technique.

    Expected learner type, specified as "linear", "bag", or "gaussian-svm". The software creates and selects new features assuming they will be used to train this type of model.

    ValueExpected Model
    "linear"ClassificationLinear — Appropriate for binary classification only. You can create a model by using the fitclinear function.
    "bag"ClassificationBaggedEnsemble — Appropriate for binary and multiclass classification. You can create a model by using the fitcensemble function and specifying Method="Bag".
    "gaussian-svm"ClassificationSVM (with a Gaussian kernel) — Appropriate for binary classification only. You can create a model by using the fitcsvm function and specifying KernelFunction="gaussian". To create a model with good predictive performance, specify KernelScale="auto".

    By default, TargetLearner is "linear", which supports binary response variables only. If you have a multiclass response variable and you want to generate new features, you must set TargetLearner to "bag".

    Example: TargetLearner="bag"

    Method for including the original features in Tbl in the new table NewTbl, specified as one of the values in this table.

    ValueDescription
    "auto"

    This value is equivalent to:

    • "select" when TargetLearner is "linear"

    • "include" when TargetLearner is "bag" or "gaussian-svm"

    "include"

    The software includes original features that can be used as predictors by the target learner, and excludes features that are:

    • Unsupported, such as datetime and duration variables

    • Constant-valued, including variables with all missing values

    • Numeric with NaN or Inf values (when the TargetLearner is "linear" or "gaussian-svm")

    • Categorical with all unique values

    • Categorical with more categories than the CategoricalEncodingLimit value

    "select"The software includes original features that are supported by the target learner and considered to be important by the specified feature selection method (FeatureSelectionMethod).
    "omit"The software omits the original features.

    Note that the software applies the standardization method specified by the TransformedDataStandardization name-value argument to original features included in NewTbl.

    Example: IncludeInputVariables="include"

    Method for selecting new features, specified as one of the values in this table. The software generates many features using various transformations and uses this method to select the important features to include in NewTbl.

    ValueDescription
    "auto"

    This value is equivalent to:

    • "lasso" when TargetLearner is "linear"

    • "oob" when TargetLearner is "bag"

    • "nca" when TargetLearner is "gaussian-svm"

    "lasso"

    Lasso regularization — Available when TargetLearner is "linear"

    To perform feature selection, the software uses fitclinear with Regularization specified as "lasso". The fitclinear function uses a vector of regularization strengths (Lambda) to find a linear fit that has the requested number of features with nonzero coefficients (Beta). The software includes these important features in NewTbl.

    "oob"

    Out-of-bag, predictor importance estimates by permutation — Available when TargetLearner is "bag"

    To perform feature selection, the software fits a bagged ensemble of trees and uses the oobPermutedPredictorImportance function to rank the features in the ensemble. The software includes the requested number of top-ranked features in NewTbl.

    "nca"

    Neighborhood component analysis (NCA) — Available when TargetLearner is "gaussian-svm" and the predictor features in Tbl are numeric only

    Tip

    If TargetLearner is "gaussian-svm" and Tbl includes categorical predictors, specify FeatureSelectionMethod as "mrmr".

    To perform feature selection, the software uses fscnca to fit a FeatureSelectionNCAClassification object, and then sorts the features by their average weights (FeatureWeights). Greater weight indicates greater feature importance. The software includes the requested number of important features in NewTbl.

    "mrmr"

    Minimum redundancy maximum relevance (MRMR) — Available when TargetLearner is "linear", "bag", or "gaussian-svm"

    To perform feature selection, the software uses fscmrmr to rank the features, and then includes the requested number of top-ranked features in NewTbl.

    For more information on different feature selection methods, see Introduction to Feature Selection.

    Example: FeatureSelection="mrmr"

    Standardization method for the transformed data, specified as one of the values in this table. The software applies this standardization method to both engineered features and original features.

    ValueDescription
    "auto"

    This value is equivalent to:

    • "zscore" when TargetLearner is "linear" or "gaussian-svm"

    • "none" when TargetLearner is "bag"

    "zscore"Center and scale to have mean 0 and standard deviation 1
    "none"Use raw data
    "mad"Center and scale to have median 0 and median absolute deviation 1
    "range"Scale range of data to [0,1]

    Example: TransformedDataStandardization="range"

    Maximum number of categories allowed in a categorical predictor, specified as a nonnegative integer scalar. If a categorical predictor has more than the specified number of categories, then gencfeatures does not create new features from the predictor and excludes the predictor from the new table NewTbl. The default value is 50 when TargetLearner is "linear" or "gaussian-svm", and Inf when TargetLearner is "bag".

    Example: CategoricalEncodingLimit=20

    Data Types: single | double

    Output Arguments

    collapse all

    Engineered feature transformer, returned as a FeatureTransformer object. To better understand the engineered features, use the describe object function of Transformer. To apply the same feature transformations on a new data set, use the transform object function of Transformer.

    Generated features, returned as a table. Each row corresponds to an observation, and each column corresponds to a generated feature. If the response variable is included in Tbl, then NewTbl also includes the response variable. Use this table to train a classification model of type TargetLearner.

    NewTbl contains generated features in the following order: original features, engineered features as ranked by the feature selection method, and the response variable.

    Tips

    • By default, when TargetLearner is "linear" or "gaussian-svm", the software generates new features from numeric predictors by using z-scores (see TransformedDataStandardization). You can change the type of standardization for the transformed features. However, using some method of standardization, thereby avoiding the "none" specification, is strongly recommended. Fitting linear and SVM models works best with standardized data.

    • When you generate features to create an SVM model with good predictive performance, specify KernelScale as "auto" in the call to fitcsvm. This specification allows the software to find an appropriate scale value for the SVM kernel function.

    Version History

    Introduced in R2021a

    expand all

    Behavior changed in R2022a
