# plotPartialDependence

Create partial dependence plot (PDP) and individual conditional expectation (ICE) plots

## Description

example

plotPartialDependence(RegressionMdl,Vars) computes and plots the partial dependence between the predictor variables listed in Vars and the responses predicted by using the regression model RegressionMdl, which contains predictor data.

• If you specify one variable in Vars, the function creates a line plot of the partial dependence against the variable.

• If you specify two variables in Vars, the function creates a surface plot of the partial dependence against the two variables.

example

plotPartialDependence(ClassificationMdl,Vars,Labels) computes and plots the partial dependence between the predictor variables listed in Vars and the scores for the classes specified in Labels by using the classification model ClassificationMdl, which contains predictor data.

• If you specify one variable in Vars and one class in Labels, the function creates a line plot of the partial dependence against the variable for the specified class.

• If you specify one variable in Vars and multiple classes in Labels, the function creates a line plot for each class on one figure.

• If you specify two variables in Vars and one class in Labels, the function creates a surface plot of the partial dependence against the two variables.

example

plotPartialDependence(___,Data) uses new predictor data Data. You can specify Data in addition to any of the input argument combinations in the previous syntaxes.

example

plotPartialDependence(___,Name,Value) uses additional options specified by one or more name-value pair arguments. For example, if you specify 'Conditional','absolute', the plotPartialDependence function creates a figure including a PDP, a scatter plot of the selected predictor variable and predicted responses or scores, and an ICE plot for each observation.

example

ax = plotPartialDependence(___) returns the axes of the plot.

## Examples

collapse all

Train a regression tree using the carsmall data set, and create a PDP that shows the relationship between a feature and the predicted responses in the trained regression tree.

Specify Weight, Cylinders, and Horsepower as the predictor variables (X), and MPG as the response variable (Y).

X = [Weight,Cylinders,Horsepower];
Y = MPG;

Train a regression tree using X and Y.

Mdl = fitrtree(X,Y);

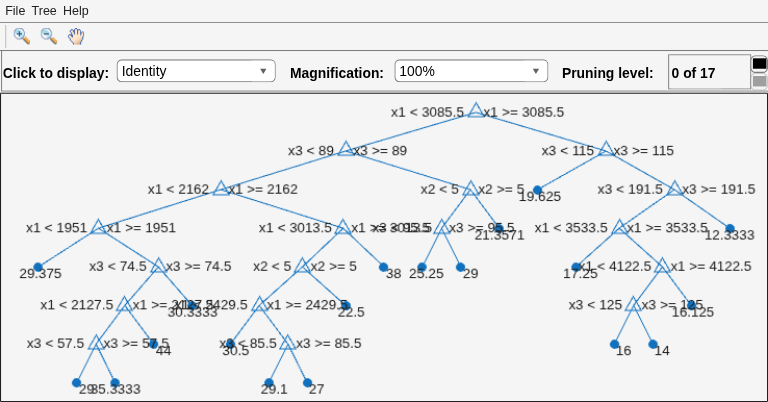

View a graphical display of the trained regression tree.

view(Mdl,'Mode','graph')

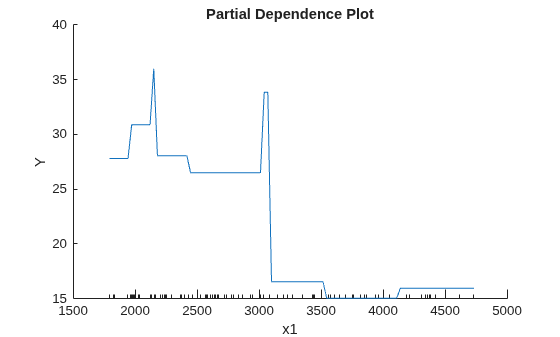

Create a PDP of the first predictor variable, Weight.

plotPartialDependence(Mdl,1)

The plotted line represents averaged partial relationships between Weight (labeled as x1) and MPG (labeled as Y) in the trained regression tree Mdl. The x-axis minor ticks represent the unique values in x1.

The regression tree viewer shows that the first decision is whether x1 is smaller than 3085.5. The PDP also shows a large change near x1 = 3085.5. The tree viewer visualizes each decision at each node based on predictor variables. You can find several nodes split based on the values of x1, but determining the dependence of Y on x1 is not easy. However, the plotPartialDependence plots average predicted responses against x1, so you can clearly see the partial dependence of Y on x1.

The labels x1 and Y are the default values of the predictor names and the response name. You can modify these names by specifying the name-value pair arguments 'PredictorNames' and 'ResponseName' when you train Mdl using fitrtree. You can also modify axis labels by using the xlabel and ylabel functions.

Train a naive Bayes classification model with the fisheriris data set, and create a PDP that shows the relationship between the predictor variable and the predicted scores (posterior probabilities) for multiple classes.

Load the fisheriris data set, which contains species (species) and measurements (meas) on sepal length, sepal width, petal length, and petal width for 150 iris specimens. The data set contains 50 specimens from each of three species: setosa, versicolor, and virginica.

Train a naive Bayes classification model with species as the response and meas as predictors.

Mdl = fitcnb(meas,species);

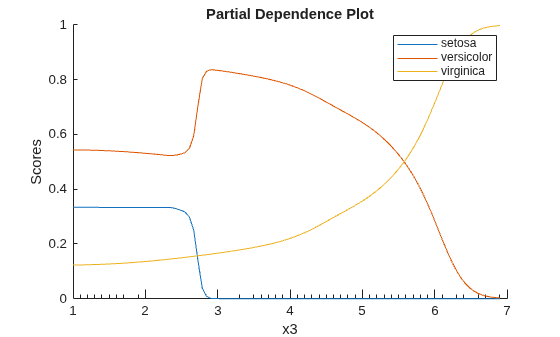

Create a PDP of the scores predicted by Mdl for all three classes of species against the third predictor variable x3. Specify the class labels by using the ClassNames property of Mdl.

plotPartialDependence(Mdl,3,Mdl.ClassNames);

According to this model, the probability of virginica increases with x3. The probability of setosa is about 0.33, from where x3 is 0 to around 2.5, and then the probability drops to almost 0.

Train a Gaussian process regression model using generated sample data where a response variable includes interactions between predictor variables. Then, create ICE plots that show the relationship between a feature and the predicted responses for each observation.

Generate sample predictor data x1 and x2.

rng('default') % For reproducibility
n = 200;
x1 = rand(n,1)*2-1;
x2 = rand(n,1)*2-1;

Generate response values that include interactions between x1 and x2.

Y = x1-2*x1.*(x2>0)+0.1*rand(n,1);

Create a Gaussian process regression model using [x1 x2] and Y.

Mdl = fitrgp([x1 x2],Y);

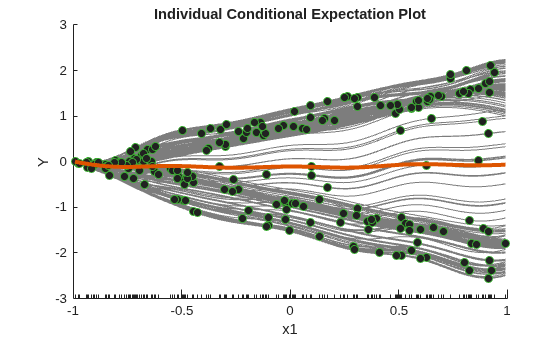

Create a figure including a PDP (red line) for the first predictor x1, a scatter plot (circle markers) of x1 and predicted responses, and a set of ICE plots (gray lines) by specifying 'Conditional' as 'centered'.

plotPartialDependence(Mdl,1,'Conditional','centered')

When 'Conditional' is 'centered', plotPartialDependence offsets plots so that all plots start from zero, which is helpful in examining the cumulative effect of the selected feature.

A PDP finds averaged relationships, so it does not reveal hidden dependencies especially when responses include interactions between features. However, the ICE plots clearly show two different dependencies of responses on x1.

Train an ensemble of classification models and create two PDPs, one using the training data set and the other using a new data set.

Load the census1994 data set, which contains US yearly salary data, categorized as <=50K or >50K, and several demographic variables.

Extract a subset of variables to analyze from the tables adultdata and adulttest.

'sex','capital_gain','capital_loss','hours_per_week','salary'});
'sex','capital_gain','capital_loss','hours_per_week','salary'});

Train an ensemble of classifiers with salary as the response and the remaining variables as predictors by using the function fitcensemble. For binary classification, fitcensemble aggregates 100 classification trees using the LogitBoost method.

Mdl = fitcensemble(X,'salary');

Inspect the class names in Mdl.

Mdl.ClassNames
ans = 2x1 categorical
<=50K
>50K

Create a partial dependence plot of the scores predicted by Mdl for the second class of salary (>50K) against the predictor age using the training data.

plotPartialDependence(Mdl,'age',Mdl.ClassNames(2))

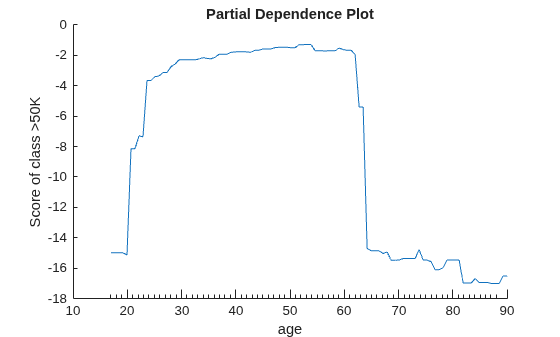

Create a PDP of the scores for class >50K against age using new predictor data from the table Xnew.

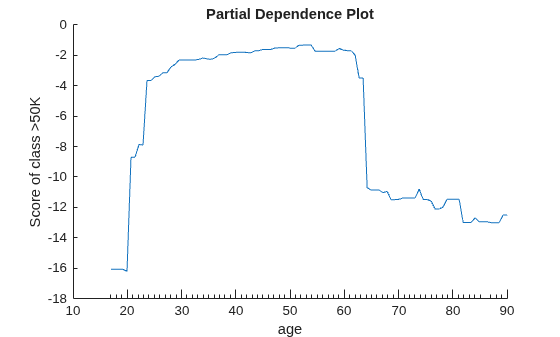

plotPartialDependence(Mdl,'age',Mdl.ClassNames(2),Xnew)

The two plots show similar shapes for the partial dependence of the predicted score of high salary (>50K) on age. Both plots indicate that the predicted score of high salary rises fast until the age of 30, then stays almost flat until the age of 60, and then drops fast. However, the plot based on the new data produces slightly higher scores for ages over 65.

Train a regression ensemble using the carsmall data set, and create a PDP plot and ICE plots for each predictor variable using a new data set, carbig. Then, compare the figures to analyze the importance of predictor variables. Also, compare the results with the estimates of predictor importance returned by the predictorImportance function.

Specify Weight, Cylinders, Horsepower, and Model_Year as the predictor variables (X), and MPG as the response variable (Y).

X = [Weight,Cylinders,Horsepower,Model_Year];
Y = MPG;

Train a regression ensemble using X and Y.

Mdl = fitrensemble(X,Y, ...
'PredictorNames',{'Weight','Cylinders','Horsepower','Model Year'}, ...
'ResponseName','MPG');

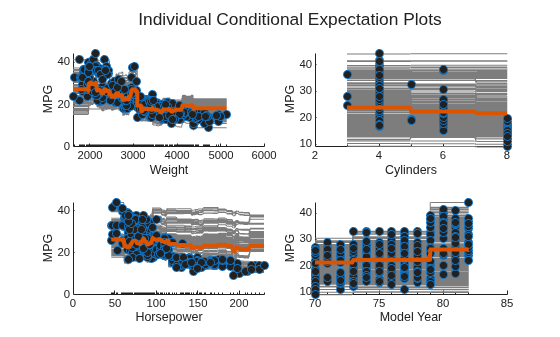

Create the importance of predictor variables by using the plotPartialDependence and predictorImportance functions. The plotPartialDependence function visualizes the relationships between a selected predictor and predicted responses. predictorImportance summarizes the importance of a predictor with a single value.

Create a figure including a PDP plot (red line) and ICE plots (gray lines) for each predictor by using plotPartialDependence and specifying 'Conditional','absolute'. Each figure also includes a scatter plot (circle markers) of the selected predictor and predicted responses. Also, load the carbig data set and use it as new predictor data, Xnew. When you provide Xnew, the plotPartialDependence function uses Xnew instead of the predictor data in Mdl.

Xnew = [Weight,Cylinders,Horsepower,Model_Year];

figure
t = tiledlayout(2,2,'TileSpacing','compact');
title(t,'Individual Conditional Expectation Plots')

for i = 1 : 4
nexttile
plotPartialDependence(Mdl,i,Xnew,'Conditional','absolute')
title('')
end

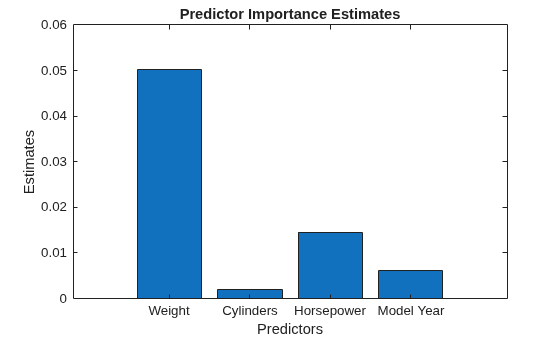

Compute estimates of predictor importance by using predictorImportance. This function sums changes in the mean squared error (MSE) due to splits on every predictor, and then divides the sum by the number of branch nodes.

imp = predictorImportance(Mdl);
figure
bar(imp)
title('Predictor Importance Estimates')
ylabel('Estimates')
xlabel('Predictors')
ax = gca;
ax.XTickLabel = Mdl.PredictorNames;

The variable Weight has the most impact on MPG according to predictor importance. The PDP of Weight also shows that MPG has high partial dependence on Weight. The variable Cylinders has the least impact on MPG according to predictor importance. The PDP of Cylinders also shows that MPG does not change much depending on Cylinders.

Train a generalized additive model (GAM) with both linear and interaction terms for predictors. Then, create a PDP with both linear and interaction terms and a PDP with only linear terms. Specify whether to include interaction terms when creating the PDPs.

Load the ionosphere data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad ('b') or good ('g').

Train a GAM using the predictors X and class labels Y. A recommended practice is to specify the class names. Specify to include the 10 most important interaction terms.

Mdl = fitcgam(X,Y,'ClassNames',{'b','g'},'Interactions',10);

Mdl is a ClassificationGAM model object.

List the interaction terms in Mdl.

Mdl.Interactions
ans = 10×2

1     5
7     8
6     7
5     6
5     7
5     8
3     5
4     7
1     7
4     5

Each row of Interactions represents one interaction term and contains the column indexes of the predictor variables for the interaction term.

Find the most frequent predictor in the interaction terms.

mode(Mdl.Interactions,'all')
ans = 5

The most frequent predictor in the interaction terms is the 5th predictor (x5). Create PDPs for the 5th predictor. To exclude interaction terms from the computation, specify 'IncludeInteractions',false for the second PDP.

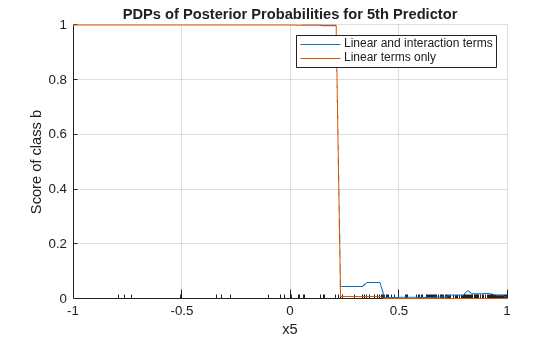

plotPartialDependence(Mdl,5,Mdl.ClassNames(1))
hold on
plotPartialDependence(Mdl,5,Mdl.ClassNames(1),'IncludeInteractions',false)
grid on
legend('Linear and interaction terms','Linear terms only')
title('PDPs of Posterior Probabilities for 5th Predictor')
hold off

The plot shows that the partial dependence of the scores (posterior probabilities) on x5 varies depending on whether the model includes the interaction terms, especially where x5 is between 0.2 and 0.45.

Train a support vector machine (SVM) regression model using the carsmall data set, and create a PDP for two predictor variables. Then, extract partial dependence estimates from the output of plotPartialDependence. Alternatively, you can get the partial dependence values by using the partialDependence function.

Specify Weight, Cylinders, Displacement, and Horsepower as the predictor variables (Tbl).

Tbl = table(Weight,Cylinders,Displacement,Horsepower);

Construct an SVM regression model using Tbl and the response variable MPG. Use a Gaussian kernel function with an automatic kernel scale.

Mdl = fitrsvm(Tbl,MPG,'ResponseName','MPG', ...
'CategoricalPredictors','Cylinders','Standardize',true, ...
'KernelFunction','gaussian','KernelScale','auto');

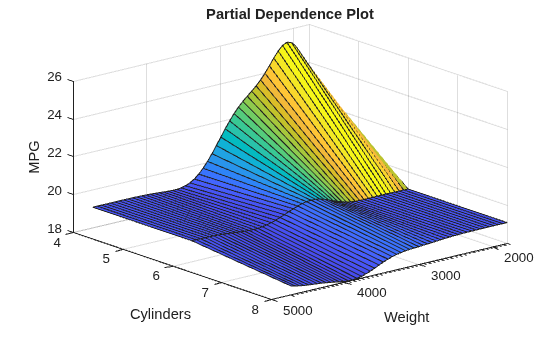

Create a PDP that visualizes partial dependence of predicted responses (MPG) on the predictor variables Weight and Cylinders. Specify query points to compute the partial dependence for Weight by using the 'QueryPoints' name-value pair argument. You cannot specify the 'QueryPoints' value for Cylinders because it is a categorical variable. plotPartialDependence uses all categorical values.

pt = linspace(min(Weight),max(Weight),50)';
ax = plotPartialDependence(Mdl,{'Weight','Cylinders'},'QueryPoints',{pt,[]});
view(140,30) % Modify the viewing angle

The PDP shows an interaction effect between Weight and Cylinders. The partial dependence of MPG on Weight changes depending on the value of Cylinders.

Extract the estimated partial dependence of MPG on Weight and Cylinders. The XData, YData, and ZData values of ax.Children are x-axis values (the first selected predictor values), y-axis values (the second selected predictor values), and z-axis values (the corresponding partial dependence values), respectively.

xval = ax.Children.XData;
yval = ax.Children.YData;
zval = ax.Children.ZData;

Alternatively, you can get the partial dependence values by using the partialDependence function.

[pd,x,y] = partialDependence(Mdl,{'Weight','Cylinders'},'QueryPoints',{pt,[]});

pd contains the partial dependence values for the query points x and y.

If you specify 'Conditional' as 'absolute', plotPartialDependence creates a figure including a PDP, a scatter plot, and a set of ICE plots. ax.Children(1) and ax.Children(2) correspond to the PDP and scatter plot, respectively. The remaining elements of ax.Children correspond to the ICE plots. The XData and YData values of ax.Children(i) are x-axis values (the selected predictor values) and y-axis values (the corresponding partial dependence values), respectively.

## Input Arguments

collapse all

Regression model, specified as a full or compact regression model object, as given in the following tables of supported models.

ModelFull or Compact Model Object
Generalized linear modelGeneralizedLinearModel, CompactGeneralizedLinearModel
Generalized linear mixed-effect modelGeneralizedLinearMixedModel
Linear regressionLinearModel, CompactLinearModel
Linear mixed-effect modelLinearMixedModel
Nonlinear regressionNonLinearModel
Ensemble of regression modelsRegressionEnsemble, RegressionBaggedEnsemble, CompactRegressionEnsemble
Gaussian process regressionRegressionGP, CompactRegressionGP
Gaussian kernel regression model using random feature expansionRegressionKernel
Linear regression for high-dimensional dataRegressionLinear
Neural network regression modelRegressionNeuralNetwork, CompactRegressionNeuralNetwork
Support vector machine (SVM) regressionRegressionSVM, CompactRegressionSVM
Regression treeRegressionTree, CompactRegressionTree
Bootstrap aggregation for ensemble of decision treesTreeBagger, CompactTreeBagger

If RegressionMdl is a model object that does not contain predictor data (for example, a compact model), you must provide the input argument Data.

plotPartialDependence does not support a model object trained with a sparse matrix. When you train a model, use a full numeric matrix or table for predictor data where rows correspond to individual observations.

Classification model, specified as a full or compact classification model object, as given in the following tables of supported models.

ModelFull or Compact Model Object
Discriminant analysis classifierClassificationDiscriminant, CompactClassificationDiscriminant
Multiclass model for support vector machines or other classifiersClassificationECOC, CompactClassificationECOC
Ensemble of learners for classificationClassificationEnsemble, CompactClassificationEnsemble, ClassificationBaggedEnsemble
Gaussian kernel classification model using random feature expansionClassificationKernel
k-nearest neighbor classifierClassificationKNN
Linear classification modelClassificationLinear
Multiclass naive Bayes modelClassificationNaiveBayes, CompactClassificationNaiveBayes
Neural network classifierClassificationNeuralNetwork, CompactClassificationNeuralNetwork
Support vector machine (SVM) classifier for one-class and binary classificationClassificationSVM, CompactClassificationSVM
Binary decision tree for multiclass classificationClassificationTree, CompactClassificationTree
Bagged ensemble of decision treesTreeBagger, CompactTreeBagger

If ClassificationMdl is a model object that does not contain predictor data (for example, a compact model), you must provide the input argument Data.

plotPartialDependence does not support a model object trained with a sparse matrix. When you train a model, use a full numeric matrix or table for predictor data where rows correspond to individual observations.

Predictor variables, specified as a vector of positive integers, character vector, string scalar, string array, or cell array of character vectors. You can specify one or two predictor variables, as shown in the following tables.

One Predictor Variable

ValueDescription
positive integerIndex value corresponding to the column of the predictor data.
character vector or string scalar

Name of a predictor variable. The name must match the entry in RegressionMdl.PredictorNames or ClassificationMdl.PredictorNames.

Two Predictor Variables

ValueDescription
vector of two positive integersIndex values corresponding to the columns of the predictor data.
string array or cell array of character vectors

Names of predictor variables. Each element in the array is the name of a predictor variable. The names must match the entries in RegressionMdl.PredictorNames or ClassificationMdl.PredictorNames.

Example: {'x1','x3'}

Data Types: single | double | char | string | cell

Class labels, specified as a categorical or character array, logical or numeric vector, or cell array of character vectors. The values and data types in Labels must match those of the class names in the ClassNames property of ClassificationMdl (ClassificationMdl.ClassNames).

• You can specify multiple class labels only when you specify one variable in Vars and specify 'Conditional' as 'none' (default).

• Use partialDependence if you want to compute the partial dependence for multiple variables and multiple class labels in one function call.

This argument is valid only when you specify a classification model object ClassificationMdl.

Example: {'red','blue'}

Example: ClassificationMdl.ClassNames([1 3]) specifies Labels as the first and third classes in ClassificationMdl.

Data Types: single | double | logical | char | cell | categorical

Predictor data, specified as a numeric matrix or table. Each row of Data corresponds to one observation, and each column corresponds to one variable.

Data must be consistent with the predictor data that trained the model (RegressionMdl or ClassificationMdl), stored in either the X or Variables property.

• If you trained the model using a numeric matrix, then Data must be a numeric matrix. The variables making up the columns of Data must have the same number and order as the predictor variables that trained the model.

• If you trained the model using a table (for example, Tbl), then Data must be a table. All predictor variables in Data must have the same variable names and data types as the names and types in Tbl. However, the column order of Data does not need to correspond to the column order of Tbl.

• plotPartialDependence does not support a sparse matrix.

If RegressionMdl or ClassificationMdl is a model object that does not contain predictor data, you must provide Data. If the model is a full model object that contains predictor data and you specify this argument, then plotPartialDependence does not use the predictor data in the model and uses Data only.

Data Types: single | double | table

### Name-Value Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: plotPartialDependence(Mdl,Vars,Data,'NumObservationsToSample',100,'UseParallel',true) creates a PDP by using 100 sampled observations in Data and executing for-loop iterations in parallel.

Plot type, specified as 'none', 'absolute', or 'centered'.

ValueDescription
'none'

plotPartialDependence creates a PDP. The plot type depends on the number of predictor variables specified in Vars and the number of class labels specified in Labels (for a classification model).

• One predictor variable and one class label — plotPartialDependence computes partial dependence at the query points, and creates a 2-D line plot of the partial dependence.

• One predictor variable and multiple class labels — plotPartialDependence creates one figure containing multiple 2-D line plots for the selected classes.

• Two predictor variables and one class label — plotPartialDependence creates a surface plot of partial dependence against the two variables.

'absolute'

plotPartialDependence creates a figure including the following three types of plots:

• PDP with a red line

• Scatter plot of the selected predictor variable and predicted responses or scores with circle markers

• ICE plot for each observation with a gray line

This value is valid when you select only one predictor variable in Vars and one class label in Labels (for a classification model).

'centered'

plotPartialDependence creates a figure including the same three types of plots as 'absolute'. The function offsets plots so that all plots start from zero.

This value is valid when you select only one predictor variable in Vars and one class label in Labels (for a classification model).

Example: 'Conditional','absolute'

Flag to include interaction terms of the generalized additive model (GAM) in the partial dependence computation, specified as true or false. This argument is valid only for a GAM. That is, you can specify this argument only when RegressionMdl is RegressionGAM or CompactRegressionGAM, or ClassificationMdl is ClassificationGAM or CompactClassificationGAM.

The default 'IncludeInteractions' value is true if the model contains interaction terms. The value must be false if the model does not contain interaction terms.

Example: 'IncludeInteractions',false

Data Types: logical

Flag to include an intercept term of the generalized additive model (GAM) in the partial dependence computation, specified as true or false. This argument is valid only for a GAM. That is, you can specify this argument only when RegressionMdl is RegressionGAM or CompactRegressionGAM, or ClassificationMdl is ClassificationGAM or CompactClassificationGAM.

Example: 'IncludeIntercept',false

Data Types: logical

Number of observations to sample, specified as a positive integer. The default value is the number of total observations in Data or the model (RegressionMdl or ClassificationMdl). If you specify a value larger than the number of total observations, then plotPartialDependence uses all observations.

plotPartialDependence samples observations without replacement by using the datasample function and uses the sampled observations to compute partial dependence.

plotPartialDependence displays minor tick marks at the unique values of the sampled observations.

If you specify 'Conditional' as either 'absolute' or 'centered', plotPartialDependence creates a figure including an ICE plot for each sampled observation.

Example: 'NumObservationsToSample',100

Data Types: single | double

Axes in which to plot, specified as an axes object. If you do not specify the axes and if the current axes are Cartesian, then plotPartialDependence uses the current axes (gca). If axes do not exist, plotPartialDependence plots in a new figure.

Example: 'Parent',ax

Points to compute partial dependence for numeric predictors, specified as a numeric column vector, a numeric two-column matrix, or a cell array of two numeric column vectors.

• If you select one predictor variable in Vars, use a numeric column vector.

• If you select two predictor variables in Vars:

• Use a numeric two-column matrix to specify the same number of points for each predictor variable.

• Use a cell array of two numeric column vectors to specify a different number of points for each predictor variable.

The default value is a numeric column vector or a numeric two-column matrix, depending on the number of selected predictor variables. Each column contains 100 evenly spaced points between the minimum and maximum values of the sampled observations for the corresponding predictor variable.

If 'Conditional' is 'absolute' or 'centered', then the software adds the predictor data values (Data or predictor data in RegressionMdl or ClassificationMdl) of the selected predictors to the query points.

You cannot modify 'QueryPoints' for a categorical variable. The plotPartialDependence function uses all categorical values in the selected variable.

If you select one numeric variable and one categorical variable, you can specify 'QueryPoints' for a numeric variable by using a cell array consisting of a numeric column vector and an empty array.

Example: 'QueryPoints',{pt,[]}

Data Types: single | double | cell

Flag to run in parallel, specified as true or false. If you specify 'UseParallel',true, the plotPartialDependence function executes for-loop iterations in parallel by using parfor when predicting responses or scores for each observation and averaging them. This option requires Parallel Computing Toolbox™.

Example: 'UseParallel',true

Data Types: logical

## Output Arguments

collapse all

Axes of the plot, returned as an axes object. For details on how to modify the appearance of the axes and extract data from plots, see Axes Appearance and Extract Partial Dependence Estimates from Plots.

collapse all

### Partial Dependence for Regression Models

Partial dependence[1] represents the relationships between predictor variables and predicted responses in a trained regression model. plotPartialDependence computes the partial dependence of predicted responses on a subset of predictor variables by marginalizing over the other variables.

Consider partial dependence on a subset XS of the whole predictor variable set X = {x1, x2, …, xm}. A subset XS includes either one variable or two variables: XS = {xS1} or XS = {xS1, xS2}. Let XC be the complementary set of XS in X. A predicted response f(X) depends on all variables in X:

f(X) = f(XS, XC).

The partial dependence of predicted responses on XS is defined by the expectation of predicted responses with respect to XC:

${f}^{S}\left({X}^{S}\right)={E}_{C}\left[f\left({X}^{S},{X}^{C}\right)\right]=\int f\left({X}^{S},{X}^{C}\right){p}_{C}\left({X}^{C}\right)d{X}^{C},$

where pC(XC) is the marginal probability of XC, that is, ${p}_{C}\left({X}^{C}\right)\approx \int p\left({X}^{S},{X}^{C}\right)d{X}^{S}$. Assuming that each observation is equally likely, and the dependence between XS and XC and the interactions of XS and XC in responses is not strong, plotPartialDependence estimates the partial dependence by using observed predictor data as follows:

 ${f}^{S}\left({X}^{S}\right)\approx \frac{1}{N}\sum _{i=1}^{N}f\left({X}^{S},{X}_{i}{}^{C}\right),$ (1)

where N is the number of observations and Xi = (XiS, XiC) is the ith observation.

When you call the plotPartialDependence function, you can specify a trained model (f(·)) and select variables (XS) by using the input arguments RegressionMdl and Vars, respectively. plotPartialDependence computes the partial dependence at 100 evenly spaced points of XS or the points that you specify by using the 'QueryPoints' name-value pair argument. You can specify the number (N) of observations to sample from given predictor data by using the 'NumObservationsToSample' name-value pair argument.

### Individual Conditional Expectation for Regression Models

An individual conditional expectation (ICE) [2], as an extension of partial dependence, represents the relationship between a predictor variable and the predicted responses for each observation. While partial dependence shows the averaged relationship between predictor variables and predicted responses, a set of ICE plots disaggregates the averaged information and shows an individual dependence for each observation.

plotPartialDependence creates an ICE plot for each observation. A set of ICE plots is useful to investigate heterogeneities of partial dependence originating from different observations. plotPartialDependence can also create ICE plots with any predictor data provided through the input argument Data. You can use this feature to explore predicted response space.

Consider an ICE plot for a selected predictor variable xS with a given observation XiC, where XS = {xS}, XC is the complementary set of XS in the whole variable set X, and Xi = (XiS, XiC) is the ith observation. The ICE plot corresponds to the summand of the summation in Equation 1:

${f}^{S}{}_{i}\left({X}^{S}\right)=f\left({X}^{S},{X}_{i}{}^{C}\right).$

plotPartialDependence plots ${f}^{S}{}_{i}\left({X}^{S}\right)$ for each observation i when you specify 'Conditional' as 'absolute'. If you specify 'Conditional' as 'centered', plotPartialDependence draws all plots after removing level effects due to different observations:

${f}^{S}{}_{i,\text{centered}}\left({X}^{S}\right)=f\left({X}^{S},{X}_{i}{}^{C}\right)-f\left(\mathrm{min}\left({X}^{S}\right),{X}_{i}{}^{C}\right).$

This subtraction ensures that each plot starts from zero, so that you can examine the cumulative effect of XS and the interactions between XS and XC.

### Partial Dependence and ICE for Classification Models

In the case of classification models, plotPartialDependence computes the partial dependence and individual conditional expectation in the same way as for regression models, with one exception: instead of using the predicted responses from the model, the function uses the predicted scores for the classes specified in Labels.

### Weighted Traversal Algorithm

The weighted traversal algorithm[1] is a method to estimate partial dependence for a tree-based model. The estimated partial dependence is the weighted average of response or score values corresponding to the leaf nodes visited during the tree traversal.

Let XS be a subset of the whole variable set X and XC be the complementary set of XS in X. For each XS value to compute partial dependence, the algorithm traverses a tree from the root (beginning) node down to leaf (terminal) nodes and finds the weights of leaf nodes. The traversal starts by assigning a weight value of one at the root node. If a node splits by XS, the algorithm traverses to the appropriate child node depending on the XS value. The weight of the child node becomes the same value as its parent node. If a node splits by XC, the algorithm traverses to both child nodes. The weight of each child node becomes a value of its parent node multiplied by the fraction of observations corresponding to each child node. After completing the tree traversal, the algorithm computes the weighted average by using the assigned weights.

For an ensemble of bagged trees, the estimated partial dependence is an average of the weighted averages over the individual trees.

## Algorithms

plotPartialDependence uses a predict function to predict responses or scores. plotPartialDependence chooses the proper predict function according to the model (RegressionMdl or ClassificationMdl) and runs predict with its default settings. For details about each predict function, see the predict functions in the following two tables. If the specified model is a tree-based model (not including a boosted ensemble of trees) and 'Conditional' is 'none', then plotPartialDependence uses the weighted traversal algorithm instead of the predict function. For details, see Weighted Traversal Algorithm.

Regression Model Object

Model TypeFull or Compact Regression Model ObjectFunction to Predict Responses
Bootstrap aggregation for ensemble of decision treesCompactTreeBaggerpredict
Bootstrap aggregation for ensemble of decision treesTreeBaggerpredict
Ensemble of regression modelsRegressionEnsemble, RegressionBaggedEnsemble, CompactRegressionEnsemblepredict
Gaussian kernel regression model using random feature expansionRegressionKernelpredict
Gaussian process regressionRegressionGP, CompactRegressionGPpredict
Generalized linear mixed-effect modelGeneralizedLinearMixedModelpredict
Generalized linear modelGeneralizedLinearModel, CompactGeneralizedLinearModelpredict
Linear mixed-effect modelLinearMixedModelpredict
Linear regressionLinearModel, CompactLinearModelpredict
Linear regression for high-dimensional dataRegressionLinearpredict
Neural network regression modelRegressionNeuralNetwork, CompactRegressionNeuralNetworkpredict
Nonlinear regressionNonLinearModelpredict
Regression treeRegressionTree, CompactRegressionTreepredict
Support vector machineRegressionSVM, CompactRegressionSVMpredict

Classification Model Object

Model TypeFull or Compact Classification Model ObjectFunction to Predict Labels and Scores
Discriminant analysis classifierClassificationDiscriminant, CompactClassificationDiscriminantpredict
Multiclass model for support vector machines or other classifiersClassificationECOC, CompactClassificationECOCpredict
Ensemble of learners for classificationClassificationEnsemble, CompactClassificationEnsemble, ClassificationBaggedEnsemblepredict
Gaussian kernel classification model using random feature expansionClassificationKernelpredict
k-nearest neighbor modelClassificationKNNpredict
Linear classification modelClassificationLinearpredict
Naive Bayes modelClassificationNaiveBayes, CompactClassificationNaiveBayespredict
Neural network classifierClassificationNeuralNetwork, CompactClassificationNeuralNetworkpredict
Support vector machine for one-class and binary classificationClassificationSVM, CompactClassificationSVMpredict
Binary decision tree for multiclass classificationClassificationTree, CompactClassificationTreepredict
Bagged ensemble of decision treesTreeBagger, CompactTreeBaggerpredict

## Alternative Functionality

• partialDependence computes partial dependence without visualization. The function can compute partial dependence for two variables and multiple classes in one function call.

## References

[1] Friedman, Jerome. H. “Greedy Function Approximation: A Gradient Boosting Machine.” The Annals of Statistics 29, no. 5 (2001): 1189-1232.

[2] Goldstein, Alex, Adam Kapelner, Justin Bleich, and Emil Pitkin. “Peeking Inside the Black Box: Visualizing Statistical Learning with Plots of Individual Conditional Expectation.” Journal of Computational and Graphical Statistics 24, no. 1 (January 2, 2015): 44–65.

[3] Hastie, Trevor, Robert Tibshirani, and Jerome Friedman. The Elements of Statistical Learning. New York, NY: Springer New York, 2001.
