loss
Regression error for regression tree model
Syntax
Description
specifies options using one or more name-value arguments in addition to any of the
input argument combinations in the previous syntaxes. For example, you can specify
the loss function and observation weights.L
= loss(___,Name=Value
)
Examples
Compute the In-Sample MSE
Load the carsmall
data set. Consider Displacement
, Horsepower
, and Weight
as predictors of the response MPG
.
load carsmall
X = [Displacement Horsepower Weight];
Grow a regression tree using all observations.
tree = fitrtree(X,MPG);
Estimate the in-sample MSE.
L = loss(tree,X,MPG)
L = 4.8952
Find the Pruning Level Yielding the Optimal In-Sample Loss
Load the carsmall
data set. Consider Displacement
, Horsepower
, and Weight
as predictors of the response MPG
.
load carsmall
X = [Displacement Horsepower Weight];
Grow a regression tree using all observations.
Mdl = fitrtree(X,MPG);

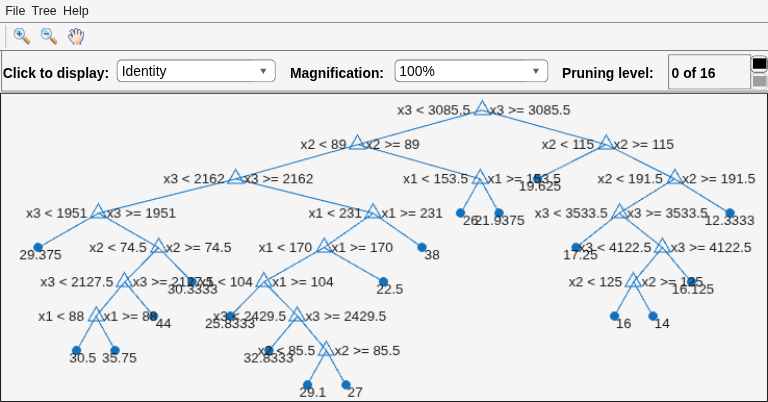

View the regression tree.
view(Mdl,Mode="graph");
Find the best pruning level that yields the optimal in-sample loss.
[L,se,NLeaf,bestLevel] = loss(Mdl,X,MPG,Subtrees="all");
bestLevel
bestLevel = 1
The best pruning level is level 1.
Prune the tree to level 1.
pruneMdl = prune(Mdl,Level=bestLevel);
view(pruneMdl,Mode="graph");
Examine the MSE for Each Subtree
Unpruned decision trees tend to overfit. One way to balance model complexity and out-of-sample performance is to prune a tree (or restrict its growth) so that in-sample and out-of-sample performance are satisfactory.
Load the carsmall
data set. Consider Displacement
, Horsepower
, and Weight
as predictors of the response MPG
.
load carsmall
X = [Displacement Horsepower Weight];
Y = MPG;
Partition the data into training (50%) and validation (50%) sets.
n = size(X,1); rng(1) % For reproducibility idxTrn = false(n,1); idxTrn(randsample(n,round(0.5*n))) = true; % Training set logical indices idxVal = idxTrn == false; % Validation set logical indices
Grow a regression tree using the training set.
Mdl = fitrtree(X(idxTrn,:),Y(idxTrn));

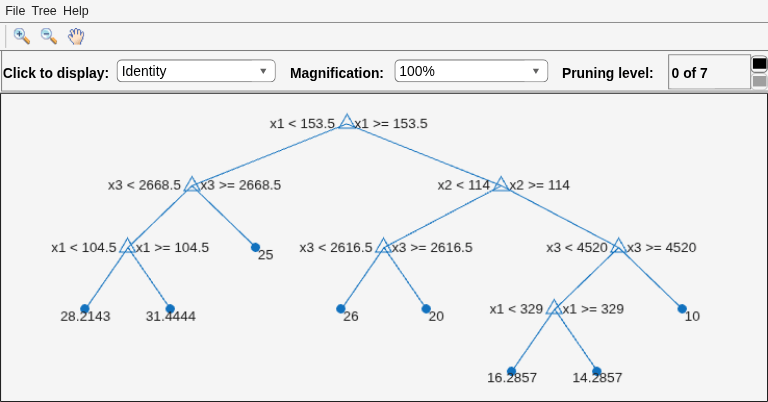

View the regression tree.
view(Mdl,Mode="graph");
The regression tree has seven pruning levels. Level 0 is the full, unpruned tree (as displayed). Level 7 is just the root node (i.e., no splits).
Examine the training sample MSE for each subtree (or pruning level) excluding the highest level.
m = max(Mdl.PruneList) - 1; trnLoss = resubLoss(Mdl,SubTrees=0:m)
trnLoss = 7×1
5.9789
6.2768
6.8316
7.5209
8.3951
10.7452
14.8445
The MSE for the full, unpruned tree is about 6 units.
The MSE for the tree pruned to level 1 is about 6.3 units.
The MSE for the tree pruned to level 6 (i.e., a stump) is about 14.8 units.
Examine the validation sample MSE at each level excluding the highest level.
valLoss = loss(Mdl,X(idxVal,:),Y(idxVal),Subtrees=0:m)
valLoss = 7×1
32.1205
31.5035
32.0541
30.8183
26.3535
30.0137
38.4695
The MSE for the full, unpruned tree (level 0) is about 32.1 units.
The MSE for the tree pruned to level 4 is about 26.4 units.
The MSE for the tree pruned to level 5 is about 30.0 units.
The MSE for the tree pruned to level 6 (i.e., a stump) is about 38.5 units.

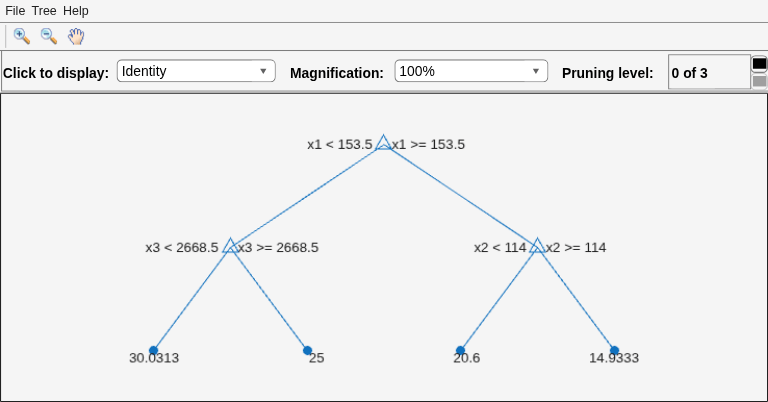

To balance model complexity and out-of-sample performance, consider pruning Mdl
to level 4.
pruneMdl = prune(Mdl,Level=4);
view(pruneMdl,Mode="graph")
Input Arguments
tree
— Trained regression tree
RegressionTree
model object | CompactRegressionTree
model object
Trained regression tree, specified as a RegressionTree
model object trained with fitrtree
, or a CompactRegressionTree
model object created with
compact
.
Tbl
— Sample data
table
Sample data, specified as a table. Each row of Tbl
corresponds to one observation, and each column corresponds to one predictor
variable. Optionally, Tbl
can contain additional
columns for the response variable and observation weights.
Tbl
must contain all the predictors used to train
tree
. Multicolumn variables and cell arrays other
than cell arrays of character vectors are not allowed.
If Tbl
contains the response variable used to train
tree
, then you do not need to specify
ResponseVarName
or Y
.
If you train tree
using sample data contained in a
table, then the input data for loss
must also be
in a table.
Data Types: table
ResponseVarName
— Response variable name
name of variable in Tbl
Response variable name, specified as the name of a variable in
Tbl
. If Tbl
contains the
response variable used to train tree
, then you do not
need to specify ResponseVarName
.
You must specify ResponseVarName
as a character
vector or string scalar. For example, if the response variable is stored as
Tbl.Response
, then specify it as
"Response"
. Otherwise, the software treats all
columns of Tbl
, including
Tbl.Response
, as predictors.
Data Types: char
| string
X
— Predictor data
numeric matrix
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: L = loss(tree,X,Y,Subtrees="all")
specifies to prune
all subtrees.
LossFun
— Loss function
"mse"
(default) | function handle
Loss function, specified as "mse"
(mean squared
error) or as a function handle. If you pass a function handle
fun
, loss
calls it as
fun(Y,Yfit,W)
where Y
, Yfit
, and
W
are numeric vectors of the same length.
Y
is the observed response.Yfit
is the predicted response.W
is the observation weights. If you passW
, the elements are normalized to sum to 1.
The returned value of fun(Y,Yfit,W)
must be a
scalar.
Example: LossFun="mse"
Example: LossFun=@
Lossfun
Data Types: char
| string
| function_handle
Subtrees
— Pruning level
0
(default) | vector of nonnegative integers | "all"
Pruning level, specified as a vector of nonnegative integers in ascending order or
"all"
.
If you specify a vector, then all elements must be at least 0
and
at most max(tree.PruneList)
. 0
indicates the full,
unpruned tree, and max(tree.PruneList)
indicates the completely
pruned tree (that is, just the root node).
If you specify "all"
, then loss
operates on all subtrees, meaning the entire pruning sequence. This specification is
equivalent to using 0:max(tree.PruneList)
.
loss
prunes tree
to each level
specified by Subtrees
, and then estimates the corresponding output
arguments. The size of Subtrees
determines the size of some output
arguments.
For the function to invoke Subtrees
, the properties
PruneList
and PruneAlpha
of
tree
must be nonempty. In other words, grow
tree
by setting Prune="on"
when you use
fitrtree
, or by pruning tree
using prune
.
Example: Subtrees="all"
Data Types: single
| double
| char
| string
TreeSize
— Tree size
"se"
(default) | "min"
Tree size, specified as one of these values:
"se"
—loss
returns the best pruning level (BestLevel
), which corresponds to the smallest tree whose MSE is within one standard error of the minimum MSE."min"
—loss
returns the best pruning level (BestLevel
), which corresponds to the minimal MSE tree.
Example: TreeSize="min"
Data Types: char
| string
Weights
— Observation weights
ones(size(X,1),1)
(default) | numeric vector of positive values | name of variable in Tbl
Observation weights, specified as a numeric vector of positive values
or the name of a variable in Tbl
.
If you specify Weights
as a numeric vector, then
the size of Weights
must be equal to the number of
rows in X
or Tbl
.
If you specify Weights
as the name of a variable
in Tbl
, then the name must be a character vector or
string scalar. For example, if the weights are stored as
Tbl.W
, then specify Weights
as "W"
. Otherwise, the software treats all columns of
Tbl
, including Tbl.W
, as
predictors.
Example: Weights="W"
Data Types: single
| double
| char
| string
Output Arguments
SE
— Standard error of loss
numeric vector
Standard error of loss, returned as a numeric vector that has the same
length as Subtrees
.
Nleaf
— Number of leaf nodes
numeric vector of nonnegative integers
Number of leaf nodes in the pruned subtrees, returned as a numeric vector
of nonnegative integers that has the same length as
Subtrees
. Leaf nodes are terminal nodes, which give
responses, not splits.
BestLevel
— Best pruning level
numeric scalar
Best pruning level, returned as a numeric scalar whose value depends on
TreeSize
:
When
TreeSize
is"se"
, theloss
function returns the highest pruning level whose loss is within one standard deviation of the minimum (L
+se
, whereL
andse
relate to the smallest value inSubtrees
).When
TreeSize
is"min"
, theloss
function returns the element ofSubtrees
with the smallest loss, usually the smallest element ofSubtrees
.
More About
Mean Squared Error
The mean squared error m of the predictions f(Xn) with weight vector w is
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
The
loss
function supports tall arrays with the following usage
notes and limitations:
Only one output is supported.
You can use models trained on either in-memory or tall data with this function.
For more information, see Tall Arrays.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
Usage notes and limitations:
The
loss
function does not support decision tree models trained with surrogate splits.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Version History
Introduced in R2011a
