plot

Plot Shapley values using bar graphs

Since R2021a

    Description

    example

    plot(explainer) creates a horizontal bar graph using the Shapley values of the shapley object explainer.

    • If explainer contains one query point only, then the bar graph displays Shapley values. These values are stored in the ShapleyValues property of the object. Each bar shows the Shapley value of each feature (predictor) in the blackbox model (explainer.BlackboxModel) for the query point (explainer.QueryPoints).

    • If explainer contains multiple query points, then the bar graph displays mean absolute Shapley values. These values are stored in the MeanAbsoluteShapley property of the object. For each predictor (and each class when explainer.BlackboxModel is a classification model), the mean absolute Shapley value is the absolute value of the Shapley values, averaged across all query points in explainer.QueryPoints. (since R2024a)

    example

    plot(explainer,Name=Value) specifies additional options using one or more name-value arguments. For example, specify NumImportantPredictors=5 to plot the Shapley values of the five features with the greatest absolute Shapley values (for one query point) or the greatest mean absolute Shapley values (for multiple query points).

    plot(ax,___) displays the plot in the target axes ax. Specify ax as the first argument in any of the previous syntaxes. (since R2023b)

    example

    b = plot(___) returns a Bar object or an array of Bar objects using any of the input argument combinations in the previous syntaxes. Use b to query or modify the properties (Bar Properties) of an object after you create it.

    Examples

    collapse all

    Train a classification model and create a shapley object. Then plot the Shapley values by using the object function plot.

    Load the CreditRating_Historical data set. The data set contains customer IDs and their financial ratios, industry labels, and credit ratings.

    tbl = readtable("CreditRating_Historical.dat");

    Display the first three rows of the table.

    head(tbl,3)
         ID      WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA     Industry    Rating
        _____    _____    _____    _______    ________    _____    ________    ______

        62394    0.013    0.104     0.036      0.447      0.142       3        {'BB'}
        48608    0.232    0.335     0.062      1.969      0.281       8        {'A' }
        42444    0.311    0.367     0.074      1.935      0.366       1        {'A' }


    Train a blackbox model of credit ratings by using the fitcecoc function. Use the variables from the second through seventh columns in tbl as the predictor variables. A recommended practice is to specify the class names to set the order of the classes.

    blackbox = fitcecoc(tbl,"Rating", ...
        PredictorNames=tbl.Properties.VariableNames(2:7), ...
        CategoricalPredictors="Industry", ...
        ClassNames={'AAA','AA','A','BBB','BB','B','CCC'});

    Create a shapley object that explains the prediction for the last observation. For faster computation, subsample 25% of the observations from tbl with stratification and use the samples to compute the Shapley values.

    Before R2024a: Specify the query point by using the QueryPoint name-value argument instead of QueryPoints.

    queryPoint = tbl(end,:)
    queryPoint=1×8 table
         ID      WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA    Industry    Rating
        _____    _____    _____    _______    ________    ____    ________    ______

        73104    0.239    0.463     0.065      2.924      0.34       2        {'AA'}


    rng("default") % For reproducibility
    c = cvpartition(tbl.Rating,"Holdout",0.25);
    sampleTbl = tbl(test(c),:);
    explainer = shapley(blackbox,sampleTbl,QueryPoints=queryPoint);

    For a classification model, shapley computes Shapley values using the predicted class score for each class. Display the values in the ShapleyValues property.

    explainer.ShapleyValues
    ans=6×8 table
        Predictor        AAA           AA             A            BBB            BB             B            CCC
        __________    _________    __________    ___________    __________    ___________    __________    __________

        "WC_TA"        0.051045      0.022644      0.0096138     0.0015954      -0.027857      -0.04134     -0.039476
        "RE_TA"         0.16729       0.09479        0.05308     -0.011178      -0.087689      -0.20847      -0.29204
        "EBIT_TA"     0.0012015    0.00053338     0.00043344    0.00012321    -0.00066994    -0.0013388    -0.0011793
        "MVE_BVTD"       1.3377         1.338        0.67839     -0.027654       -0.55142      -0.75327      -0.59578
        "S_TA"        -0.012484     -0.009098    -0.00074119    -0.0035582    -7.3462e-05     0.0014495    -0.0020609
        "Industry"    -0.099117     -0.046867      0.0031376      0.080071       0.089726      0.099699       0.15691



    The ShapleyValues property contains the Shapley values of all features for each class.

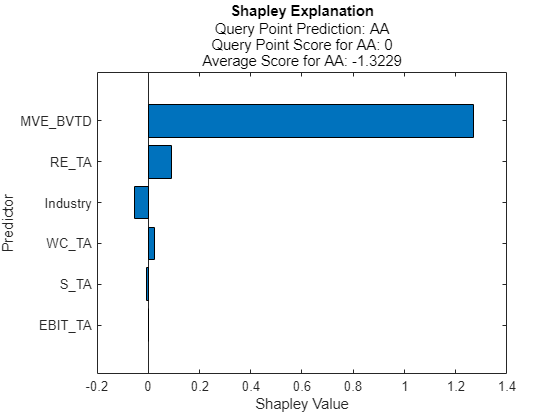

    Plot the Shapley values for the predicted class by using the plot function.

    plot(explainer)

    The horizontal bar graph shows the Shapley values for all variables, sorted by their absolute values. Each Shapley value explains the deviation of the score for the query point from the average score of the predicted class, due to the corresponding variable.

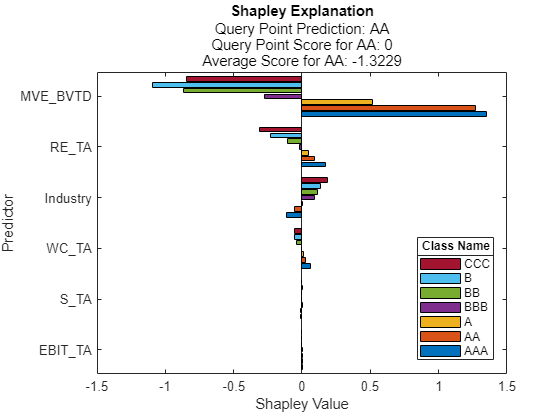

    Plot the Shapley values for all classes by specifying all class names in explainer.BlackboxModel.

    plot(explainer,ClassNames=explainer.BlackboxModel.ClassNames)

    Train a regression model and create a shapley object. Use the object function fit to compute the Shapley values for the specified query point. Then plot the Shapley values of the predictors by using the object function plot. Specify the number of important predictors to plot when you call the plot function.

    Load the carbig data set, which contains measurements of cars made in the 1970s and early 1980s.

    load carbig

    Create a table containing the predictor variables Acceleration, Cylinders, and so on, as well as the response variable MPG.

    tbl = table(Acceleration,Cylinders,Displacement, ...
        Horsepower,Model_Year,Weight,MPG);

    Removing missing values in a training set can help reduce memory consumption and speed up training for the fitrkernel function. Remove missing values in tbl.

    tbl = rmmissing(tbl);

    Train a blackbox model of MPG by using the fitrkernel function. Specify the Cylinders and Model_Year variables as categorical predictors. Standardize the remaining predictors.

    rng("default") % For reproducibility
    mdl = fitrkernel(tbl,"MPG",CategoricalPredictors=[2 5], ...
        Standardize=true);

    Create a shapley object. Because mdl does not contain training data, specify the data set tbl.

    explainer = shapley(mdl,tbl)
    explainer =
                BlackboxModel: [1x1 RegressionKernel]
                  QueryPoints: []
               BlackboxFitted: []
                ShapleyValues: []
                            X: [392x7 table]
        CategoricalPredictors: [2 5]
                       Method: "interventional-kernel"
                    Intercept: 22.7326
                   NumSubsets: 64



    explainer stores the training data tbl in the X property.

    Compute the Shapley values of all predictor variables for the first observation in tbl.

    queryPoint = tbl(1,:)
    queryPoint=1×7 table
        Acceleration    Cylinders    Displacement    Horsepower    Model_Year    Weight    MPG
        ____________    _________    ____________    __________    __________    ______    ___

             12             8            307            130            70         3504     18


    explainer = fit(explainer,queryPoint);

    For a regression model, shapley computes Shapley values using the predicted response, and stores them in the ShapleyValues property. Display the values in the ShapleyValues property.

    explainer.ShapleyValues
    ans=6×2 table
          Predictor       ShapleyValue
        ______________    ____________

        "Acceleration"      -0.23731
        "Cylinders"         -0.87423
        "Displacement"       -1.0224
        "Horsepower"        -0.56975
        "Model_Year"       -0.055414
        "Weight"            -0.86088

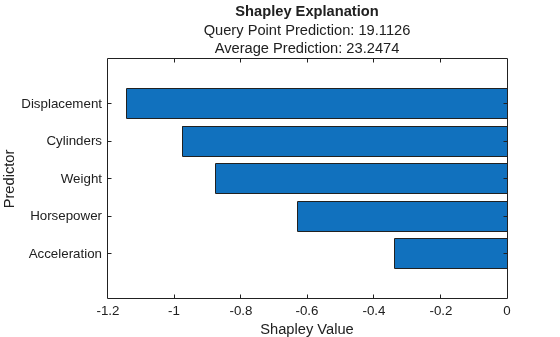

    Plot the Shapley values for the query point by using the plot function. Specify to plot only the five most important predictors for the predicted response.

    plot(explainer,NumImportantPredictors=5)

    The horizontal bar graph shows the Shapley values for the five most important predictors, sorted by their absolute values. Each Shapley value explains the deviation of the prediction for the query point from the average, due to the corresponding variable.

    Train a classification model and create a shapley object. Plot the mean absolute Shapley values for multiple query points by using the plot object function. Then plot the Shapley values for one of the query points.

    Load the CreditRating_Historical data set. The data set contains customer IDs and their financial ratios, industry labels, and credit ratings.

    tbl = readtable("CreditRating_Historical.dat");

    Display the first three rows of the table.

    head(tbl,3)
         ID      WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA     Industry    Rating
        _____    _____    _____    _______    ________    _____    ________    ______

        62394    0.013    0.104     0.036      0.447      0.142       3        {'BB'}
        48608    0.232    0.335     0.062      1.969      0.281       8        {'A' }
        42444    0.311    0.367     0.074      1.935      0.366       1        {'A' }


    Train a blackbox model of credit ratings by using the fitcecoc function. Use the variables from the second through seventh columns in tbl as the predictor variables. A recommended practice is to specify the class names to set the order of the classes.

    blackbox = fitcecoc(tbl,"Rating", ...
        PredictorNames=tbl.Properties.VariableNames(2:7), ...
        CategoricalPredictors="Industry", ...
        ClassNames={'AAA','AA','A','BBB','BB','B','CCC'});

    Create a shapley object that explains the predictions for multiple query points. For faster computation, subsample 10% of the observations from tbl with stratification and use the samples to compute the Shapley values. Specify the sampled observations as the query points.

    rng("default") % For reproducibility
    c = cvpartition(tbl.Rating,"Holdout",0.10);
    sampleTbl = tbl(test(c),:);
    explainer = shapley(blackbox,sampleTbl, ...
        queryPoints=sampleTbl);

    For a classification model, shapley computes Shapley values using the predicted class score for each class. When you specify multiple query points, the function computes the mean absolute Shapley value for each predictor and each class, across all query points.

    explainer.MeanAbsoluteShapley
    ans=6×8 table
        Predictor        AAA           AA            A           BBB           BB            B           CCC
        __________    _________    __________    _________    __________    _________    _________    _________

        "WC_TA"        0.056246      0.034016     0.027208       0.02194     0.041348     0.060144     0.056189
        "RE_TA"          0.1202      0.097136     0.099341      0.094155      0.10629       0.1799      0.25493
        "EBIT_TA"     0.0014694    0.00086978    0.0010461    0.00088111    0.0011695    0.0020823    0.0018035
        "MVE_BVTD"      0.81198       0.79496       1.0804        1.5952       2.0768       2.2893       1.7551
        "S_TA"         0.025692     0.0098722     0.011002       0.01535    0.0015691    0.0075802     0.012961
        "Industry"     0.073842      0.084015     0.066049      0.039714     0.062301      0.12082      0.11111



    For example, the explainer.MeanAbsoluteShapley.AAA(1) value is the average of the absolute Shapley values for the WC_TA predictor and the AAA class, across all observations in sampleTbl.

    explainer.MeanAbsoluteShapley.AAA(1)
    ans = 0.0562

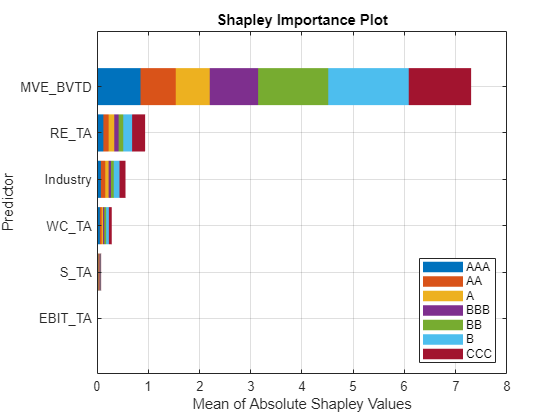

    Plot the mean absolute Shapley values by using the plot object function.

    plot(explainer)

    Figure contains an axes object. The axes object with title Shapley Importance Plot, xlabel Mean of Absolute Shapley Values, ylabel Predictor contains 7 objects of type bar. These objects represent AAA, AA, A, BBB, BB, B, CCC.

    For each class, the MVE_BVTD predictor has the greatest mean absolute Shapley value.

    Select the first query point and determine the class prediction for the query point.

    queryPoint = explainer.QueryPoints(1,:)
    queryPoint=1×8 table
         ID      WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA     Industry    Rating
        _____    _____    _____    _______    ________    _____    ________    ______

        48608    0.232    0.335     0.062      1.969      0.281       8        {'A'}


    queryPointPrediction = explainer.BlackboxFitted(1)
    queryPointPrediction = 1×1 cell array
        {'A'}

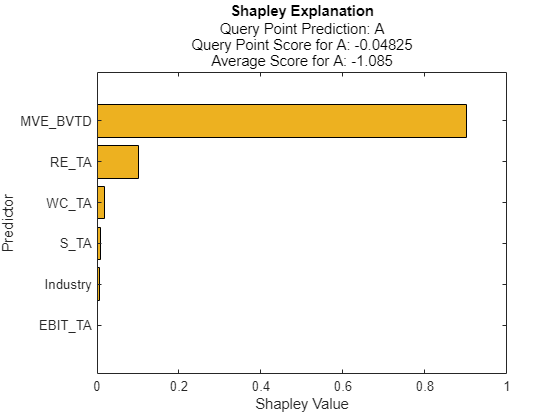

    Plot the Shapley values for the query point by using the QueryPointIndices name-value argument. Change the color of the bars to match the color of the query point predicted class (A).

    b = plot(explainer,QueryPointIndices=1);
    b.FaceColor = [0.9290 0.6940 0.1250];

    Figure contains an axes object. The axes object with title Shapley Explanation, xlabel Shapley Value, ylabel Predictor contains an object of type bar.

    For this query point, the MVE_BVTD predictor explains the largest deviation of the class A predicted score from the average.

    Input Arguments

    collapse all

    Object explaining the blackbox model, specified as a shapley object. explainer must contain Shapley values; that is, explainer.ShapleyValues must be nonempty.

    Since R2023b

    Axes for the plot, specified as an Axes object. If you do not specify ax, then plot creates the plot using the current axes. For more information on creating an Axes object, see axes.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: plot(explainer,NumImportantPredictors=5,ClassNames=["AAA","AA","A"]) creates a bar graph containing the Shapley values or mean absolute Shapley values of the five most important predictors for classes AAA, AA, and A.

    Number of important predictors to plot, specified as a positive integer. The plot function plots values for the specified number of predictors with the greatest absolute Shapley values (for one query point) or the greatest mean absolute Shapley values (for multiple query points).

    Example: NumImportantPredictors=5 specifies to plot the five most important predictors. The plot function determines the order of importance by using the absolute Shapley values (for one query point) or the mean absolute Shapley values (for multiple query points).

    Data Types: single | double

    Class labels to plot, specified as a numeric vector, logical vector, character array, string array, or cell array of character vectors. The values and data types in the ClassNames value must match those of the class names in the ClassNames property of the machine learning model in explainer (explainer.BlackboxModel.ClassNames). Note that the software accepts string arrays, cell array of character vectors, and categorical arrays interchangeably.

    You can specify one or more labels. If you specify multiple class labels, the function uses color to differentiate the classes.

    The default ClassNames value depends on the number of query points.

    • If explainer contains one query point, then the default value is the predicted class for the query point (the BlackboxFitted property of explainer).

    • If explainer contains multiple query points, then the default value is the first class in the ClassNames property of the machine learning model in explainer.

    This argument is valid only when the machine learning model (BlackboxModel) in explainer is a classification model.

    Example: ClassNames={'red','blue'}

    Example: ClassNames=explainer.BlackboxModel.ClassNames specifies ClassNames as all classes in BlackboxModel.

    Data Types: single | double | logical | char | string | cell | categorical

    Since R2024a

    Indices of the query points to use for plotting, specified as a positive integer vector.

    • If the QueryPointIndices value is a vector idx, then the plot function returns a bar graph of the mean absolute Shapley values, averaged across the specified query points (explainer.QueryPoints(idx)).

    • If the QueryPointIndices value is a scalar, then the plot function returns a bar graph of the Shapley values for the specified query point.

    This argument is valid only when explainer contains multiple query points.

    Example: QueryPointIndices=1:100

    Example: QueryPointIndices=50

    Data Types: single | double

    More About

    collapse all

    Shapley Values

    In game theory, the Shapley value of a player is the average marginal contribution of the player in a cooperative game. In the context of machine learning prediction, the Shapley value of a feature for a query point explains the contribution of the feature to a prediction (response for regression or score of each class for classification) at the specified query point.

    The Shapley value of a feature for a query point is the contribution of the feature to the deviation from the average prediction. For a query point, the sum of the Shapley values for all features corresponds to the total deviation of the prediction from the average. That is, the sum of the average prediction and the Shapley values for all features corresponds to the prediction for the query point.

    For more details, see Shapley Values for Machine Learning Model.

    References

    [1] Lundberg, Scott M., and S. Lee. "A Unified Approach to Interpreting Model Predictions." Advances in Neural Information Processing Systems 30 (2017): 4765–774.

    [2] Aas, Kjersti, Martin Jullum, and Anders Løland. "Explaining Individual Predictions When Features Are Dependent: More Accurate Approximations to Shapley Values." Artificial Intelligence 298 (September 2021).

    [3] Lundberg, Scott M., G. Erion, H. Chen, et al. "From Local Explanations to Global Understanding with Explainable AI for Trees." Nature Machine Intelligence 2 (January 2020): 56–67.
