latex

LaTeX form of symbolic expression

Syntax

chr = latex(S)

Description

chr = latex(S) returns the LaTeX form of the symbolic expression S.

Examples

LaTeX Form of Symbolic Expressions

Find the LaTeX form of the symbolic expressions x^2 + 1/x and sin(pi*x) + phi.

syms x phi
chr = latex(x^2 + 1/x)

chr =
'\frac{1}{x}+x^2'

chr = latex(sin(pi*x) + phi)

chr =
'\phi +\sin\left(\pi \,x\right)'

LaTeX Form of Symbolic Array

Find the LaTeX form of the symbolic array S.

syms x
S = [sym(1)/3 x; exp(x) x^2]

S =
$$\left(\begin{array}{cc}\frac{1}{3}& x\\ {\mathrm{e}}^x& x^2\end{array}\right)$$

chr = latex(S)

chr =
'\left(\begin{array}{cc} \frac{1}{3} & x\\ {\mathrm{e}}^x & x^2 \end{array}\right)'

LaTeX Form of Symbolic Matrix Variables

Perform computation using several symbolic matrix variables, and then find their LaTeX forms.

Create 3-by-3 and 3-by-1 symbolic matrix variables.

syms A 3 matrix
syms X [3 1] matrix

Find the Hessian matrix of $$X^{T}AX$$. Derived equations involving symbolic matrix variables appear in typeset as they would be in textbooks.

f = X.'*A*X

f = $$X^{\mathrm{T}}\hspace{0.17em}A\hspace{0.17em}X$$

H = diff(f,X,X.')

H = $$A^{\mathrm{T}}+A$$

Generate the LaTeX forms of the symbolic matrix variables f and H.

chrf = latex(f)

chrf =
'{\textbf{X}}^{\mathrm{T}}\,\textbf{A}\,\textbf{X}'

chrH = latex(H)

chrH =
'{\textbf{A}}^{\mathrm{T}}+\textbf{A}'

LaTeX Form of Symbolic Matrix Functions

Perform computation using symbolic matrix functions, and then find their LaTeX forms.

Create a 3-by-1 symbolic matrix variable.

syms X [3 1] matrix

Create a symbolic matrix function that represents the formula $\mathit{f}\left(\mathit{X}\right)={\mathit{X}}^{\mathit{T}}\mathit{X}$.

syms f(X) [1 1] matrix keepargs
f(X) = X.'*X

f(X) = $$X^{\mathrm{T}}\hspace{0.17em}X$$

Find the derivative of $\mathit{f}\left(\mathit{X}\right)$ with respect to $\mathit{X}$.

Df = diff(f,X)

Df(X) = $$2\hspace{0.17em}{X}^{\mathrm{T}}$$

Generate the LaTeX forms of the symbolic matrix functions f and Df.

chrf = latex(f)

chrf =
'{\textbf{X}}^{\mathrm{T}}\,\textbf{X}'

chrDf = latex(Df)

chrDf =
'2\,{\textbf{X}}^{\mathrm{T}}'

Modify Generated LaTeX with Symbolic Settings

Modify generated LaTeX by changing symbolic settings using the sympref function.

Generate the LaTeX form of the expression $$\pi$$ with the default symbolic setting.

sympref("default");
chr = latex(sym(pi))

chr =
'\pi '

Set "FloatingPointOutput" to true to return symbolic output in floating-point format. Generate the LaTeX form of $$\pi$$ in floating-point format.

sympref("FloatingPointOutput",true);
chr = latex(sym(pi))

chr =
'3.1416'

Now change the output order of a symbolic polynomial. Create a symbolic polynomial and set "PolynomialDisplayStyle" to "ascend". Generate the LaTeX form of the polynomial sorted in ascending order.

syms x;
poly = x^2 - 2*x + 1;
sympref("PolynomialDisplayStyle","ascend");
chr = latex(poly)

chr =
'1-2\,x+x^2'

The symbolic settings that you set using sympref persist through your current and future MATLAB® sessions. Restore the default values by specifying the "default" option.

sympref("default");

Use LaTeX to Format Title, Axis Labels, and Ticks

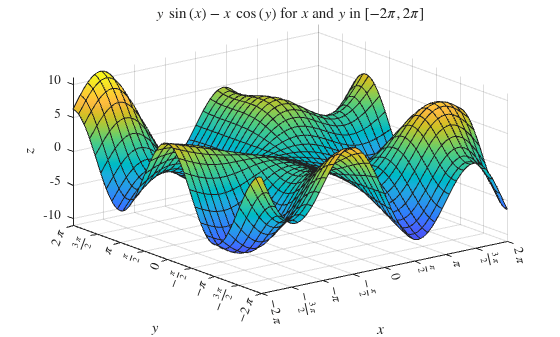

For $$x$$ and $$y$$ from $$-2\pi$$ to $$2\pi$$, plot the 3-D surface $$y\sin (x)-x\cos (y)$$. Store the axes object in a by using gca. Use latex interpreter for the tick labels.

Create the $$x$$-axis ticks by spanning the $$x$$-axis limits at intervals of pi/2. Convert the axis limits to precise multiples of pi/2 using round and get the symbolic tick values in S. Set the locations of the $$x$$-axis ticks by using the xticks function. Create the LaTeX labels for the $$x$$-axis by using arrayfun to apply latex to S and then concatenating $. Display the labels by using the xticklabels function.

Repeat these steps for the $$y$$-axis. Set the $$x$$- and $$y$$-axes labels and the title using the latex interpreter.

syms x y
f = y*sin(x)-x*cos(y);
fsurf(f,[-2*pi 2*pi])
a = gca;
a.TickLabelInterpreter = "latex";

S = sym(a.XLim(1):pi/2:a.XLim(2));
S = sym(round(S/pi*2)*pi/2);
xticks(double(S));
labels = "$" + arrayfun(@latex,S,UniformOutput=false) + "$";
xticklabels(labels);

S = sym(a.YLim(1):pi/2:a.YLim(2));
S = sym(round(S/pi*2)*pi/2);
yticks(double(S))
labels = "$" + arrayfun(@latex,S,UniformOutput=false) + "$";
yticklabels(labels);

xlabel("$x$",Interpreter="latex");
ylabel("$y$",Interpreter="latex");
zlabel("$z$",Interpreter="latex");
titletext = "$" + latex(f) + "$ for $x$ and $y$ in $[-2\pi,2\pi]$";
title(titletext,Interpreter="latex")

Input Arguments

S — Input

symbolic number | symbolic variable | symbolic vector | symbolic array | symbolic function | symbolic expression | symbolic matrix variable | symbolic matrix function

Input, specified as a symbolic number, variable, vector, array, function, expression, matrix variable, or symbolic matrix function.

Data Types: sym | symfun | symmatrix | symfunmatrix

Version History

Introduced before R2006a

R2022a: Generate LaTeX form of symbolic matrix functions

The latex function accepts an input argument of type symfunmatrix. For an example, see LaTeX Form of Symbolic Matrix Functions.

R2021b: Generate LaTeX form of symbolic matrix variables

The latex function accepts an input argument of type symmatrix. For an example, see LaTeX Form of Symbolic Matrix Variables.
