Buffer Logic for Data Transmission

The Serial Communication Interface (SCI) buffer logic manages data transmission between a host and target hardware using a global variable, dataOutput, in a Data Store Memory block. Use this approach to manage data from communication blocks that exceed the FIFO size by temporarily storing incoming data in a buffer and accessing it only when the buffer is full. For more information, see Serial Communication Using SCI Blocks.

The buffer logic for data transmission is demonstrated using the target model. To open a Simulink® target model from the MATLAB® command window, use the following command:

open_system('c28xSCIRxDataWithBuffer.slx');

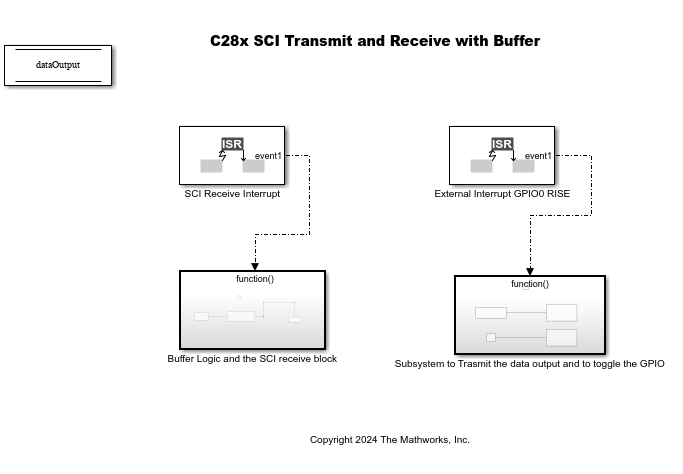

SCI Target Model

Buffer Management

  • Incoming data is stored in a buffer until it reaches full capacity.

  • When the buffer is full, a GPIO pin toggles to indicate readiness, triggering an external interrupt.

  • The interrupt initiates data transmission and resets the GPIO signal.

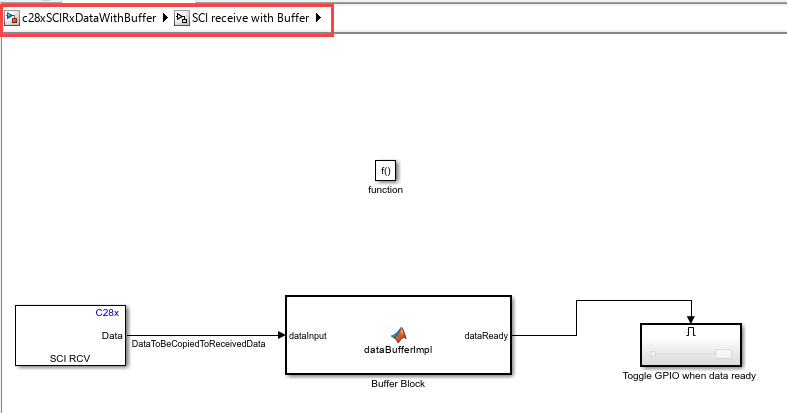

Understand Buffer Implementation in MATLAB Function: dataBufferImpl

The buffer is defined as a global variable using the Data Store Memory block. The buffer handling logic is implemented in a MATLAB script, which is then invoked in Simulink using a MATLAB Function block. This function stores incoming data into the buffer and triggers a signal when the buffer is full.

Input

  • dataInput: The data to be buffered.

Output

  • dataReady: A flag indicating if the buffer is full.

Key Points

  1. Buffer Size: Size of the buffer.

  2. Buffer Initialization: Initialize a persistent buffer (cachedDataOutput) to store incoming data temporarily.

  3. Data Storage: Use the global variable dataOutput to copy the buffered data from cachedDataOutput once it is ready.

  4. C Function Integration: Call the external C function copyDataIntoBuffer during code generation to copy the input data into the buffer. The C function is used to handle memory operation efficiently using pointers.

  5. Buffer Full Signal: Set dataReady to 1 when the cachedDataOutput buffer is full, and copy the buffered data to dataOutput.

C Function: copyDataIntoBuffer

Copy the input data into the buffer according to its capacity.

Input

  • dataOutput: Pointer to the buffer to store the data.

  • dataInput: Pointer to the incoming data

  • dataInputSize: The size of the incoming data.

  • bufferSize: The total buffer capacity.

Output

Return 1 if the buffer is full and data is ready; otherwise, return 0.
