visionhdl.EdgeDetector

Find edges of objects

Description

The visionhdl.EdgeDetector System object™ finds the edges in a grayscale pixel stream using the Sobel, Prewitt, or Roberts method. The object convolves the input pixels with derivative approximation matrices to find the gradient of pixel magnitude along two orthogonal directions. It then compares the sum of the squares of the gradients to a configurable threshold to determine if the gradients represent an edge. The Sobel and Prewitt methods calculate the gradient in horizontal and vertical directions. The Roberts method calculates the gradients at 45 and 135 degrees.

The object returns a binary image as a stream of pixel values. A pixel value of 1 indicates that the pixel is an edge. You can optionally enable output of the gradient values in the two orthogonal directions at each pixel.

To find the edges of objects:

1. Create the visionhdl.EdgeDetector object and set its properties.

2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

detectEdges = visionhdl.EdgeDetector

detectEdges = visionhdl.EdgeDetector(Name,Value)

Description

detectEdges = visionhdl.EdgeDetector returns a System object that detects edges using the Sobel method.

detectEdges = visionhdl.EdgeDetector(Name,Value) returns an edge detector System object with properties specified using one or more name-value pairs. Enclose each property name in single quotes.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Method — Edge detection algorithm

'Sobel' (default) | 'Prewitt' | 'Roberts'

When you select 'Sobel' or 'Prewitt', the object calculates horizontal and vertical gradients, Gv and Gh. When you select 'Roberts', the object calculates orthogonal gradients, G45 and G135. For details of each method, see Algorithms.

Note

When you select 'Prewitt', the full-precision internal data type is large due to the 1/6 coefficient. Consider setting the GradientComponentOutputPorts property to true so that you can customize the data type to a smaller size.

BinaryImageOutputPort — Enable edge output argument

true (default) | false

When this property is true, the object returns a binary pixel value representing whether an edge was detected at each location in the frame.

You must set at least one of BinaryImageOutputPort or GradientComponentOutputPorts to true. These properties specify the output arguments that return the edge results. If both properties are false, the object cannot return the results.

GradientComponentOutputPorts — Enable gradient output arguments

false (default) | true

When this property is true, the object returns the G1 and G2 arguments representing the gradients calculated in two orthogonal directions at each pixel. When you set the Method property to 'Sobel' or 'Prewitt', the outputs are horizontal and vertical gradients, Gv and Gh. When you set the Method property to 'Roberts', the outputs are diagonal orthogonal gradients, G45 and G135. Set the data type for these arguments in the GradientDataType property.

You must set at least one of BinaryImageOutputPort and GradientComponentOutputPorts to true. These properties specify the output arguments that return the edge results. If both properties are false, the object cannot return the results.

ThresholdSource — Source for gradient threshold that indicates an edge

'Property' (default) | 'Input port'

Set this property to 'Input port' to set the threshold as an input argument to the object. When this property is set to 'Property', set the threshold in the Threshold property.

Threshold — Gradient threshold value that indicates an edge

20 (default) | scalar

The object compares the square of this value to the sum of the squares of the gradients. The object casts this value to the data type of the gradients. This property applies when you set ThresholdSource to 'Property'.

The software supports double and single data types for simulation, but not for HDL code generation.

Data Types: single | double | int | uint | fi

LineBufferSize — Size of line memory buffer

2048 (default) | integer

Size of the line memory buffer, specified as a positive integer. Choose a power of two that accommodates the number of active pixels in a horizontal line. If you specify a value that is not a power of two, the buffer uses the next largest power of two.

The object allocates (N – 1)-by-LineBufferSize memory locations to store the pixels, where N is the number of lines in the differential approximation matrix. If you set the Method property to 'Sobel' or 'Prewitt', then N is 3. If you set the Method property to 'Roberts', then N is 2.

PaddingMethod — Method for padding

'Symmetric' (default) | 'None'

Select one of these methods for padding the boundary of the input image. For more information about these methods, see Edge Padding.

• 'Symmetric' — Set the value of the padding pixels to mirror the edge of the image. This option prevents edges from being detected at the boundaries of the active frame.

• 'None' — Exclude padding logic. The object does not set the pixels outside the image frame to any particular value. This option reduces the hardware resources that are used by the object and reduces the blanking that is required between frames. However, this option affects the accuracy of the output pixels at the edges of the frame. To maintain pixel stream timing, the output frame is the same size as the input frame. To avoid using pixels calculated from undefined padding values, mask off the n/2 pixels around the edge of the frame for downstream operations. n is the size of the operation kernel. For more details, see Increase Throughput by Omitting Padding.

RoundingMethod — Rounding mode for fixed-point operations

'Floor' (default) | 'Ceiling' | 'Convergent' | 'Nearest' | 'Round' | 'Zero'

When the input is any integer or fixed-point data type, the algorithm uses fixed-point arithmetic for internal calculations. This property does not apply when the input data type is single or double.

OverflowAction — Overflow mode for fixed-point operations

'Wrap' (default) | 'Saturate'

The object uses fixed-point arithmetic for internal calculations when the input is any integer or fixed-point data type. This option does not apply when the input data type is single or double.

GradientDataType — Method to determine data type for gradient output arguments

'Full precision' (default) | 'custom'

• 'Full precision' (default) — Use full-precision rules based on the data type of the pixelIn argument, and the coefficients of the derivative approximation matrices.

• 'custom' — Use the data type defined in the CustomGradientDataType property.

CustomGradientDataType — Data type for gradient outputs

numerictype(1,8,0) (default)

Data type for the gradient output values, specified as numerictype(signed,WL,FL), where WL is the word length and FL is the fraction length in bits.

Usage

Syntax

[edge,ctrlout] = detectEdges(pixelin,ctrlin)

[G1,G2,ctrlout] = detectEdges(pixelin,ctrlin)

[edge,ctrlout] = detectEdges(pixelin,ctrlin,thresh)

Description

[edge,ctrlout] = detectEdges(pixelin,ctrlin) detects edges in the neighborhood of pixelin by computing the gradient in two orthogonal directions. The edge output argument is a binary value indicating whether the sum of the squares of the gradients for the input pixel is above the threshold indicating an edge.

[G1,G2,ctrlout] = detectEdges(pixelin,ctrlin) detects edges in the neighborhood of pixelIn by computing the gradient in two orthogonal directions. Use this syntax when you set the GradientComponentOutputPorts property to true. The G1 and G2 output arguments are the gradients calculated in the two orthogonal directions. When you set the Method property to 'Sobel' or 'Prewitt', the first argument is the vertical gradient, and the second argument is the horizontal gradient. When you set the Method property to 'Roberts', the first argument is the 45-degree gradient, and the second argument is the 135-degree gradient.

[edge,ctrlout] = detectEdges(pixelin,ctrlin,thresh) detects edges in the neighborhood of pixelin by computing the gradient in two orthogonal directions. Use this syntax when you set the ThresholdSource property to 'InputPort'. The edge output argument is a binary value indicating whether the sum of the squares of the gradients is above the threshold, thresh, squared.

You can use any combination of the optional argument syntaxes.

This object uses a streaming pixel interface with a structure for frame control signals. This interface enables the object to operate independently of image size and format and to connect with other Vision HDL Toolbox™ objects. The object accepts and returns a scalar pixel value and control signals as a structure containing five signals. The control signals indicate the validity of each pixel and its location in the frame. To convert a pixel matrix into a pixel stream and control signals, use the visionhdl.FrameToPixels object. For a description of the interface, see Streaming Pixel Interface.

Input Arguments

pixelin — Input pixel

scalar

Intensity of a single pixel, specified as a scalar value.

The software supports double and single data types for simulation, but not for HDL code generation.

You can simulate System objects with a multipixel streaming interface, but you cannot generate HDL code for System objects that use multipixel streams. To generate HDL code for multipixel algorithms, use the equivalent Simulink^® blocks.

Data Types: int | uint | fi | single | double

ctrlin — Control signals accompanying input pixel stream

pixelcontrol structure

Control signals accompanying the input pixel stream, specified as a pixelcontrol structure containing five logical data type signals. The signals describe the validity of the pixel and its location in the frame. For more details, see Pixel Control Structure.

Data Types: struct

thresh — Threshold

scalar

Gradient threshold value that indicates an edge, specified as a scalar numeric value.

The object compares this value squared to the sum of the squares of the gradients.

Dependencies

To enable this argument, set ThresholdSource property to 'InputPort'.

Data Types: int | uint | fi | single | double

Output Arguments

edge — Edge locations

scalar

Pixel value indicating an edge at this pixel, returned as a scalar binary value.

G1 — Gradient in first direction

scalar

Gradient calculated in the first direction, returned as a scalar value.

If you set the Method property to 'Sobel' or 'Prewitt', this argument is the vertical gradient. When you set the Method property to 'Roberts', this argument is the 45-degree gradient.

Configure the data type of the gradients by using the GradientComponentDataType and CustomGradientComponent properties.

Dependencies

To enable this argument, set the GradientComponentOutputPorts property to true

G2 — Gradient in second direction

scalar

Gradient calculated in the second direction, returned as a scalar value.

If you set the Method property to 'Sobel' or 'Prewitt', this argument is the horizontal gradient. When you set the Method property to 'Roberts', this argument is the 135-degree gradient.

Configure the data type of the gradients by using the GradientComponentDataType and CustomGradientComponent properties.

Dependencies

To enable this argument, set the GradientComponentOutputPorts property to true.

ctrlout — Control signals accompanying output pixel stream

pixelcontrol structure

Control signals accompanying the output pixel stream, returned as a pixelcontrol structure containing five logical data type signals. The signals describe the validity of the pixel and its location in the frame. For more details, see Pixel Control Structure.

Data Types: struct

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Common to All System Objects

step	Run System object algorithm
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object

Examples

Edge Detection Using Sobel Method

Detect edges in a thumbnail image by using the Sobel method.

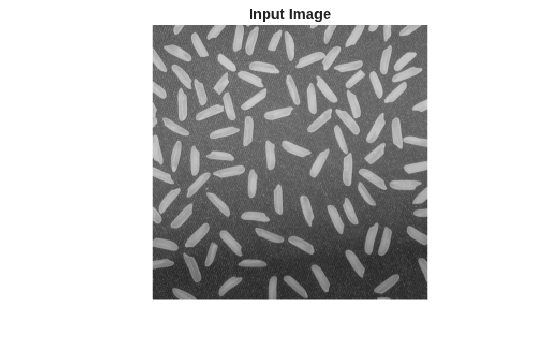

Import a test image.

frmInput = imread('rice.png');
[frmActivePixels,frmActiveLines] = size(frmInput);
figure
imshow(frmInput)
title 'Input Image'

Create a serializer and specify the size of inactive pixel regions.

frm2pix = visionhdl.FrameToPixels( ...
      'NumComponents',1, ...
      'VideoFormat','custom', ...
      'ActivePixelsPerLine',frmActivePixels, ...
      'ActiveVideoLines',frmActiveLines, ...
      'TotalPixelsPerLine',frmActivePixels+10, ...
      'TotalVideoLines',frmActiveLines+10, ...
      'StartingActiveLine',6, ...
      'FrontPorch',5);

Create an edge detection object with the default property values. The default detection method is Sobel.

edgeDetectSobel = visionhdl.EdgeDetector();

Speed up simulation by enabling a simulation mode that uses code generation for the System object.

edgeDetectSobel.simulateUsing('Code generation');

Serialize the test image by using the object you created. pixIn is a vector of intensity values. ctrlIn is a vector of control signal structures. Preallocate vectors for the output signals.

[pixIn,ctrlIn] = frm2pix(frmInput);

[~,~,numPixelsPerFrame] = getparamfromfrm2pix(frm2pix);
ctrlOut = repmat(pixelcontrolstruct,numPixelsPerFrame,1);
edgeOut = false(numPixelsPerFrame,1);

For each pixel in the stream, compute whether it represents an edge.

for p = 1:numPixelsPerFrame
   [edgeOut(p),ctrlOut(p)] = edgeDetectSobel(pixIn(p),ctrlIn(p));
end

Create a deserializer with a format matching that of the serializer. Use the deserializer to convert the output pixel stream to an image frame.

pix2frm = visionhdl.PixelsToFrame( ...
      'NumComponents',1, ...
      'VideoFormat','custom', ...
      'ActivePixelsPerLine',frmActivePixels, ...
      'ActiveVideoLines',frmActiveLines, ...
      'TotalPixelsPerLine',frmActivePixels+10);

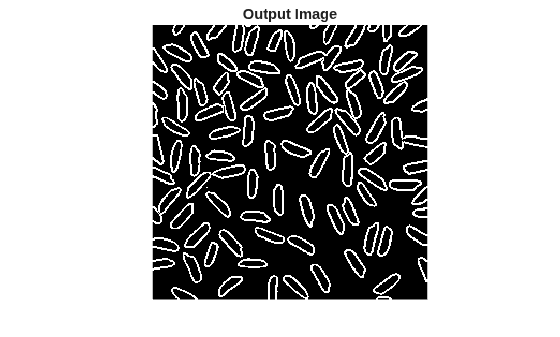

[frmOutput,frmValid] = pix2frm(edgeOut,ctrlOut);
if frmValid
    figure
    imshow(frmOutput)
    title 'Output Image'
end

Algorithms

This object implements the algorithms described on the Edge Detector block reference page.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

This System object supports C/C++ code generation for accelerating MATLAB^® simulations, and for DPI component generation. For more information about acceleration, see Accelerate Pixel-Streaming Designs Using MATLAB Coder. For more information about DPI component generation, see Considerations for DPI Component Generation with MATLAB (HDL Verifier).

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

To generate HDL code from Vision HDL Toolbox System objects, see Design Hardware-Targeted Image Filters in MATLAB.

Version History

Introduced in R2015a

R2020a: Option to omit padding

You can now configure the object to not add padding around the boundaries of the active frame. This option reduces the hardware resources used by the object and reduces the blanking interval required between frames but affects the accuracy of the output pixels at the edges of the frame. To use this option, set the PaddingMethod property to 'None'.

R2019b: Multipixel streaming

The object now supports multipixel streams. For multipixel streaming, the object supports input and output column vectors of 4 or 8 pixels. The ctrl argument remains scalar, and the control signals in the pixelcontrol structure apply to all pixels in the vector.

You can simulate System objects with a multipixel streaming interface, but you cannot generate HDL code for System objects that use multipixel streams. To generate HDL code for multipixel algorithms, use the equivalent Simulink blocks.

R2018b: Improved line buffer

The internal line buffer in this object now handles bursty data, that is, noncontiguous valid signals within a pixel line. This implementation uses fewer hardware resources due to improved padding logic and native support for kernel sizes with an even number of lines. This change affects the visionhdl.LineBuffer object and objects that use an internal line buffer.

The latency of the line buffer is now reduced by a few cycles for some configurations. You might need to rebalance parallel path delays in your design. A best practice is to synchronize parallel paths in your design by using the pixel stream control signals rather than by inserting a specific number of delays.
