Phase/Frequency Offset

Apply phase and frequency offsets to complex baseband signal

•

Libraries:
Communications Toolbox / RF Impairments Correction
Communications Toolbox / RF Impairments and Components

Description

The Phase/Frequency Offset block applies phase and frequency offsets to a complex signal.

This icon shows the block with all ports enabled.

Examples

Apply Phase/Frequency Offset to QAM Modulated Signal

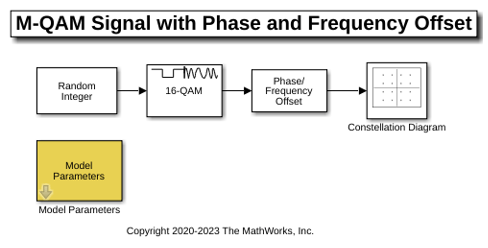

The model applies phase and frequency offsets to a 16-ary quadrature amplitude modulation (16-QAM) signal. The Phase/Frequency Offset block applies phase and frequency offsets to the input signal based on parameter settings specified in the Model Parameters block. The effects of updating the offset settings are illustrated by constellation diagrams of a 16-QAM signal.

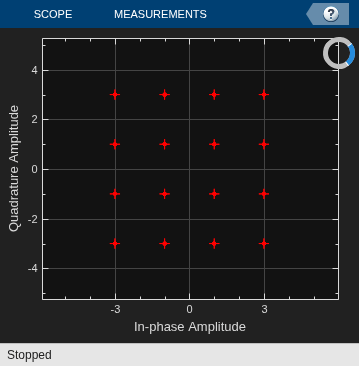

This constellation diagram shows the 16-QAM constellation with no phase or frequency offset impairing the modulated signal. The constellation diagram shows symbols with no impairments.

Modulation order: 16
Sample time: 1.00e-03
Phase Offset (deg): 0.00
Frequency Offset (Hz): 0.00

A phase offset impairs each point in the constellation, causing a rotation in the counterclockwise direction for a positive phase offset. The constellation shows the signal impaired by these settings.

Phase Offset (deg): 20.00
Frequency Offset (Hz): 0.00

A frequency offset changes the angles of points in the constellation linearly over time, causing points in the constellation to shift radially in the counterclockwise direction for a positive frequency offset. Although the points are radially shifted, their magnitude is unchanged. The constellation shows the signal impaired by these settings.

Phase Offset (deg): 0.00
Frequency Offset (Hz): 0.50

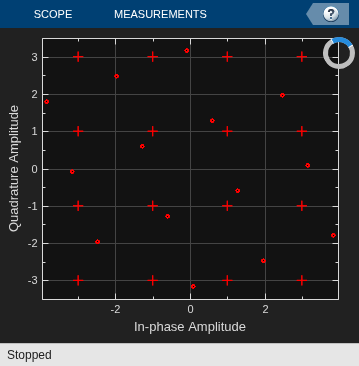

Apply both phase and frequency offset. The constellation shows the signal impaired by these settings.

Phase Offset (deg): 20.00
Frequency Offset (Hz): 0.50

Ports

Input

In — Input signal

scalar | vector | matrix

Input signal, specified as a scalar, an N_Samp-by-1 vector, or an N_Samp-by-N_Chan matrix. N_Samp is the number of input samples per channel and N_Chan is the number of channels. Each channel must have the same number of samples.

This port is unnamed on the block until you enable the Frequency offset from port parameter.

When you input a variable-size signal:

• The frame size (number of rows) of the signal can change during simulation but the number of channels (columns) must remain constant.

• You must set the offset parameters to be either a scalar or a 1-by-N_Samp vector. N_Samp is the number of samples in the input signal.

For more information, see Variable-Size Signal Support.

Data Types: double | single
Complex Number Support: Yes

Frq — Frequency offset

scalar | vector | matrix

Frequency offset, specified as a scalar, a vector with the same number of rows or columns as the input signal, or a matrix with the same dimensions as the input signal. For more information, see Interdependent Offset-I/O Dimensions.

Dependencies

To enable this port, select the Frequency offset from port parameter.

Data Types: double | single

Output

Out — Output signal

scalar | vector | matrix

Output signal, returned as a scalar, vector, or matrix. This output is the same dimension and data type as the input signal.

This port is unnamed on the block.

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Phase offset (deg) — Phase offset

0 (default) | scalar | vector | matrix

Phase offset in degrees, specified as a scalar, vector, or matrix.

If Phase offset (deg) and Frequency offset (Hz) are both nonscalar, they must be the same size.

Tunable: Yes

Frequency offset from port — Option to add port to set frequency offset

off (default) | on

Select this parameter to add the Frq port.

• When you select this parameter, the Frq port specifies the frequency offset.

• When you clear this parameter, the Frequency offset (Hz) parameter specifies the frequency offset.

Frequency offset (Hz) — Frequency offset

0 (default) | scalar | vector | matrix

Frequency offset in hertz, specified as a scalar, a vector with the same number of rows or columns as the input signal, or a matrix with the same dimensions as the input signal. For more information, see Interdependent Offset-I/O Dimensions.

If Phase offset (deg) and Frequency offset (Hz) are both nonscalar, they must be the same size.

Tunable: Yes

Dependencies

To enable this port, clear the Frequency offset from port parameter.

Simulate using — Type of simulation to run

Code generation (default) | Interpreted execution

Type of simulation to run, specified as Code generation or Interpreted execution.

• Code generation — Simulate the model by using generated C code. The first time you run a simulation, Simulink generates C code for the block. The model reuses the C code for subsequent simulations unless the model changes. This option requires additional startup time, but the speed of the subsequent simulations is faster than with the Interpreted execution option.

• Interpreted execution — Simulate the model by using the MATLAB^® interpreter. This option shortens startup time, but the speed of subsequent simulations is slower than with the Code generation option. In this mode, you can debug the source code of the block.

For more information, see Interpreted Execution vs. Code Generation (Simulink).

Block Characteristics

Data Types	double | single
Multidimensional Signals	no
Variable-Size Signals	yes

More About

Interdependent Offset-I/O Dimensions

This table outlines the interdependency of offset impairment-to-input signal dimensions. N_Samp is the number of samples per channel in the input signal and N_Chan is the number of channels.

Data I/O Dimension	Frame Size	Number of Channels	Acceptable Dimension of Frequency Offset and Phase Offset Impairment
Scalar	1	1	Scalar
NSamp-by-1	NSamp	1	1-by-1 NSamp-by-1
1-by-NChan	1	NChan	1-by-1 1-by-NChan
NSamp-by-NChan	NSamp	NChan	1-by-1 1-by-NChan NSamp-by-1 NSamp-by-NChan

For example, when you specify a phase offset or frequency offset:

• As a scalar, the same offset is applied to all elements of the input signal.

• As a 10-by-1 vector for a 10-by-3 input signal, each input channel applies the same set of offsets per sample. Specifically, the same offset is applied across the three channels.

• As a 1-by-3 vector for a 10-by-3 input signal, channels can define a specific offset per channel to apply to all samples in each channel.

• As a 10-by-3 matrix for a 10-by-3 input signal, the offsets are applied element-wise to the input signal.

• When you vary the input signal length, the offset must be either a scalar or a 1-by-N_Samp vector.

Tips

For faster execution of the Phase/Frequency Offset block, set the Simulate using parameter to:

• Code generation when the Frequency offset (Hz) parameter is specified via mask dialog and the Input signal has less than 2000 samples per channel.

• Interpreted execution when the Frequency offset (Hz) parameter is specified via mask dialog and Input signal has more than 2000 samples per channel.

Algorithms

If the input signal is u(t), then the output signal is

$$y(t)=u(t)\cdot \left(\cos \left(2\pi {\displaystyle {\int }_0^{t}f\left(\tau \right)d\tau +\phi (t)}\right)+j\sin \left(2\pi {\displaystyle {\int }_0^{t}f\left(\tau \right)d\tau +\phi (t)}\right)\right)\text{,}$$

where f(t) is the frequency offset, and φ(t) is the phase offset.

The discrete-time output is given by

$$\begin{array}{l}y(0)=u(0)\left(\cos \left(\phi (0)\right)+j\sin \left(\phi (0)\right)\right)\text{ and }\\ y(i)=u(i)\left(\cos \left(2\pi {\displaystyle \sum _{n=0}^{i-1}f\left(n\right)\Delta t}+\phi (i)\right)+j\sin \left(2\pi {\displaystyle \sum _{n=0}^{i-1}f\left(n\right)\Delta t}+\phi (i)\right)\right)\text{,}\end{array}$$

where i > 0, and Δt is the sample time.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

The Frequency offset (Hz) and Phase offset (deg) parameters are tunable in normal mode, accelerator mode, and rapid accelerator mode. If you use the Simulink Coder™ rapid simulation (rsim) target to build an RSIM executable, then you can tune these parameters without recompiling the model. For more information, see Tunable Parameters (Simulink).

Version History

Introduced before R2006a

R2026a: Variable-sized input support

This support enables you to vary the length of the input signal each time the block executes in the simulation. For more information, see input signal In.

R2026a: N_Chan-by-1 and 1-by-N_Samp impairment dimensions will not be supported

The Phase/Frequency Offset block issues a warning that support for N_Chan-by-1 and 1-by-N_Samp frequency offset and phase offset impairment dimensions will be removed in a future release. N_Samp is the number of samples per channel in the input signal and N_Chan is the number of channels.

Instead transpose impairment vector dimension to 1-by-N_Chan and N_Samp-by-1.
