Raised Cosine Transmit Filter
Apply pulse shaping by interpolating signal using raised cosine FIR filter
Libraries:
Communications Toolbox /
Comm Filters
Communications Toolbox HDL Support /
Comm Filters
Description
The Raised Cosine Transmit Filter block applies pulse shaping by interpolating an input signal using a raised cosine finite impulse response (FIR) filter. The FIR filter has (Filter span in symbols × Output samples per symbol + 1) tap coefficients. The block icon shows the impulse response of the filter. For more information, see Algorithms.
Examples
Filter Using Simulink Raised Cosine Filter Blocks
The Raised Cosine Transmit Filter and Raised Cosine Receive Filter blocks are designed for raised cosine (RC) filtering. Each block can apply a squareroot raised cosine (RRC) filter or a raised cosine filter to a signal. You can vary the rolloff factor and span of the filter.
The Raised Cosine Transmit Filter and Raised Cosine Receive Filter blocks are tailored for use at the transmitter and receiver, respectively. The transmit filter upsamples (interpolates) the output signal. The receive filter expects its input signal to be upsampled and downsamples (decimates) the output signal, based on the configured settings of the block.
The raised cosine transmit and receive filter blocks each introduce a propagation delay, as described in Group Delay.

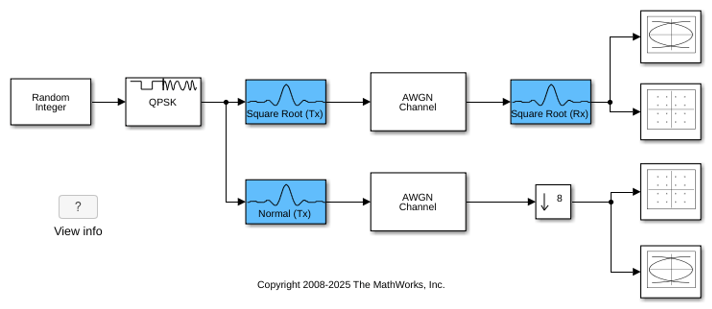

The doc_rrcfiltercompare.slx
model shows how to split the filtering equally between the transmitter and the receiver by using a pair of square root raised cosine filters. The use of a matched pair of square root raised cosine filters is equivalent to a single normal raised cosine filter. The filters share the same span and use the same number samples per symbol but the two filter blocks on the upper path have a square root shape and the single filter block on the lower path has the normal shape.
Run the model and observe the eye and constellation diagrams. The performance is nearly identical for the two methods. Note that the limited impulse response of practical square root raised cosine filters causes a slight difference between the response of two cascaded square root raised cosine filters and the response of one raised cosine filter.

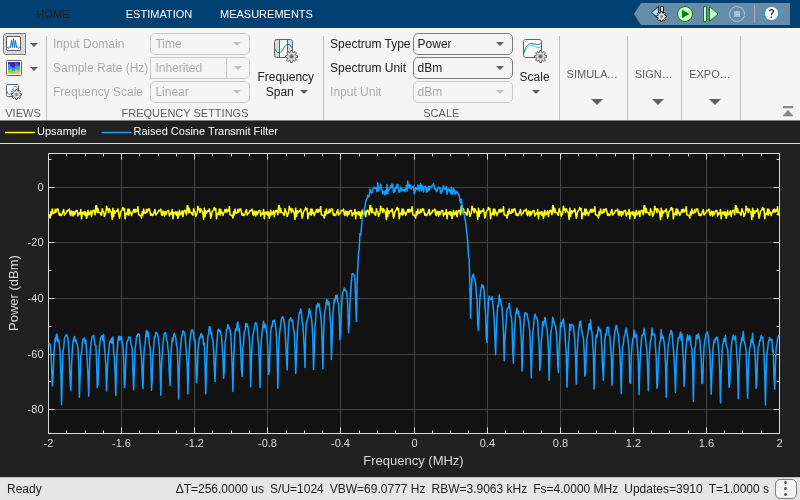

Plot Transmit Root Raised Cosine Filtered Signal in Simulink
Apply root raised cosine filtering to a QPSKmodulated signal. Compute the variance of the filtered signal. Plot the signal before and after filtering.
In the cm_tx_rrc_filter
model, a binary is QPSK modulated and then root raised cosine filtered with the oversampling rate set to 8 and the rolloff factor set to 0.2.
The signal level reduces by a factor of one over the oversample rate. Since the QPSKmodulated signal has unity power and the transmit RRC filtering oversamples the signal by 8, the Variance block after the transmit filtering computes a variance level of approximately 1/8.
Computed variance = 0.1248
Apply Transmit and Receive Root Raised Cosine Filtering in Simulink
Apply raised cosine matched filtering to a modulated signal by applying transmit and receive root raised cosine (RRC) filtering to the input signal. Demonstrate input signal power adjustment for correct SNR and the delay adjustment for correct error rate calculation.

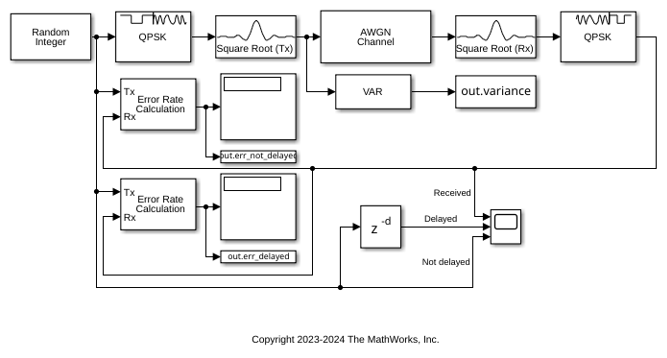

The cm_tx_rx_rrc_filter
model outputs frames of random integers by using a Random Integer Generator block. The frames of data pass through a QPSK Modulator Baseband block, Raised Cosine Transmit Filter, AWGN Channel block, Raised Cosine Receive Filter, and QPSK Demodulator Baseband block. Separate Error Rate Calculation blocks compute the bit error rate after QPSK demodulation, with and without accounting for the delay of the received signal due to the transmit and receive filtering.
The model initializes the variables that configure block parameters by using the PreLoadFcn
callback function. For more information, see Model Callbacks (Simulink). The model demonstrates configuration of parameters to set the input signal power level for AWGN based on filter oversampling, and to set the delay for the error rate calculation path based on the filter delay.
The QPSKmodulated signal has unity power, but signal oversampling by the transmit RRC filtering reduces the signal level by the oversampling rate. To apply the correct noise level, you must adjust the input signal power in the AWGN block to account for the reduced signal level due to oversampling by the filter. A Variance block computes a variance to be approximately one over the oversampling rate, 1/8.
Computed variance = 0.1250
A Time Scope plots the Received, Delayed, and Not delayed signals. The Delayed signal aligns with the Received signal, but the Not delayed signal is shifted by 10 samples. The error rate calculation shows the correct BER when you account for the filter delay.
Delay not accounted for: BER = 0.75 Delay accounted for: BER = 0.00487

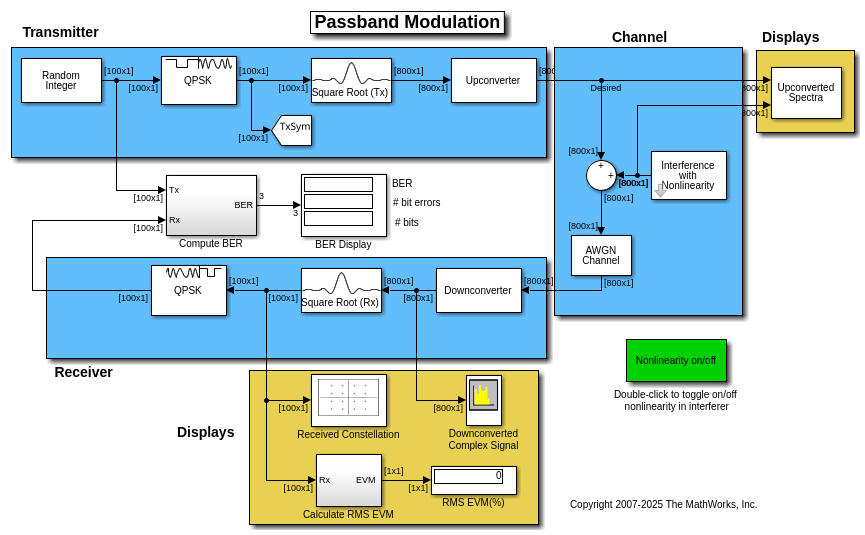

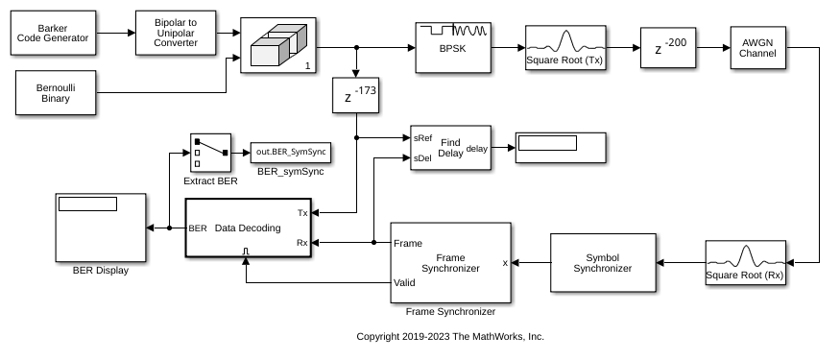

Extended Examples
Ports
Input
In — Input signal
scalar  column vector  matrix
Input signal, specified as a scalar, column vector, or K_{i}byN matrix. K_{i} is the number of input samples per signal channel, and N is the number of signal channels.
Data Types: double
 single
 fixed point
Output
Out — Output signal
scalar  column vector  matrix
Output signal, returned as a scalar, column vector, or matrix. The block filters each channel over time and generates a K_{o}byN output matrix. The output signal is the same data type as the input signal.
K_{o} = K_{i} × L.
N is the number of signal channels.
K_{i} is the number of input samples per signal channel.
L is the value you specify in the Output samples per symbol parameter.
Data Types: double
 single
 fixed point
Parameters
To edit block parameters interactively, use the Property Inspector. From the Simulink^{®} Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
MainFilter shape — Filter shape
Square root
(default)  Normal
Filter shape, specified as Square root
or
Normal
. For more information, see Filter Characteristics.
Rolloff factor — Rolloff factor
0.2
(default)  scalar
Rolloff factor of the filter, specified as a scalar in the range [0
,
1
].
Filter span in symbols — Filter span in symbols
10
(default)  even positive integer
Filter span in symbols, specified as an even positive integer. The block truncates the infinite impulse response length of the ideal raised cosine filter to an FIR with a length equal to the value of this parameter.
Output samples per symbol — Number of output samples per symbol
8
(default)  integer greater than 1
Number of output samples per symbol, specified as an integer value greater
than 1
. The number of taps for the raised cosine filter
equals the value of this parameter multiplied by the value of the Filter
span in symbols parameter.
Linear amplitude filter gain — Linear filter gain
1
(default)  positive scalar
Linear filter gain, specified as a positive scalar. The block scales the normalized filter coefficients by the linear filter gain value that you specify.
Input processing — Input processing control
Columns as channels (frame based)
(default)  Elements as channels (sample based)
Input processing control, specified as one of these options:
Columns as channels (frame based)
— The block treats each column of the input as a separate channel.Elements as channels (sample based)
— The block treats each element of the input as a separate channel.
Rate options — Block processing rate
Enforce singlerate processing
(default)  Allow multirate processing
Block processing rate for input signal upsampling and filtering, specified as one of these options:
Enforce singlerate processing
— When you select this option, the block maintains the input sample rate and processes the signal by increasing the output frame size by a factor of N.Allow multirate processing
— When you select this option, the block processes the signal such that the output sample rate is N times faster than the input sample rate.
Dependencies
To use Enforce singlerate processing
, you must set
Input processing to Columns as channels
(frame based)
.
Export filter coefficients to workspace — Export filter coefficients
off
(default)  on
Select this parameter to save the filter coefficients as the MATLAB^{®} workspace variable that you specify in the Coefficient variable name parameter.
Coefficient variable name — Name of coefficient variable
rcTxFilt
(default)
Name of the coefficient variable to create in the MATLAB workspace.
Dependencies
This parameter appears when you select Export filter coefficients to workspace.
View Filter Response — Open Filter Visualization Tool
button
To analyze the raised cosine filter response, click the View
Filter Response button. MATLAB opens the Filter Visualization Tool, FVTool
. When you change the
block mask parameter settings, click the button again to open a new instance
of FVTool
and see the new filter characteristics.
Previous instances of FVTool
remain open and reflect
your previous mask settings. Instances of FVTool
remain
open after you close the model.
Rounding mode — Rounding mode for fixedpoint operations
Floor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Simplest
 Zero
Select the rounding mode for fixedpoint operations. The block uses
rounding mode when the result of a fixedpoint calculation does not map
exactly to a number representable by the data type. The filter coefficients
do not obey this parameter; they always round to
Nearest
. For more information, see Rounding Modes
or Rounding Mode: Simplest (FixedPoint Designer).
Saturate on integer overflow — Overflow mode for fixedpoint operations
off
(default)  on
Select the overflow mode for fixedpoint operations. The filter coefficients do not obey this parameter; they are always saturated.
Coefficients — Coefficient data type
Inherit: Same word length as
input
(default)  fixdt(1,16)
 fixdt(1,16,0)
Specify the word length and the fraction length of the filter coefficients (numerator and denominator).
This block is a subsystem that contains a FIR Interpolation block. For diagrams showing the use of the coefficient data types in this block, see the filter structure diagrams for the Discrete FIR Filter (Simulink) block.
When you select Inherit: Same word length as input
, the word
length of the filter coefficients match that of the input to the block. In
this mode, the fraction length of the coefficients is automatically set to
the binarypoint only scaling that provides you with the best precision
possible given the value and word length of the coefficients.
The filter coefficients do not obey the Rounding
mode and the Saturate
on integer overflow parameters; they are always saturated
and rounded to Nearest
.
For information about specifying data types, see Data Type Assistant.
Product output — Product output data type
Inherit: Inherit via internal
rule
(default)  Inherit: Same as input
 fixdt(1,16,0)
Specify the product output word and fraction lengths. For diagrams showing the use of the product output data type in this block, see the filter structure diagrams for the Discrete FIR Filter (Simulink) block and Multiplication Data Types.
When you select
Inherit via internal rule
, the block inherits the data type based on an internal rule. For more information on this rule, see Inherit via Internal Rule.When you select
Inherit: Same as input
, these characteristics match those of the input to the block.
For information about specifying data types, see Data Type Assistant.
Accumulator — Accumulator data type
Inherit: Inherit via internal
rule
(default)  Inherit: Same as input
 Inherit: Same as product output
 fixdt(1,16,0)
Specify the accumulator word and fraction lengths. For diagrams showing the use of the accumulator data type in this block, see the filter structure diagrams for the Discrete FIR Filter (Simulink) block and Multiplication Data Types.
When you select
Inherit: Inherit via internal rule
, the block inherits the data type based on an internal rule. For more information on this rule, see Inherit via Internal Rule.When you select
Inherit: Same as input
, these characteristics match those of the input to the block.When you select
Inherit: Same as product output
, these characteristics match those of the product output.
For information about specifying data types, see Data Type Assistant.
Output — Output data type
Inherit: Same as
accumulator
(default)  Inherit: Same as input
 Inherit: Same as product output
 fixdt(1,16,0)
Specify the output word and fraction lengths.
When you select
Inherit: Same as input
, these characteristics match those of the input to the block.When you select
Inherit: Same as accumulator
, these characteristics match those of the accumulator.When you select
Inherit: Same as product output
, these characteristics match those of the product output.
For information about specifying data types, see Data Type Assistant.
Lock data type settings against changes by the fixedpoint tools — Prevent fixedpoint tools from overriding data types
off
(default)  on
Select this parameter to prevent the fixedpoint tools from overriding the data types that you specify in the block dialog box. For more information, see the FixedPoint Tool (FixedPoint Designer).
Block Characteristics
Data Types

Multidimensional Signals

VariableSize Signals

^{a} Fixedpoint outputs must be signed.
More About
Data Type Assistant
The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click Show data type assistant . For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Tips
Exporting Filter Coefficients to the MATLAB Workspace
To examine or manipulate the coefficients of the filter that this block designs, select Export filter coefficients to workspace. Set the Coefficient variable name parameter to the name of a variable that you want the block to create in the MATLAB workspace. Running the simulation causes the block to create the variable, overwriting any previous contents in case the variable already exists.
Algorithms
Characteristics of the raised cosine receive filter are the same as in the Raised Cosine Receive Filter block, except that for transmit filtering, the input response length of the filter depends on the value of the Output samples per symbol parameter.
Filter Characteristics
The Filter
shape parameter determines which type of filter the block uses;
choices are Normal
and Square
root
.
The impulse response of a normal raised cosine filter with rolloff factor R and symbol period T is
$$h(t)=\frac{\mathrm{sin}(\pi t/T)}{(\pi t/T)}\cdot \frac{\mathrm{cos}(\pi Rt/T)}{(14{R}^{2}{t}^{2}/{T}^{2})}$$
The impulse response of a square root raised cosine filter with rolloff factor R is
$$h(t)=4R\frac{\mathrm{cos}\left((1+R)\pi t/T\right)+\frac{\mathrm{sin}\left((1R)\pi t/T\right)}{(4Rt/T)}}{\pi \sqrt{T}\left(1{(4Rt/T)}^{2}\right)}$$
The impulse response of a square root raised cosine filter convolved with itself is approximately equal to the impulse response of a normal raised cosine filter.
Unlike an ideal raised cosine filter, which has an infinite impulse response (IIR), the block is an FIR filter and truncates the impulse response to the number of symbols that the Filter span in symbols parameter specifies. The impulse response length of the filter is (L×N + 1), where N is the Filter span in symbols parameter value and L is the Output samples per symbol parameter value.
The Rolloff
factor, R, determines the excess bandwidth of the
filter. R must be in the range [0
,
1
]. For example, a rolloff factor of 0.5
means that the bandwidth of the filter is 1.5 times the input sampling
frequency.
The block normalizes the filter coefficients to unit energy. If you specify a Linear amplitude
filter gain value other than 1
, then the block
scales the normalized filter coefficients using the gain value you specify.
Input Signals and Output Signals
The input must be a discretetime signal. This block accepts a column vector or matrix input signal.
The method selected for Rate options and the value of Output samples per symbol, L, determine the characteristics of the output signal.
When you set the Rate
options parameter to Enforce singlerate
processing
, the input and output of the block have the same
sample rate. To generate the output while maintaining the input sample rate, the
block resamples the data in each column of the input such that the frame size of
the output (M_{o}) is
L times larger than that of the input
(M
_{o}=
M_{i}×L), where
L represents the value of the Output samples
per symbol parameter.
When you set the Rate
options parameter to Allow multirate
processing
, the input and output of the block are the same
size. However, the sample rate of the output is L times
faster than that of the input (that is, the output sample time is
1/L times the input sample time). When the block is in
multirate processing mode, you must also specify a value for the Input
processing parameter.
When you set the Input processing parameter to
Elements as channels (sample based)
, the block treats an MbyL matrix input as M×N independent channels, and processes each channel over time. The output sample period, T_{so}, is L times shorter than the input sample period (T_{so} = T_{si}/L), while the input and output sizes remain identical.When you set the Input processing parameter to
Columns as channels (frame based)
, the block treats an M_{i}byN matrix input as N independent channels. The block processes each column of the input over time by keeping the frame size constant (M_{i}=M_{o}), while making the output frame period, T_{fo}, L times shorter than the input frame period (T_{fo} = T_{fi} / L).
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Generated code relies on memcpy
or
memset
functions (string.h
) under certain
conditions.
This block supports SIMD code generation using Intel^{®} AVX2 technology under these conditions:
Input processing is set to
Columns as channels (frame based)
.Rate options is set to
Enforce singlerate processing
.Input signal is realvalued with real filter coefficients.
Input signal is complexvalued with real or complex filter coefficients.
Input signal has a data type of
single
ordouble
.
The SIMD technology significantly improves the performance of the generated code. For details, see Generate SIMD Code from Simulink Blocks for Intel Platforms (Embedded Coder).
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block is a subsystem that contains an FIR Interpolation block. You can set HDL Properties on the subsystem, or you can look under the mask and set HDL Properties on the filter block. See the "HDL Code Generation" section of the Subsystem, Atomic Subsystem, CodeReuse Subsystem (Simulink) and FIR Interpolation block reference pages for a list of properties.
To save setting changes under the mask, you must break the library link. To break the library link, select the Raised Cosine Transmit Filter block and run this command.
set_param(gcb,'LinkStatus','inactive')
Version History
Introduced before R2006a
See Also
Blocks
Objects
Functions
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
