uvmfbuild
Add-On Required: This feature requires the ASIC Testbench for HDL Verifier add-on.
Description
uvmfbuild(Predictor=
generates UVM sequence and predictor components and a YAML file that is UVM framework (UVMF)
compliant from a Simulink® model.predictorSubsystem,Sequence=sequenceSubsystem)
Use the generated YAML file and UVM components with Siemens® UVMF tools for testbench generation and RTL validation.
Examples

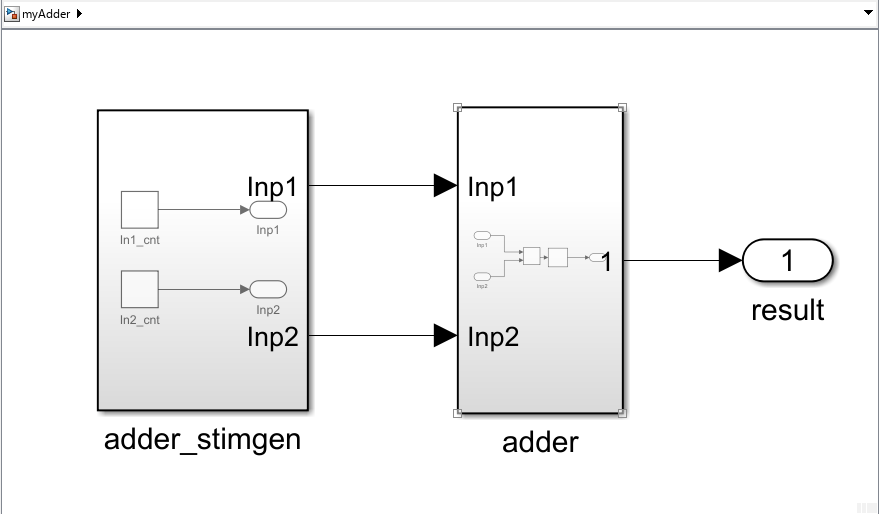

Generate the following artifacts from the myAdder model:
A UVM sequence component for the adder_stimgen subsystem
A UVM predictor component for the adder subsystem
A YAML file for UVM Framework
open_system("myAdder"); uvmfbuild(Predictor='myAdder/adder',Sequence='myAdder/adder_stimgen');
### Generating DPI components for all the specified subsystems ### Searching for referenced models in model 'adder'. ### Total of 1 models to build. ### Starting build procedure for model: adder ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_827516/tpf5ece01c/hdlverifier-ex92377061/uvmfbuild/adder_build ### Invoking Target Language Compiler on adder.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/toolbox/hdlverifier/dpigenerator/rtw/systemverilog_dpi_grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ........ ### Generating TLC interface API. ... ### Writing source file adder_capi.c . ### Writing header file adder_capi.h ............................... ### Writing header file adder_types.h ### Writing header file adder.h . ### Writing header file rtwtypes.h ### Writing header file builtin_typeid_types.h ### Writing header file multiword_types.h ### Writing source file adder.c ### Writing header file adder_private.h ### Writing header file rtmodel.h . ### TLC code generation complete (took 1.779s). ### Starting SystemVerilog DPI Component Generation ### Saving binary information cache. ### Generating DPI H Wrapper adder_dpi.h ### Generating DPI-C Wrapper adder_dpi.c ### Generating makefiles for: adder_dpi ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_827516/tpf5ece01c/hdlverifier-ex92377061/uvmfbuild/adder_build/adder.mk' ... ### Successful completion of build procedure for model: adder Build Summary Top model targets: Model Build Reason Status Build Duration =========================================================================================== adder Information cache folder or artifacts were missing. Code generated. 0h 0m 6.4108s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 7.7568s ### Searching for referenced models in model 'adder_stimgen'. ### Total of 1 models to build. ### Starting build procedure for model: adder_stimgen ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_827516/tpf5ece01c/hdlverifier-ex92377061/uvmfbuild/adder_stimgen_build ### Invoking Target Language Compiler on adder_stimgen.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/toolbox/hdlverifier/dpigenerator/rtw/systemverilog_dpi_grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ......... ### Generating TLC interface API. ..... ### Writing source file adder_stimgen_capi.c .. ### Writing header file adder_stimgen_capi.h .............................. ### Writing header file adder_stimgen_types.h ### Writing header file adder_stimgen.h . ### Writing header file rtwtypes.h ### Writing header file builtin_typeid_types.h ### Writing header file multiword_types.h ### Writing source file adder_stimgen.c ### Writing header file adder_stimgen_private.h . ### Writing header file rtmodel.h ### TLC code generation complete (took 1.806s). ### Starting SystemVerilog DPI Component Generation ### Saving binary information cache. ### Generating DPI H Wrapper adder_stimgen_dpi.h ### Generating DPI-C Wrapper adder_stimgen_dpi.c ### Generating makefiles for: adder_stimgen_dpi ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_827516/tpf5ece01c/hdlverifier-ex92377061/uvmfbuild/adder_stimgen_build/adder_stimgen.mk' ... ### Successful completion of build procedure for model: adder_stimgen Build Summary Top model targets: Model Build Reason Status Build Duration =================================================================================================== adder_stimgen Information cache folder or artifacts were missing. Code generated. 0h 0m 5.0622s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 5.1589s ### Generating UVM Framework test bench YAML file uvmftb.yaml
You can now use these files with Siemens® UVM Framework tools to generate a full UVM testbench.
