gradientweight

Calculate weights for image pixels based on image gradient

collapse all in page

Syntax

W = gradientweight(I)
W = gradientweight(I,sigma)
W = gradientweight(___,Name,Value)

Description

W = gradientweight(I) calculates the pixel weight for each pixel in image I based on the gradient magnitude at that pixel, and returns the weight array W. The weight of a pixel is inversely related to the gradient values at the pixel location. Pixels with small gradient magnitude (smooth regions) have a large weight and pixels with large gradient magnitude (such as on the edges) have a small weight.

W = gradientweight(I,sigma) uses sigma as the standard deviation for the derivative of Gaussian that is used for computing the image gradient.

W = gradientweight(___,Name,Value) returns the weight array W using name-value pairs to control aspects of weight computation.

example

Examples

collapse all

Open Live Script

This example segments an image using the Fast Marching Method based on the weights derived from the image gradient.

Read image and display it.

I = imread('coins.png');
imshow(I)

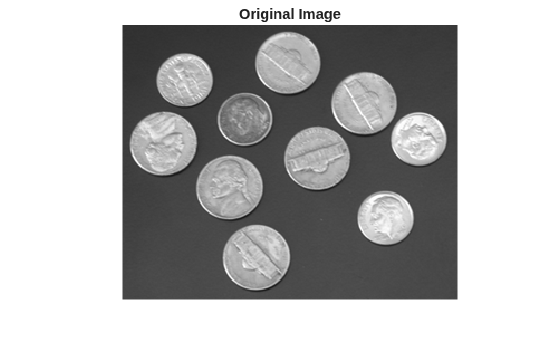

title('Original Image')

Figure contains an axes object. The hidden axes object with title Original Image contains an object of type image.

Compute weights based on image gradient.

sigma = 1.5;
W = gradientweight(I, sigma, 'RolloffFactor', 3, 'WeightCutoff', 0.25);

Select a seed location.

R = 70; C = 216;
hold on;
plot(C, R, 'r.', 'LineWidth', 1.5, 'MarkerSize',15);

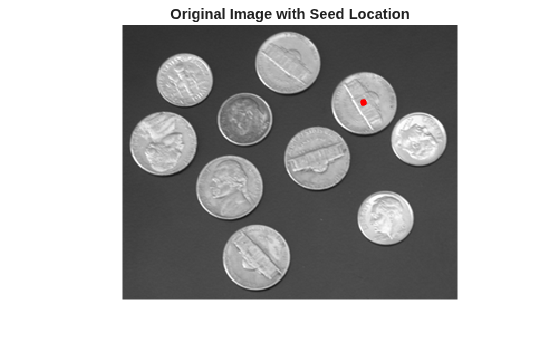

title('Original Image with Seed Location')

Figure contains an axes object. The hidden axes object with title Original Image with Seed Location contains 2 objects of type image, line. One or more of the lines displays its values using only markers

Segment the image using the weight array.

thresh = 0.1;
[BW, D] = imsegfmm(W, C, R, thresh);
figure, imshow(BW)
title('Segmented Image')
hold on;
plot(C, R, 'r.', 'LineWidth', 1.5, 'MarkerSize',15);

Figure contains an axes object. The hidden axes object with title Segmented Image contains 2 objects of type image, line. One or more of the lines displays its values using only markers

Geodesic distance matrix D can be thresholded using different thresholds to get different segmentation results.

figure, imshow(D)

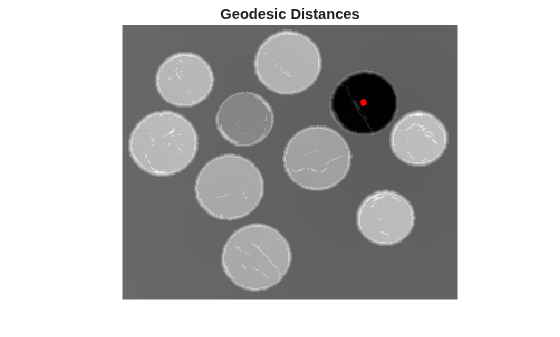

title('Geodesic Distances')
hold on;
plot(C, R, 'r.', 'LineWidth', 1.5, 'MarkerSize',15);

Figure contains an axes object. The hidden axes object with title Geodesic Distances contains 2 objects of type image, line. One or more of the lines displays its values using only markers

Input Arguments

collapse all

Grayscale image, specified as a numeric matrix.

Data Types: single | double | int8 | uint8 | int16 | uint16 | int32 | uint32

Standard deviation for derivative of Gaussian, specified as a positive number.

Data Types: double

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: W = gradientweight(I,1.5,'RolloffFactor',3,'WeightCutoff',0.25);

Output weight roll-off factor, specified as the comma-separated pair consisting of 'RolloffFactor' and a positive scalar of class double. Controls how fast weight values fall as a function of gradient magnitude. When viewed as a 2-D plot, pixel intensity values might vary gradually at the edges of regions, creating a gentle slope. In your segmented image, you might want the edge to be more well-defined. Using the roll-off factor, you control the slope of the weight value curve at points where intensity values start to change. If you specify a high value, the output weight values fall off sharply around the edges of smooth regions. If you specify a low value, the output weight has a more gradual fall-off around the edges. The suggested range for this parameter is [0.5 4].

Data Types: double

Threshold for weight values, specified as the comma-separated pair consisting of 'WeightCutoff' and a positive number in the range [1e-3 1]. If you use this parameter to set a threshold on weight values, it suppresses any weight values less than the value you specify, setting these pixels to a small constant value (1e-3). This parameter can be useful in improving the accuracy of the output when you use the output weight array W as input to Fast Marching Method segmentation function, imsegfmm.

Data Types: double

Output Arguments

collapse all

Weight array, returned as a numeric array of the same size as the input image, I. The weight array is of class double, unless I is single, in which case it is of class single.

Tips

  • gradientweight uses double-precision floating point operations for internal computations for all classes of I, except when I is of class single, in which case gradientweight uses single-precision floating point operations internally.

Version History

Introduced in R2014b
