imregconfig

Configurations for intensity-based registration

Syntax

[optimizer,metric] = imregconfig(modality)

Description

[optimizer,metric] = imregconfig(modality) creates optimizer and metric configurations that you pass to imregister to perform intensity-based image registration, where modality specifies the image capture modality.

Examples

Create Optimizer and Metric to Register Monomodal Images

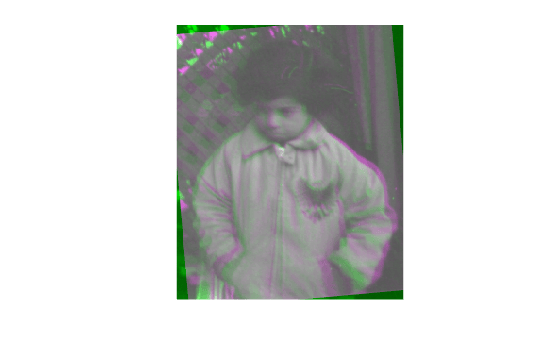

Load the images into the workspace and display them. These images are monomodal because they have similar brightness and contrast.

fixed  = imread('pout.tif');
moving = imrotate(fixed, 5, 'bilinear', 'crop');
imshowpair(fixed, moving,'Scaling','joint')

Create the optimizer and metric, setting the modality to 'monomodal'.

[optimizer, metric]  = imregconfig('monomodal')

optimizer =
  registration.optimizer.RegularStepGradientDescent

  Properties:
    GradientMagnitudeTolerance: 1.000000e-04
             MinimumStepLength: 1.000000e-05
             MaximumStepLength: 6.250000e-02
             MaximumIterations: 100
              RelaxationFactor: 5.000000e-01

metric =
  registration.metric.MeanSquares

  This class has no properties.

Pass the optimizer and metric to imregister to perform the registration.

movingRegistered = imregister(moving,fixed,'rigid',optimizer, metric);

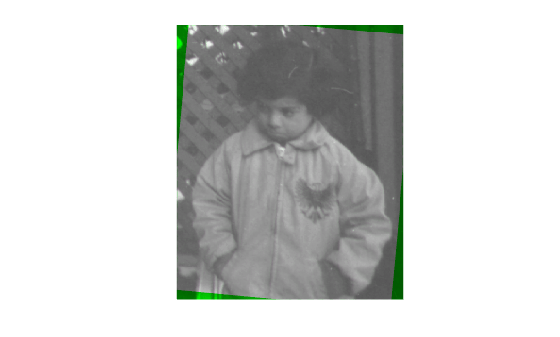

View the registered images

figure
imshowpair(fixed, movingRegistered,'Scaling','joint')

Register Multimodal MRI Images with Optimizer

Read two images. This example uses two magnetic resonance (MRI) images of a knee. The fixed image is a spin echo image, while the moving image is a spin echo image with inversion recovery. The two sagittal slices were acquired at the same time but are slightly out of alignment.

fixed = dicomread("knee1.dcm");
moving = dicomread("knee2.dcm");

View the misaligned images.

imshowpair(fixed,moving,"Scaling","joint")

Create the optimizer and metric, specifying the modality as "multimodal" because the images come from different sensors.

[optimizer,metric] = imregconfig("multimodal")

optimizer =
  registration.optimizer.OnePlusOneEvolutionary

  Properties:
         GrowthFactor: 1.050000e+00
              Epsilon: 1.500000e-06
        InitialRadius: 6.250000e-03
    MaximumIterations: 100

metric =
  registration.metric.MattesMutualInformation

  Properties:
    NumberOfSpatialSamples: 500
     NumberOfHistogramBins: 50
              UseAllPixels: 1

Tune the properties of the optimizer to get the problem to converge on a global maxima and to allow for more iterations.

optimizer.InitialRadius = 0.009;
optimizer.Epsilon = 1.5e-4;
optimizer.GrowthFactor = 1.01;
optimizer.MaximumIterations = 300;

Perform the registration.

movingRegistered = imregister(moving,fixed,"affine",optimizer,metric);

View the registered images.

imshowpair(fixed,movingRegistered,"Scaling","joint")

Input Arguments

modality — Image capture modality

"monomodal" | "multimodal"

Image capture modality, specified as one of these values.

Modality	Description
"monomodal"	Monomodal images have similar brightness and contrast. The images are captured on the same type of scanner or sensor.
"multimodal"	Multimodal images have different brightness and contrast. The images can come from two different types of devices, such as two camera models or two types of medical imaging modalities (like CT and MRI). The images can also come from a single device, such as a camera using different exposure settings, or an MRI scanner using different imaging sequences.

Data Types: char | string

Output Arguments

optimizer — Optimization configuration

RegularStepGradientDescent or OnePlusOneEvolutionary optimizer object

Optimization configuration, returned as a RegularStepGradientDescent or OnePlusOneEvolutionary optimizer object.

metric — Metric configuration

MeanSquares or MattesMutualInformation metric object

Metric configuration describes the image similarity metric to be optimized during registration, returned as a MeanSquares or MattesMutualInformation metric object.

Tips

• imregconfig returns optimizer and metric with default settings to provide a basic registration configuration. If you adjust the optimizer or metric properties, then the registration results can improve. For example, if you increase the number of iterations in the optimizer, reduce the optimizer step size, or change the number of samples in a stochastic metric, the registration improves to a point, at the expense of performance.

Extended Capabilities

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced in R2012a

R2021b: Support for thread-based environments

imregconfig now supports thread-based environments.
