nearest

Nearest neighbors within radius

Syntax

nodeIDs = nearest(G,s,d)

nodeIDs = nearest(G,s,d,Name,Value)

[nodeIDs,dist] = nearest(___)

Description

nodeIDs = nearest(G,s,d) returns all nodes in graph G that are within distance d from node s. If the graph is weighted (that is, if G.Edges contains a variable Weight), then those weights are used as the distances along the edges in the graph. Otherwise, all edge distances are taken to be 1.

nodeIDs = nearest(G,s,d,Name,Value) uses additional options specified by one or more name-value pair arguments. For example, if G is a weighted graph, then nearest(G,s,d,'Method','unweighted') ignores the edge weights in graph G and instead treats all edge weights as 1.

[nodeIDs,dist] = nearest(___) additionally returns the distance to each of the nearest neighbors, such that dist(j) is the distance from source node s to the node nodeIDs(j). You can use any of the input argument combinations in previous syntaxes.

Examples

Nearest Nodes

Create and plot a graph with weighted edges.

s = [1 1 1 1 1 2 2 2 3 3 3 3 3];
t = [2 4 5 6 7 3 8 9 10 11 12 13 14];
weights = randi([1 10],1,13);
G = graph(s,t,weights);
p = plot(G,'Layout','force','EdgeLabel',G.Edges.Weight);

Determine which nodes are within a radius of 15 from node 1.

nn = nearest(G,1,15)

nn = 9×1

     5
     7
     2
     3
     4
     6
     8
    12
     9

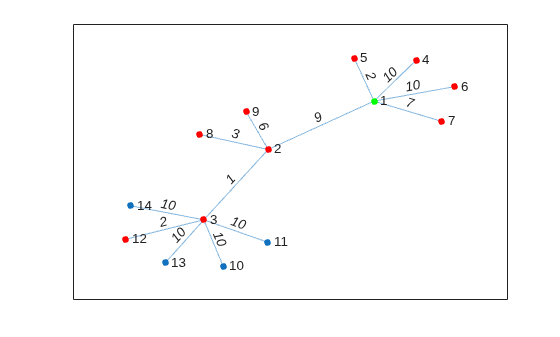

Highlight the source node as green and the nearest neighbors as red.

highlight(p,1,'NodeColor','g')
highlight(p,nn,'NodeColor','r')

Distances of Nearest Nodes

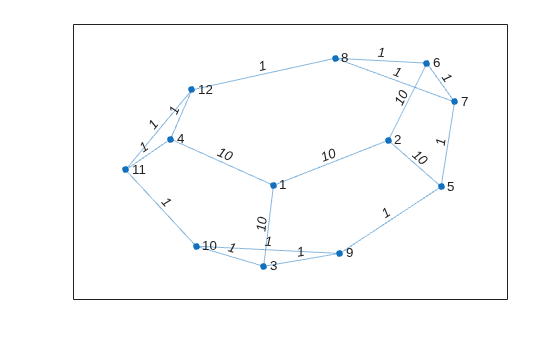

Create and plot a graph with weighted edges.

s = [1 1 1 2 2 6 6 7 7 3 3 9 9 4 4 11 11 8];
t = [2 3 4 5 6 7 8 5 8 9 10 5 10 11 12 10 12 12];
weights = [10 10 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1];
G = graph(s,t,weights);
plot(G,'EdgeLabel',G.Edges.Weight)

Determine which nodes are within a radius of 5 from node 3, and return the distance to each node.

[nn,dist] = nearest(G,3,5)

nn = 9×1

     9
    10
     5
    11
     4
     7
    12
     6
     8

dist = 9×1

     1
     1
     2
     2
     3
     3
     3
     4
     4

Incoming Neighbor Distances in Directed Graph

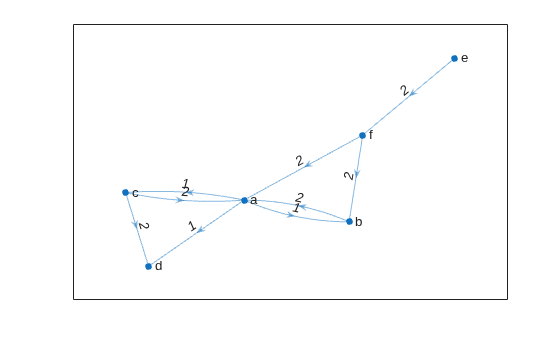

Create and plot a directed graph with weighted edges.

s = {'a' 'a' 'a' 'b' 'c' 'c' 'e' 'f' 'f'};
t = {'b' 'c' 'd' 'a' 'a' 'd' 'f' 'a' 'b'};
weights = [1 1 1 2 2 2 2 2 2];
G = digraph(s,t,weights);
plot(G,'EdgeLabel',G.Edges.Weight)

Determine the nearest nodes within a radius of 1 from node 'a', measured by outgoing path distance from node 'a'.

nn_out = nearest(G,'a',1)

nn_out = 3×1 cell
    {'b'}
    {'c'}
    {'d'}

Determine all of the nodes that have incoming paths leading to node 'a' by specifying the radius as Inf.

nn_in = nearest(G,'a',Inf,'Direction','incoming')

nn_in = 4×1 cell
    {'b'}
    {'c'}
    {'f'}
    {'e'}

Input Arguments

G — Input graph

graph object | digraph object

Input graph, specified as either a graph or digraph object. Use graph to create an undirected graph or digraph to create a directed graph.

Example: G = graph(1,2)

Example: G = digraph([1 2],[2 3])

s — Source node

node index | node name

Source node, specified as a node index or a node name in one of the forms in this table.

Value	Example
Scalar node index	1
Character vector node name	'A'
String scalar node name	"A"

Example: nearest(G,3,1)

Example: nearest(G,'a',5)

d — Neighbor distance radius

scalar

Neighbor distance radius, specified as a numeric scalar.

Example: nearest(G,3,1)

Example: nearest(G,'a',2.5)

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: [nodeIDs,dist] = nearest(G,s,5,'Method','unweighted','Direction','incoming')

Direction — Direction of distance measurement

'outgoing' (default) | 'incoming'

Note

The 'Direction' option can only be specified with directed graphs.

Direction of distance measurement, specified as the comma-separated pair consisting of 'Direction' and one of the options in this table.

Option	Description
'outgoing' (default)	Distances are calculated using paths going out from source node s.
'incoming'	Distances are calculated using paths coming in to source node s.

Example: nearest(G,s,d,'Direction','incoming')

Method — Shortest path algorithm

'auto' (default) | 'unweighted' | 'positive' | 'mixed'

Shortest path algorithm, specified as the comma-separated pair consisting of 'Method' and one of the options in this table.

Option	Description
'auto' (default)	The 'auto' option automatically selects the algorithm: 'unweighted' is used for graph and digraph inputs with no edge weights. 'positive' is used for all graph inputs that have edge weights, and requires the weights to be nonnegative. This option is also used for digraph inputs with nonnegative edge weights. 'mixed' is used for digraph inputs whose edge weights contain some negative values. The graph cannot have negative cycles.
'unweighted'	Breadth-first computation that treats all edge weights as 1.
'positive'	Dijkstra algorithm that requires all edge weights to be nonnegative.
'mixed' (only for digraph)	Bellman-Ford algorithm for directed graphs that requires the graph to have no negative cycles. While 'mixed' is slower than 'positive' for the same problem, 'mixed' is more versatile as it allows some edge weights to be negative.

Note

For most graphs, 'unweighted' is the fastest algorithm, followed by 'positive' and 'mixed'.

Example: nearest(G,s,d,'Method','positive')

Output Arguments

nodeIDs — Nearest neighbor node IDs

node indices | node names

Nearest neighbor node IDs, returned as node indices if s is numeric, or as node names if s is a node name. The nodes are sorted from nearest to furthest. nodeIDs is empty if no nodes are within the specified distance. nodeIDs never contains the source node s even if the graph has self-loops.

Use H = subgraph(G,[s; nodeIDs]) to extract a subgraph of the nearest neighbors from the original graph G.

dist — Neighbor distances

vector

Neighbor distances, returned as a vector. dist(j) is the distance from source node s to neighboring node nodeIDs(j).

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Name value arguments must be constant.

• Only the 'positive', 'unweighted' and 'auto' methods are supported.

Thread-Based Environment
Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

Version History

Introduced in R2016a
