regions

Access polyshape regions

Syntax

polyout = regions(polyin)

Description

polyout = regions(polyin) returns a vector of polyshape objects whose elements are the solid regions of the input polyshape.

Examples

Array of Polygon Regions

Compute a polygon with two solid regions. Then, create a vector whose elements are a single region of the polygon.

P = [0 0; 0 2; 2 2; 2 0; NaN NaN; 0.5 0.5; 0.5 1.5; 1.5 1.5; 1.5 0.5; NaN NaN; 3 0.5; 3.5 1.5; 4 0.5; NaN NaN; 3.25 0.6; 3.75 0.6; 3.5 1];
polyin = polyshape(P);

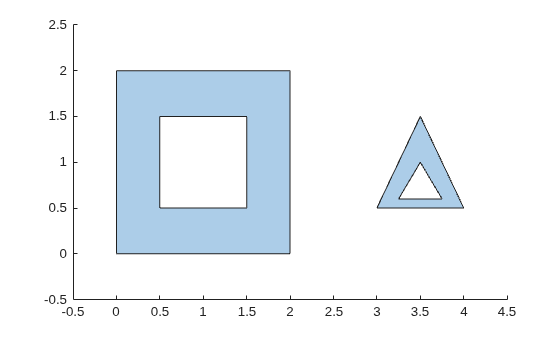

plot(polyin)
xlim([-0.5 4.5])
ylim([-0.5 2.5])

polyout = regions(polyin)

polyout =
  2x1 polyshape array with properties:

    Vertices
    NumRegions
    NumHoles

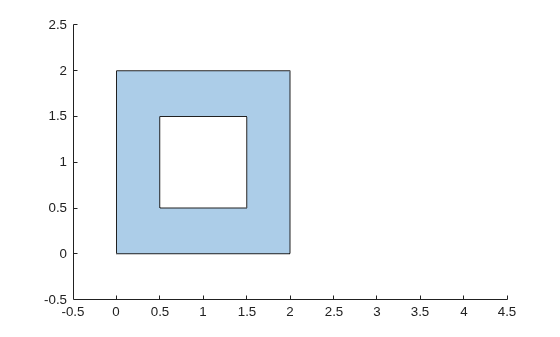

plot(polyout(1))
xlim([-0.5 4.5])
ylim([-0.5 2.5])

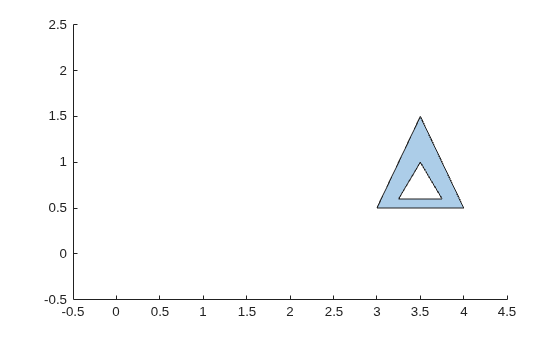

plot(polyout(2))
xlim([-0.5 4.5])
ylim([-0.5 2.5])

Input Arguments

polyin — Input polyshape

scalar

Input polyshape, specified as a scalar.

Data Types: polyshape

Version History

Introduced in R2017b
