rlTRPOAgent

Trust region policy optimization (TRPO) reinforcement learning agent

Since R2021b

expand all in page

Description

Trust region policy optimization (TRPO) is a model-free, online, on-policy, policy gradient reinforcement learning method. This algorithm prevents significant performance drops compared to standard policy gradient methods by keeping the updated policy within a trust region close to the current policy. The action space can be either discrete or continuous. For continuous action spaces, this agent does not enforce constraints set in the action specification; therefore, if you need to enforce action constraints, you must do so within the environment.

Note

TRPO agents do not support recurrent networks.

For more information on TRPO agents, see Trust Region Policy Optimization (TRPO) Agents. For more information on the different types of reinforcement learning agents, see Reinforcement Learning Agents.

Creation

Syntax

agent = rlTRPOAgent(observationInfo,actionInfo)
agent = rlTRPOAgent(observationInfo,actionInfo,initOpts)
agent = rlTRPOAgent(actor,critic)
agent = rlTRPOAgent(___,agentOptions)

Description

Create Agent from Observation and Action Specifications

example

agent = rlTRPOAgent(observationInfo,actionInfo) creates a trust region policy optimization (TRPO) agent for an environment with the given observation and action specifications, using default initialization options. The actor and critic in the agent use default deep neural networks built from the observation specification observationInfo and the action specification actionInfo. The ObservationInfo and ActionInfo properties of agent are set to the observationInfo and actionInfo input arguments, respectively.

example

agent = rlTRPOAgent(observationInfo,actionInfo,initOpts) creates a TRPO agent for an environment with the given observation and action specifications. The agent uses default networks configured using options specified in the initOpts object. TRPO agents do not support recurrent neural networks. For more information on the initialization options, see rlAgentInitializationOptions.

Create Agent from Actor and Critic

example

agent = rlTRPOAgent(actor,critic) creates a TRPO agent with the specified actor and critic, using the default options for the agent.

Specify Agent Options

example

agent = rlTRPOAgent(___,agentOptions) creates a TRPO agent and sets the AgentOptions property to the agentOptions input argument. Use this syntax after any of the input arguments in the previous syntaxes.

Input Arguments

expand all

Agent initialization options, specified as an rlAgentInitializationOptions object.

TRPO agents do not support recurrent neural networks. Therefore initOpts.UseRNNmust be false.

Actor that implements the policy, specified as an rlDiscreteCategoricalActor or rlContinuousGaussianActor function approximator object. For more information on creating actor approximators, see Create Policies and Value Functions.

Critic that estimates the discounted long-term reward, specified as an rlValueFunction object. For more information on creating critic approximators, see Create Policies and Value Functions.

Properties

expand all

Observation specifications, specified as an rlFiniteSetSpec or rlNumericSpec object or an array containing a mix of such objects. Each element in the array defines the properties of an environment observation channel, such as its dimensions, data type, and name.

If you create the agent by specifying an actor and critic, the value of ObservationInfo matches the value specified in the actor and critic objects.

You can extract observationInfo from an existing environment or agent using getObservationInfo. You can also construct the specifications manually using rlFiniteSetSpec or rlNumericSpec.

Action specifications, specified either as an rlFiniteSetSpec (for discrete action spaces) or rlNumericSpec (for continuous action spaces) object. This object defines the properties of the environment action channel, such as its dimensions, data type, and name.

Note

Only one action channel is allowed.

If you create the agent by specifying an actor and critic, the value of ActionInfo matches the value specified in the actor and critic objects.

You can extract actionInfo from an existing environment or agent using getActionInfo. You can also construct the specification manually using rlFiniteSetSpec or rlNumericSpec.

Agent options, specified as an rlTRPOAgentOptions object.

Option to use exploration policy when selecting actions, specified as a one of the following logical values.

  • true — Use the base agent exploration policy when selecting actions in sim and generatePolicyFunction. In this case, the agent selects its actions by sampling its probability distribution, the policy is therefore stochastic and the agent explores its observation space.

  • false — Use the base agent greedy policy (the action with maximum likelihood) when selecting actions in sim and generatePolicyFunction. In this case, the simulated agent and generated policy behave deterministically.

Note

This option affects only simulation and deployment; it does not affect training.

Sample time of agent, specified as a positive scalar or as -1. Setting this parameter to -1 allows for event-based simulations. The value of SampleTime matches the value specified in AgentOptions.

Within a Simulink® environment, the RL Agent block in which the agent is specified to execute every SampleTime seconds of simulation time. If SampleTime is -1, the block inherits the sample time from its parent subsystem.

Within a MATLAB® environment, the agent is executed every time the environment advances. In this case, SampleTime is the time interval between consecutive elements in the output experience returned by sim or train. If SampleTime is -1, the time interval between consecutive elements in the returned output experience reflects the timing of the event that triggers the agent execution.

Object Functions

trainTrain reinforcement learning agents within a specified environment
simSimulate trained reinforcement learning agents within specified environment
getActionObtain action from agent, actor, or policy object given environment observations
getActorExtract actor from reinforcement learning agent
setActorSet actor of reinforcement learning agent
getCriticExtract critic from reinforcement learning agent
setCriticSet critic of reinforcement learning agent
generatePolicyFunctionGenerate MATLAB function that evaluates policy of an agent or policy object

Examples

collapse all

Open Live Script

Create an environment with a discrete action space, and obtain its observation and action specifications. For this example, load the environment used in the example Create DQN Agent Using Deep Network Designer and Train Using Image Observations. This environment has two observations: a 50-by-50 grayscale image and a scalar (the angular velocity of the pendulum). The action is a scalar with five possible elements (a torque of -2, -1, 0, 1, or 2 Nm applied to a swinging pole).

% Load predefined environment
env = rlPredefinedEnv("SimplePendulumWithImage-Discrete");

Obtain the observation and action specifications for this environment.

obsInfo = getObservationInfo(env);
actInfo = getActionInfo(env);

The agent creation function initializes the actor and critic networks randomly. Ensure reproducibility by fixing the seed of the random generator.

rng(0)

Create a TRPO agent from the environment observation and action specifications.

agent = rlTRPOAgent(obsInfo,actInfo);

To check your agent, use getAction to return the action from a random observation.

getAction(agent,{rand(obsInfo(1).Dimension),rand(obsInfo(2).Dimension)})
ans = 1x1 cell array
    {[-2]}

You can now test and train the agent within the environment.

Open Live Script

Create an environment with a continuous action space and obtain its observation and action specifications. For this example, load the environment used in the example Train DDPG Agent to Swing Up and Balance Pendulum with Image Observation. This environment has two observations: a 50-by-50 grayscale image and a scalar (the angular velocity of the pendulum). The action is a scalar representing a torque ranging continuously from -2 to 2 Nm.

env = rlPredefinedEnv("SimplePendulumWithImage-Continuous");

Obtain observation and action specifications for this environment.

obsInfo = getObservationInfo(env);
actInfo = getActionInfo(env);

Create an agent initialization options object, specifying that each hidden fully connected layer in the network must have 128 neurons. TRPO agents do not support recurrent networks, so setting the UseRNN option to true generates an error when the agent is created.

initOpts = rlAgentInitializationOptions(NumHiddenUnit=128);

The agent creation function initializes the actor and critic networks randomly. Ensure reproducibility by fixing the seed of the random generator.

rng(0)

Create a TRPO agent from the environment observation and action specifications using the specified initialization options.

agent = rlTRPOAgent(obsInfo,actInfo,initOpts);

Extract the deep neural networks from both the agent actor and critic.

actorNet = getModel(getActor(agent));
criticNet = getModel(getCritic(agent));

To verify that each hidden fully connected layer has 128 neurons, you can display the layers on the MATLAB® command window,

criticNet.Layers

or visualize the structure interactively using analyzeNetwork.

analyzeNetwork(criticNet)

Plot the critic and actor networks.

plot(criticNet)

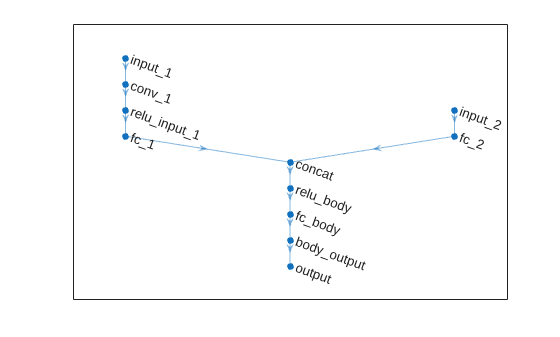

Figure contains an axes object. The axes object contains an object of type graphplot.

plot(actorNet)

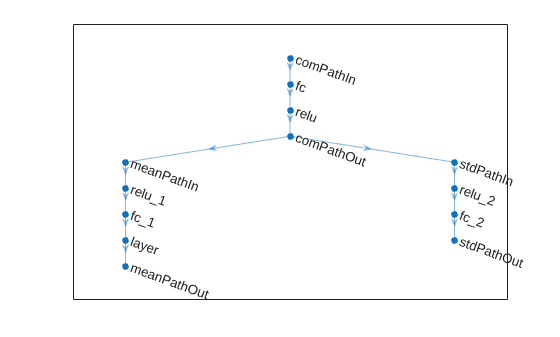

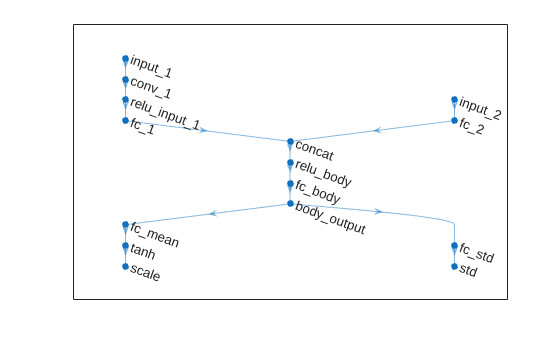

Figure contains an axes object. The axes object contains an object of type graphplot.

To check your agent, use getAction to return the action from a random observation.

getAction(agent,{rand(obsInfo(1).Dimension),rand(obsInfo(2).Dimension)})
ans = 1x1 cell array
    {[0.9228]}

You can now test and train the agent within the environment.

Open Live Script

Create an environment interface, and obtain its observation and action specifications.

env = rlPredefinedEnv("CartPole-Discrete");
obsInfo = getObservationInfo(env);
actInfo = getActionInfo(env);

TRPO agents use a parametrized value function approximator to estimate the value of the policy. A value-function critic takes the current observation as input and returns a single scalar as output (the estimated discounted cumulative long-term reward for following the policy from the state corresponding to the current observation).

To model the parametrized value function within the critic, use a neural network with one input layer (which receives the content of the observation channel, as specified by obsInfo) and one output layer (which returns the scalar value). Note that prod(obsInfo.Dimension) returns the total number of dimensions of the observation space regardless of whether the observation space is a column vector, row vector, or matrix.

Define the network as an array of layer objects.

criticNet = [
    featureInputLayer(prod(obsInfo.Dimension))
    fullyConnectedLayer(100)
    reluLayer
    fullyConnectedLayer(1)
    ];

Convert to a dlnetwork object and display the number of parameters.

criticNet = dlnetwork(criticNet);
summary(criticNet)
   Initialized: true

   Number of learnables: 601

   Inputs:
      1   'input'   4 features

Create the critic approximator object using criticNet and the observation specification. For more information on value function approximators, see rlValueFunction.

critic = rlValueFunction(criticNet,obsInfo);

Check the critic with a random observation input.

getValue(critic,{rand(obsInfo.Dimension)})
ans = single
    -0.2479

TRPO agents use a parametrized stochastic policy, which for discrete action spaces is implemented by a discrete categorical actor. This actor takes an observation as input and returns as output a random action sampled (among the finite number of possible actions) from a categorical probability distribution.

To model the parametrized policy within the actor, use a neural network with one input layer (which receives the content of the environment observation channel, as specified by obsInfo) and one output layer. The output layer must return a vector of probabilities for each possible action, as specified by actInfo. Note that numel(actInfo.Dimension) returns the number of possible actions.

Define the network as an array of layer objects.

actorNet = [
    featureInputLayer(prod(obsInfo.Dimension))
    fullyConnectedLayer(200)
    reluLayer
    fullyConnectedLayer(numel(actInfo.Dimension))
    ];

Convert to a dlnetwork object and display the number of parameters.

actorNet = dlnetwork(actorNet);
summary(actorNet)
   Initialized: true

   Number of learnables: 1.4k

   Inputs:
      1   'input'   4 features

Create the actor using actorNet and the observation and action specifications. For more information on discrete categorical actors, see rlDiscreteCategoricalActor.

actor = rlDiscreteCategoricalActor(actorNet,obsInfo,actInfo);

Check the actor with a random observation input.

getAction(actor,{rand(obsInfo.Dimension)})
ans = 1x1 cell array
    {[-10]}

Create a TRPO agent using the actor and the critic.

agent = rlTRPOAgent(actor,critic)
agent =
  rlTRPOAgent with properties:

            AgentOptions: [1x1 rl.option.rlTRPOAgentOptions]
    UseExplorationPolicy: 1
         ObservationInfo: [1x1 rl.util.rlNumericSpec]
              ActionInfo: [1x1 rl.util.rlFiniteSetSpec]
              SampleTime: 1

Specify agent options, including training options for the actor and the critic.

agent.AgentOptions.ExperienceHorizon = 1024;
agent.AgentOptions.DiscountFactor = 0.95;

agent.AgentOptions.CriticOptimizerOptions.LearnRate = 8e-3;
agent.AgentOptions.CriticOptimizerOptions.GradientThreshold = 1;

Check your agent with a random observation input.

getAction(agent,{rand(obsInfo.Dimension)})
ans = 1x1 cell array
    {[-10]}

You can now test and train the agent against the environment.

Open Live Script

Create an environment with a continuous action space, and obtain its observation and action specifications. For this example, load the double integrator continuous action space environment used in the example Train DDPG Agent to Control Double Integrator System. The observation from the environment is a vector containing the position and velocity of a mass. The action is a scalar representing a force applied to the mass, ranging continuously from -2 to 2 Newton.

env = rlPredefinedEnv("DoubleIntegrator-Continuous");
obsInfo = getObservationInfo(env)
obsInfo =
  rlNumericSpec with properties:

     LowerLimit: -Inf
     UpperLimit: Inf
           Name: "states"
    Description: "x, dx"
      Dimension: [2 1]
       DataType: "double"


actInfo = getActionInfo(env)
actInfo =
  rlNumericSpec with properties:

     LowerLimit: -Inf
     UpperLimit: Inf
           Name: "force"
    Description: [0x0 string]
      Dimension: [1 1]
       DataType: "double"

In this example, the action is a scalar value representing a force ranging from -2 to 2 Newton. To make sure that the output from the agent is in this range, you perform an appropriate scaling operation. Store these limits so you can easily access them later.

actInfo.LowerLimit=-2;
actInfo.UpperLimit=2;

The actor and critic networks are initialized randomly. Ensure reproducibility by fixing the seed of the random generator.

rng(0)

TRPO agents use a parametrized value function approximator to estimate the value of the policy. A value-function critic takes the current observation as input and returns a single scalar as output (the estimated discounted cumulative long-term reward for following the policy from the state corresponding to the current observation).

To model the parametrized value function within the critic, use a neural network with one input layer (which receives the content of the observation channel, as specified by obsInfo) and one output layer (which returns the scalar value). Note that prod(obsInfo.Dimension) returns the total number of dimensions of the observation space regardless of whether the observation space is a column vector, row vector, or matrix.

Define the network as an array of layer objects.

criticNet = [
    featureInputLayer(prod(obsInfo.Dimension))
    fullyConnectedLayer(100)
    reluLayer
    fullyConnectedLayer(1)
    ];

Convert to a dlnetwork object and display the number of parameters.

criticNet = dlnetwork(criticNet);
summary(criticNet)
   Initialized: true

   Number of learnables: 401

   Inputs:
      1   'input'   2 features

Create the critic approximator object using criticNet and the observation specification. For more information on value function approximators, see rlValueFunction.

critic = rlValueFunction(criticNet,obsInfo);

Check the critic with a random observation input.

getValue(critic,{rand(obsInfo.Dimension)})
ans = single
    -0.0899

TRPO agents use a parametrized stochastic policy, which for continuous action spaces is implemented by a continuous Gaussian actor. This actor takes an observation as input and returns as output a random action sampled from a Gaussian probability distribution.

To approximate the mean values and standard deviations of the Gaussian distribution, you must use a neural network with two output layers, each having as many elements as the dimension of the action space. One output layer must return a vector containing the mean values for each action dimension. The other must return a vector containing the standard deviation for each action dimension.

Note that standard deviations must be nonnegative and mean values must fall within the range of the action. Therefore the output layer that returns the standard deviations must be a softplus or ReLU layer, to enforce nonnegativity, while the output layer that returns the mean values must be a scaling layer, to scale the mean values to the output range.

For this example the environment has only one observation channel and therefore the network has only one input layer.

Define each network path as an array of layer objects, and assign names to the input and output layers of each path. These names allow you to connect the paths and then later explicitly associate the network input and output layers with the appropriate environment channel.

% Define common input path layer
commonPath = [
    featureInputLayer(prod(obsInfo.Dimension),Name="comPathIn")
    fullyConnectedLayer(100)
    reluLayer
    fullyConnectedLayer(1,Name="comPathOut")
    ];

% Define mean value path
meanPath = [
    fullyConnectedLayer(32,Name="meanPathIn")
    reluLayer
    fullyConnectedLayer(prod(actInfo.Dimension));
    tanhLayer;
    scalingLayer(Name="meanPathOut",Scale=actInfo.UpperLimit)
    ];

% Define standard deviation path
sdevPath = [
    fullyConnectedLayer(32,"Name","stdPathIn")
    reluLayer
    fullyConnectedLayer(prod(actInfo.Dimension));
    softplusLayer(Name="stdPathOut")
    ];

% Add layers to layerGraph object
actorNet = layerGraph(commonPath);
actorNet = addLayers(actorNet,meanPath);
actorNet = addLayers(actorNet,sdevPath);

% Connect paths
actorNet = connectLayers(actorNet,"comPathOut","meanPathIn/in");
actorNet = connectLayers(actorNet,"comPathOut","stdPathIn/in");

% Plot network
plot(actorNet)

Figure contains an axes object. The axes object contains an object of type graphplot.

% Convert to dlnetwork and display number of weights
actorNet = dlnetwork(actorNet);
summary(actorNet)
   Initialized: true

   Number of learnables: 595

   Inputs:
      1   'comPathIn'   2 features

Create the actor approximator object using actorNet and the environment specifications. For more information, on continuous Gaussian actors, see rlContinuousGaussianActor.

actor = rlContinuousGaussianActor(actorNet, obsInfo, actInfo, ...
    "ActionMeanOutputNames","meanPathOut",...
    "ActionStandardDeviationOutputNames","stdPathOut",...
    ObservationInputNames="comPathIn");

Check the actor with a random observation input.

getAction(actor,{rand(obsInfo.Dimension)})
ans = 1x1 cell array
    {[0.2732]}

Create a TRPO agent using the actor and the critic.

agent = rlTRPOAgent(actor,critic)
agent =
  rlTRPOAgent with properties:

            AgentOptions: [1x1 rl.option.rlTRPOAgentOptions]
    UseExplorationPolicy: 1
         ObservationInfo: [1x1 rl.util.rlNumericSpec]
              ActionInfo: [1x1 rl.util.rlNumericSpec]
              SampleTime: 1

Specify agent options, including training options for the actor and the critic.

agent.AgentOptions.ExperienceHorizon = 1024;
agent.AgentOptions.DiscountFactor = 0.95;

agent.AgentOptions.CriticOptimizerOptions.LearnRate = 8e-3;
agent.AgentOptions.CriticOptimizerOptions.GradientThreshold = 1;

Check your agent with a random observation input.

getAction(agent,{rand(obsInfo.Dimension)})
ans = 1x1 cell array
    {[-0.5005]}

You can now test and train the agent within the environment.

Tips

  • For continuous action spaces, this agent does not enforce the constraints set by the action specification. In this case, you must enforce action space constraints within the environment.

  • While tuning the learning rate of the actor network is necessary for PPO agents, it is not necessary for TRPO agents.

  • For high-dimensional observations, such as for images, it is recommended to use PPO, SAC, or TD3 agents.

Version History

Introduced in R2021b

See Also

Apps

Functions

Objects

Blocks

Topics
