# rlVectorQValueFunction

Vector Q-value function approximator with hybrid or discrete action space for reinforcement learning agents

*Since R2022a*

## Description

This object implements a vector (also referred to as multi-output) Q-value
function approximator that you can use as a critic with a hybrid or discrete action space for
a reinforcement learning agent. A vector Q-value function (also known as vector action-value
function) is a mapping between a pair consisting of an observation and a continuous action to
a vector in which each element represents the expected discounted cumulative long-term reward
when an agent executes the *discrete* action corresponding to the specific
output number as well as the continuous action (if present) given as additional input,
starting from the state corresponding to the observation (also given in input), and follows a
given policy afterwards. A vector Q-value function critic for discrete action spaces therefore
needs only the observation as input (as there is no continuous action). After you create an
`rlVectorQValueFunction`

critic, use it to create an agent such as `rlQAgent`

, `rlDQNAgent`

, `rlSARSAAgent`

or an
hybrid `rlSACAgent`

. For more
information on creating actors and critics, see Create Policies and Value Functions.

## Creation

### Syntax

### Description

creates the multi-output Q-value function `critic`

= rlVectorQValueFunction(`net`

,`observationInfo`

,`actionInfo`

)`critic`

with a
*discrete* or *hybrid* action space. Here,
`net`

is the deep neural network used as an approximation model.
Its input layers must take in all the observation channels as well as and the continuous
action channel (if present). The output layer must have as many elements as the number
of possible discrete actions. When you use this syntax, the network input layers are
automatically associated with the environment observation channels (and, if present, the
continuous action channel) according to the dimensions specified in
`observationInfo`

(and if present, to the second action channel
specified in `actionInfo`

). This function sets the
`ObservationInfo`

and `ActionInfo`

properties of
`critic`

to the `observationInfo`

and
`actionInfo`

input arguments, respectively.

creates the multi-output Q-value function `critic`

= rlVectorQValueFunction({`basisFcn`

,`W0`

},`observationInfo`

,`actionInfo`

)`critic`

with a
*discrete* or *hybrid* action space using a
custom basis function as underlying approximation model. The first input argument is a
two-element cell array whose first element is the handle `basisFcn`

to a custom basis function and whose second element is the initial weight matrix
`W0`

. Here the basis function must take in all the observation
channels as well as and the continuous action channel (if present), and
`W0`

must have as many columns as the number of possible discrete
actions. The function sets the `ObservationInfo`

and `ActionInfo`

properties of `critic`

to the input
arguments `observationInfo`

and `actionInfo`

,
respectively.

specifies names of the observation input layers (for network-based approximators) or
sets the `critic`

= rlVectorQValueFunction(___,`Name=Value`

)`UseDevice`

property using one or more name-value arguments.
Specifying the input layer names (and, for hybrid action spaces, the continuous action
layer name) allows you explicitly associate the layers of your network approximator with
specific environment channels. For all types of approximators, you can specify the
device where computations for `critic`

are executed, for example
`UseDevice="gpu"`

.

### Input Arguments

`net`

— Deep neural network

array of `Layer`

objects | `layerGraph`

object | `DAGNetwork`

object | `SeriesNetwork`

object | `dlNetwork`

object (preferred)

Deep neural network used as the underlying approximator within the critic, specified as one of the following:

Array of

`Layer`

objects`layerGraph`

object`DAGNetwork`

object`SeriesNetwork`

object`dlnetwork`

object

**Note**

Among the different network representation options, `dlnetwork`

is preferred, since it
has built-in validation checks and supports automatic differentiation. If you pass
another network object as an input argument, it is internally converted to a
`dlnetwork`

object. However, best practice is to convert other
representations to `dlnetwork`

explicitly *before*
using it to create a critic or an actor for a reinforcement learning agent. You can
do so using `dlnet=dlnetwork(net)`

, where `net`

is
any Deep Learning Toolbox™ neural network object. The resulting `dlnet`

is the
`dlnetwork`

object that you use for your critic or actor. This
practice allows a greater level of insight and control for cases in which the
conversion is not straightforward and might require additional
specifications.

The network must have as many input layers as the number of environment
observation channels (plus one for hybrid action spaces). Specifically, there must be
one input layer for each observation channel, and one additional input layer for the
*continuous* action channel, if present. The output layer must
have as many elements as the number of possible discrete actions. Each element of the
output approximates the value of executing the corresponding discrete action starting
from the current observation when also executing the continuous observation given as
input (if present).

`rlQValueFunction`

objects support recurrent deep neural
networks.

The learnable parameters of the critic are the weights of the deep neural network. For a list of deep neural network layers, see List of Deep Learning Layers. For more information on creating deep neural networks for reinforcement learning, see Create Policies and Value Functions.

`basisFcn`

— Custom basis function

function handle

Custom basis function, specified as a function handle to a user-defined
MATLAB^{®} function. The user defined function can either be an anonymous function
or a function on the MATLAB path. The output of the critic is the vector ```
c =
W'*B
```

, where `W`

is a matrix containing the learnable
parameters, and `B`

is the column vector returned by the custom basis
function. Each element of `c`

approximates the value of executing the
corresponding discrete action starting from the current observation when also
executing the continuous observation given as input (if present).

Your basis function must have the following signature.

B = myBasisFunction(obs1,obs2,...,obsN,actC)

Here, `obs1`

to `obsN`

are inputs in the same
order and with the same data type and dimensions as the channels defined in
`observationInfo`

. For hybrid action spaces, the additional input
`actC`

must have the same data type and dimension as the continuous
action channel defined in the second element of
`actionInfo`

.

**Example: **```
@(obs1,obs2) [act(2)*obs1(1)^2;
abs(obs2(5))]
```

`W0`

— Initial value of basis function weights

matrix

Initial value of the basis function weights `W`

, specified as a
matrix having as many rows as the length of the basis function output vector and as
many columns as the number of possible discrete actions.

**Name-Value Arguments**

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **`UseDevice="gpu"`

`ObservationInputNames`

— Network input layers names corresponding to the environment observation channels

string array | cell array of strings | cell array of character vectors

Network input layers names corresponding to the environment observation channels,
specified as a string array or a cell array of strings or character vectors. The
function assigns, in sequential order, each environment observation channel specified in
`observationInfo`

to each layer whose name is specified in the
array assigned to this argument. Therefore, the specified network input layers, ordered
as indicated in this argument, must have the same data type and dimensions as the
observation channels, as ordered in `observationInfo`

.

This name-value argument is supported only when the approximation model is a deep neural network.

**Example: **`ObservationInputNames={"obsInLyr1_airspeed","obsInLyr2_altitude"}`

`ContinuousActionInputName`

— Network input layer name corresponding to the environment continuous action channel

string | character vector

Network input layer name corresponding to the environment continuous action
channel, specified as a string array or a cell array of character vectors. When the
action space has a continuous component, the function assigns the environment
continuous action channel specified in the second element of
`actionInfo`

to the network input layer whose name is specified
in the value assigned to this argument. Therefore, the specified network input layer
must have the same data type and dimension as the continuous action channel defined
in the second element of `actionInfo`

.

This name-value argument is supported only when the approximation model is a deep neural network and when the action space is hybrid.

**Example: **`ContinuousActionInputName="actCInLyr_Temperature"`

## Properties

`ObservationInfo`

— Observation specifications

`rlFiniteSetSpec`

object | `rlNumericSpec`

object | array

Observation specifications, specified as an `rlFiniteSetSpec`

or `rlNumericSpec`

object or an array containing a mix of such objects. Each element in the array defines
the properties of an environment observation channel, such as its dimensions, data type,
and name.

When you create the approximator object, the constructor function sets the
`ObservationInfo`

property to the input argument
`observationInfo`

.

You can extract `observationInfo`

from an existing environment,
function approximator, or agent using `getObservationInfo`

. You can also construct the specifications manually
using `rlFiniteSetSpec`

or `rlNumericSpec`

.

**Example: **```
[rlNumericSpec([2 1])
rlFiniteSetSpec([3,5,7])]
```

`ActionInfo`

— Action specification

vector containing one `rlFiniteSetSpec`

followed by one
`rlNumericSpec`

object

Action specification, specified as a vector consisting of one `rlFiniteSetSpec`

followed by one `rlNumericSpec`

object. The action specification defines the properties of an environment action
channel, such as its dimensions, data type, and name.

**Note**

For hybrid action spaces, you must have two action channels, the first one for the discrete part of the action, the second one for the continuous part of the action.

When you create the approximator object, the constructor function sets the
`ActionInfo`

property to the input argument
`actionInfo`

.

You can extract `ActionInfo`

from an existing environment or agent
using `getActionInfo`

. You can also construct the specifications manually using
`rlFiniteSetSpec`

and `rlNumericSpec`

.

**Example: **```
[rlFiniteSetSpec([-1 0 1]) rlNumericSpec([2
1])]
```

`ActionInfo`

— Action specifications

`rlFiniteSetSpec`

object

Action specifications, specified as an `rlFiniteSetSpec`

object. This object defines the properties of the environment action channel, such as
its dimensions, data type, and name.

**Note**

For this approximator object, only one action channel is allowed.

When you create the approximator object, the constructor function sets the
`ActionInfo`

property to the input argument
`actionInfo`

.

You can extract `ActionInfo`

from an existing environment,
approximator object, or agent using `getActionInfo`

. You can also construct the specification manually using
`rlFiniteSetSpec`

.

**Example: **`rlFiniteSetSpec([-1 0 1])`

`Normalization`

— Normalization method

`"none"`

(default) | string array

Normalization method, returned as an array in which each element (one for each input
channel defined in the `observationInfo`

and
`actionInfo`

properties, in that order) is one of the following
values:

`"none"`

— Do not normalize the input.`"rescale-zero-one"`

— Normalize the input by rescaling it to the interval between 0 and 1. The normalized input*Y*is (*U*–`Min`

)./(`UpperLimit`

–`LowerLimit`

), where*U*is the nonnormalized input. Note that nonnormalized input values lower than`LowerLimit`

result in normalized values lower than 0. Similarly, nonnormalized input values higher than`UpperLimit`

result in normalized values higher than 1. Here,`UpperLimit`

and`LowerLimit`

are the corresponding properties defined in the specification object of the input channel.`"rescale-symmetric"`

— Normalize the input by rescaling it to the interval between –1 and 1. The normalized input*Y*is 2(*U*–`LowerLimit`

)./(`UpperLimit`

–`LowerLimit`

) – 1, where*U*is the nonnormalized input. Note that nonnormalized input values lower than`LowerLimit`

result in normalized values lower than –1. Similarly, nonnormalized input values higher than`UpperLimit`

result in normalized values higher than 1. Here,`UpperLimit`

and`LowerLimit`

are the corresponding properties defined in the specification object of the input channel.

**Note**

When you specify the `Normalization`

property of
`rlAgentInitializationOptions`

, normalization is applied only to
the approximator input channels corresponding to `rlNumericSpec`

specification objects in which both the
`UpperLimit`

and `LowerLimit`

properties
are defined. After you create the agent, you can use `setNormalizer`

to assign normalizers that use any normalization
method. For more information on normalizer objects, see `rlNormalizer`

.

**Example: **`"rescale-symmetric"`

`UseDevice`

— Computation device used for training and simulation

`"cpu"`

(default) | `"gpu"`

Computation device used to perform operations such as gradient computation, parameter
update and prediction during training and simulation, specified as either
`"cpu"`

or `"gpu"`

.

The `"gpu"`

option requires both Parallel Computing Toolbox™ software and a CUDA^{®} enabled NVIDIA^{®} GPU. For more information on supported GPUs see GPU Computing Requirements (Parallel Computing Toolbox).

You can use `gpuDevice`

(Parallel Computing Toolbox) to query or select a local GPU device to be
used with MATLAB.

**Note**

Training or simulating an agent on a GPU involves device-specific numerical round-off errors. Because of these errors, you can get different results on a GPU and on a CPU for the same operation.

To speed up training by using parallel processing over multiple cores, you do not need
to use this argument. Instead, when training your agent, use an `rlTrainingOptions`

object in which the `UseParallel`

option is set to `true`

. For more information about training using
multicore processors and GPUs for training, see Train Agents Using Parallel Computing and GPUs.

**Example: **`"gpu"`

`Learnables`

— Learnable parameters of approximator object

cell array of `dlarray`

objects

Learnable parameters of the approximator object, specified as a cell array of
`dlarray`

objects. This property contains the learnable parameters of
the approximation model used by the approximator object.

**Example: **`{dlarray(rand(256,4)),dlarray(rand(256,1))}`

`State`

— State of approximator object

cell array of `dlarray`

objects

State of the approximator object, specified as a cell array of
`dlarray`

objects. For `dlnetwork`

-based models, this
property contains the `Value`

column of the
`State`

property table of the `dlnetwork`

model.
The elements of the cell array are the state of the recurrent neural network used in the
approximator (if any), as well as the state for the batch normalization layer (if
used).

For model types that are not based on a `dlnetwork`

object, this
property is an empty cell array, since these model types do not support states.

**Example: **`{dlarray(rand(256,1)),dlarray(rand(256,1))}`

## Object Functions

`rlDQNAgent` | Deep Q-network (DQN) reinforcement learning agent |

`rlQAgent` | Q-learning reinforcement learning agent |

`rlSARSAAgent` | SARSA reinforcement learning agent |

`getValue` | Obtain estimated value from a critic given environment observations and actions |

`getMaxQValue` | Obtain maximum estimated value over all possible actions from a Q-value function critic with discrete action space, given environment observations |

`evaluate` | Evaluate function approximator object given observation (or observation-action) input data |

`getLearnableParameters` | Obtain learnable parameter values from agent, function approximator, or policy object |

`setLearnableParameters` | Set learnable parameter values of agent, function approximator, or policy object |

`setModel` | Set approximation model in function approximator object |

`getModel` | Get approximation model from function approximator object |

## Examples

### Create Discrete Vector Q-Value Function Critic from Deep Neural Network

Create an observation specification object (or alternatively use `getObservationInfo`

to extract the specification object from an environment). For this example, define the observation space as a continuous four-dimensional space, so that there is a single observation channel that carries a column vector containing four doubles.

obsInfo = rlNumericSpec([4 1]);

Create a discrete (finite set) action specification object (or alternatively use `getActionInfo`

to extract the specification object from an environment with a discrete action space). For this example, define the action space as a finite set consisting of three possible actions (labeled 7, 5, and 3).

actInfo = rlFiniteSetSpec([7 5 3]);

A discrete vector Q-value function takes only the observation as input and returns as output a single vector with as many elements as the number of possible discrete actions. The value of each output element represents the expected discounted cumulative long-term reward for taking the action corresponding to the element number, from the state corresponding to the current observation, and following the policy afterwards.

To model the parametrized vector Q-value function within the critic, use a neural network with one input layer (receiving the content of the observation channel, as specified by `obsInfo`

) and one output layer (returning the vector of values for all the possible actions, as specified by `actInfo`

).

Define the network as an array of layer objects, and get the dimension of the observation space and the number of possible actions from the environment specification objects.

net = [ featureInputLayer(obsInfo.Dimension(1)) fullyConnectedLayer(16) reluLayer fullyConnectedLayer(16) reluLayer fullyConnectedLayer(numel(actInfo.Elements)) ];

Convert the network to a `dlnetwork`

object, and display the number of weights.

net = dlnetwork(net); summary(net)

Initialized: true Number of learnables: 403 Inputs: 1 'input' 4 features

Create the critic using the network, as well as the observation and action specification objects.

critic = rlVectorQValueFunction(net,obsInfo,actInfo)

critic = rlVectorQValueFunction with properties: ObservationInfo: [1x1 rl.util.rlNumericSpec] ActionInfo: [1x1 rl.util.rlFiniteSetSpec] Normalization: "none" UseDevice: "cpu" Learnables: {6x1 cell} State: {0x1 cell}

To check your critic, use `getValue`

to return the values of the discrete actions depending on a random observation, using the current network weights. There is one value for each of the three possible actions.

v = getValue(critic,{rand(obsInfo.Dimension)})

`v = `*3x1 single column vector*
0.0761
-0.5906
0.2072

You can now use the critic to create an agent for the environment described by the given specification objects. Examples of agents that can use a discrete vector Q-value function critic, are `rlQAgent`

, `rlDQNAgent`

, `rlSARSAAgent`

and discrete `rlSACAgent`

.

For more information on creating approximator objects such as actors and critics, see Create Policies and Value Functions.

### Create Hybrid Vector Q-Value Function Critic from Deep Neural Network

Create an observation specification object (or alternatively use `getObservationInfo`

to extract the specification object from an environment). For this example, define the observation space as a continuous four-dimensional space, so that there is a single observation channel that carries a column vector containing four doubles.

obsInfo = rlNumericSpec([4 1]);

Create a hybrid action specification object (or alternatively use `getActionInfo`

to extract the specification object from an environment with a hybrid action space). For this example, define the action space as having the discrete channel carrying a scalar that can take three values (labeled -1, 0, and 1), and the continuous channel carrying a vector in which each of the three elements can vary between -10 and 10. For an hybrid action space, the discrete channel must always be the first one, and the continuous channel must be the second one.

actInfo = [ rlFiniteSetSpec([-1 0 1]) rlNumericSpec([3 1], ... UpperLimit= 10*ones(3,1), ... LowerLimit=-10*ones(3,1) ) ];

An hybrid vector Q-value function takes the observations and the continuous action as inputs and returns as output a single vector with as many elements as the number of possible discrete actions. The value of each output element represents the expected discounted cumulative long-term reward when an agent executes the discrete action corresponding to the specific output number as well as the continuous action given in input, starting from the state corresponding to the observation (also given in input), and follows the given policy afterwards.

To model the parametrized vector Q-value function within the critic, use a neural network with two input layers (receiving the content of the observation and continuous action channels, as specified by `obsInfo`

and the second element of `actInfo`

), and one output layer (returning the vector of values for the possible discrete actions, as specified by the first element of `actInfo`

).

Define each network path as an array of layer objects, and get the dimension of the observation space and the number of possible actions from the environment specification objects.

Create the observation input path.

obsPath = [ featureInputLayer( ... prod(obsInfo.Dimension), ... Name="obsInLyr") fullyConnectedLayer(prod(obsInfo.Dimension)) reluLayer(Name="obsPthOutLyr") ];

Create the continuous action input path.

actCPath = [ featureInputLayer(prod(actInfo(2).Dimension), ... Name="actCInLyr") fullyConnectedLayer( ... prod(actInfo(2).Dimension)) reluLayer(Name="actCPthOutLyr") ];

Create common output path. Concatenate inputs along the first available dimension.

valuesPath = [ concatenationLayer(1,2,Name="valPthInLyr") fullyConnectedLayer(numel(actInfo(1).Elements)) reluLayer fullyConnectedLayer( ... numel(actInfo(1).Elements), ... Name="valPthOutLyr") ];

Assemble `dlnetwork`

object.

net = dlnetwork; net = addLayers(net,obsPath); net = addLayers(net,actCPath); net = addLayers(net,valuesPath);

Connect layers.

net = connectLayers(net,"obsPthOutLyr","valPthInLyr/in1"); net = connectLayers(net,"actCPthOutLyr","valPthInLyr/in2");

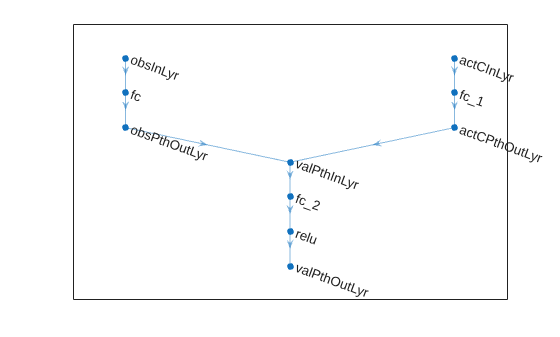

Plot network.

plot(net)

Initialize network.

net = initialize(net);

Display the number of learnable parameters.

summary(net)

Initialized: true Number of learnables: 68 Inputs: 1 'obsInLyr' 4 features 2 'actCInLyr' 3 features

Create the critic using the network, as well as the observation and action specification objects. When you use this syntax, the network input layers are automatically associated with the environment observation channels according to the dimensions specified in `obsInfo`

.

critic = rlVectorQValueFunction(net,obsInfo,actInfo)

critic = rlVectorQValueFunction with properties: ObservationInfo: [1x1 rl.util.rlNumericSpec] ActionInfo: [2x1 rl.util.RLDataSpec] Normalization: ["none" "none"] UseDevice: "cpu" Learnables: {8x1 cell} State: {0x1 cell}

To check your critic, use `getValue`

to return the values the discrete actions depending on a random observation and a random continuous action, using the current network weights. There is one value for each of the three possible actions.

```
v = getValue(critic, ...
{rand(obsInfo.Dimension),rand(actInfo(2).Dimension)})
```

`v = `*3x1 single column vector*
0.5603
-0.4927
0.3953

You can now use the critic to create an hybrid `rlSACAgent`

.

For more information on creating approximator objects such as actors and critics, see Create Policies and Value Functions.

### Create Hybrid Vector Q-Value Function Critic from Deep Neural Network Specifying Layer Names

Create an observation specification object (or alternatively use `getObservationInfo`

to extract the specification object from an environment). For this example, define the observation space as an hybrid (that is mixed discrete-continuous) space with the discrete channel carrying a scalar that can be either 0 or 1, and the second one being a vector over a continuous two-dimensional space.

obsInfo = [ rlFiniteSetSpec([0 1]) rlNumericSpec([2 1]) ];

Create a specification object for an hybrid action space (or alternatively use `getActionInfo`

to extract the specification object from an environment with a hybrid action space). For this example, define the action space as an hybrid space with the discrete channel carrying a scalar that can only be -1, 0, or 1, and with the continuous channel carrying a two-element vector. Note that when defining hybrid action spaces, you must define the discrete action channel as the first one and the continuous action channel as the second one.

actInfo = [ rlFiniteSetSpec([-1 0 1]) rlNumericSpec([2 1]) ];

A hybrid vector Q-value function takes the observations and the continuous action as inputs and returns as output a single vector with as many elements as the number of possible discrete actions. The value of each output element represents the expected discounted cumulative long-term reward for taking the discrete action corresponding to the element number and the continuous action given as input, from the state corresponding to the current observations, and following the policy afterwards.

To model the parametrized vector Q-value function within the critic, use a neural network with three input layers and one output layer.

The input layers receive the content of the two observation channels, as specified by

`obsInfo`

as well as the content of the continuous action channel, as specified by the second element of`actInfo`

. Therefore each input layer must have the same dimensions as the corresponding observation channel and an extra input layer must have the same dimensions of the continuous action channel, as specified by the second element of`actInfo`

.Each element of the output layer returns the value of the corresponding action. Therefore the output layer must have as many elements as the number of possible discrete actions, as specified by the first element of

`actInfo`

.

Define each network path as an array of layer objects, and get the dimension of the observation space and the number of possible actions from the environment specification objects. Name the network inputs `obs1InLyr`

, `obs2InLyr`

and `actCInLyr`

(so you can later explicitly associate it with the observation input channel).

Create the first observation input path.

obs1Path = [ featureInputLayer( ... prod(obsInfo(1).Dimension), ... Name="obs1InLyr") fullyConnectedLayer( ... prod(obsInfo(1).Dimension)) reluLayer(Name="obs1PthOutLyr") ];

Create the second observation input path.

obs2Path = [ featureInputLayer( ... prod(obsInfo(2).Dimension), ... Name="obs2InLyr") fullyConnectedLayer( ... prod(obsInfo(2).Dimension)) reluLayer(Name="obs2PthOutLyr") ];

Create the continuous action input path.

actCPath = [ featureInputLayer( ... prod(actInfo(2).Dimension), ... Name="actCInLyr") fullyConnectedLayer( ... prod(actInfo(2).Dimension)) reluLayer(Name="actCPthOutLyr") ];

Create common output path. Concatenate inputs along the first available dimension.

valuePath = [ concatenationLayer(1,3,Name="valPthInLyr") fullyConnectedLayer(numel(actInfo(1).Elements)) reluLayer fullyConnectedLayer( ... numel(actInfo(1).Elements), ... Name="valPthOutLyr") ];

Assemble `dlnetwork`

object.

net = dlnetwork; net = addLayers(net,obs1Path); net = addLayers(net,obs2Path); net = addLayers(net,actCPath); net = addLayers(net,valuePath);

Connect layers.

net = connectLayers(net,"obs1PthOutLyr","valPthInLyr/in1"); net = connectLayers(net,"obs2PthOutLyr","valPthInLyr/in2"); net = connectLayers(net,"actCPthOutLyr","valPthInLyr/in3");

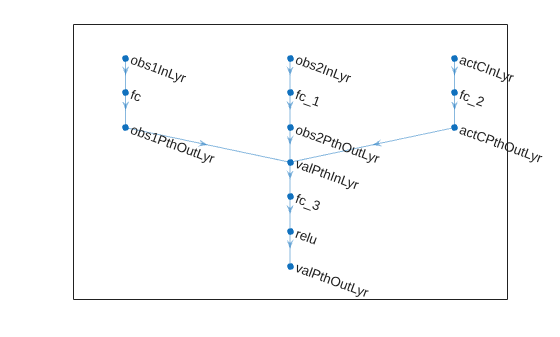

Plot network.

plot(net)

Initialize network.

net = initialize(net);

Display the number of learnable parameters.

summary(net)

Initialized: true Number of learnables: 44 Inputs: 1 'obs1InLyr' 1 features 2 'obs2InLyr' 2 features 3 'actCInLyr' 2 features

Create the critic using the network, the observations specification object, and the names of the network input layers. In this case, attempting to create a critic without using layer names will result in an error, because the dimension of the action channel is the same as the one of the continuous action channel, so the software is unable to unequivocally associate network layers with environment channels.

The specified network input layer, `obsInLyr`

, is associated with the environment observation, and therefore must have the same data type and dimension as the observation channel specified in `obsInfo`

.

critic = rlVectorQValueFunction(net,obsInfo,actInfo, ... ObservationInputNames={"obs1InLyr","obs2InLyr"}, ... ContinuousActionInputName="actCInLyr")

critic = rlVectorQValueFunction with properties: ObservationInfo: [2x1 rl.util.RLDataSpec] ActionInfo: [2x1 rl.util.RLDataSpec] Normalization: ["none" "none" "none"] UseDevice: "cpu" Learnables: {10x1 cell} State: {0x1 cell}

To check your critic, use `getValue`

to return the values the discrete actions depending on a random observation and a random continuous action, using the current network weights. There is one value for each of the three possible actions.

v = getValue(critic,{ ... rand(obsInfo(1).Dimension), ... rand(obsInfo(2).Dimension), ... rand(actInfo(2).Dimension) })

`v = `*3x1 single column vector*
0.5075
-0.2680
0.0327

Calculate the values of the discrete actions for a batch of five independent observations and continuous actions.

v = getValue(critic,{ ... rand([obsInfo(1).Dimension 5]), ... rand([obsInfo(2).Dimension 5]), ... rand([actInfo(2).Dimension 5]) })

`v = `*3x5 single matrix*
1.1344 0.4129 0.9857 0.7525 1.1961
-0.4883 -0.8504 -0.8007 -0.9811 -0.8754
0.1460 -0.7302 -0.1208 -0.4614 -0.0832

You can now use the critic to create an hybrid `rlSACAgent`

.

For more information on creating approximator objects such as actors and critics, see Create Policies and Value Functions.

### Create Hybrid Q-Value Function Critic from Custom Basis Function

Create an observation specification object (or alternatively use `getObservationInfo`

to extract the specification object from an environment). For this example, define the observation space as consisting of two channels, the first carrying a two-by-two continuous matrix and the second carrying scalar that can assume only two values, 0 and 1.

obsInfo = [ rlNumericSpec([2 2]) rlFiniteSetSpec([0 1]) ];

Create a hybrid action specification object (or alternatively use `getActionInfo`

to extract the specification object from an environment with a hybrid action space). For this example, define a hybrid action space in which the discrete part is a vector that can have three possible values: [1 2], [3 4], and [5 6], while the continuous part is a two-dimensional continuous vector in which each element can very between -5 and 5.

actInfo = [ rlFiniteSetSpec({[1 2],[3 4],[5 6]}) rlNumericSpec([2 1], ... UpperLimit= 5*ones(2,1), ... LowerLimit=-5*ones(2,1) ) ];

An hybrid vector Q-value function takes observations and the continuous action as inputs and returns as output a single vector with as many elements as the number of possible discrete actions. The value of each element of the output vector represents the expected discounted cumulative long-term reward when an agent executes the discrete action corresponding to the specific output number as well as the continuous action given in input, starting from the state corresponding to the observation (also given in input), and follows the given policy afterwards.

To model the parametrized vector Q-value function within the critic, use a custom basis function with three inputs and one output.

The first two inputs receive the content of the environment observation channels, as specified by

`obsInfo`

(for this example, a matrix and a scalar, respectively).The third input receives the content of the continuous action channel, as specified by the second element of

`actInfo`

, (for this example, a vector).The output is a vector with four elements (you can have as many elements as needed by your application).

Create a function that returns a vector of four elements, given the observations and the continuous action as inputs.

Here, the third dimension is the batch dimension. For each element of the batch dimension, the output of the basis function is a vector with four elements. Each output element can be any combination of the three inputs, depending on your application.

myBasisFcn = @(obsA,obsB,actC) [ obsA(1,1,:)+obsB(1,1,:).^2-actC(1,1,:); obsA(2,1,:)-obsB(1,1,:).^2-actC(2,1,:); obsA(1,2,:).^2+obsB(1,1,:)+actC(1,1,:); obsA(2,2,:).^2-obsB(1,1,:)+actC(2,1,:); ];

For each element of the batch, the output of the critic is the vector `c = W'*myBasisFcn(obsA,obsB,actC)`

, where `W`

is a weight matrix which must have as many rows as the length of the basis function output and as many columns as the number of possible discrete actions, as specified by the first element of `actInfo`

.

Each element of `c`

represents the expected cumulative long term reward when an agent executes the discrete action corresponding to number of the element in `c`

, as well as the continuous action given in input, starting from the state corresponding to the observations (also given in input), and follows the given policy afterwards.

The elements of `W`

are the learnable parameters.

Define an initial parameter matrix.

W0 = rand(4,3);

Create the critic. The first argument is a two-element cell containing both the handle to the custom function and the initial parameter matrix. The second and third arguments are, respectively, the observation and action specification objects.

critic = rlVectorQValueFunction({myBasisFcn,W0},obsInfo,actInfo)

critic = rlVectorQValueFunction with properties: ObservationInfo: [2x1 rl.util.RLDataSpec] ActionInfo: [2x1 rl.util.RLDataSpec] Normalization: ["none" "none" "none"] UseDevice: "cpu" Learnables: {[3x4 dlarray]} State: {}

To check your critic, use `getValue`

to return the values of a random observation, using the current parameter matrix. The function returns one value for each of the three possible actions.

v = getValue(critic,{rand(2,2),0,rand(2,1)})

`v = `*3x1 single column vector*
1.3972
1.0399
1.5082

Note that the critic does not enforce the set constraint for the discrete set elements.

v = getValue(critic,{rand(2,2),-1,rand(2,1)})

`v = `*3x1 single column vector*
2.2854
1.8893
2.5565

Obtain values for a random batch of 10 observations.

v = getValue(critic,{ ... rand([obsInfo(1).Dimension 10]), ... rand([obsInfo(2).Dimension 10]) ... rand([actInfo(2).Dimension 10]) ... });

Display the values corresponding to the seventh element of the observation batch.

v(:,7)

`ans = `*3x1 single column vector*
0.8710
0.7387
0.9314

You can now use the critic to create an agent for the environment described by the given specification objects.

You can now use the critic to create an hybrid `rlSACAgent`

.

### Create Discrete Vector Q-Value Function Critic from Recurrent Neural Network

Create an environment and obtain observation and action specification objects.

```
env = rlPredefinedEnv("CartPole-Discrete");
obsInfo = getObservationInfo(env);
actInfo = getActionInfo(env);
```

A discrete vector Q-value function takes only the observation as input and returns as output a single vector with as many elements as the number of possible actions. The value of each output element represents the expected discounted cumulative long-term reward for taking the action from the state corresponding to the current observation, and following the policy afterwards.

To model the parametrized vector Q-value function within the critic, use a recurrent neural network with one input layer (receiving the content of the observation channel, as specified by `obsInfo`

) and one output layer (returning the vector of values for all the possible actions, as specified by `actInfo`

).

Define the network as an array of layer objects, and get the dimension of the observation space and the number of possible actions from the environment specification objects. To create a recurrent network, use a `sequenceInputLayer`

as the input layer (with size equal to the number of dimensions of the observation channel) and include at least one `lstmLayer`

.

net = [ sequenceInputLayer(obsInfo.Dimension(1)) fullyConnectedLayer(50) reluLayer lstmLayer(20) fullyConnectedLayer(20) reluLayer fullyConnectedLayer(numel(actInfo.Elements)) ];

Convert the network to a `dlnetwork`

object, and display the number of weights.

net = dlnetwork(net); summary(net)

Initialized: true Number of learnables: 6.3k Inputs: 1 'sequenceinput' Sequence input with 4 dimensions

Create the critic using the network, as well as the observation and action specification objects.

```
critic = rlVectorQValueFunction(net, ...
obsInfo,actInfo);
```

To check your critic, use `getValue`

to return the value of a random observation and action, using the current network weights.

v = getValue(critic,{rand(obsInfo.Dimension)})

`v = `*2x1 single column vector*
0.0136
0.0067

You can use dot notation to extract and set the current state of the recurrent neural network in the critic.

critic.State

`ans=`*2×1 cell array*
{20x1 dlarray}
{20x1 dlarray}

critic.State = { -0.1*dlarray(rand(20,1)) 0.1*dlarray(rand(20,1)) };

To evaluate the critic using sequential observations, use the sequence length (time) dimension. For example, obtain actions for 5 independent sequences each one consisting of `9`

sequential observations.

```
[value,state] = getValue(critic, ...
{rand([obsInfo.Dimension 5 9])});
```

Display the value corresponding to the seventh element of the observation sequence in the fourth sequence.

value(1,4,7)

`ans = `*single*
0.0382

Display the updated state of the recurrent neural network.

state

`state=`*2×1 cell array*
{20x5 single}
{20x5 single}

You can now use the critic to create an agent for the environment described by the given specification objects. Examples of agents that can use a vector Q-value function critic, are `rlQAgent`

, `rlDQNAgent`

, `rlSARSAAgent`

, and discrete action space `rlSACAgent`

.

## Version History

**Introduced in R2022a**

## See Also

### Functions

### Objects

## Comando de MATLAB

Ha hecho clic en un enlace que corresponde a este comando de MATLAB:

Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
