pcbComponent
Description
Use the pcbComponent
object to create a multiport PCB component
consisting of metal and dielectric layers.
Creation
Description
pcb = pcbComponent
creates a two-port PCB component.
pcb = pcbComponent(Name=Value)
sets Properties using one or more
name-value arguments. For example, pcb =
pcbComponent(Name=PCBWilkinson)
creates a PCB component named
'PCBWilkinson'
Properties not specified retain their default
values.
Properties
Name
— Name of PCB component
'MyPCB'
(default) | character vector | string scalar
Name of the PCB component, specified a character vector or string scalar.
Example: component =
pcbComponent(Name='PCBsplitter')
Data Types: char
| string
Revision
— Revision details
'v1.0'
(default) | character vector | string scalar
Design revision details of the PCB component, specified as a character vector or string scalar.
Example: component = pcbComponent(Revision='v2.0')
Data Types: char
| string
BoardShape
— Shape of PCB
traceRectangular
(default) | object
Shape of the PC board, specified as a shape object. You can specify any one of the shapes from Custom Geometry and PCB Fabrication.
Example: trace = tracerectangular; component =
pcbComponent(BoardShape=trace)
creates a rectangle shaped trace on a
PCB.
Data Types: char
| string
BoardThickness
— Height of PCB component
0.0016
(default) | positive scalar
Height of the PCB component, specified as a positive scalar in meters. To understand
more about BoardThickness
, see Board Thickness versus Dielectric Thickness in PCB.
Example: component =
pcbComponent(BoardThickness=0.0026)
Data Types: double
Layers
— Metal and dielectric layers
{[1×1 traceRectangular] [1×1 dielectric] [1×1
traceRectangular]}
(default) | cell array of metal and dielectric layers
Metal and dielectric layers, specified a cell array of metal and dielectric layers. You can specify one metal shape or one dielectric substrate per layer starting with the top layer and proceeding downward.
Data Types: cell
FeedLocations
— Feed locations on PCB component
[2×4 double]
(default) | N-by-3 array | N-by-4 array
Feed locations on the PCB component in Cartesian coordinates, specified as either an N-by-3 or N-by-4 array with N representing the number for ports on the PCB component. You can place the feed inside the board or at the edge of the board. The arrays translate into the following:
N-by-3 – [x, y, Layer]
N-by-4 – [x, y, SigLayer, GndLayer]
Example: component = pcbComponent(FeedLocations=[-0.0187 0 1
2])
Data Types: double
FeedDiameter
— Diameter of center pin of feed connector
0.0025
(default) | positive scalar
Diameter of center pin of the feed connector, specified as a positive scalar in meters.
Example: component =
pcbComponent(FeedDiameter=2.000e-04)
Data Types: double
ViaLocations
— Electrical short locations on PCB component
real vector of size M-by-4 array
Electrical short locations on the PCB component in Cartesian coordinates, specified as a real vector of size M-by-4 array. The array translates into the following:
M-by-4 – [x, y, SigLayer, GndLayer]
Example: component = pcbComponent(ViaLocations=[0 -0.025 1
2])
Data Types: double
ViaDiameter
— Diameter of electrical shorting pin used between metal layers
positive scalar | positive vector
Diameter of electrical shorting pin used between metal layers, specified as a positive scalar in meters for a single pin or a positive vector in meters for multiple pins. Number of values specified in this property must match the number of pins.
Example: component =
pcbComponent(ViaDiameter=1.0e-3)
Data Types: double
FeedViaModel
— Model for approximating feed and via
'strip'
(default) | 'square'
| 'hexagon'
| 'octagon'
Model for approximating the feed and via, specified as one of the following:
'strip'
– A rectangular strip approximation to the feed and via cylinder. This approximation is the simplest and results in a small mesh.'square'
– A four-sided polyhedron approximation to the feed and via cylinder.'hexagon'
– A six-sided polyhedron approximation to the feed and via cylinder.'octagon'
– A eight-sided polyhedron approximation to the feed and via cylinder.
Example: component =
pcbComponent(FeedViaModel='octagon')
Data Types: char
| string
Conductor
— Type of metal material
'PEC'
(default) | metal
object
Type of the metal used as a conductor, specified as a metal
object.
You can choose any metal from the MetalCatalog
or specify a metal of your choice. For more information, see metal
. For
more information on metal conductor meshing, see Method of Moments Solver for Metal and Dielectric Structures.
Example: m = metal('Copper'); component =
pcbComponent(Conductor=m)
Load
— Lumped elements
[1x1 LumpedElement] (default) | lumped element object handle
Lumped elements added to the PCB component feed, specified as a lumped element
object handle. For more information, see lumpedElement
(Antenna Toolbox)
Antenna Toolbox™.
Example: Load = lumpedelement
. lumpedelement
is
the object handle for the load created using
lumpedElement
.
Tilt
— Tilt angle of PCB component along Z-axis
0
(default) | scalar
Tilt angle of the PCB component along Z-axis, specified as a scalar or vector with each element unit in degrees.
Example: Tilt=90
Example: pcb.Tilt = 90
Data Types: double
TiltAxis
— Tilt axis of PCB component
[0 0 1]
(default) | 'Z'
Tilt axis of the PCB component, specified as [0 0 1]
or
'Z'
.
Example: pcb.TiltAxis = 'Z'
Data Types: double
Object Functions
current | Calculate and plot current distribution |
charge | Calculate and plot charge distribution |
feedCurrent | Calculate current at feed port |
gerberWrite | Generate Gerber files |
layout | Plot all metal layers and board shape |
mesh | Change and view mesh properties of metal or dielectric in PCB component |
meshconfig | Change mesh mode of PCB component or shape structure |
sparameters | Calculate S-parameters for RF PCB objects |
show | Display PCB component structure or PCB shape |
Examples
Create Default PCB Component and Plot S-Parameters
Create a PCB component using default properties.
pcb = pcbComponent;

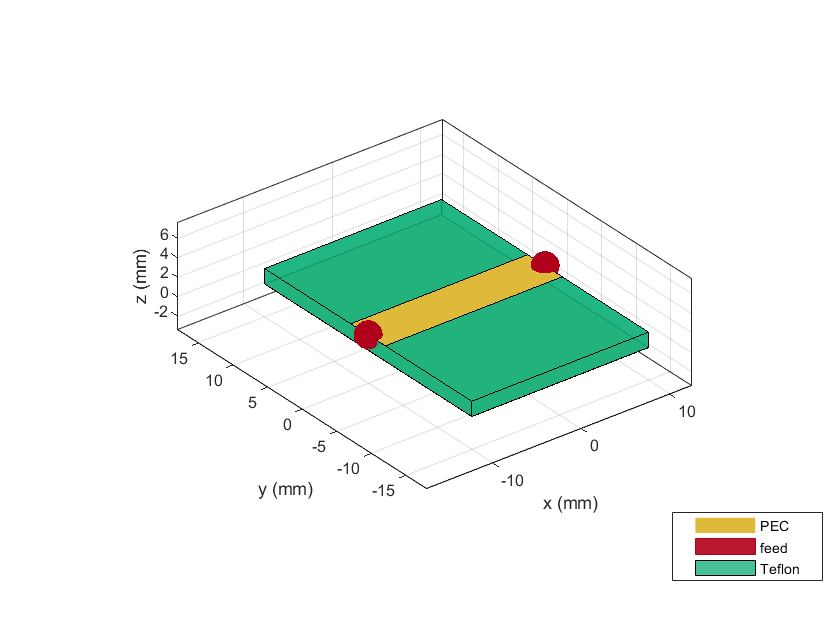

View the PCB component.
show(pcb)
Calculate S-parameters over 10 frequencies from 1-5 GHz.
s=sparameters(pcb,linspace(1e9,5e9,10));

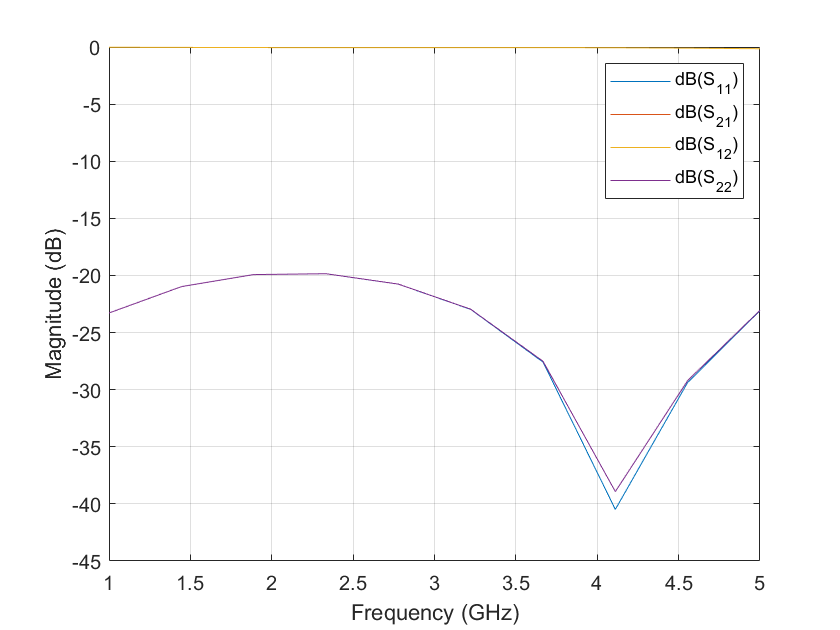

Plot the S-parameters.
rfplot(s)
Create PCB Component with Lid on Top
Create a PCB component with a lid at a distance of 2 cm above the component.
p = pcbComponent;
pcblid = traceRectangular(Length=p.Layers{1}.Length,Width=p.Layers{3}.Width);
dAir = dielectric('Air');
dAir.Thickness = 2e-2;
p.BoardThickness = p.BoardThickness + dAir.Thickness;
p.Layers = {pcblid,dAir,p.Layers{1},p.Layers{2},p.Layers{3}};
p.FeedLocations(:,3:4) = [3 5;3 5];
show(p)
Calculate the S-parameters over the 10 frequencies from 1-5 GHz.
s = sparameters(p,linspace(1e9,5e9,10)); rfplot(s)
Version History
Introduced in R2021b
