Personalizar System objects para Simulink

Personalice System object™ para usarlo en un bloque MATLAB System

El bloque MATLAB System permite utilizar un System object definido en MATLAB^® como bloque en Simulink^®. Para controlar el aspecto o la salida del bloque o para habilitar el uso del System object en un subsistema For Each, utilice los métodos de implementación proporcionados para personalizar su System object. Para obtener más información sobre cómo definir un System object, consulte Define Basic System Objects o System objects.

Métodos

expandir todo

Aspecto del bloque

`getIconImpl`	Name to display as block icon
`getHeaderImpl`	Header for System object display
`getInputNamesImpl`	Names of MATLAB System block input ports
`getOutputNamesImpl`	Names of MATLAB System block output ports
`getPropertyGroupsImpl`	Property groups for System object display
`getSimulateUsingImpl`	Specify value for Simulate using parameter
`showSimulateUsingImpl`	Visibility of Simulate using parameter
`showFiSettingsImpl`	Fixed point data type tab visibility for System objects

Entrada y salida

`allowModelReferenceDiscreteSampleTimeInheritanceImpl`	Model reference sample time inheritance status for discrete sample times
`getGlobalNamesImpl`	Global variable names for MATLAB System block
`getDiscreteStateImpl`	Discrete state property values
`getDiscreteStateSpecificationImpl`	Discrete state size, data type, and complexity
`getOutputDataTypeImpl`	Data types of output ports
`getOutputSizeImpl`	Sizes of output ports
`getSimulinkFunctionNamesImpl`	Register Simulink function names used in your System object
`getInterfaceImpl`	Set System object as message or data
`isOutputComplexImpl`	Complexity of output ports
`isOutputFixedSizeImpl`	Fixed- or variable-size output ports
`processTunedPropertiesImpl`	Action when tunable properties change
`propagatedInputComplexity`	Complexity of input during Simulink propagation
`propagatedInputDataType`	Data type of input during Simulink propagation
`propagatedInputFixedSize`	Fixed-size status of input during Simulink propagation
`propagatedInputSize`	Size of input during Simulink propagation

Alimentación no directa

`isInputDirectFeedthroughImpl`	Direct feedthrough status of input
`outputImpl`	Output calculation from input or internal state of System object
`updateImpl`	Update object states based on inputs

Tiempo de muestreo

`createSampleTime`	Create sample time specification object
`getSampleTimeImpl`	Specify sample time type, offset time, and sample time
`getSampleTime`	Query sample time
`getCurrentTime`	Tiempo de simulación actual en el bloque MATLAB System
`setNumTicksUntilNextHit`	Set the number of ticks in Simulink sample time

For Each Subsystems

supportsMultipleInstanceImpl Support System object in Simulink For Each subsystem

Clases

expandir todo

Aspecto del bloque

`matlab.system.display.Icon`	Specify custom image as icon for MATLAB System block
`matlab.system.display.Action`	Create custom button in Block Parameters dialog box for MATLAB System block
`matlab.system.display.Header`	Specify header in Block Parameters dialog box for MATLAB System block
`matlab.system.display.Section`	Create property group section in Block Parameters dialog box for MATLAB System block
`matlab.system.display.SectionGroup`	Create nested groupings of properties in Block Parameters dialog box for MATLAB System block

Temas

Visión general

Define System Object for Use in Simulink
Develop MATLAB System block and interactively preview block dialog box.
System Design in Simulink Using System Objects
Design systems in Simulink using System objects.

Aspecto del bloque

Customize MATLAB System Icon and Dialog Box Using Mask Editor
Customize MATLAB System block appearance using Mask Editor graphical user interface.

Entrada y salida

Set Model Reference Discrete Sample Time Inheritance
Disallow model reference discrete sample time inheritance for a System object.
Use Global Variables in System Objects
Define global variables for use in System objects.
Specify Output
If Simulink cannot infer the System object output characteristics, add methods to specify the size, data type, complexity, or discrete state output.

Casos prácticos especiales

Use Update and Output for Nondirect Feedthrough
Implement nondirect feedthrough for a System object using the updateImpl, outputImpl, and isInputDirectFeedthroughImpl methods.
Enable For Each Subsystem Support
Enable For Each subsystem support by using a System object in a Simulink For Each subsystem.
Specify Sample Time for MATLAB System Block System Objects
This example shows how to control the sample time of the MATLAB System block using System object™ methods.

Información relacionada

System objects

Ejemplos destacados

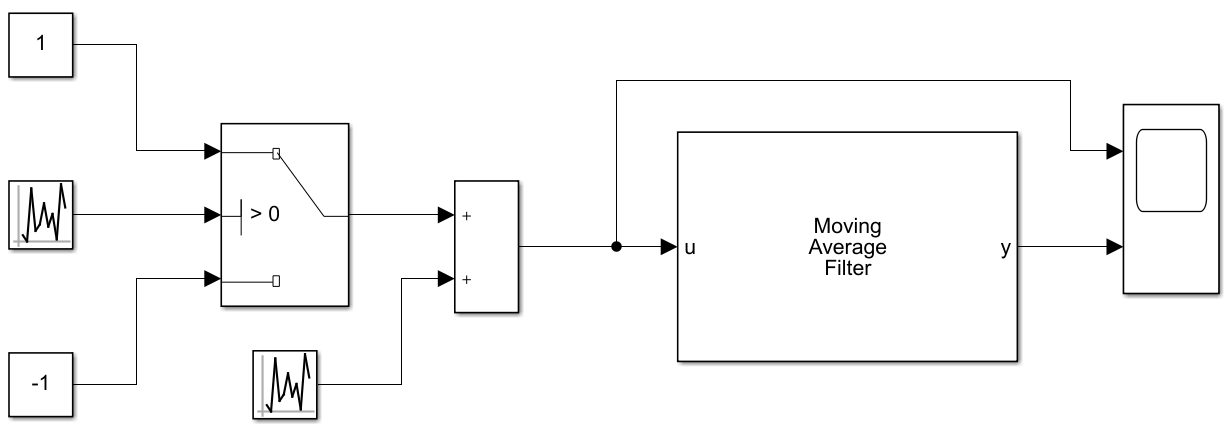

Create Moving Average Filter Block with System Object

Modify a System object to use it in Simulink.

Abrir script en vivo

Process Message Payload Using MATLAB System Block

Send, receive, and process messages using the MATLAB System block. Use System objects to author blocks to model custom behavior to send and receive messages and manipulate the message payload.

Abrir modelo
