incrementalPCA

Incremental principal component analysis

Since R2024a

    Description

    The incrementalPCA function creates an incrementalPCA model object that is suitable for incremental principal component analysis (PCA). Unlike the pca function, for which you must provide all of the data before computing the principal component coefficients, incrementalPCA allows you to update the coefficients incrementally by supplying chunks of data to the incremental fit function.

    Unlike other Statistics and Machine Learning Toolbox™ model objects, incrementalPCA can be called directly. Also, you can specify incremental PCA options, such as the estimation period, warm-up period, variable weights, and whether to standardize the predictor data before fitting the model to data. After you create an incrementalPCA object, it is prepared for incremental PCA.

    Creation

    You can create an incrementalPCA model object in two ways:

    • Call the function directly — Configure incremental PCA options by calling incrementalPCA directly. This approach is best when you do not have data yet or you want to start incremental PCA immediately. When you call incrementalPCA, you can specify principal component coefficients and variances so that the initial model is warm.

    • Call the incremental fit functionfit accepts a configured incrementalPCA model object and data as input, and returns an incrementalPCA model object updated with information computed from the input model and data.

    Description

    IncrementalMdl = incrementalPCA returns a default incremental PCA model object IncrementalMdl. Properties of a default model contain placeholders for unknown model parameters.

    IncrementalMdl = incrementalPCA(Name=Value) sets properties and additional options using name-value arguments. For example, incrementalPCA(StandardizeData=true,EstimationPeriod=1000) specifies to standardize the predictor data using a hyperparameter estimation period of 1000 observations.

    example

    Input Arguments

    expand all

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: IncrementalMdl = incrementalPCA(StandardizeData=true,CenterData=true) specifies to standardize and center the values of each variable.

    Flag to center the data, specified as logical 0 (false) or 1 (true). If CenterData=true, the incremental fit function estimates the predictor means Mu during the estimation period specified by EstimationPeriod and subtracts them from the data before computing singular value decomposition or eigenvalue decomposition.

    If you specify CenterData=true, the number of degrees of freedom is NumTrainingObservations – 1. Otherwise, the number of degrees of freedom is NumTrainingObservations.

    If you specify StandardizeData=true, the software sets CenterData=true.

    You cannot specify CenterData if you specify Coefficients and Latent.

    Example: CenterData=true

    Data Types: logical

    Column means, specified as a numeric row vector.

    If you specify Means:

    Example: Means=[0 0 0.5 0.5 0.5]

    Data Types: single | double

    Number of observations, specified as a positive integer.

    If you specify NumObservations, you must also specify Coefficients and Latent.

    If you also specify Means, the number of degrees of freedom is NumObservations + NumTrainingObservations – 1. Otherwise, the number of degrees of freedom is NumObservations + NumTrainingObservations.

    Example: NumObservations=100

    Data Types: single | double

    Flag to standardize the predictor data, specified as logical 0 (false) or 1 (true). If StandardizeData=true, the incremental fit function estimates the predictor means Mu and standard deviations Sigma during the estimation period specified by EstimationPeriod, and standardizes the predictor data.

    If you specify StandardizeData=true, the number of degrees of freedom is NumTrainingObservations - 1. Otherwise, the number of degrees of freedom is NumTrainingObservations.

    You cannot specify StandardizeData if you specify Coefficients and Latent.

    Example: StandardizeData=true

    Data Types: logical

    Properties

    expand all

    You can set most properties by using name-value argument syntax when you call incrementalPCA directly. You cannot set the properties ExplainedVariance, IsWarm, Mu, NumTrainingObservations, and Sigma.

    This property is read-only.

    Principal component coefficients, specified as a p-by-n numeric matrix, where p is equal to NumPredictors and n is equal to NumComponents. If you specify Coefficients as a p-by-n numeric matrix when creating the model object, incrementalPCA sets NumPredictors=p and NumComponents=n. Each column of Coefficients contains coefficients for one principal component.

    The incremental fit function updates Coefficients and reorders the columns in descending order by the principal component variances (see Latent). If NumTrainingObservations < NumComponents, the rightmost NumComponents - NumTrainingObservations columns of Coefficients are 0.

    When you specify Coefficients:

    • You must also specify Latent.

    • If you also specify Latent, and VariableWeights, then Coefficients'*diag(VariableWeights)*Coefficients must be orthonormal.

    • If you do not specify Means and NumObservations, then Coefficients must be a square matrix.

    If you do not specify Coefficients and Latent, then Coefficients is equal to zeros(NumPredictors,NumComponents) by default.

    Example: Coefficients=0.1*eye(5)

    Example: Mdl=incrementalPCA(Coefficients=coeff,Latent=latent,Means=mu,NumObservations=1000) creates an incremental PCA object Mdl using the outputs returned by [coeff,~,latent,~,~,mu]=pca(X).

    Example: Mdl=incrementalPCA(Coefficients=coeff,Latent=latent) creates an incremental PCA object Mdl using the outputs returned by [coeff,latent]=pcacov(V).

    Data Types: single | double

    This property is read-only.

    Principal component variances, namely the eigenvalues of the covariance matrix of the predictor data, specified as a numeric column vector. The software sets the length of Latent to NumComponents.

    If you specify Latent:

    • You must also specify Coefficients.

    • The elements of Latent must have non-increasing values.

    • If you do not specify Means and NumObservations, the length of Latent must equal the number of rows in Coefficients.

    The incremental fit function updates Latent and reorders the columns in descending order by the principal component variances. If NumTrainingObservations < NumComponents, the rightmost NumComponents - NumTrainingObservations columns of Latent are 0.

    If you do not specify Latent and Coefficients when you create IncrementalMdl, then Latent is equal to zeros(NumComponents,1) by default.

    Example: Latent=0.5*ones(5,1)

    Example: Mdl=incrementalPCA(Coefficients=coeff,Latent=latent,Means=mu,NumObservations=1000) creates an incremental PCA object Mdl using the outputs returned by [coeff,~,latent,~,~,mu]=pca(X).

    Example: Mdl=incrementalPCA(Coefficients=coeff,Latent=latent) creates an incremental PCA object Mdl using the outputs returned by [coeff,latent]=pcacov(V).

    Data Types: single | double

    This property is read-only.

    Number of observations processed by the incremental model to estimate hyperparameters (Mu and Sigma), specified as a nonnegative integer.

    • If you specify a positive EstimationPeriod, and both StandardizeData and CenterData are false, incrementalPCA sets EstimationPeriod to 0.

    • If IncrementalMdl is prepared for incremental PCA (all hyperparameters required for training are specified), incrementalPCA sets EstimationPeriod to 0.

    • If IncrementalMdl is not prepared for incremental PCA, and either StandardizeData or CenterData is true, incrementalPCA sets EstimationPeriod to 1000 and estimates the unknown hyperparameters.

    • When processing observations during the estimation period, the software ignores observations that contain at least one missing value.

    For more details, see Estimation Period.

    Data Types: single | double

    This property is read-only.

    Percentage of the total variance explained by each principal component, specified as a numeric column vector. The columns are in descending order by the principal component variances. The length of ExplainedVariance equals NumComponents. The values of ExplainedVariance add up to 100% if NumPredictors and NumComponents are equal. If NumTrainingObservations < NumComponents, the last NumComponents - NumTrainingObservations elements of ExplainedVariance are 0.

    You cannot specify ExplainedVariance directly.

    Data Types: single | double

    This property is read-only.

    Flag indicating whether the incremental fit function returns transformed data, specified as logical 0 (false) or 1 (true).

    If IsWarm is false, the Xtransformed output of fit consists of NaN values.

    The incremental model IncrementalMdl is warm (IsWarm is true) if you specify Coefficients and Latent when you create IncrementalMdl. Otherwise, IsWarm becomes true after the incremental fit function fits the incremental model to WarmupPeriod observations.

    If EstimationPeriod > 0, then during the estimation period, fit does not fit the model and IsWarm is false.

    You cannot specify IsWarm directly.

    Data Types: logical

    This property is read-only.

    Predictor means, specified as a numeric vector.

    If Mu is an empty array [] and you specify CenterData=true or StandardizeData=true, then the incremental fit function sets Mu to the predictor variable means estimated during the estimation period specified by EstimationPeriod.

    You cannot specify Mu directly. However, if you specify Means and NumObservations when you create IncrementalMdl, then incrementalPCA sets Mu to the values in Means.

    Data Types: single | double

    This property is read-only.

    Number of principal components to keep after fitting the model, specified as a nonnegative integer.

    If you specify NumComponents:

    If you specify VariableWeights and do not specify NumComponents, then incrementalPCA sets NumComponents to be equal to the length of VariableWeights.

    If you specify Coefficients and Latent, incrementalPCA sets NumComponents to be equal to the number of rows of Coefficients and the length of Latent.

    Example: NumComponents=3

    Data Types: single | double

    This property is read-only.

    Number of predictor variables used to fit the model, specified as a nonnegative integer.

    If you specify NumPredictors:

    • You cannot specify Coefficients and Latent.

    • The default value of NumComponents is NumPredictors.

    • NumComponents, if specified, must be less than or equal to NumPredictors.

    If you specify VariableWeights, incrementalPCA sets NumPredictors to be equal to the length of VariableWeights.

    If you specify Coefficients and Latent, incrementalPCA sets NumPredictors to be equal to the number of rows of Coefficients and the length of Latent.

    Data Types: single | double

    This property is read-only.

    Number of observations fit to the incremental model IncrementalMdl, specified as a nonnegative numeric scalar. NumTrainingObservations increases when you pass IncrementalMdl and training data to fit outside of the estimation period.

    When fitting the model, the software ignores observations that contain at least one missing value.

    You cannot specify NumTrainingObservations directly.

    Data Types: double

    This property is read-only.

    Predictor standard deviations, specified as a numeric vector.

    If Sigma is an empty array [] and you specify StandardizeData=true, the incremental fit function sets Sigma to the predictor variable standard deviations estimated during the estimation period specified by EstimationPeriod.

    You cannot specify Sigma directly.

    Data Types: single | double

    This property is read-only.

    Variable weights, specified as a row vector of positive scalar values.

    If you specify VariableWeights, incrementalPCA sets NumPredictors and NumComponents to be equal to the length of VariableWeights.

    If you specify VariableWeights, Coefficients, and Latent, then Coefficients'*diag(VariableWeights)*Coefficients must be orthonormal.

    Example: VariableWeights=0.2*ones(5,1)

    Data Types: single | double

    This property is read-only.

    Number of observations to which the model must be fit before it is warm, meaning that the incremental fit function returns transformed data, specified as a nonnegative integer. When processing observations during the warm-up period, the software ignores observations that contain at least one missing value.

    • If WarmupPeriod < NumComponents, incrementalPCA sets WarmupPeriod to NumComponents.

    • If IncrementalMdl is prepared for incremental PCA (all hyperparameters required for training are specified), incrementalPCA sets WarmupPeriod to 0.

    • If IncrementalMdl is not prepared for incremental PCA and StandardizeData is true, incrementalPCA sets WarmupPeriod to 1000 and estimates the unknown hyperparameters.

    Data Types: single | double

    Object Functions

    fitFit principal component analysis model to streaming data
    transformTransform data into principal component scores
    resetReset incremental principal component analysis model

    Examples

    collapse all

    Perform principal component analysis (PCA) on an initial data chunk, and then create an incremental PCA model that incorporates the results of the analysis. Fit the incremental model to streaming data and analyze how the model evolves during training.

    Load and Preprocess Data

    Load the human activity data set.

    load humanactivity

    For details on the human activity data set, enter Description at the command line.

    The data set includes observations containing 60 variables. To simulate streaming data, split the data set into an initial chunk of 1000 observations and a second chunk of 10,000 observations.

    Xinitial = feat(1:1000,:);
    Xstream = feat(1001:11000,:);

    Perform Initial PCA

    Perform PCA on the initial data chunk by using the pca function. Specify to center the data and keep 10 principal components. Return the principal component coefficients (coeff), principal component variances (latent), and estimated means of the variables (mu).

    [coeff,~,latent,~,~,mu]=pca(Xinitial,Centered=true,NumComponents=10);

    Create Incremental PCA Model

    Create a model for incremental PCA that incorporates the PCA results from the initial data chunk.

    IncrementalMdl = incrementalPCA(Coefficients=coeff,Latent=latent, ...
        Means=mu,NumObservations=1000);
    details(IncrementalMdl)
      incrementalPCA with properties:

                         IsWarm: 1
        NumTrainingObservations: 0
                   WarmupPeriod: 0
                             Mu: [0.7764 0.4931 -0.3407 0.1108 0.0707 0.0485 0.3931 -1.1100 0.0646 0.1703 -1.1020 0.0283 0.0836 -1.0797 0.0139 0.9328 1.2892 1.6731 2.0729 2.5181 2.9511 0.0128 0.0062 0.0039 0.0027 0.0020 0.0016 0.9322 ... ] (1x60 double)
                          Sigma: []
              ExplainedVariance: [10x1 double]
               EstimationPeriod: 0
                         Latent: [10x1 double]
                   Coefficients: [60x10 double]
                VariableWeights: [1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1]
                  NumComponents: 10
                  NumPredictors: 60


    IncrementalMdl is an incrementalPCA model object. All its properties are read-only. Because Coefficients and Latent are specified, the model is warm, meaning that the fit function returns transformed observations.

    Fit Incremental Model

    Fit the incremental model IncrementalMdl to the data by using the fit function. To simulate a data stream, fit the model in chunks of 100 observations at a time. At each iteration:

    • Process 100 observations.

    • Overwrite the previous incremental model with a new one fitted to the incoming observations.

    • Store topEV, the explained variance value of the component with the highest variance, to see how it evolves during incremental fitting.

    n = numel(Xstream(:,1));
    numObsPerChunk = 100;
    nchunk = floor(n/numObsPerChunk);
    topEV = zeros(nchunk,1);

    % Incremental fitting
    for j = 1:nchunk
        ibegin = min(n,numObsPerChunk*(j-1) + 1);
        iend = min(n,numObsPerChunk*j);
        IncrementalMdl = fit(IncrementalMdl,Xstream(ibegin:iend,:));
        topEV(j) = IncrementalMdl.ExplainedVariance(1);
    end

    IncrementalMdl is an incrementalPCA model object fitted to all the data in the stream. The fit function fits the model to the data chunk and updates the model properties.

    Analyze Incremental Model During Training

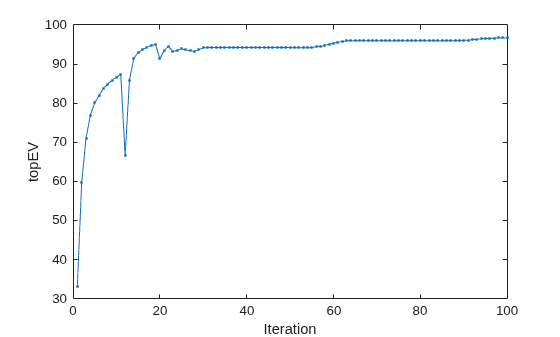

    Plot the explained variance value of the component with the highest variance to see how it evolves during training.

    figure
    plot(topEV,".-")
    ylabel("topEV")
    xlabel("Iteration")
    xlim([0 nchunk])

    Figure contains an axes object. The axes object with xlabel Iteration, ylabel topEV contains an object of type line.

    The highest explained variance value is 33% after the first iteration, and rapidly rises to 80% after five iterations. The value then gradually approaches 97%.

    Create a model for incremental principal component analysis (PCA) and a default incremental linear SVM model for binary classification. Fit the incremental models to streaming data and analyze how the principal components, model parameters, and performance metrics evolve during training. Use the final models to predict activity labels.

    Load and Preprocess Data

    Load the human activity data set. Randomly shuffle the data.

    load humanactivity
    n = numel(actid);
    rng(0,"twister") % For reproducibility
    idx = randsample(n,n);
    X = feat(idx,:);
    Y = actid(idx);

    For details on the human activity data set, enter Description at the command line.

    Responses can be one of five classes: Sitting, Standing, Walking, Running, or Dancing. Dichotomize the response by identifying whether the subject is moving (actid > 2).

    Y = Y > 2;

    Specify the first 20,000 observations and labels as streaming data, and the remaining observations and labels as test data.

    n = 20000;
    Xstream = X(1:n,:);
    Ystream = Y(1:n,:);
    Xtest = X(n+1:end,:);
    Ytest = Y(n+1:end,:);

    Create Incremental Models

    Create a model for incremental PCA. Specify to standardize the data, keep 3 principal components, and set a warm-up period of 2000 observations.

    IncrementalPCA = incrementalPCA(StandardizeData=true, ...
        NumComponents=3,WarmupPeriod=2000);
    details(IncrementalPCA)
      incrementalPCA with properties:

                         IsWarm: 0
        NumTrainingObservations: 0
                   WarmupPeriod: 2000
                             Mu: []
                          Sigma: []
              ExplainedVariance: [3x1 double]
               EstimationPeriod: 1000
                         Latent: [3x1 double]
                   Coefficients: [0x3 double]
                VariableWeights: [1x0 double]
                  NumComponents: 3
                  NumPredictors: 0


    IncrementalPCA is an incrementalPCA model object. All its properties are read-only. By default, the software sets the hyperparameter estimation period to 1000 observations. The incremental PCA model must be warm (all hyperparameters are estimated) before the fit function returns transformed observations.

    Create a default incremental linear SVM model for binary classification by using the incrementalClassificationLinear function.

    IncrementalLinear = incrementalClassificationLinear;
    details(IncrementalLinear)
      incrementalClassificationLinear with properties:

                        Learner: 'svm'
                         Solver: 'scale-invariant'
                      BatchSize: 1
                           Beta: [0x1 double]
                           Bias: 0
                        FitBias: 1
                     FittedLoss: 'hinge'
                         Lambda: NaN
                      LearnRate: 1
              LearnRateSchedule: 'constant'
                             Mu: []
                          Sigma: []
                  SolverOptions: [1x1 struct]
               EstimationPeriod: 0
                     ClassNames: [0x1 double]
                          Prior: [1x0 double]
                 ScoreTransform: 'none'
                  NumPredictors: 0
        NumTrainingObservations: 0
            MetricsWarmupPeriod: 1000
              MetricsWindowSize: 200
                         IsWarm: 0
                        Metrics: [1x2 table]


    IncrementalLinear is an incrementalClassificationLinear model object. All its properties are read-only. IncrementalLinear must be fit to data before you can use it to perform any other operations. By default, the software sets the metrics warm-up period to 1000 observations and the metrics window size to 200 observations.

    Fit Incremental Models

    Fit the IncrementalPCA and IncrementalLinear models to the streaming data by using the fit and updateMetricsAndFit functions, respectively. To simulate a data stream, fit each model in chunks of 50 observations at a time. At each iteration:

    • Process 50 observations.

    • Overwrite the previous incremental PCA model with a new one fitted to the incoming observations.

    • Return the transformed observations Xtr.

    • Overwrite the previous incremental classification model with a new one fitted to the incoming transformed observations.

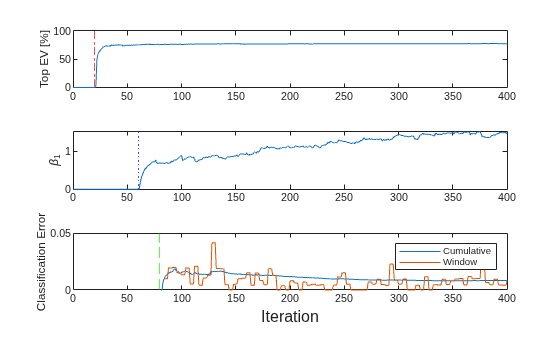

    • Store β1, the cumulative metrics, and the window metrics to see how they evolve during incremental learning.

    • Store topEV, the explained variance of the component with the highest variance, to see how it evolves during incremental learning.

    numObsPerChunk = 50;
    nchunk = floor(n/numObsPerChunk);
    ce = array2table(zeros(nchunk,2),"VariableNames",["Cumulative" "Window"]);
    beta1 = zeros(nchunk,1);
    topEV = zeros(nchunk,1);

    % Incremental learning
    for j = 1:nchunk
        ibegin = min(n,numObsPerChunk*(j-1) + 1);
        iend = min(n,numObsPerChunk*j);
        [IncrementalPCA,Xtr] = fit(IncrementalPCA,Xstream(ibegin:iend,:));
        IncrementalLinear = updateMetricsAndFit(IncrementalLinear,Xtr, ...
            Ystream(ibegin:iend));
        beta1(j + 1) = IncrementalLinear.Beta(1);
        ce{j,:} = IncrementalLinear.Metrics{"ClassificationError",:};
        topEV(j + 1) = IncrementalPCA.ExplainedVariance(1);
    end

    During the incremental PCA estimation and warm-up periods, the fit function returns the transformed observations as NaNs. After the PCA estimation period and warm-up period, updateMetricsAndFit fits the linear coefficient estimates β using the transformed observations. After the metrics warm-up period, IncrementalLinear is warm, and updateMetricsAndFit checks the performance of the model on the incoming transformed observations, and then fits the model to those observations.

    Analyze Incremental Models During Training

    To see how the highest explained variance, β1, and performance metrics evolve during training, plot them on separate tiles.

    figure
    t = tiledlayout(3,1);
    nexttile
    plot(topEV)
    ylabel("Top EV [%]")
    xline(IncrementalPCA.EstimationPeriod/numObsPerChunk,"r-.")
    xlim([0 nchunk])
    ylim([0 100])
    nexttile
    plot(beta1)
    ylabel("\beta_1")
    xline((IncrementalPCA.WarmupPeriod+ ...
        IncrementalPCA.EstimationPeriod)/numObsPerChunk,"b:")
    xlim([0 nchunk])
    nexttile
    h = plot(ce.Variables);
    xlim([0 nchunk])
    ylabel("Classification Error")
    xline((IncrementalLinear.MetricsWarmupPeriod+ ...
        IncrementalPCA.WarmupPeriod+ ...
        IncrementalPCA.EstimationPeriod)/numObsPerChunk,"g--")
    legend(h,ce.Properties.VariableNames)
    xlabel(t,"Iteration")

    Figure contains 3 axes objects. Axes object 1 with ylabel Top EV [%] contains 2 objects of type line, constantline. Axes object 2 with ylabel \beta_1 contains 2 objects of type line, constantline. Axes object 3 with ylabel Classification Error contains 3 objects of type line, constantline. These objects represent Cumulative, Window.

    The highest explained variance value is 0 during the estimation period and then rapidly rises to 73%. The value then gradually approaches 77%.

    The plots suggest that updateMetricsAndFit performs these steps:

    • Fit β1 after the estimation and warm-up periods only.

    • Compute the performance metrics after the estimation, warm-up, and metrics warm-up periods only.

    • Compute the cumulative metrics during each iteration.

    • Compute the window metrics after processing 200 observations (four iterations).

    Predict Activity Labels Using Final Models

    Transform the test data using the final incremental PCA model. Predict activity labels for the transformed test data using the final incremental linear classification model.

    transformedXtest = transform(IncrementalPCA,Xtest);
    predictedLabels = predict(IncrementalLinear,transformedXtest);

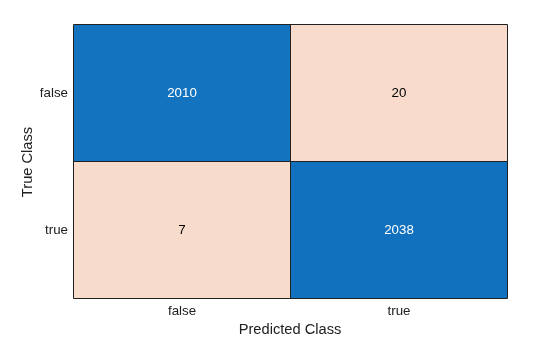

    Create a confusion matrix for the test data.

    figure
    ConfusionTrain = confusionchart(Ytest,predictedLabels);

    Figure contains an object of type ConfusionMatrixChart.

    The final model misclassifies only 27 of 4075 observations in the test data.

    Tips

    • You can create an incrementalPCA model object that incorporates the outputs of the pca function by using the following code:

      [coeff,~,latent,~,~,mu]=pca(X);
      incrementalMdl = incrementalPCA(Coefficients=coeff, ...
          Latent=latent,Means=mu,NumObservations=1000);

    • You can create an incrementalPCA model object that incorporates the outputs of the pcacov function by using the following code:

      [coeff,latent]=pcacov(V);
      incrementalMdl = incrementalPCA(Coefficients=coeff,Latent=latent);

    Algorithms

    expand all

    References

    [1] Ross, David A., Jongwoo Lim, Ruei-Sung Lin, and Ming-Hsuan Yang. "Incremental Learning for Robust Visual Tracking." International Journal of Computer Vision 77 (2008): 125-141.

    Version History

    Introduced in R2024a
