Preprocess Multiresolution Images for Training Classification Network

This example shows how to prepare datastores that read and preprocess multiresolution whole slide images (WSIs) that might not fit in memory.

Deep learning approaches to tumor classification rely on digital pathology, in which whole tissue slides are imaged and digitized. The resulting WSIs have high resolution, on the order of 200,000-by-100,000 pixels. WSIs are frequently stored in a multiresolution format to facilitate efficient display, navigation, and processing of images.

Read and process WSI data using blockedImage and blockedImageDatastore objects. These objects facilitate working with multiple resolution levels and do not require the image to be loaded into core memory. This example shows how to use lower resolution image data to efficiently prepare data from the finer levels. You can use the processed data to train classification deep learning networks. For an example, see Classify Tumors in Multiresolution Blocked Images.

Download Camelyon16 Data Set

This example uses WSIs from the Camelyon16 challenge [1]. The data from this challenge contains a total of 400 WSIs of lymph nodes from two independent sources, separated into 270 training images and 130 test images. The WSIs are stored as TIF files in a stripped format with an 11-level pyramid structure.

The training data set consists of 159 WSIs of normal lymph nodes and 111 WSIs of lymph nodes with tumor and healthy tissue. Ground truth coordinates of the lesion boundaries accompany the tumor images. The size of the data set is approximately 451 GB.

Specify dataDir as the target location of the data.

dataDir = fullfile(tempdir,"Camelyon16");

Create folders to store the Camelyon16 data set.

trainingDir = fullfile(dataDir,"training");
trainNormalDir = fullfile(trainingDir,"normal");
trainTumorDir = fullfile(trainingDir,"tumor");
trainAnnotationDir = fullfile(trainingDir,"lesion_annotations");
if ~exist(dataDir,"dir")
    mkdir(trainingDir)
    mkdir(trainNormalDir)
    mkdir(trainTumorDir)
    mkdir(trainAnnotationDir)
end

To download the entire training data set for running this example, see http://gigadb.org/dataset/100439. Navigate to the Files tab and click (FTPSite), which is the FTP server location of the data set. Use an FTP client or call the ftp function to download the training data folder /pub/gigadb/pub/10.5524/100001_101000/100439/CAMELYON16/training from the host ftp.cngb.org. Download the contents of this training data folder by following these steps:

  1. Download the lesion_annotations.zip file. Extract the files to the folder specified by the trainAnnotationDir variable.

  2. Download the images from the normal subfolder to the folder specified by the trainNormalDir variable.

  3. Download the images from the tumor subfolder to the folder specified by the trainTumorDir variable.

To download and access each WSI file individually, select files to download at the bottom of the page in the Files table.

Create blockedImage Objects to Manage WSI Images

Get the file names of the normal and tumor training images.

normalFileSet = matlab.io.datastore.FileSet(fullfile(trainNormalDir,"normal*"));
normalFilenames = normalFileSet.FileInfo.Filename;
tumorFileSet = matlab.io.datastore.FileSet(fullfile(trainTumorDir,"tumor*"));
tumorFilenames = tumorFileSet.FileInfo.Filename;

One of the training images of normal tissue, "normal_144.tif," is missing important metadata required to deduce the physical extents of the image. Exclude this file.

normalFilenames(contains(normalFilenames,"normal_144")) = [];

Create two arrays of blockedImage objects, one for normal images and one for the tumor images. Each blockedImage object points to the corresponding image file on disk.

normalImages = blockedImage(normalFilenames);
tumorImages = blockedImage(tumorFilenames);

Display WSI Images

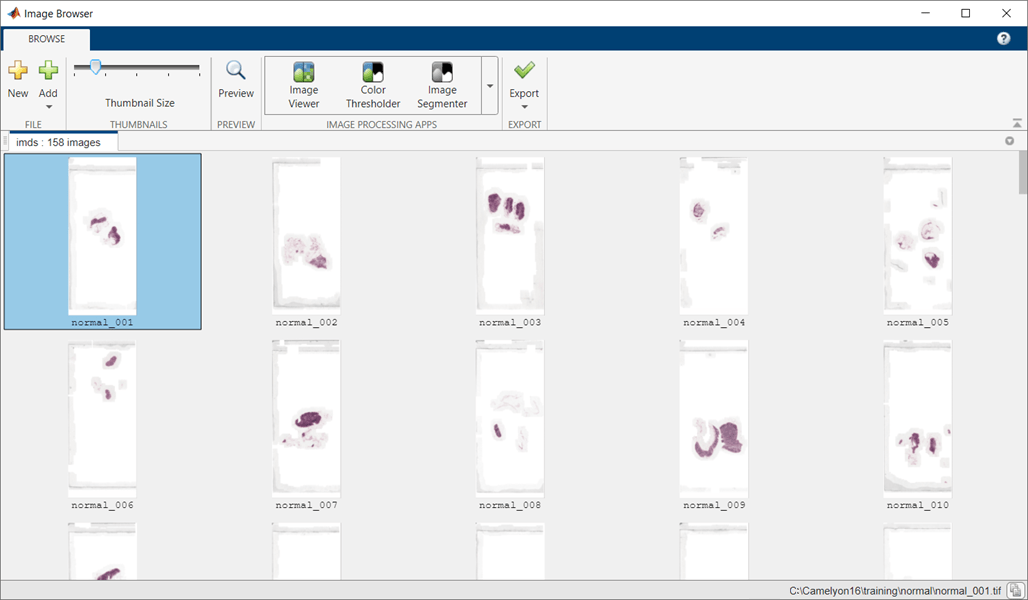

To get a better understanding of the training data, display the blocked images of normal tissue. The images at a coarse resolution level are small enough to fit in memory, so you can visually inspect the blockedImage data in the Image Browser app using the browseBlockedImages helper function. This helper function is attached to the example as a supporting file. Note that the images contain a lot of empty white space and that the tissue occupies only a small portion of the image. These characteristics are typical of WSIs.

browseBlockedImages(normalImages,8)

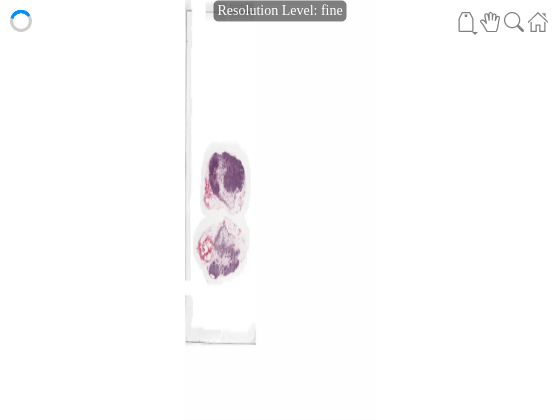

Explore a single blockedImage in more depth. Select a sample tumor image to visualize, then display the image using the bigimageshow function. The function automatically selects the resolution level based on the screen size and the current zoom level.

idxSampleTumorImage = 10;
tumorImage = tumorImages(idxSampleTumorImage);
h = bigimageshow(tumorImage);
title("Resolution Level: "+h.ResolutionLevel)

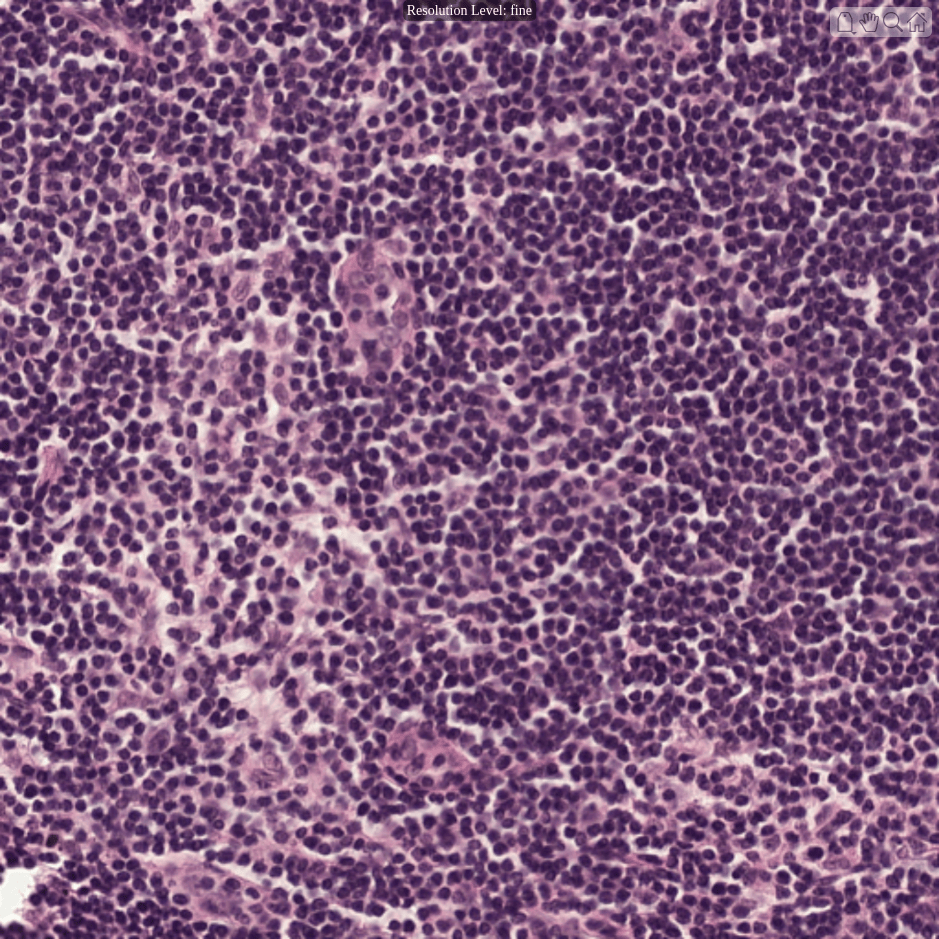

Zoom in to an area of interest. The resolution level automatically increases to show more detail.

xlim([33600, 35000])
ylim([104600, 106000])
title("Resolution Level: "+h.ResolutionLevel)

Align Spatial Extents

When you work with multiple resolution levels of a multiresolution image, the spatial extents of each level must match. If spatial extents are aligned, then information such as masks can be extracted at coarse resolution levels and correctly applied to matching locations at finer resolution levels. For more information, see Set Up Spatial Referencing for Blocked Images.

Inspect the dimensions of the sample tumor image at each resolution level. Level 1 has the most pixels and is the finest resolution level. Level 10 has the fewest pixels and is the coarsest resolution level. The aspect ratio is not consistent, which usually indicates that the levels do not span the same world area.

levelSizeInfo = table((1:length(tumorImage.Size))', ...
    tumorImage.Size(:,1), ...
    tumorImage.Size(:,2), ...
    tumorImage.Size(:,1)./tumorImage.Size(:,2), ...
    VariableNames=["Resolution Level" "Image Width" "Image Height" "Aspect Ratio"]);
disp(levelSizeInfo)
    Resolution Level    Image Width    Image Height    Aspect Ratio
    ________________    ___________    ____________    ____________

            1           2.1555e+05        97792           2.2042
            2           1.0803e+05        49152           2.1979
            3                54272        24576           2.2083
            4                27136        12288           2.2083
            5                13824         6144             2.25
            6                 7168         3072           2.3333
            7                 1577         3629          0.43455
            8                 3584         1536           2.3333
            9                 2048         1024                2
           10                 1024          512                2
           11                  512          512                1

Set the spatial referencing for all training data by using the setSpatialReferencingForCamelyon16 helper function. This function is attached to the example as a supporting file. The setSpatialReferencingForCamelyon16 function sets the WorldStart and WorldEnd properties of each blockedImage object using the spatial referencing information from the TIF file metadata.

normalImages = setSpatialReferencingForCamelyon16(normalImages);
tumorImages = setSpatialReferencingForCamelyon16(tumorImages);

Create Tissue Masks

The majority of a typical WSI consists of background pixels. To process WSI data efficiently, you can create a region of interest (ROI) mask from a coarse resolution level, and then limit computations at finer resolution levels to regions within the ROI. For more information, see Process Blocked Images Efficiently Using Mask.

Consider these two factors when picking a mask level:

  • The image size at the chosen mask level. To process the masks more quickly, use a lower resolution level.

  • The fidelity of ROI boundaries at the chosen level. To capture the boundary accurately, use a higher resolution level.

This example uses a coarse resolution level to create masks for the training images of normal tissue.

normalMaskLevel = 8;

The background is uniformly light. You can segment out the tissue through a simple thresholding operation. Apply a threshold in a block-wise manner to all normal training images using the apply function. Save the results to disk by specifying the OutputLocation name-value argument.

trainNormalMaskDir = fullfile(trainingDir,"normal_mask_level"+num2str(normalMaskLevel));
if ~isfolder(trainNormalMaskDir)
    normalMasks = apply(normalImages, @(bs)imclose(im2gray(bs.Data)<150, ones(5)), ...
        BlockSize=[512 512],...
        Level=normalMaskLevel, ...
        UseParallel=canUseGPU, ...
        OutputLocation=trainNormalMaskDir);
    save(fullfile(trainNormalMaskDir,"normalMasks.mat"),"normalMasks")
else
    load(fullfile(trainNormalMaskDir,"normalMasks.mat"),"normalMasks");
end

Display Tissue Masks

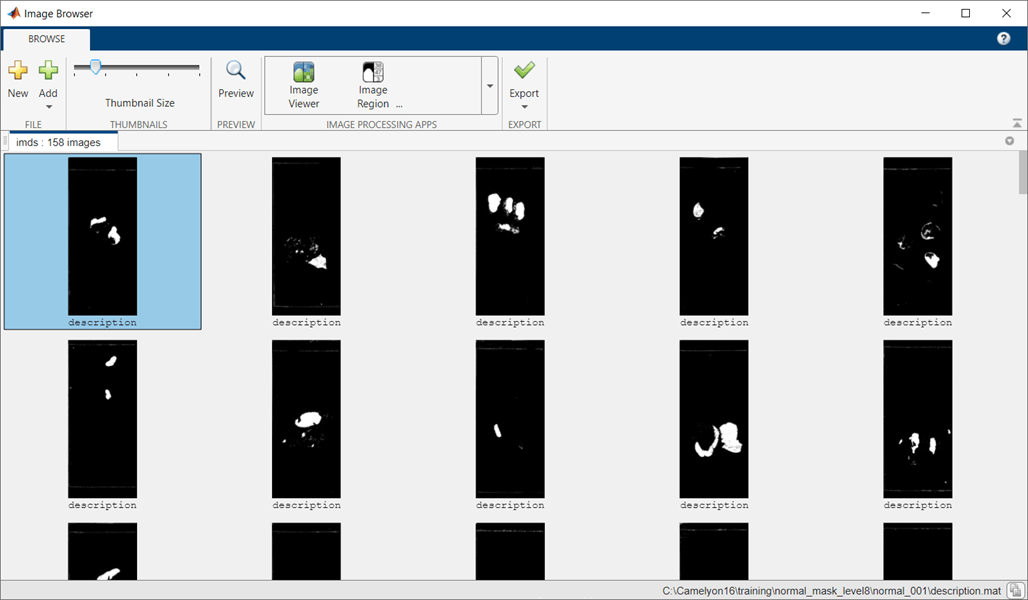

The tissue masks have only one level and are small enough to fit in memory. Display the tissue masks in the Image Browser app using the browseBlockedImages helper function. This helper function is attached to the example as a supporting file.

browseBlockedImages(normalMasks,1)


Based on the overview, select one blockedImage to further assess the accuracy of the tissue mask. Display the blockedImage using the bigimageshow function. Display the mask as an overlay on the blockedImage using the showlabels function. Set the transparency of each pixel using the AlphaData name-value argument. For pixels within the ROI, the labels are fully transparent. For pixels outside the ROI, the label is partially transparent and appears with a green tint.

idxSampleNormalImage = 42;
normalImage = normalImages(idxSampleNormalImage);
normalMask = normalMasks(idxSampleNormalImage);

hNormal = bigimageshow(normalImage);
showlabels(hNormal,normalMask,AlphaData=normalMask,Alphamap=[0.3 0])
title("Tissue; Background Has Green Tint")

Zoom in to inspect an area of interest.

xlim([47540 62563])
ylim([140557 155581])

Create Tumor Masks

In tumor images, the ROI consists of tumor tissue. The color of tumor tissue is similar to the color of healthy tissue, so you cannot use color segmentation techniques. Instead, create ROIs by using the ground truth coordinates of the lesion boundaries that accompany the tumor images. These regions are hand drawn at the finest level.

Display Tumor Boundaries

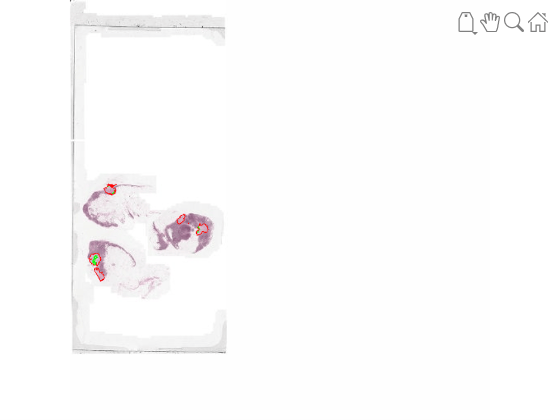

To get a better understanding of the tumor training data, read the ground truth boundary coordinates and display the coordinates as freehand ROIs using the showCamelyon16TumorAnnotations helper function. This helper function is attached to the example as a supporting file. Notice that normal regions (shown with a green boundary) can occur inside tumor regions.

idxSampleTumorImage = 64;
tumorImage = tumorImages(idxSampleTumorImage);
showCamelyon16TumorAnnotations(tumorImage,trainAnnotationDir);
xlim([77810 83602])
ylim([139971 145763])

Convert Polygon Coordinates to Binary Blocked Images

Specify the resolution level of the tumor masks.

tumorMaskLevel = 8;

Create a tumor mask for each image using the createMaskForCamelyon16TumorTissue helper function. This helper function is attached to the example as a supporting file. For each image, the function performs these operations.

  • Read the (x, y) boundary coordinates for all ROIs in the annotated XML file.

  • Separate the boundary coordinates for tumor and normal tissue ROIs into separate cell arrays.

  • Convert the cell arrays of boundary coordinates to a binary blocked image using the polyToBlockedImage function. In the binary image, the ROI indicates tumor pixels and the background indicates normal tissue pixels. Pixels that are within both tumor and normal tissue ROIs are classified as background.

trainTumorMaskDir = fullfile(trainingDir,"tumor_mask_level"+num2str(tumorMaskLevel));
if ~isfolder(trainTumorMaskDir)
    mkdir(trainTumorMaskDir)
    tumorMasks = createMaskForCamelyon16TumorTissue( ...
        tumorImages,trainAnnotationDir,trainTumorMaskDir,tumorMaskLevel);
    save(fullfile(trainTumorMaskDir,"tumorMasks.mat"),"tumorMasks")
else
    load(fullfile(trainTumorMaskDir,"tumorMasks.mat"),"tumorMasks");
end

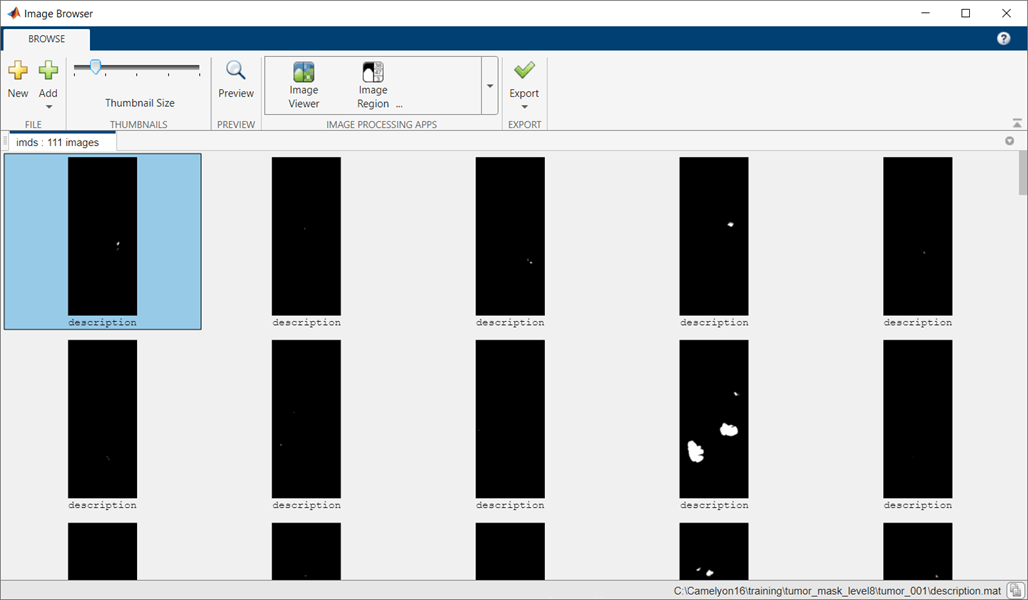

The tumor masks have only one resolution level and are small enough to fit in memory. Display the tumor masks in the Image Browser app using the browseBlockedImages helper function. This helper function is attached to the example as a supporting file.

browseBlockedImages(tumorMasks,1)


Confirm Fidelity of Mask to ROI Boundaries

Select a sample tumor image that has intricate regions, and display the blockedImage using the bigimageshow function. Display the mask as an overlay on the blockedImage using the showlabels function. Set the transparency of each pixel using the AlphaData name-value argument. For pixels within the ROI, the labels are fully transparent. For pixels outside the ROI, the label is partially transparent and appears with a green tint.

idxSampleTumorImage = 64;
tumorImage = tumorImages(idxSampleTumorImage);
tumorMask = tumorMasks(idxSampleTumorImage);
hTumor = bigimageshow(tumorImage);
showlabels(hTumor,tumorMask,AlphaData=tumorMask,Alphamap=[0.3 0]);
title("Tumor; Background Has Green Tint")
xlim([77810 83602])
ylim([139971 145763])

Select Blocks For Training

You can train a network using data from any resolution level. Finer resolution levels provide more homogenous blocks for either class. Coarser levels, which cover a larger spatial region for the same block size, have more surrounding context. For this example, select blocks at the finest resolution level.

trainingLevel = 1;

Specify the block size to match the input size of the network. This example uses a block size suitable for the Inception-v3 network.

networkBlockSize = [299 299 3];

Create sets of normal and tumor blocks using the selectBlockLocations function. This function selects blocks that are within the specified mask area. You can refine the number of selected blocks for each class by specifying the BlockOffsets and InclusionThreshold name-value arguments. Consider these two factors when calling the selectBlockLocations function.

  • The amount of training data. Using as much of the training data as possible helps to generalize the network during training and ensures a good class representation balance in the selected block set. Increase the number of selected blocks by decreasing the BlockOffsets and InclusionThreshold name-value arguments.

  • The hardware and time available to train. Using more blocks requires more training time or more powerful hardware. Decrease the number of selected blocks by increasing the BlockOffsets and InclusionThreshold name-value arguments.

Select blocks within the normal images using the tissue masks. This example specifies values of BlockOffsets and InclusionThreshold that result in a relatively small number of blocks.

normalOffsetFactor = 3.5;
normalInclusionThreshold = 0.97;
blsNormalData = selectBlockLocations(normalImages, ...
    BlockSize=networkBlockSize(1:2), ...
    BlockOffsets=round(networkBlockSize(1:2)*normalOffsetFactor), ...
    Levels=trainingLevel, ...
    Masks=normalMasks, ...
    InclusionThreshold=normalInclusionThreshold, ...
    ExcludeIncompleteBlocks=true, ...
    UseParallel=canUseGPU);
disp(blsNormalData)
  blockLocationSet with properties:

    ImageNumber: [190577×1 double]
    BlockOrigin: [190577×3 double]
      BlockSize: [299 299 3]
         Levels: [1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 … ]

Select blocks within the tumor images using the tumor masks. This example specifies values of BlockOffsets and InclusionThreshold that result in a relatively small number of blocks.

tumorOffsetFactor = 1;
tumorInclusionThreshold = 0.90;
blsTumorData = selectBlockLocations(tumorImages, ...
    BlockSize=networkBlockSize(1:2), ...
    BlockOffsets=round(networkBlockSize(1:2)*tumorOffsetFactor), ...
    Levels=trainingLevel, ...
    Masks=tumorMasks, ...
    InclusionThreshold=tumorInclusionThreshold, ...
    ExcludeIncompleteBlocks=true, ...
    UseParallel=canUseGPU);
disp(blsTumorData)
  blockLocationSet with properties:

    ImageNumber: [181679×1 double]
    BlockOrigin: [181679×3 double]
      BlockSize: [299 299 3]
         Levels: [1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 … ]

Create Blocked Image Datastores for Training and Validation

Create a single blockedImageDatastore object by combining the sets of normal and tumor blocks.

[blsAll,allImages] = mergeBlockLocationSets(blsNormalData,normalImages,blsTumorData,tumorImages);
dsAllBlocks = blockedImageDatastore(allImages,BlockLocationSet=blsAll);

Shuffle the blocks to reduce chances of overfitting and to increase generalization in the training process.

dsAllBlocks = shuffle(dsAllBlocks);

Partition the blocks into training and validation data sets. Allocate 99% of the blocks for training and use the remaining 1% for validation.

numericBlockLabels = [zeros(size(blsNormalData.ImageNumber)); ones(size(blsTumorData.ImageNumber))];
blockLabels = categorical(numericBlockLabels,[0,1],["normal","tumor"]);
idx  = splitlabels(blockLabels,0.99,"randomized");
dsTrain = subset(dsAllBlocks,idx{1});
dsVal = subset(dsAllBlocks,idx{2});

Training a classification network requires labeled training data. Label each block as normal or tumor based on the image containing the block. Specify the block labels as normal and tumor.

numericImageLabels = [zeros(size(normalImages)),ones(size(tumorImages))];
imageLabels = categorical(numericImageLabels,[0,1],["normal","tumor"]);

Transform the blockedImageDatastore such that the datastore returns both blocks and corresponding labels using the transform function and the labelCamelyon16Blocks helper function. The helper function is attached to the example as a supporting file.

The labelCamelyon16Blocks helper function derives the block label from the image index, which is stored in the ImageNumber field of the block metadata. The helper function returns the block data and label as a two-element cell array, suitable for training a classification network.

dsTrainLabeled = transform(dsTrain, ...
    @(block,blockInfo) labelCamelyon16Blocks(block,blockInfo,imageLabels),IncludeInfo=true);
dsValLabeled = transform(dsVal, ...
    @(block,blockInfo) labelCamelyon16Blocks(block,blockInfo,imageLabels),IncludeInfo=true);

Augment Training Data

Augment the training data using the transform function and the augmentBlocksReflectionRotation helper function. The helper function is attached to the example as a supporting file.

The augmentBlocksReflectionRotation helper function increases the size of the training data by creating three variations of each input block with reflections and 90 degree rotations.

dsTrainLabeled = transform(dsTrainLabeled,@augmentBlocksReflectionRotation);

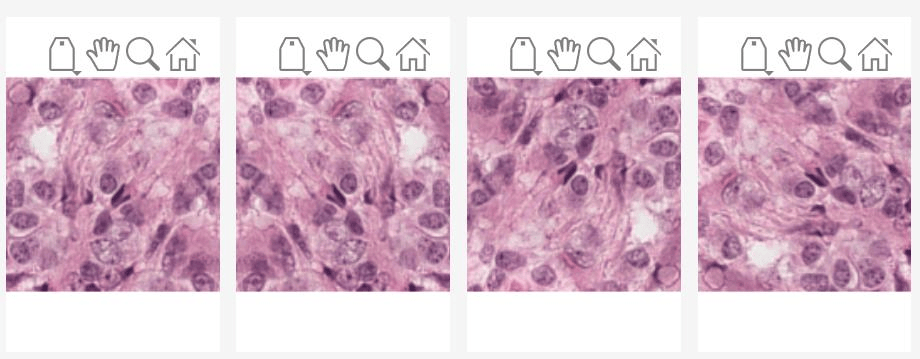

Preview a batch of training data.

batch = preview(dsTrainLabeled);
montage(batch(:,1),BorderSize=5,Size=[1 4])

You can improve the ability of the network to generalize to other data by performing additional randomized augmentation operations. For example, stain normalization is a common augmentation technique for WSI images. Stain normalization reduces the variability in color and intensity present in stained images from different sources [4].

Save the training and validation datastores to disk.

save(fullfile(dataDir,"trainingAndValidationDatastores.mat"),"dsTrainLabeled","dsValLabeled");

You can now use the datastores to train and validate a classification network. For an example, see Classify Tumors in Multiresolution Blocked Images.

References

[1] Ehteshami Bejnordi, Babak, Mitko Veta, Paul Johannes van Diest, Bram van Ginneken, Nico Karssemeijer, Geert Litjens, Jeroen A. W. M. van der Laak, et al. “Diagnostic Assessment of Deep Learning Algorithms for Detection of Lymph Node Metastases in Women With Breast Cancer.” JAMA 318, no. 22 (December 12, 2017): 2199–2210. https://doi.org/10.1001/jama.2017.14585.

[2] Szegedy, Christian, Vincent Vanhoucke, Sergey Ioffe, Jonathon Shlens, and Zbigniew Wojna. “Rethinking the Inception Architecture for Computer Vision,” December 2, 2015. https://arxiv.org/abs/1512.00567v3.

[3] ImageNet. https://www.image-net.org.

[4] Macenko, Marc, Marc Niethammer, J. S. Marron, David Borland, John T. Woosley, Xiaojun Guan, Charles Schmitt, and Nancy E. Thomas. “A Method for Normalizing Histology Slides for Quantitative Analysis.” In 2009 IEEE International Symposium on Biomedical Imaging: From Nano to Macro, 1107–10, 2009. https://doi.org/10.1109/ISBI.2009.5193250.
